Cisco 300-615 Online Practice Questions and Exam Preparation

Cisco 300-615 Online Questions & Answers

• Question 241:

  Refer to the exhibit.

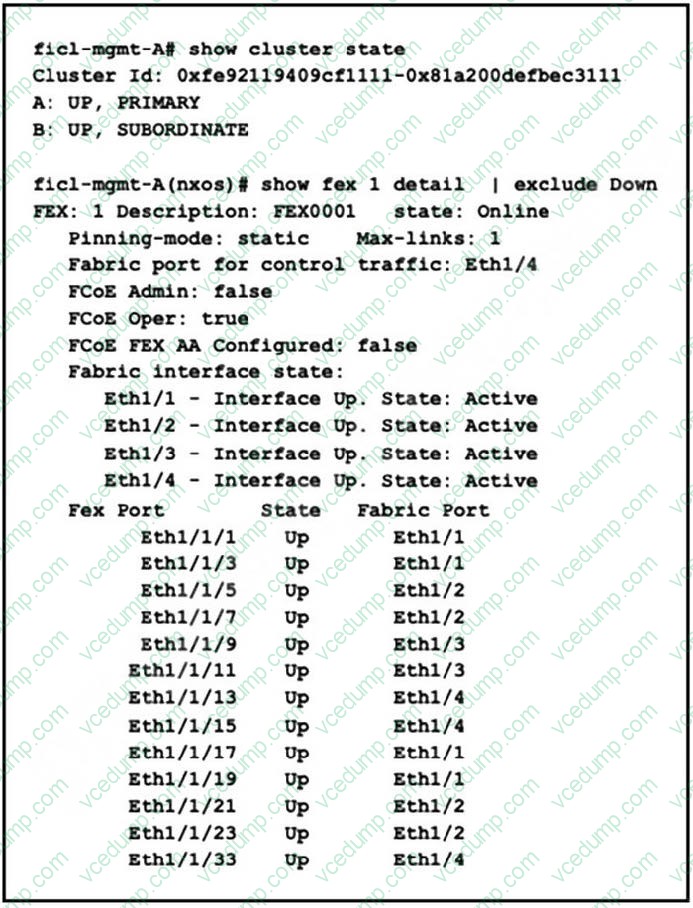

  A network engineer needs to capture traffic from the VMs that utilize the IOM host interface Eth1/1/23 of a Cisco UCS B-Series chassis. A traffic analyzer is used to get traffic captured from the Eth1/4 interface of the subordinate fabric interconnect. The network engineer notices that traffic is not captured on the traffic analyzer. Which action resolves the issue?

  A. Span the traffic from the Eth 1/2 of the subordinate fabric interconnect
  B. Span the traffic from the Eth 1/2 of the primary fabric interconnect
  C. Span the traffic from the Eth 1/4 of the subordinate fabric interconnect
  D. Span the traffic from the Eth 1/4 of the primary fabric interconnect
  B. Span the traffic from the Eth 1/2 of the primary fabric interconnect

  ---

• Question 242:

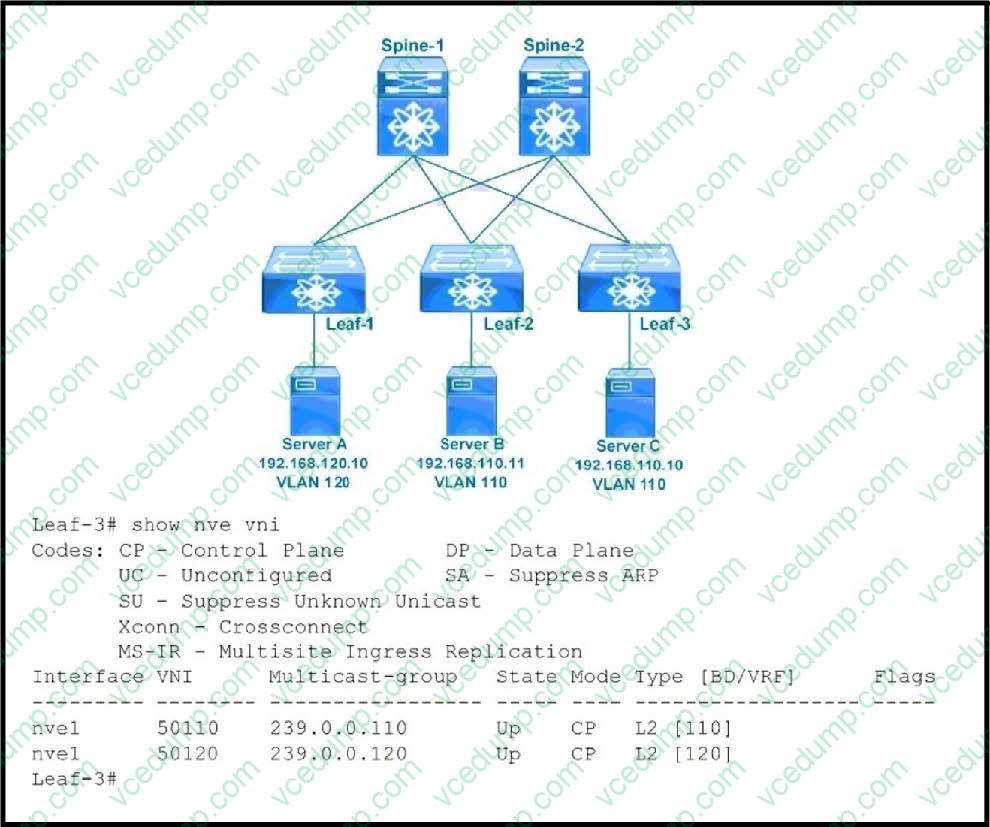

  Refer to the exhibit. The VXLAN communication fails between Server A and Server C. Server A and Server B can communicate, but Server C can only reach Server B and its default gateway. Which action must be taken on Leaf-3 to resolve the issue?

  A. Implement a VLAN 120 Layer 2 VNI.
  B. Configure a tenant Layer 3 VNI.
  C. Configure a Layer 2 VNI.
  D. Implement a VLAN 110 Layer 3 VNI.
  A. Implement a VLAN 120 Layer 2 VNI.

  ---

• Question 243:

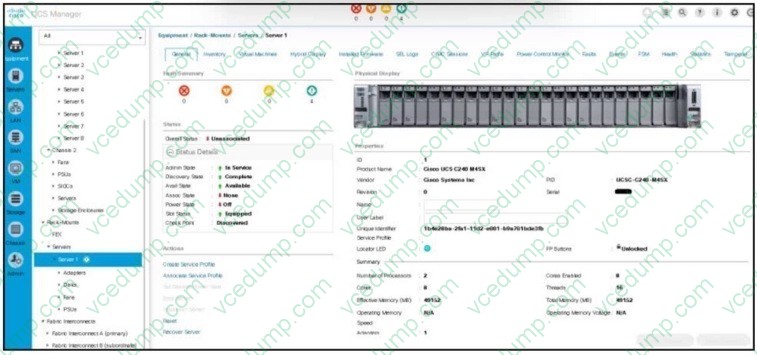

  Refer to the exhibit. The server appears as Unassociated Inside Cisco UCS Manager. The engineer performs a hard reboot and a reset, but the problem persists. Which action resolves the issue?

  A. Associate the server to a service profile.
  B. Plug the server in to a power source.
  C. Factory reset the server to default settings.
  D. Select the Recover Server feature.
  A. Associate the server to a service profile.

  ---

• Question 244:

  Refer to the exhibit.

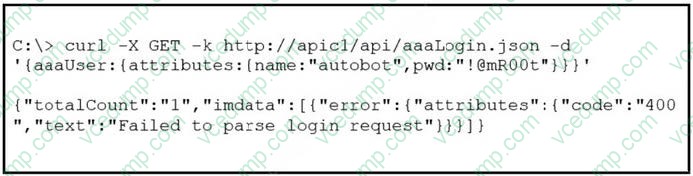

  The NetOevOps team is using REST API calls to automate the Cisco APIC monitoring. Which action resolves the issue?

  A. Remove the attributes keyword from the message data.
  B. Change the API request method to POST.
  C. Modify the URI to http://apic1/api/aaaLogin.xml.
  D. Use "double quotes" between each word in the message area.
  B. Change the API request method to POST.

  ---

• Question 245:

  An engineer troubleshoots a failed DCBX exchange between a server and a Cisco Nexus switch. Which action allows DCBX to successfully negotiate?

  A. Enable ETS
  B. Enable PFC.
  C. Enable Cisco Discovery Protocol.
  D. Enable LLDP.
  D. Enable LLDP.

  ---

• Question 246:

  Refer to the exhibit.

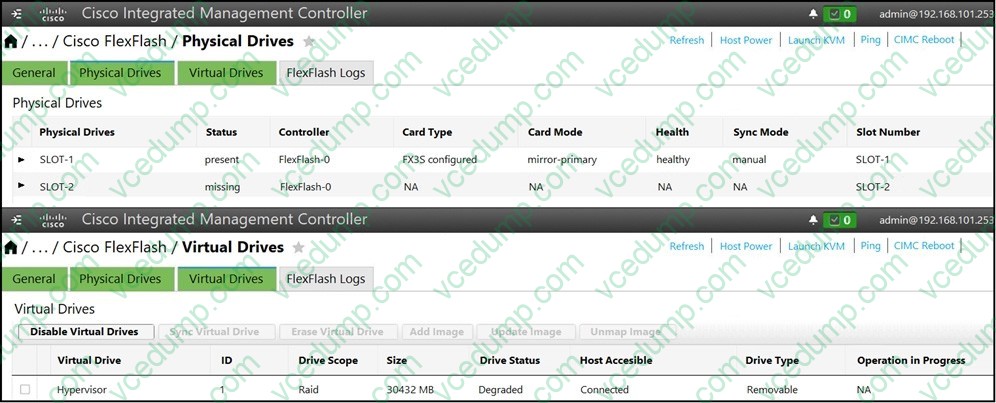

  During implementation of a Cisco UCS C-Series Server, an engineer receives the status that is shown in the exhibit. Which action resolves the issue?

  A. Insert an SD card into SLOT-2.
  B. Reconfigure the Drive Type from "Removable" to "Non-Removable".
  C. Set SLOT-1 Sync Mode to "Auto".
  D. Configure the RAID that is associated with the card.
  C. Set SLOT-1 Sync Mode to "Auto".

  ---

• Question 247:

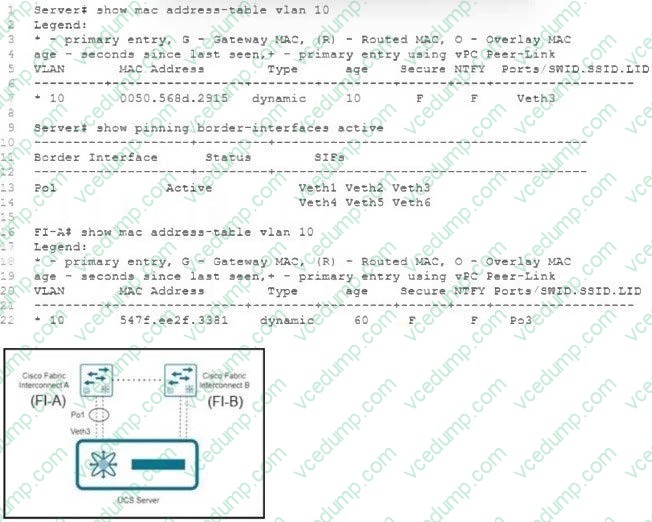

  Refer to the exhibit. An engineer analyzes the packet flow in a Cisco UCS domain that consists of Cisco UCS Fabric Interconnects. The engineer discovers that the virtual machine traffic goes through Cisco Fabric Interconnect B, but the traffic is expected to go through Cisco Fabric Interconnect A.

  Which action resolves the issue?

  A. Plug the uplink cable into a different port
  B. Allow VLAN 10 on FI-A
  C. Plug the server cable into a different port
  D. Allow VLAN 10 on FI-B
  B. Allow VLAN 10 on FI-A

  ---

• Question 248:

  An engineer troubleshoots a VXLAN EVPN data center. The applications in the data center fail to reach the DNS server that is located at IP 10.10.10.10. The engineer examines the BGP EVPN routing table and notes that the IP prefix route covers the DNS server is missing. Which action resolve the issue?

  A. Set the IP prefix route to represent [5]:[0]:[0]:[32]:[10.10.10.10]/224 in the routing table.
  B. Configure an IP ARP entry to represent [2]:[0]:[0]:[48]:[0050.569f.1285]:[32]:[10.10.10.10]/272 in the routing table
  C. Set the IP prefix route to represent [2]:[0]:[0]:[48]:[0050.569f.1285]:[0]:[0.0.0.0]/216 in the routing table
  D. Configure an IP ARP entry to represent [4]:[0300.0000.00fc.bd00.0309l[32]:[10.10.10.10]/136,n the routing table
  A. Set the IP prefix route to represent [5]:[0]:[0]:[32]:[10.10.10.10]/224 in the routing table.

  ---

• Question 249:

  An engineer must upgrade the firmware of the Cisco UCS B-Series servers that are managed by Cisco UCS Manager. The upgrade must start immediately without automatically restarting the blade servers. Which action meets this objective?

  A. Set the chassis global power policy to grid.
  B. Set the Fabric Interconnect to switching mode.
  C. Use maintenance policy with the reboot policy set to user-acknowledge.
  D. Use the network control policy action when an uplink fails to issue a warning.
  C. Use maintenance policy with the reboot policy set to user-acknowledge.

  ---

• Question 250:

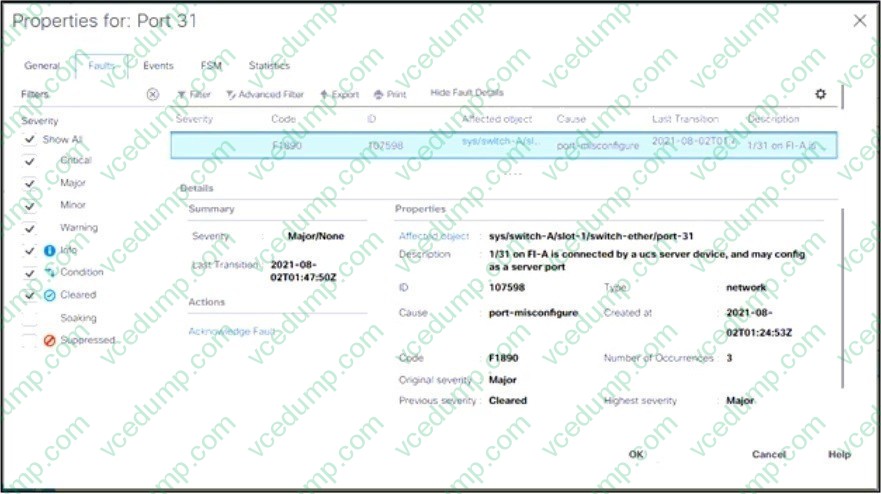

  Refer to the exhibit. The fault was raised after a port that belongs to a Cisco UCS chassis I/O module was connected to port 31 of the fabric interconnect. Which action resolves the fault?

  A. Change chassis discovery policy action to 1 link.
  B. Acknowledge the affected server.
  C. Reconfigure the port as a server port.
  D. Recommission the chassis.
  C. Reconfigure the port as a server port.

  ---
