Cisco 300-615 Online Practice Questions and Exam Preparation

Cisco 300-615 Online Questions & Answers

• Question 111:

  Refer to the exhibit.

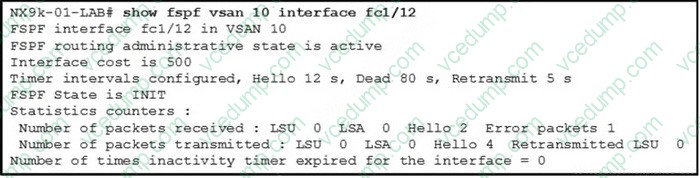

  An engineer is implementing Fibre Channel (FC) switching on a Cisco 9000 Series Switch, but the procedure fails with the message "FC traffic is not being routed through the fabric".

  Which action resolves the issue?

  A. Set the FSPF interface link cost to be less than 30,000 in the IVR path.
  B. Configure the VSAN ID 10 on the link connected to fc1/12.
  C. Configure the FSPF for VSAN 10 on the NX9k-01-LAB switch.
  D. Set the FSPF hello interval on fc1/12 interface the NX9k-01-LAB switch.
  D. Set the FSPF hello interval on fc1/12 interface the NX9k-01-LAB switch.

  ---

• Question 112:

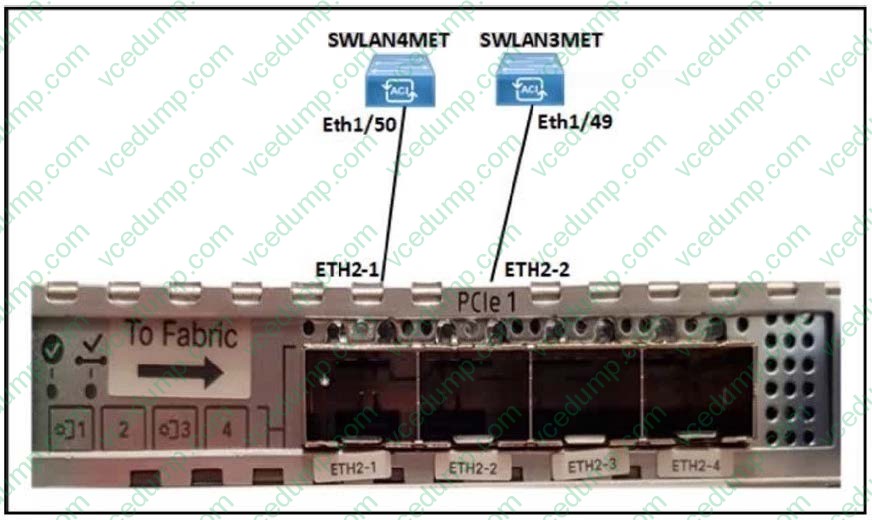

  Refer to the exhibit. An engineer noticed that after the initial Cisco APIC fabric discovery, the cluster is flapping between fully fit and degraded. Which connection must be established to resolve the issue?

  A. Eth1/49 on SWLAN3MET to ETH2-1
  B. Eth1/50 on SWLAN4MET to ETH2-2
  C. Eth1/50 on SWLAN3MET to ETH2-1
  D. Eth1/49 on SWLAN4MET to ETH2-3
  A. Eth1/49 on SWLAN3MET to ETH2-1

  ---

• Question 113:

  Refer to the exhibit.

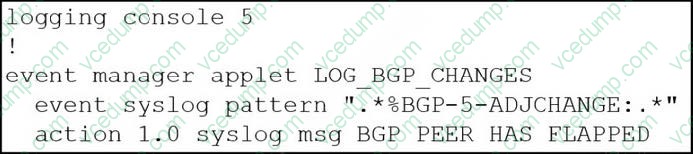

  The EEM applet must generate a syslog message when a BGP adjacency flaps. This message must be displayed to the console of the switch. However, when a BGP adjacency failure is simulated, no syslog message is displayed. Which action resolves the issue?

  A. Add the event-default action statement.
  B. Modify the policy to use the snmp trap action.
  C. Adjust the policy to match an SNMP OID.
  D. Set the logging priority to Wamings.
  D. Set the logging priority to Wamings.

  ---

• Question 114:

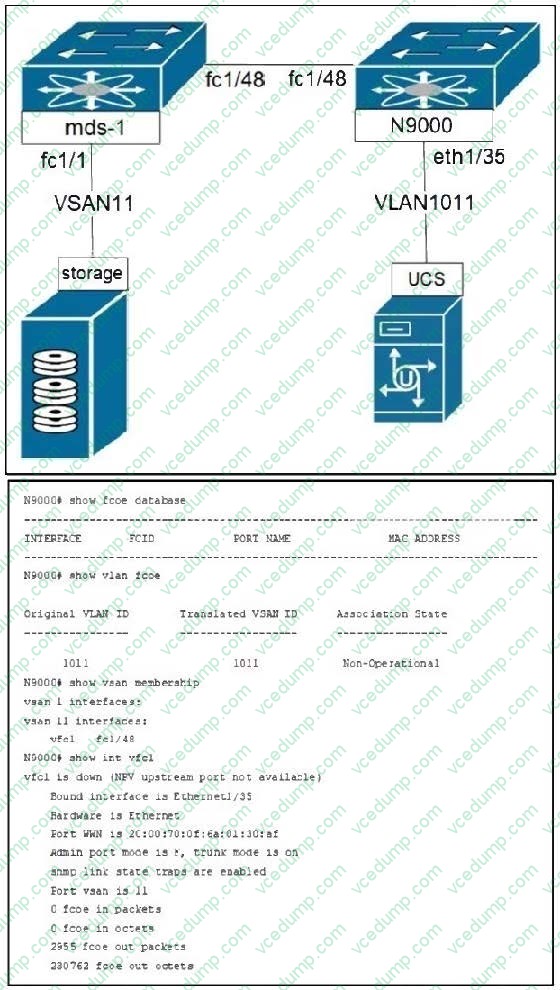

  Refer to the exhibit. A Cisco UCS Series Server fails to boot from SAN, but all other devices in the network that are connected to different switches can boot from SAN. Which set of actions resolves the issue?

  A. Create VSAN1011 and assign it with vfc1 and fc1/48 on the N9000 device. Enable feature-set fcoe-npv on the N9000 device.
  B. Create VSAN1011 and assign it with vfc1 and fc1/48 on the N9000 device. Enable feature npv on the mds-1 device.
  C. Modify VLAN-to-VSAN mapping to VSAN11 on the N9000 device. Enable feature npiv on the N9000 device.
  D. Modify VLAN-to-VSAN mapping to VSAN11 on the N9000 device. Enable feature npiv on the mds-1 device.
  A. Create VSAN1011 and assign it with vfc1 and fc1/48 on the N9000 device. Enable feature-set fcoe-npv on the N9000 device.

  ---

• Question 115:

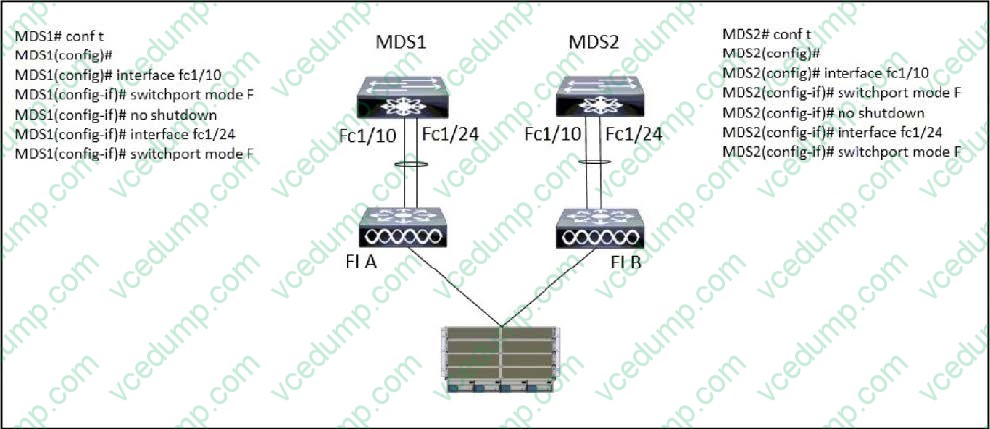

  Refer to the exhibit. A Cisco UCS system fails to access the storage array. Which two actions taken on both MDS switches resolve the issue? (Choose two.)

  A. Enable the fport-channel-trunk feature.
  B. Change the switch port mode to an E port.
  C. Configure a port channel with both interfaces as members.
  D. Replace the SFPs on interswitch links.
  E. Issue the no shutdown command on interface fc1/24.
  A. Enable the fport-channel-trunk feature.
  C. Configure a port channel with both interfaces as members.

  ---

• Question 116:

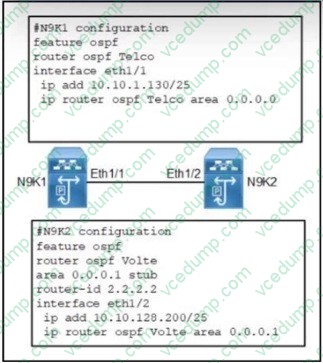

  Refer to the exhibit. Two Cisco Nexus 9000 Series Switches fail to establish OSPF neighborship. Which action set resolves the issue?

  A. Configure ospf area 1 as a standard area on N9K2. Configure eth1/2 with IP address 10.10.128.130/25. Assign eth1/1 to ospf area 0.0.0.1.
  B. Configure ospf area 1 as a standard area on N9K2. Configure elh1/1 with IP address 10.10 128.130/25. Assign eth1/1 to ospf area 0.0.0.1. Most Voted
  C. Configure ospf area 0 as a stub area on N9K1. Configure eth1/2 with IP address 10.10.1.200/25. Assign eth1/2 to ospf area 0.0.0.0.
  D. Configure ospf area 0 as a stub area on N9K1. Configure eth1/1 with IP address 10.10.128.130/25. Assign eth1/2 to ospf area 0.0.0.0
  B. Configure ospf area 1 as a standard area on N9K2. Configure elh1/1 with IP address 10.10 128.130/25. Assign eth1/1 to ospf area 0.0.0.1. Most Voted

  ---

• Question 117:



  Refer to the exhibit. After a power outage, the application team reported that the Cisco UCS C-Series server is reachable only via the server's Cisco IMC and not via the operating system's IP address. Which action resolves the issue?

  A. Enable SSH from the communication service.
  B. Configure the NIC redundancy mode to active-active.
  C. Set the power restore policy to power on.
  D. Disable IP Blocking in the Network Security.
  C. Set the power restore policy to power on.

  ---

• Question 118:

  Refer to the exhibit.

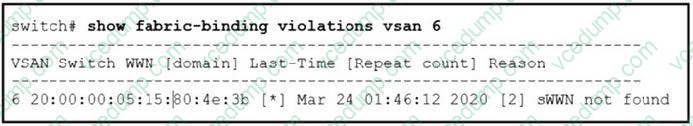

  A switch fails to join the storage area network fabric in VSAN 6 where the fabric binding is enabled. Which configuration set resolves the issue?

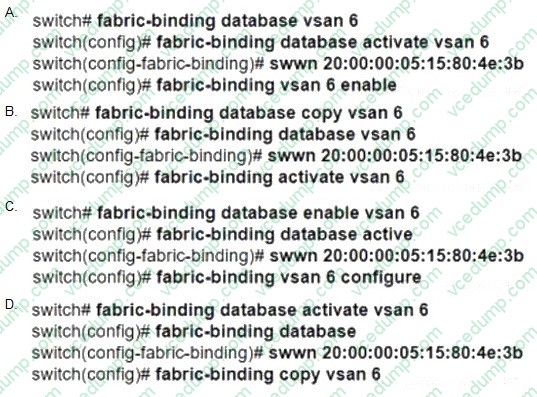

  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

  ---

• Question 119:

  A Cisco UCS C125 M5 server is integrated with Cisco UCS Manager using direct connect mode. The adapter for the server is reported as "inoperable" inside Cisco UCS Manager. Which action resolves the issue?

  A. Reseat the adapter on the motherboard of the server.
  B. Use a port expander with the vNlC adapter.
  C. Match the adapter firmware to the Cisco UCS Manager version.
  D. Connect the network cable to pert 6 of the vNIC adapter.
  D. Connect the network cable to pert 6 of the vNIC adapter.

  ---

• Question 120:

  A Cisco Nexus Series interface is errdisabled with the error message "DCX-No ACK in 100 PDUs". What is the cause of this error?

  A. The host has not responded to the Control Sub-TLV DCBX exchanges of the switch.
  B. The acknowledgement number in the server response has not incremented for 100 exchanges.
  C. Cisco Discovery Protocol is disabled on the switch.
  D. LLDP is disabled on the switch.
  B. The acknowledgement number in the server response has not incremented for 100 exchanges.

  ---
