Cisco 300-175 Online Practice Questions and Exam Preparation

Cisco 300-175 Online Questions & Answers

• Question 51:

  Which of the following is the most accurate concerning the link configuration between Cisco Unified Computing System 22XX I/O modules and Cisco Unified Computing System 62XX Fabric Interconnects?

  A. Port channels are always recommended when using source-dest-mac load balancing.
  B. The addition of links to a port channel requires a reacknowledgement.
  C. You cannot mix and match discrete links and port channeling for different chassis when using 22XX.
  D. Port channels do not require a Global Chassis Discovery policy.
  A. Port channels are always recommended when using source-dest-mac load balancing.

• Question 52:

  Refer to the exhibit. Which type of backup was configured?



  A. logical configuration
  B. all configuration
  C. system configuration
  D. full state
  B. all configuration

• Question 53:

  A service profile is created using vHBAs. What will happen if the profile is applied to a server with a mezzanine card without storage capability?

  A. The blade association will fail.
  B. The storage adapter will not be visible to the operating system.
  C. A virtual storage adapter will be created.
  D. A WWNN or a WWPN will be autoselected from the default pool.
  A. The blade association will fail.

  ---

  https://supportforums.cisco.com/t5/data-center-blogs/c-series-resolve-service-profile-association-failure- when/ba-p/3103082 https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/ UCSM_GUI_Configuration_Guide_141_chapter28.html#topic_4B2EC5A485E54A2893D02A7BB5F3E039

  In addition to any guidelines or recommendations that are specific to policies and pools included in service profiles and service profile templates, such as the local disk configuration policy, you need to be aware of the following guidelines and recommendations that impact the ability to associate a service profile with a server.

• Question 54:

  Which statement about RBAC locates in a Cisco UCS system is true?

  A. Locales are user environment settings such as currency, language, time, and date format
  B. Locales are groups of organizations that are tied to users for authorization purposes
  C. AAA users are called locales in a local database for AAA
  D. Locales are user settings in local and external user databases for AAA
  D. Locales are user settings in local and external user databases for AAA

• Question 55:

  Drag Drop

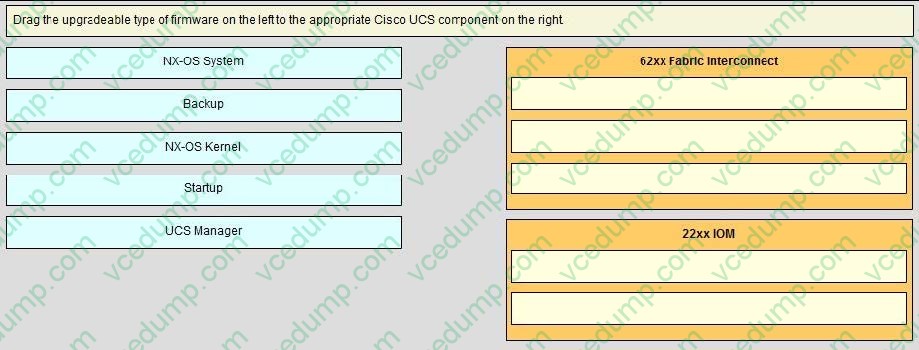

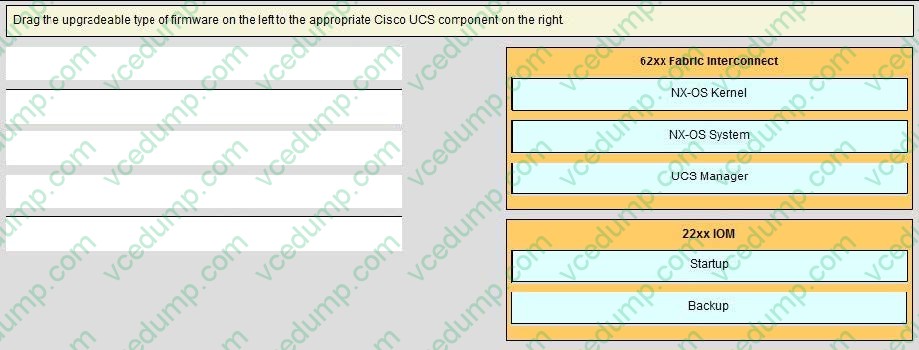

  Drag the upgradeable type of firmware on the left to the appropriate Cisco UCS component on the right.

  Select and Place:





• Question 56:

  Which three items represent some of the components to implement Cisco VM-FEX for Cisco Unified Computing System Manager B-Series blades? (Choose three.)

  A. Cisco VSM VM
  B. VEM installed on the VMware vCenter server
  C. VEM in the VMware ESX or ESXi host
  D. Cisco Unified Computing System Manager version 1.2 or higher
  E. VMware vCenter server
  F. Fibre Channel VMFS volume
  C. VEM in the VMware ESX or ESXi host
  D. Cisco Unified Computing System Manager version 1.2 or higher
  E. VMware vCenter server

• Question 57:

  DRAG DROP

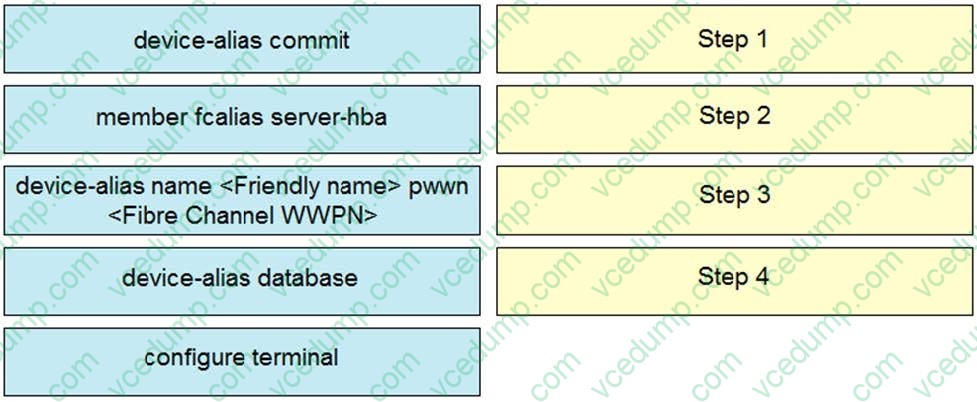

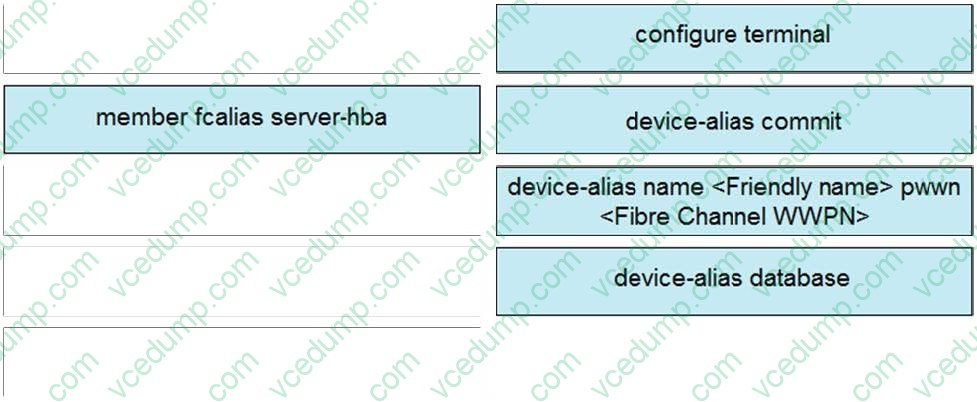

  You need to create a device alias in the pending database. Drag and drop the commands on the left to the correct order of steps on the right. (Not all options are used.)

  Select and Place:





  ---

  Reference: https://www.cisco.com/en/US/docs/storage/san_switches/mds9000/sw/rel_3_x/configuration/guides/cli_3_3_1/ddas.html

• Question 58:

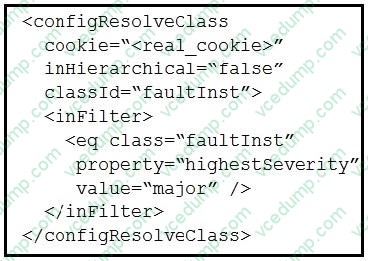

  Refer to the exhibit. Which function does the Cisco UCS Manager XML API snippet perform?

  A. obtains a list of all major and critical faults B. obtains a list of all faults
  C. obtains a list of critical faults only
  D. obtains a list of major faults only
  A. obtains a list of all major and critical faults B. obtains a list of all faults

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/api/b_ucs_api_book.pdf page 21

• Question 59:

  You are configuring RBAC on a Cisco UCS system. What happens when you assign multiple locales to user?

  A. Access to denied to all organizations.
  B. Access is granted to only the first organization that is specific in the locales.
  C. access is granted to only the first organization that is specified in the locales.
  D. Access is granted to all organizations that are specifications in the locales.
  D. Access is granted to all organizations that are specifications in the locales.

• Question 60:

  An administrator is required to configure a policy in Cisco UCS to schedule backups. Which two backup types can be scheduled? (Choose two.)

  A. full state
  B. import configuration
  C. logical configuration
  D. system configuration
  E. all configuration
  A. full state
  E. all configuration

  ---

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-1/b_UCSM_GUI_Configuration_Guide_2_1/ b_UCSM_GUI_Configuration_Guide_2_1_chapter_0101001.html#concept_7075407A62F842788089041DC1B90D41
