Cisco 300-175 Online Practice Questions and Exam Preparation

300-175 Exam Details

  • Exam Code
    :300-175
  • Exam Name
    :Implementing Cisco Data Center Unified Computing
  • Certification
    :Cisco Certifications
  • Vendor
    :Cisco
  • Total Questions
    :442 Q&As
  • Last Updated
    :Dec 12, 2021

Cisco 300-175 Online Questions & Answers

  • Question 121:

    Which two features in Cisco UCS Manager can be configured from LAN Uplinks Manager? (Choose two.)

    A. vNIC templates
    B. LAN Pin Groups
    C. VLAN groups
    D. adapter policies
    E. link profiles

  • Question 122:

    Drag Drop

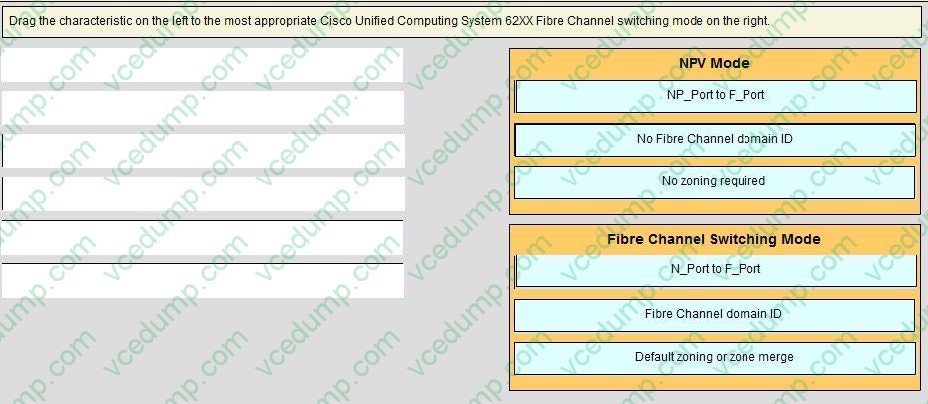

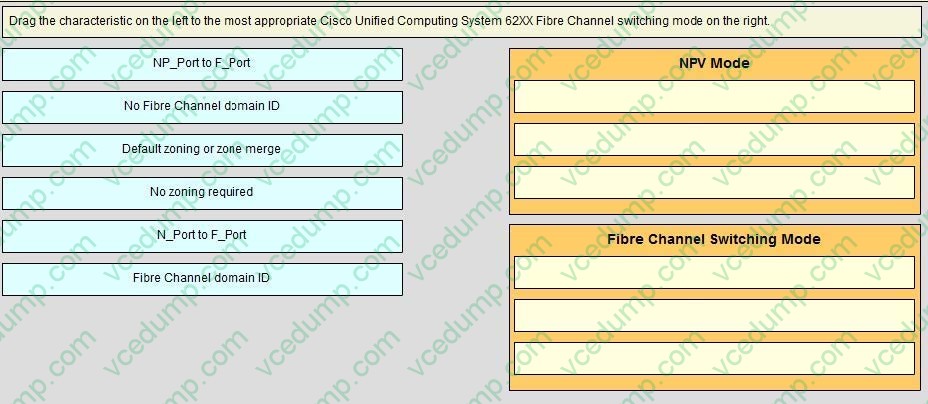

    Drag the characteristic on the left to the most appropriate Cisco unified Computing System 62XX Fibre Channel switching mode on the right.

    Select and Place:

  • Question 123:

    You attempt to perform an ESXi update on a Cisco UCS C250 server, but the update does not recognize the NICs. You must perform the update as quickly as possible. Which step must you do first?

    A. Check the UCS compatibility matrix and replace the NIC with a supported one.
    B. Reconfigure the NIC ID on the LOM.
    C. Update the LOM firmware by using the Cisco Host Update Utility.
    D. Update the NIC firmware by using the Cisco Host Update Utility.

  • Question 124:

    When adding a VMware ESXi host to the Distributed Virtual Switch, what are two risks of migrating a VMNIC that is associated to vSwitch 0? (Choose two.)

    A. loss of access to the management IP interface
    B. duplicate IP address error
    C. duplicate MAC address error
    D. loss of VMware ESXi communication with VMware vCenter
    E. DVS port group will not appear in the VM network settings
    F. DVS port group will overwrite the port groups in vSwitch 0

  • Question 125:

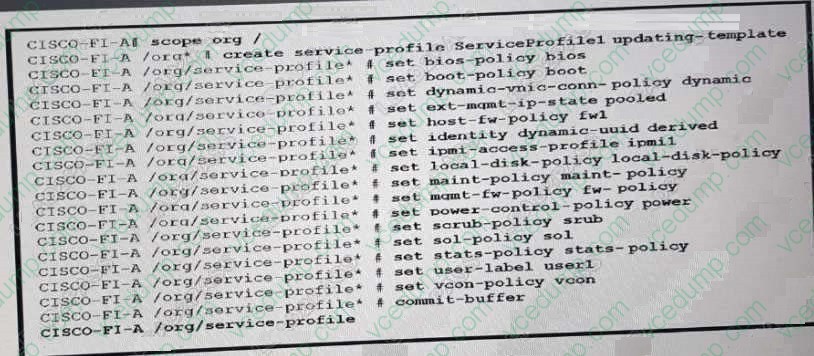

    Refer to the exhibit. Which result of configuring ServiceProfile 1 is true?

    A. It upgrades the firmware immediately.
    B. It restricts editing of ServiceProfile 1 to the members of the user 1 group.
    C. It associates the fw 1 firmware policy to ServiceProfile 1.
    D. It sets the firewall policy on the host to fw 1.

  • Question 126:

    You configure FCoE in a Cisco UCS system at a customer site. The configuration seems correct, but the customer complains that the system fails to perform as expected FCoE VLAN discovery. FCF discovery and FLOGI processes work property. The issue appears to be with the Fibre Channel commands and responses. What is a possible cause of the issue?

    A. The storage device is experiencing configuration or compatibility issues when the FIP process completes successfully.
    B. The routed Layer 3 network between the FCoE SAN and the storage device is experiencing issues when the FIP process fails to complete successfully.
    C. The FCoE configuration is experiencing errors because of issues with the Fibre Channel commands.
    D. The switched Layer 2 network between the FCoE SAW and the storage device is experiencing issues when the FIP process fads to complete successfully.

  • Question 127:

    While configuring communication between vCenter and Cisco UCS, which two items are contained in the extension file? (Choose two.)

    A. extension key
    B. plug-in version information
    C. SSL private certificate
    D. Cisco UCS Manager SSL public certificate
    E. SSH public key
    F. Cisco UCS Manager admin credentials
    G. IP address of the hosts utilizing VM link
    H. vCenter SSL public certificate

  • Question 128:

    You need to identify which DCB standard provides those functionalities negotiation capabilities for features, the distribution of parameters from one node to another, and logical link up and down signaling for both Ethernet and fibre Channel interfaces. Which DCB standard should you identity?

    A. ETS
    B. PFC
    C. DCBX
    D. QCN

  • Question 129:

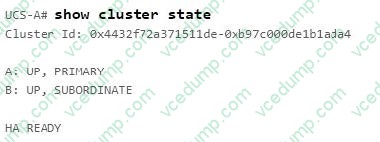

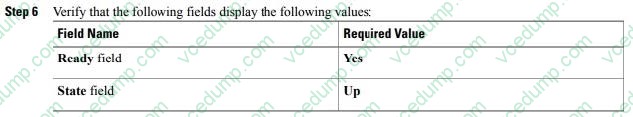

    Before upgrading a Cisco UCS cluster, you need to verify the high-availability status and roles of the cluster. In which scenario can you successfully perform the upgrade?

    A. When you check the Cisco UCS Manager GUI, the Ready field value is Ready and the State field value is On When you check the Cisco UCS Manager CLl, the Primary and Secondary interconnect state are both ON and the cluster state is HA WAITING.
    B. When you check the Cisco UCS Manager GUI, the Ready field value is Yes and the State field value is Up. When you check the Cisco UCS Manager CLl, the Primary and Secondary interconnect state are both UP and the cluster state is HA READY.
    C. When you check the Cisco UCS Manager GUI, the Ready field value is Ready and the State field value is Active. When you check the Cisco UCS Manager CLI, the Primary and Secondary interconnect state are both READY and the cluster stale is HA WAITING.
    D. When you check the Cisco UCS Manager GUI. the Ready field value is Ready and the State field value is Up. When you check the Cisco UCS Manager CLI, the Primary and Secondary interconnect state are both UP and the cluster stale is HA UP.

  • Question 130:

    Drag Drop

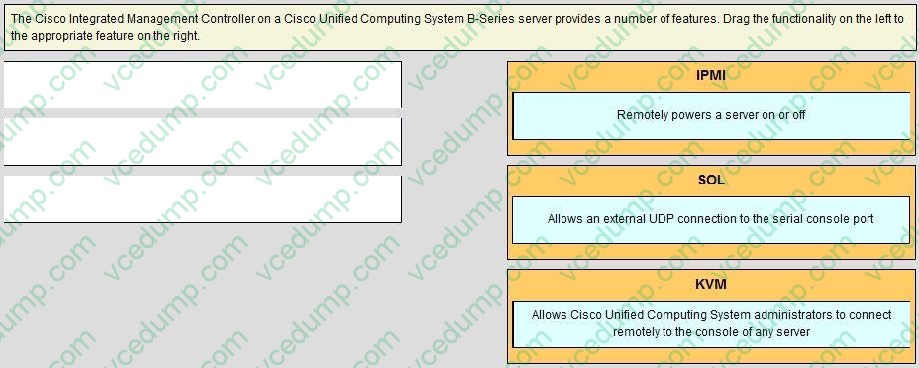

    The Cisco Integrated Management Controller on a Cisco Unified Computing B-Series server provides a number of features. Drag the functionality on the left to the appropriate feature on the right.

    Select and Place:
