Cisco 300-175 Online Practice Questions and Exam Preparation

Cisco 300-175 Online Questions & Answers

• Question 141:

  Which adapter is capable of supporting VM-FEX?

  A. VIC 1280
  B. Cisco UCS M61KR-I
  C. Cisco UCS M72KR
  D. Cisco UCS M51KR-B
  A. VIC 1280

• Question 142:

  Which diagram shows the correct cabling configuration for the SingleConnect feature?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c-series_integration/ucsm2-1/b_UCSM2-1_C-Integration/b_UCSM2-1_C-Integration_chapter_010.pdf

• Question 143:

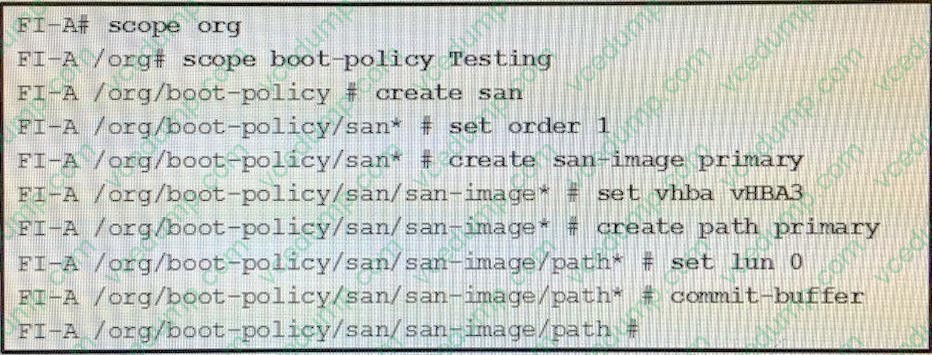

  Refer to the exhibit. You are configuring a Cisco UCS Fabric Interconnect. You associate a blade server to a service profile that has the Testing boot policy. Which statement describes the result of the configuration?



  A. The iSCSI boot was created for the LAN boot policy.
  B. The blade server fails to boot due to a missing configuration line of set order 0.
  C. The blade server first tries to boot by using vHBA3 across the SAN network.
  D. The blade server first tries to boot from the local storage, and if this fails, it boots from vHBA3.
  C. The blade server first tries to boot by using vHBA3 across the SAN network.

  ---

  http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/cli/config/guide/2-2/b_UCSM_CLI_Configuration_Guide_2_2/configuring_server_boot.pdf

• Question 144:

  Which description of an import operation in Cisco UCS Manager is true?

  A. You can choose to merge or replace the existing UCS configuration during an import.
  B. You can import only a configuration file that was exported from the same Cisco UCS Manager.
  C. You can import a configuration from a higher release to a lower release.
  D. You can schedule an import operation.
  A. You can choose to merge or replace the existing UCS configuration during an import.

• Question 145:

  Which two of the listed BIOS options are required for VM-FEX in high performance mode? (Choose two.)

  A. RSS
  B. interrupt coherency
  C. virtualization technology
  D. cache validation
  E. ATS support
  C. virtualization technology
  E. ATS support

• Question 146:

  Which policy is used to specify how Cisco UCS Manager should proceed for configuration changes that will have a service impact?

  A. host firmware policy
  B. maintenance policy
  C. local disk policy
  D. BIOS policy
  B. maintenance policy

• Question 147:

  Which three tasks can a user with the ext-lan-policy privileges perform? (Choose three.)

  A. Configure management interfaces on the fabric interconnect.
  B. Configure Ethernet pin groups.
  C. Configure management interfaces monitoring policy.
  D. Create/modify/delete vNIC/vHBA placement policies.
  E. Configure DNS providers and DNS domain.
  F. Specify the allowed range for virtual MAC addresses.
  G. Configure fabric interconnect system name.
  H. This privilege has full access to all operations.
  B. Configure Ethernet pin groups.
  D. Create/modify/delete vNIC/vHBA placement policies.
  F. Specify the allowed range for virtual MAC addresses.

• Question 148:

  Which authentication provider requires a custom attribute?

  A. TACACS+
  B. RADIUS
  C. LDAP
  D. local authentication
  A. TACACS+

  ---

  http://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_Co nfiguration_Guide_141_chapter7.html

• Question 149:

  Which statement about the purpose of a storage connection policy in Cisco UCS Manager is true?

  A. It sets a minimum baseline of requirements for when vHBAs are configured in a service profile.
  B. It defines how zoning is configured for initiators and targets on the fabric interconnect.
  C. It sets a minimum baseline of requirements for when storage devices connect to the fabric interconnects.
  D. It defines the number of storage connections that are allowed to connect to the fabric interconnects.
  B. It defines how zoning is configured for initiators and targets on the fabric interconnect.

• Question 150:

  To boot from SAN, which configuration must you perform on a Cisco UCS system?

  A. Create a dedicated boot VSAN
  B. Enter the FCID of the target boot device
  C. Add WWPN of the target when creating a Boot policy
  D. Select 'boof mode for a particular VSAN dedicated to reach the target FC endpoints
  C. Add WWPN of the target when creating a Boot policy
