Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 801:

  What algorithm is used in EIGRP?

  A. DUAL
  B. Belgram algorithm
  C. Dijkstra algorithm
  D. PlaceHolder
  A. DUAL

• Question 802:

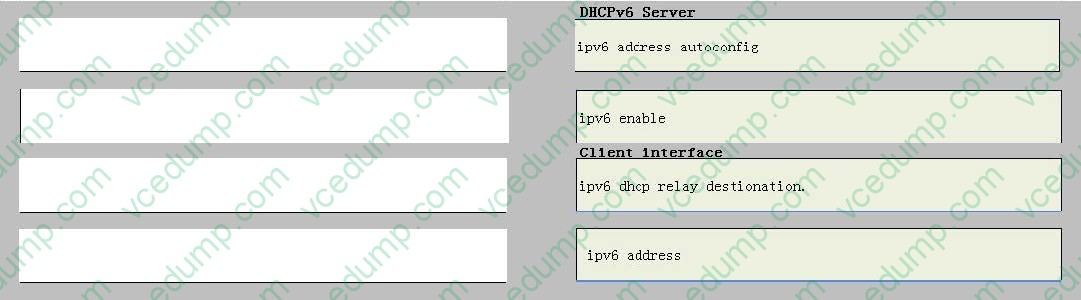

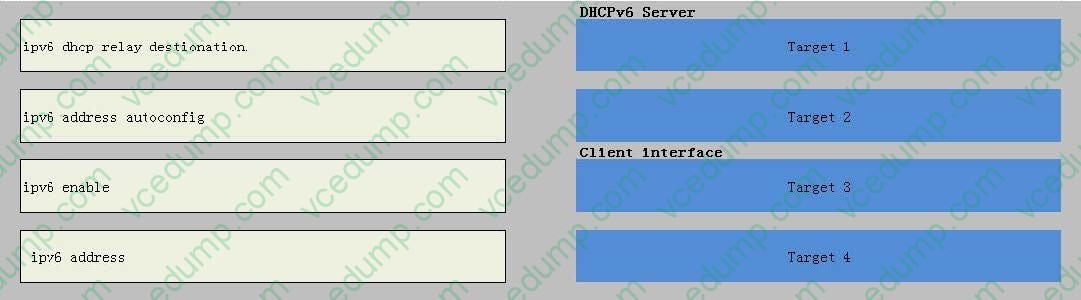

  Drag and Drop

  Select and Place:





• Question 803:

  An organization decides to implement NetFlow on its network to monitor the fluctuation of traffic that is disrupting core services. After reviewing the output of NetFlow, the network engineer is unable to see OUT traffic on the interfaces. What can you determine based on this information?

  A. Cisco Express Forwarding has not been configured globally.
  B. NetFlow output has been filtered by default.
  C. Flow Export version 9 is in use.
  D. The command ip flow-capture fragment-offset has been enabled.
  A. Cisco Express Forwarding has not been configured globally.

• Question 804:

  Which feature is supported with the PPPoE client?

  A. DMVPN
  B. QoS on the dialer interface
  C. MLPPP on the interface
  D. Dial-on-demand
  D. Dial-on-demand

• Question 805:

  Refer to the exhibit.

  Router(config)#ip route vrf blue 0.0.0.0 0.0.0.0 10.0.1.1Router(config)#ip route vrf red 0.0.0.0 0.0.0.0 10.0.2.1

  After configuring the routes, the network engineer executes the show ip route command. What is the expected results?

  A. Gateway of last resort is 10.0.2.1 to network 0.0.0.0 10.0.0.0/24 is subnetted, 2 subnets C 10.0.2.0is directly connected, FastEthernetO/O 10.0.1.0 is directly connected, FastEthernet0/l S"0.0.0.0/0[1/0] via 10.0.2.1(1/0] via lO.O.l.l Router#
  B. Gateway of last resort is 10 0.2 1 to network 0 0 00 10 0.0 0/24 is subnetted, 1 subnet C 10.0.2 isdirectly connected, FastEthernetO/O S 0.0.0 0/0 [1/0] via 10.0.2.1 Router#
  C. Gateway of last report is not set Router #
  D. Gateway of test resort is 10.0.1.1 to network 0.0.0.0 10.0.0.0/24 is subnetted 1 subnet C 10.0.1.0 is directly connected FastEthernetO/1 S" 0.0.0?/0 [1/0] via 10.0.1.1 Router#
  C. Gateway of last report is not set Router #

• Question 806:

  Which two OSPF network types can operate without a DR/BDR relationship ?(choose two)

  A. Point to point
  B. Point-to-multipoint nonbroadcast
  C. Non broadcast
  D. Multicast
  E. Broadcast
  A. Point to point
  B. Point-to-multipoint nonbroadcast

• Question 807:

  Which criterion does BGP evaluate first when determine the best path?

  A. MED value
  B. neighbor address
  C. local prefence value
  D. weight
  D. weight

• Question 808:

  Which feature is supported with stateful NAT64 ?

  A. IP multicast
  B. NAT44 and NAT64 on the same interface
  C. VRF
  D. FTP and ICMP on an application layer gateway
  C. VRF

• Question 809:

  Which two statements about OSPF E1 routes are true? (Choose two)

  A. They are preferred over interarea routes
  B. They use the OSPF cost from redistribution and the OSPF cost to the ASBR
  C. They are preferred over E2 routes
  D. They use only the OSPF cost to the ASBR
  E. They use only the OSPF cost from redistribution
  B. They use the OSPF cost from redistribution and the OSPF cost to the ASBR
  C. They are preferred over E2 routes

• Question 810:

  Refer to the following configuration command.

  router(config)# ip nat inside source static tcp 172.16.10.8 8080 172.16.10.8 80

  Which statement about the command is true?

  A. Any packet that is received in the inside interface with a source IP port address of 172.16.10.8:80 is translated to 172.16.10.8:8080.
  B. Any packet that is received in the inside interface with a source IP port address of 172.16.10.8:8080 is translated to 172.16.10.8:80.
  C. The router accepts only a TCP connection from port 8080 and port 80 on IP address 172.16.10.8
  D. Any packet that is received in the inside interface with a source IP address of 172.16.10.8 is redirected to port 8080 or port 80.
  B. Any packet that is received in the inside interface with a source IP port address of 172.16.10.8:8080 is translated to 172.16.10.8:80.
