Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 781:

  Refer to the exhibit.



  Which command only announces the 1.2.3.0/24 network out of FastEthernet 0/0?

  A. distribute list 1 out
  B. distribute list 1 out FastEthernet0/0
  C. distribute list 2 out
  D. distribute list 2 out FastEthernet0/0
  D. distribute list 2 out FastEthernet0/0

• Question 782:

  Which version of netflow support MPLS?

  A. netflow version 8
  B. all versions of netflow
  C. netflow 8 and 9
  D. netflow version 9
  E. netflow version 5
  D. netflow version 9

• Question 783:

  Which two statements are true about using IPv4 and IPv6 simultaneously on a network segment? (Choose two.)

  A. Hosts can be configured to receive both IPv4 and IPv6 addresses via DHCP.
  B. Host configuration options for IPv4 can be either statically assigned or assigned via DHCP.Host configuration options for IPv6 can be statically assigned only.
  C. IPv6 allows a host to create its own IPv6 address that will allow it to communicate to other devices on a network configured via DHCP. IPv4 does not provide a similar capability for hosts.
  D. IPv4 and IPv6 addresses can be simultaneously assigned to a host but not to a router interface.
  E. IPv6 provides for more host IP addresses but IPv4 provides for more network addresses.
  A. Hosts can be configured to receive both IPv4 and IPv6 addresses via DHCP.
  C. IPv6 allows a host to create its own IPv6 address that will allow it to communicate to other devices on a network configured via DHCP. IPv4 does not provide a similar capability for hosts.

• Question 784:

  Which two configurations can a PPPoE client support? (Choose Two)

  A. Eight clients are configured on a single CPE
  B. The client is connected to multiple hosts over DMVPN
  C. The client is installed on the same network device as the server.
  D. The client is connecting over an ATM PVC
  E. The client is installed on a native IPv6 network.
  A. Eight clients are configured on a single CPE
  B. The client is connected to multiple hosts over DMVPN

• Question 785:

  A network engineer has configured an IOS router to synchronize its clock with a Windows server. After several minutes, the network engineer notices that the local time on the router does not match the time on the Windows server. What is the reason for this?

  A. Either a firewall between the two devices or an ACL on the router is blocking UDP port 958
  B. Either a firewall between the two devices or an ACL on the router is blocking TCP port 123
  C. Either a firewall between the two devices or an ACL on the router is blocking TCP port 958
  D. Either a firewall between the two devices or an ACL on the router is blocking UDP port 123
  D. Either a firewall between the two devices or an ACL on the router is blocking UDP port 123

• Question 786:

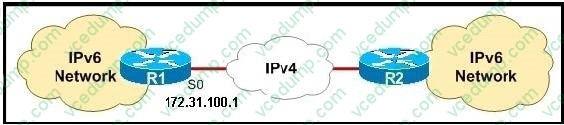

  Refer to the exhibit.



  If R1 is configured for 6to4 tunneling, what will the prefix of its IPv6 network be?

  A. 1723:1100:1::/48
  B. FFFF:AC1F:6401::/16
  C. AC1F:6401::/32
  D. 2002:AC1F:6401::/48
  E. 3FFE:AC1F:6401::/32
  D. 2002:AC1F:6401::/48

• Question 787:

  DRAG DROP

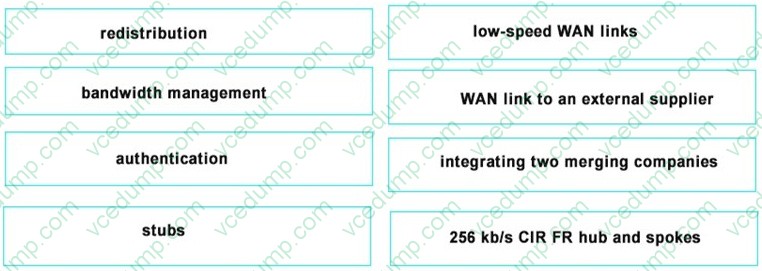

  Click and drag the associated EIGRP functionality on the left corresponding topology characteristic on the right.

  Select and Place:





• Question 788:

  A network administrator is troubleshooting a redistribution of OSPF routes into EIGRP.



  Given the exhibited commands, which statement is true?

  A. Redistributed routes will have an external type of 1 and a metric of 1.
  B. Redistributed routes will have an external type of 2 and a metric of 20.
  C. Redistributed routes will maintain their original OSPF routing metric.
  D. Redistributed routes will have a default metric of 0 and will be treated as reachable and advertised.
  E. Redistributed routes will have a default metric of 0 but will be treated as unreachable and not advertised.
  B. Redistributed routes will have an external type of 2 and a metric of 20.

• Question 789:

  Which two commands must be configured on a DMVPN hub to enable phase 3? (Choose two)

  A. ip nhrp interest
  B. ip nhrp redirect
  C. ip nhrp shortcut
  D. ip nw id
  E. ip nhrp map
  F. ip redirects
  B. ip nhrp redirect
  C. ip nhrp shortcut

• Question 790:

  Drag and Drop

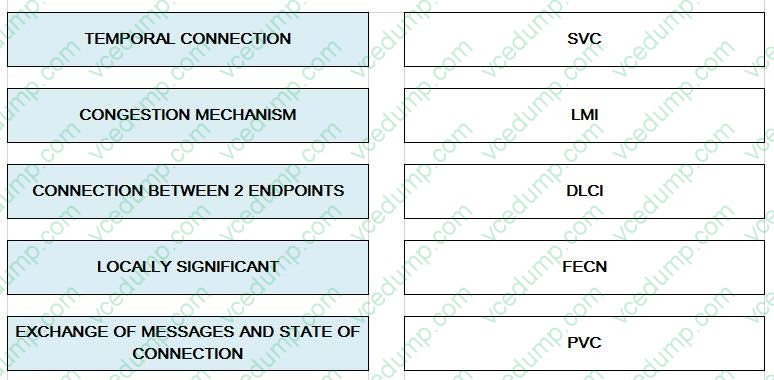

  Drag and drop each Frame-Relay component in the left to the correct statement in the right.

  Select and Place:
