Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 641:

  To configure SNMPv3 implementation, a network engineer is using the AuthNoPriv security level. What effect does this action have on the SNMP messages?

  A. They become unauthenticated and unencrypted
  B. They become authenticated and unencrypted.
  C. They become authenticated and encrypted
  D. They become unauthenticated and encrypted
  B. They become authenticated and unencrypted.

• Question 642:

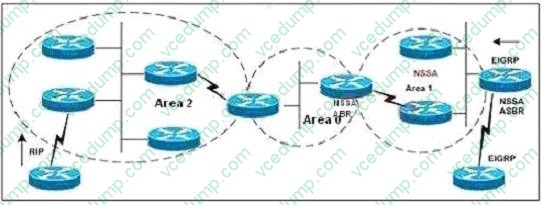

  Refer to the exhibit. Will redistributed RIP routes from OSPF Area 2 be allowed in Area 1?



  A. Because Area 1 is an NSSA, redistributed RIP routes will not be allowed.
  B. Redistributed RIP routes will be allowed in Area 1 because they will be changed into type 5 LSAs in Area 0 and passed on into Area 1.
  C. Because NSSA will discard type 7 LSAs, redistributed RIP routes will not be allowed in Area 1.
  D. Redistributed RIP routes will be allowed in Area 1 because they will be changed into type 7 LSAs in Area 0 and passed on into Area 1.
  E. RIP routes will be allowed in Area 1 only if they are first redistributed into EIGRP.
  A. Because Area 1 is an NSSA, redistributed RIP routes will not be allowed.

• Question 643:

  A network engineer configured an IOS router to send syslog messages to a Window syslog server. Several events occurred on the IOS router, and the network engineer noticed that Windows syslog server had not received any messages from the IOS router. What is the reason for this?

  A. Either a firewall between the two devices or an ACL on the router is blocking TCP port 514.
  B. Either a firewall between the two devices or an ACL on the router is blocking UDP port 514.
  C. Either a firewall between the two devices or an ACL on the router is blocking IP protocol number 514.
  D. Either a firewall between the two devices or an ACL on the router is blocking UDP port 512.
  B. Either a firewall between the two devices or an ACL on the router is blocking UDP port 514.

• Question 644:

  What is the effect of the following two commands? (Choose two.)

  area 1 range 10.1.0.0 255.255.0.0

  summary address 10.1.0.0 255.255.0.0

  A. area 1 range: command applied to summarize internal OSPF routes (ABR)
  B. area 1 range: command applied to summarize external OSPF routes (ASBR)
  C. Summary address: command applied to summarize external OSPF routes (ASBR)
  D. Summary address: command applied to summarize internal OSPF routes (ABR)
  A. area 1 range: command applied to summarize internal OSPF routes (ABR)
  C. Summary address: command applied to summarize external OSPF routes (ASBR)

• Question 645:

  The network engineer types the follow commands in a router:

  "logging host 172.16.10.12

  "logging trap 5"

  What do these commands do?

  A. Export messages of notifications for an external server
  B. Show notifications in cli
  C. Sends info to host 172.16.10.12 with notifications less than or equal to 5
  D. Sends info to host 172.16.10.12 with notifications greater than or equal to 5
  C. Sends info to host 172.16.10.12 with notifications less than or equal to 5

• Question 646:

  Which of these can be used for IPv4 to IPv6 communication?

  A. NAT-PT
  B. ISATAP
  C. L2 to L3
  D. PSec
  A. NAT-PT

• Question 647:

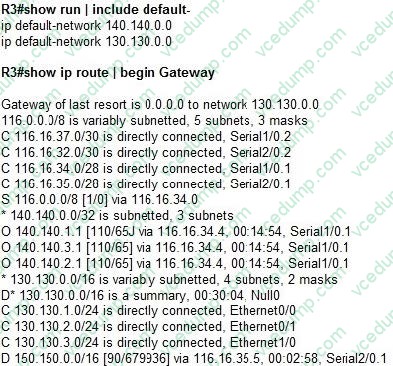

  Refer to the exhibit. Why is the 140.140.0.0 network not used as the gateway of last resort even though it is configured first?



  A. The last default-network statement will always be preferred.
  B. A route to the 140.140.0.0 network does not exist in the routing table.
  C. Default-network selection will always prefer the statement with the lowest IP address.
  D. A router will load balance across multiple default-networks; repeatedly issuing the show ip route command would show the gateway of last resort changing between the two networks.
  B. A route to the 140.140.0.0 network does not exist in the routing table.

• Question 648:

  Refer to the following output:

  Router#show ip nhrp detail

  10.1.1.2/8 via 10.2.1.2,

  Tunnel1 created 00:00:12, expire 01:59:47

  Type. dynamic, Flags: authoritative unique nat registered used NBMA address: 10.12.1.2

  What does the authoritative flag mean in regards to the NHRP information?

  A. It was obtained directly from the next-hop server.
  B. Data packets are process switches for this mapping entry.
  C. NHRP mapping is for networks that are local to this router.
  D. The mapping entry was created in response to an NHRP registration request.
  E. The NHRP mapping entry cannot be overwritten.
  A. It was obtained directly from the next-hop server.

• Question 649:

  Users were moved from the local DHCP server to the remote corporate DHCP server. After the move, none of the users were able to use the network. Which two issues will prevent this setup from working properly? (Choose two)

  A. Auto-QoS is blocking DHCP traffic.
  B. The DHCP server IP address configuration is missing locally
  C. 802.1X is blocking DHCP traffic
  D. The broadcast domain is too large for proper DHCP propagation
  E. The route to the new DHCP server is missing
  B. The DHCP server IP address configuration is missing locally
  E. The route to the new DHCP server is missing

• Question 650:

  Drag and Drop

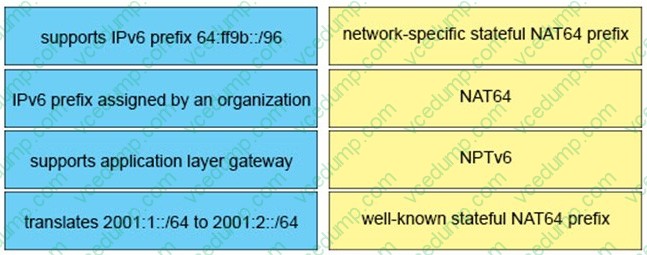

  Drag and drop the IPv6 NAT characteristic from the left onto the correct IPv6 NAT category on the right.

  Select and Place:
