Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 621:

  which DHCP option enable to permit static routes in a DHCP environment ?

  A. option 33
  B. option 67
  C. option 13
  D. option 66
  A. option 33

• Question 622:

  A user is attempting to authentication on the device connected to a TACACS+ server but the server require more information from the user to complete authentication. Which response does the TACACS+ daemon return?

  A. ACCEPT
  B. ERROR
  C. REJECT
  D. CONTINUE
  D. CONTINUE

• Question 623:

  Drag and Drop

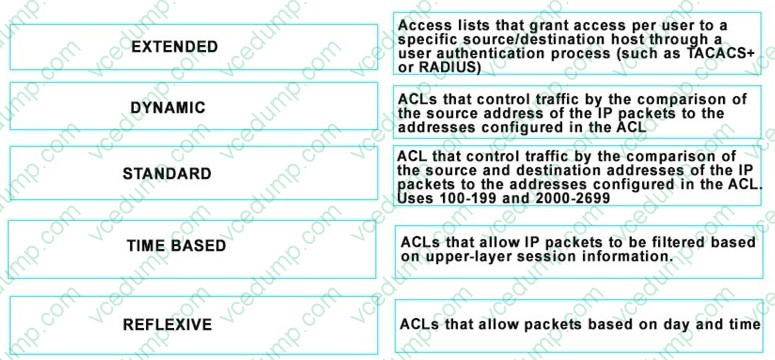

  Drag and drop the ACL types onto their description

  Select and Place:





  ---

  https://www.cisco.com/c/en/us/support/docs/security/ios-firewall/23602-confaccesslists.html#timebasedtimerange

• Question 624:

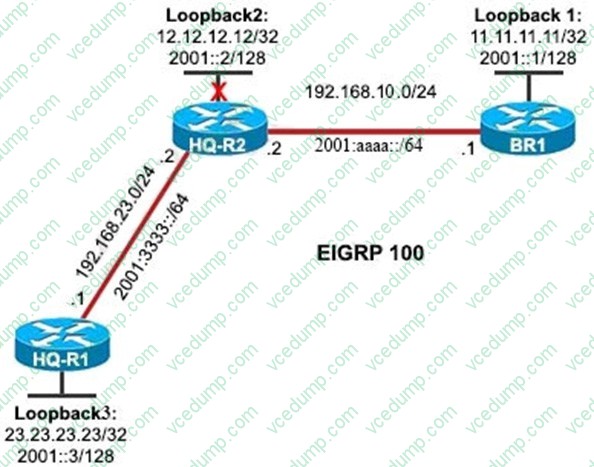

  All interfaces on each router are participating in the EIGRP 100 process.

  An engineer issues the eigrp stub command on router BR1.

  What will the show ip route be on HQ-R1 look like?

  A. HQ-R1 will install only route 12.12.12.12/32 network in its routing table
  B. HQ-R1 will install routes 12.12.12.12/32 network and 192.168.10.0/24 in its routing table
  C. HQ-R1 will install only route 192.168.10.0/24 network in its routing table
  D. All routes will be installed in its routing table on HQ-R1
  D. All routes will be installed in its routing table on HQ-R1

• Question 625:

  Which statement about conditional debugging is true?

  A. It can support only one condition at a time
  B. You can limit the output to a specific interface
  C. It generates debug messages only for packets entering the router
  D. It is limited to Ethernet, serial, and multilink interfaces
  B. You can limit the output to a specific interface

• Question 626:

  After reviewing the EVN configuration, a network admin notice that a predefined EVN,which is know as vnet global was configured. What is the purpose of this EVN?

  A. It defines the routing scope for each particular EVN edge interface.
  B. It aggregates and carries all dot1q tagged traffic.
  C. It refers to the global routing context and corresponds to the default RIB.
  D. It safeguards the virtual network that is preconfigured to avoid mismatched routing instances.
  C. It refers to the global routing context and corresponds to the default RIB.

• Question 627:

  What is the maximum number of hops on a router that RIPng advertises as reachable?

  A. 15
  B. 255
  C. 30
  D. 99
  A. 15

• Question 628:

  Which two addresses types are included in NAT?

  A. inside global
  B. global outside
  C. outside internet
  D. inside internet
  E. outside local
  A. inside global
  E. outside local

• Question 629:

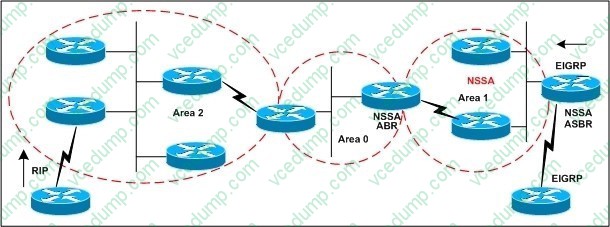

  Refer to the exhibit, In the network diagram, Area 1 is defined as a stub area. Because redistribution is not allowed in the stub area, EIGRP routes cannot be propagated into the OSPF domain. How does defining area 1 as a not-so-stubby area (NSSA) make it possible to inject EIGRP routes into the OSPF NSSA domain?



  A. by creating type 5 LSAs
  B. by creating type 7 LSAs
  C. by creating a link between the EIGRP domain and the RIP domain, and redistributing EIGRP into RIP
  D. by manually changing the routing metric of EIGRP so that it matches the routing metric of OSPF
  B. by creating type 7 LSAs

• Question 630:

  DRAG DROP

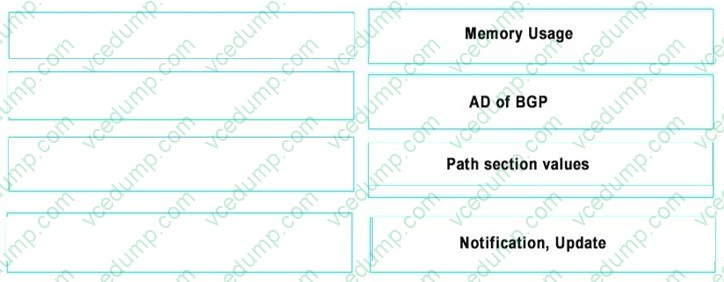

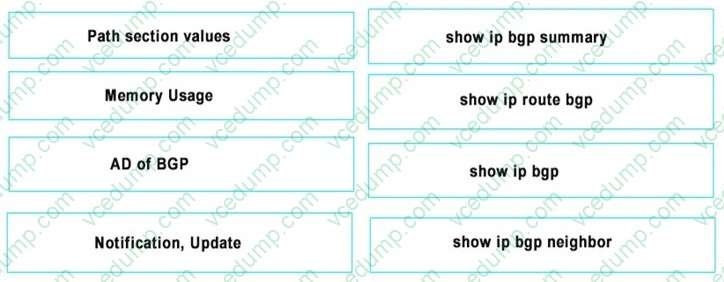

  Place the BGP commands to the proper locations.

  Select and Place:
