Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 51:

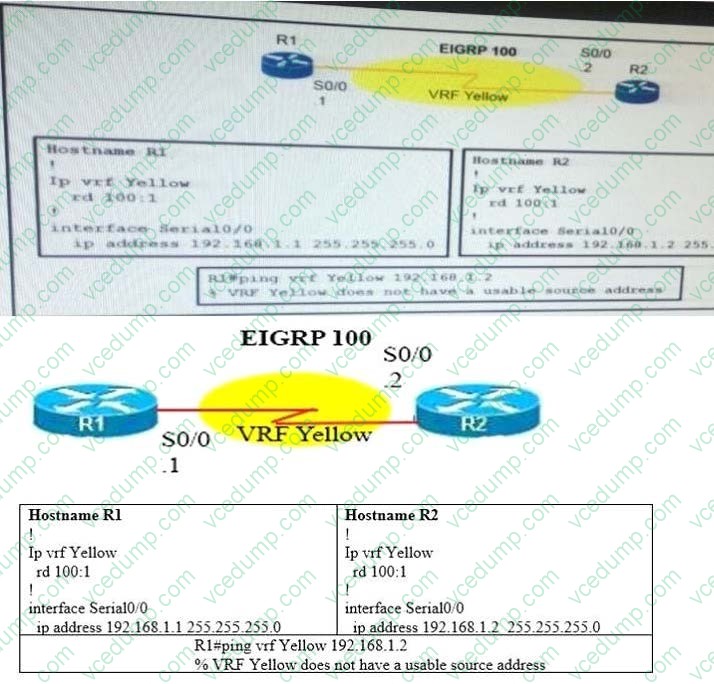

  Refer to Exhibit. R1 is unable to ping interface S0/0 of R2. What is the issue the configuration that is shown here?



  A. The route-target configuration command is missing.
  B. The interface IP addresses are not in the same subnet.
  C. the syntax of the ping command is wrong.
  D. The default route configuration is missing.
  E. The serial interfaces belong to the global table instead of vrf Yellow.
  E. The serial interfaces belong to the global table instead of vrf Yellow.

• Question 52:

  Drag and Drop

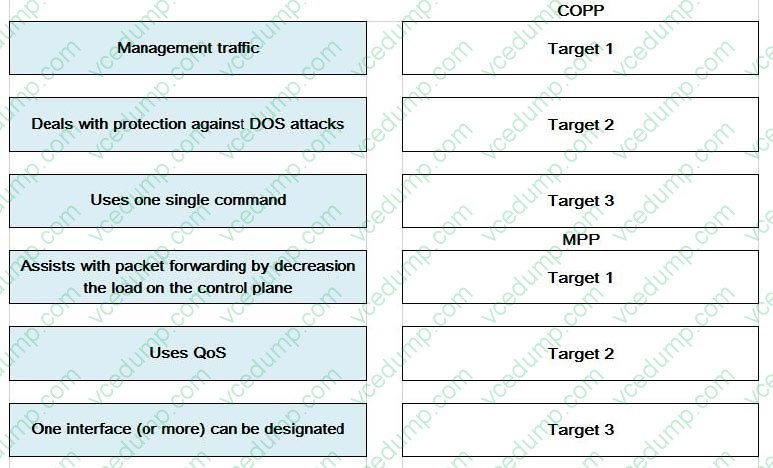

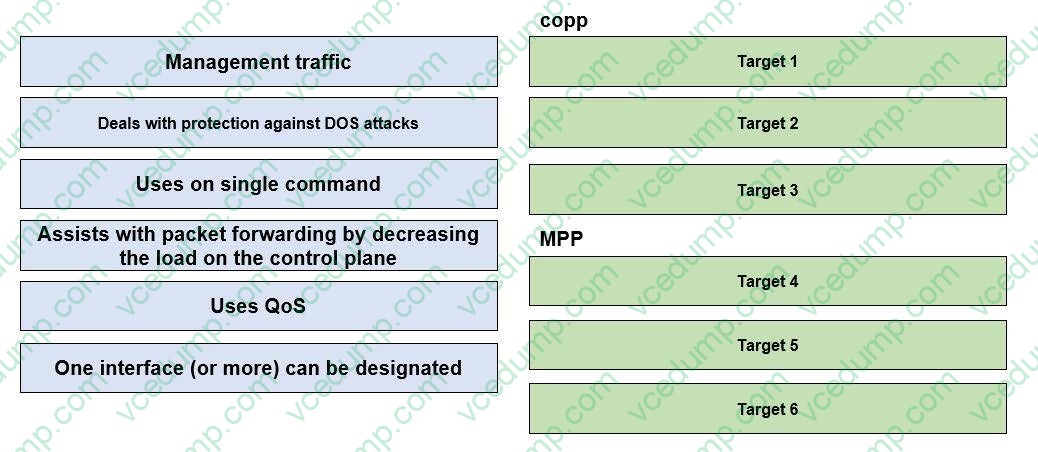

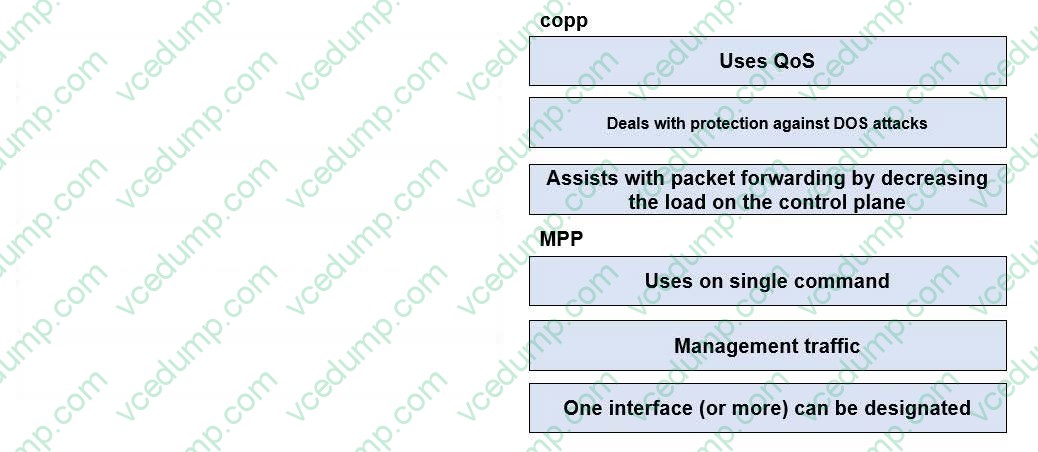

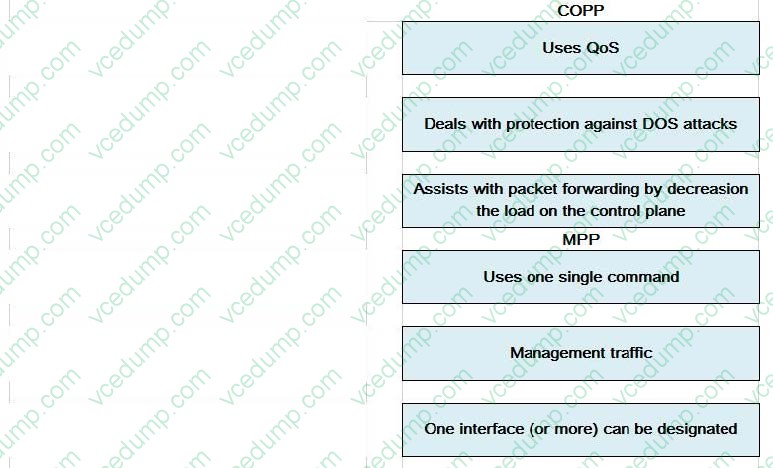

  Drag and Drop for COPP and MPP.

  Select and Place:





• Question 53:

  Which two EIGRP packet types are transmitted unreliably? (Choose two.)

  A. queries
  B. updates
  C. replies
  D. requests
  E. hellos
  D. requests
  E. hellos

• Question 54:

  A router receives a routing advertisement for 10.1.1.0/24 from an EIGRP peer and from an OSPF peer,Which route does the router install in the routing table, and for which reason?

  A. the OSPF route, because the administative distancve is lower.
  B. the EIGRP route, because the metric is lower.
  C. the OSPF route, because the metric is lower.
  D. The EIGRP route, because the administative distance is lower.
  D. The EIGRP route, because the administative distance is lower.

• Question 55:

  What is the hop count is advertised for an unreachable network by a RIP router that uses poison reverse?

  A. 16
  B. 255
  D. 15
  A. 16

• Question 56:

  Which interfaces type does a PPPoE client use to establish a session?

  A. dialer
  B. virtual-template
  C. physical
  D. loopback
  A. dialer

• Question 57:

  with network topology, it is OSPF network is redistribututing RIP.

  QUESTION is how to summarize

  QUESTION those route

  A. Summary-address
  B. IP Summary-address
  C. Address-Summary
  D. IP summary - address
  A. Summary-address

• Question 58:

  Which type of handshake does CHAP authentication use to establish a PPP link?

  A. one-way
  B. two-way
  C. three-way
  D. four-way
  C. three-way

• Question 59:

  Drag and drop the statements about device security from the left onto the correct description on the right.

  Select and Place:





• Question 60:

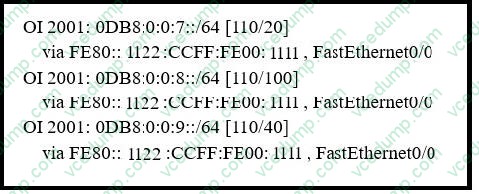

  The following exhibit shows ipv6 route output. What would the metric be for a summary route that summarizes all three OSPFv3 routes displayed?



  A. 160
  B. 140
  C. 120
  D. 100
  D. 100
