Cisco 300-101 Online Questions & Answers

• Question 41:

  A network engineer has been asked to ensure that the PPPoE connection is established and authenticated using an encrypted password. Which technology, in combination with PPPoE, can be used for authentication in this manner?

  A. PAP
  B. dot1x
  C. IPsec
  D. CHAP
  E. ESP
  D. CHAP

• Question 42:

  Which option is an invalid redistribute command option for redistributing routers from EIGRP into OSPF?

  A. router map
  B. tag
  C. access list
  D. metric
  C. access list

• Question 43:

  Which technology is required on an EVN trunk interface?

  A. 802.1q
  B. NAT
  C. VRF-Lite
  D. IS-IS
  A. 802.1q

• Question 44:

  Which two technologies can encapsulate an IPv6 payload in an IPv4 packet for transmission across a network? (Choose two)

  A. L2TPv3
  B. trunking
  C. AToM
  D. ISATAP
  E. NAT-PT
  D. ISATAP
  E. NAT-PT

• Question 45:

  Which two causes of latency are true? (Choose two)

  A. High bandwidth on a link
  B. Split horizon
  C. Propagation delay
  D. Serialization delay
  E. Under-utilization of a link
  C. Propagation delay
  D. Serialization delay

• Question 46:

  When OSPF is forming an adjacency, in which state does the actual exchange of the information in the link-state database occur?

  A. INIT
  B. loading
  C. exstart
  D. exchange
  B. loading

• Question 47:

  A network engineer is enabling RIPng on a new customer link Under which configuration mode is RIPng enabled?

  A. Global
  B. Router
  C. Interface
  D. IPv6
  C. Interface

• Question 48:

  FILL BLANK

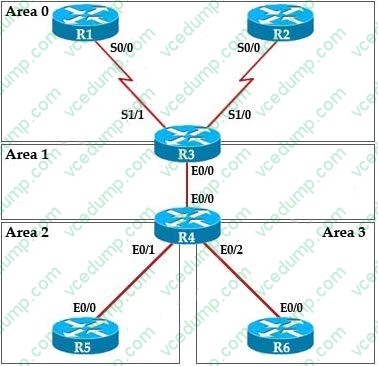

  Case study.



  Some notices from above configuration:

  +The OSPF network type berween R2andR3 is non broadcast.

  Q1: Show ip ospf database

  Q2: Show ip ospf interface serial 1/0

  Q3: Show ip ospf

  Q4: Show ip route

  You have been asked to evaluate an OSPF network and to answer questions a customer has about its operation. Note: You are not allowed to use the show running-config command.

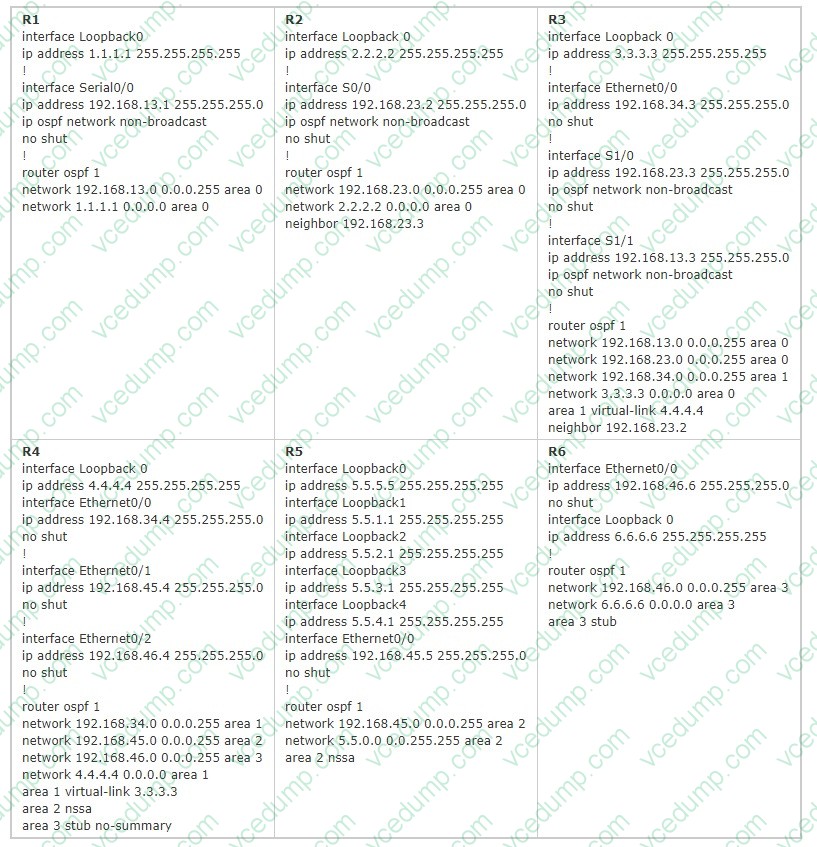

  Although in this sim we are not allowed to use “show running-config” command but we post the configuration here so that you can understand more about the topology.

  R1

  interface Loopback0

  ip address 1.1.1.1 255.255.255.255

  no shut

  interface Serial0/0

  ip address 192.168.13.1 255.255.255.0

  ip ospf network non-broadcast

  no shut

  router ospf 1 network 192.168.13.0 0.0.0.255 area 0 network 1.1.1.1 0.0.0.0 area 0

  R2

  interface Loopback 0 ip address 2.2.2.2 255.255.255.255 no shut interface S0/0 ip address 192.168.23.2 255.255.255.0 ip ospf network non-broadcast no shut router ospf 1 network 192.168.23.0 0.0.0.255 area 0 network 2.2.2.2 0.0.0.0 area 0 neighbor 192.168.23.3

  R3

  interface Loopback 0 ip address 3.3.3.3 255.255.255.255 no shut interface fa0/0 ip address 192.168.34.3 255.255.255.0 no shut interface S0/1 ip address 192.168.23.3 255.255.255.0 ip ospf network non-broadcast no shut interface S0/0 ip address 192.168.13.3 255.255.255.0 ip ospf network non-broadcast no shut router ospf 1 network 192.168.13.0 0.0.0.255 area 0 network 192.168.23.0 0.0.0.255 area 0 network 192.168.34.0 0.0.0.255 area 1 network 3.3.3.3 0.0.0.0 area 0 area 1 virtual-link 4.4.4.4 neighbor 192.168.23.2

  _______________________________________________________________

  R4

  interface Loopback 0 ip address 4.4.4.4 255.255.255.255 interface FastEthernet0/0 ip address 192.168.34.4 255.255.255.0 interface Fa0/1 ip address 192.168.45.4 255.255.255.0 no shut interface Fa1/0 ip address 192.168.46.4 255.255.255.0 no shut router ospf 1 network 192.168.34.0 0.0.0.255 area 1 network 192.168.45.0 0.0.0.255 area 2 network 192.168.46.0 0.0.0.255 area 3 network 4.4.4.4 0.0.0.0 area 1 area 1 virtual-link 3.3.3.3 area 2 nssa area 3 stub no-summary

  R5

  interface Loopback0 ip address 5.5.5.5 255.255.255.255 interface Loopback1 ip address 5.5.1.1 255.255.255.255 interface Loopback2 ip address 5.5.2.1 255.255.255.255 interface Loopback3 ip address 5.5.3.1 255.255.255.255 interface Loopback4 ip address 5.5.4.1 255.255.255.255 no shut interface Fa0/0 ip address 192.168.45.5 255.255.255.0 no shut router ospf 1 network 192.168.45.0 0.0.0.255 area 2 network 5.5.0.0 0.0.255.255 area 2 area 2 nssa

  R6

  interface Fa0/0 ip address 192.168.46.6 255.255.255.0 no shut interface Loopback 0 ip address 6.6.6.6 255.255.255.255 no shut router ospf 1 network 192.168.46.0 0.0.0.255 area 3 network 6.6.6.6 0.0.0.0 area 3 area 3 stub

  How many times was SPF algorithm executed on R4 for Area 1?

  Correct Answer. 9
  9

  ---

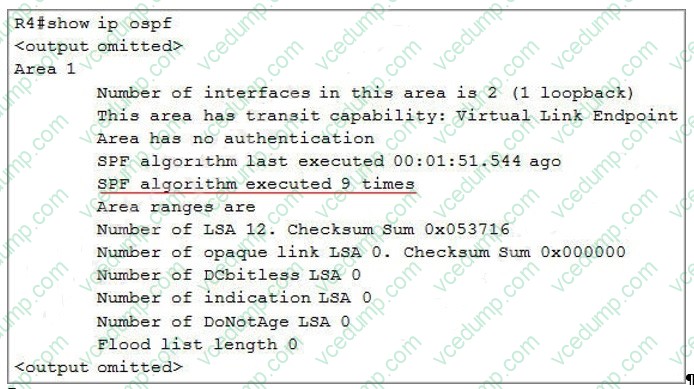

  We can check the number of executed SPF algorithm via the “show ip ospf” command on R4:



  In the output above we can see SPF has been executed 9 times.

• Question 49:

  For troubleshooting purposes, which method can you use in combination with the "debug ip packet" command to limit the amount of output data?

  A. You can disable the IP route cache globally.
  B. You can use the KRON scheduler
  C. You can use an extended access list.
  D. You can use an IOS parser.
  E. You can use the RITE traffic exporter
  C. You can use an extended access list.

• Question 50:

  Drag and Drop

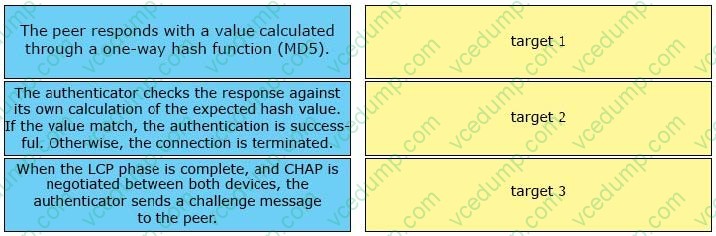

  Drag and drop the challenge Handshake Authentication Protocol steps from the left into the correct order in which they occur on the right.

  Select and Place:





  ---

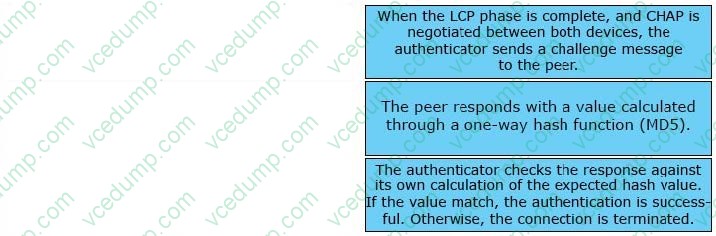

  The Challenge Handshake Authentication Protocol (CHAP) verifies the identity of the peer by means of a three-way handshake. These are the general steps performed in CHAP:

  1. After the LCP (Link Control Protocol) phase is complete, and CHAP is negotiated between both devices,the authenticator sends a challenge message to the peer.

  2. The peer responds with a value calculated through a one-way hash function (Message Digest 5 (MD5)).

  3. The authenticator checks the response against its own calculation of the expected hash value. If the values match, the authentication is successful. Otherwise, the connection is terminated.

  References:

  http://www.cisco.com/c/en/us/support/docs/wan/point-to-point-protocol-ppp/25647-understanding-ppp-chap.html
