• Question 401:

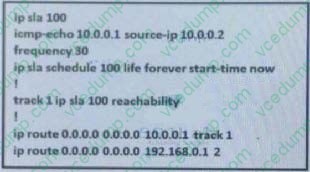

  Refer to the exhibit Which statement describes the effect of this configuration on a Cisco router?

  A. The default route through 192.168.0.1 is used only when 10.0.0.1 is unreachable.
  B. The default route through 192 168 0.1 is never used
  C. The default route through 10.0.0.1 is used only when 192.168 0.1 is unreachable D
  D. The default route through 10 0.0.1 is never used
  A. The default route through 192.168.0.1 is used only when 10.0.0.1 is unreachable.

• Question 402:

  Consider this scenario. TCP traffic is blocked on port 547 between a DHCPv6 relay agent and a DHCPv6 server that is configured for prefix delegation. Which two outcomes will result when the relay agent is rebooted? (Choose two)

  A. Routers will not obtain DHCPv6 prefixes.
  B. DHCPv6 clients will be unreachable.
  C. Hosts will not obtain DHCPv6 addresses.
  D. The DHCPv6 relay agent will resume distributing addresses.
  E. DHCPv6 address conflicts will occur on downstream clients.
  A. Routers will not obtain DHCPv6 prefixes.
  E. DHCPv6 address conflicts will occur on downstream clients.

• Question 403:

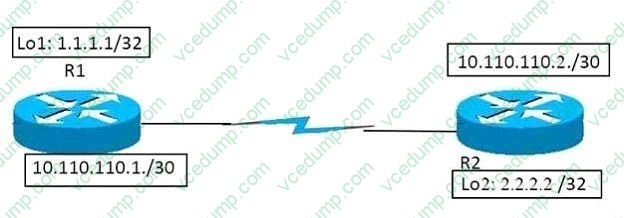

  Refer to the exhibit.



  Router 1 cannot ping router 2 via the Frame Relay between them. Which two statements describe the problems? (Chooses two.)

  A. Encapsulation is mismatched.
  B. Frame Relay map is configured.
  C. DLCI is active.
  D. DLCI is inactive or deleted.
  E. An access list is needed to allow ping
  A. Encapsulation is mismatched.
  D. DLCI is inactive or deleted.

• Question 404:

  Question with network topology, it is OSPF network is redistributing RIP. Question is how to summarize those route.

  A. (config-router)# summary-address ........on ASBR
  B. (config-router)# area ... range........ on ASBR
  C. (config-router)# summary-address ........on ABR
  D. (config-router)# area ... range........ on ABR
  A. (config-router)# summary-address ........on ASBR

• Question 405:

  Which two statements about NHRP in a DMVPN environment are true? (Choose two)

  A. It requires each endpoint to have a unique network ID
  B. It routes traffic through the tunnel
  C. It can identify PIM-SM RPs over a tunnel
  D. It can authenticate VPN endpoints
  E. It provides address resolution to route traffic
  D. It can authenticate VPN endpoints
  E. It provides address resolution to route traffic

• Question 406:

  Which two statements about NetFlow templates are true? (Choose two)

  A. Only NetFlow version 9 is template based
  B. NetFlow Version 5 and version 9 are template based
  C. Only NetFlow version 5 is template based.
  D. Template can increased bandwidth usage
  E. They can increase overall performance
  F. They can reduce bandwidth usage.
  A. Only NetFlow version 9 is template based
  D. Template can increased bandwidth usage

• Question 407:

  If you configure one router in your network with the auto-cost reference-bandwidth100 command, which effect on the data path is true?

  A. The data path remains the same for all links
  B. The data path changes for 10Mbps links only
  C. The data path changes for all links
  D. The data path changes for 10Gbps links only
  A. The data path remains the same for all links

• Question 408:

  Which two statements indicate a valid association mode for NTP synchronization? (Choose two.)

  A. The client polls NTP servers for time.
  B. The client broadcasts NTP requests.
  C. The client listens to NTP broadcasts.
  D. The client creates a VPN tunnel to an NTP server
  E. The client multicasts NTP requests.
  A. The client polls NTP servers for time.
  C. The client listens to NTP broadcasts.

• Question 409:

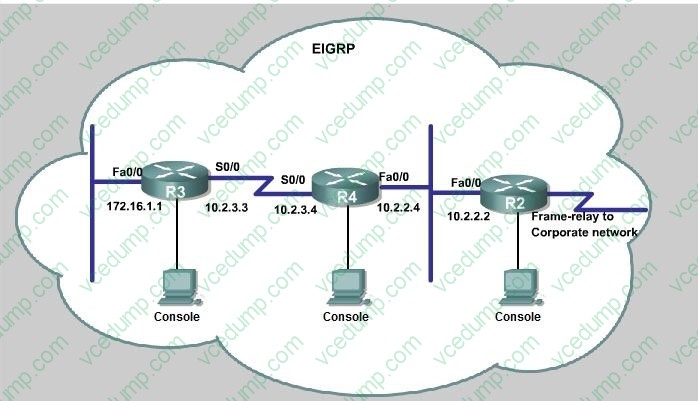

  By increasing the first distant office,JS Industries has expanded their business with the addition of their first remote office. The remote office router (R3) was previously configured and all corporate subnets were reachable from R3. JS Industries is interested in using route summarization along with the EIGRP Stub Routing feature to increase network stability while reducing the memory usage and bandwidth utilization to R3. Another network professional was tasked with implementing this solution. However, in the process of configuring EIGRP stub routing connectivity with the remote network devices off of R3 has been lost. Currently EIGRP is configured on all routers R2, R3, and R4 in the network. Your task is to identify and resolve the cause of connectivity failure with the remote office router R3. Once the issue has been resolved you should complete the task by configuring route summarization only to the remote office router R3. You have corrected the fault when pings from R2 to the R3 LAN interface are successful, and the R3 IP routing table only contains 2 10.0.0.0 subnets.



  A. Check the answer below
  A. Check the answer below

  ---

  Explanation:

  First we have to figure out why R3 and R4 can not communicate with each other. Use the show running-config command on router R3.



  Notice that R3 is configured as a stub receive-only router. The receive-only keyword will restrict the router from sharing any of its routes with any other router in that EIGRP autonomous system. This keyword will also prevent any type of route from being sent. Therefore we will remove this command and replace it with the eigrp stub command: R3# configure terminal R3(config)# router eigrp 123 R3(config-router)# no eigrp stub receive-only R3(config-router)# eigrp stub R3(config-router)# end

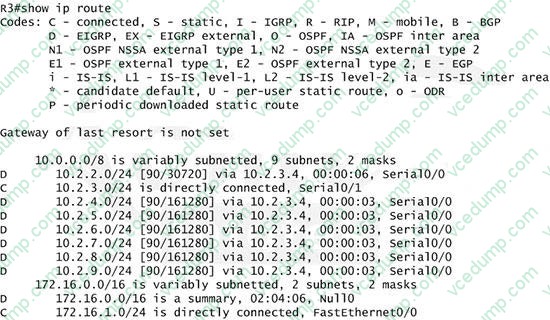

  Now R3 will send updates containing its connected and summary routes to other routers. Notice that the eigrp stub command equals to the eigrp stub connected summary because the connected and summary options are enabled by default. Next we will configure router R3 so that it has only 2 subnets of 10.0.0.0 network. Use the show ip route command on R3 to view its routing table:



  Because we want the routing table of R3 only have 2 subnets so we have to summary sub-networks at the interface which is connected with R3, the s0/0 interface of R4.

  There is one interesting thing about the output of the show ip route shown above: the 10.2.3.0/24, which is a directly connected network of R3. We can't get rid of it in the routing table no matter what technique we use to summary the

  networks. Therefore, to make the routing table of R3 has only 2 subnets we have to summary other subnets into one subnet.

  In the output if we don't see the summary line (like 10.0.0.0/8 is a summary…) then we should use the command ip summary-address eigrp 123 10.2.0.0 255.255.0.0 so that all the ping can work well.

  In conclusion, we will use the ip summary-address eigrp 123 10.2.0.0 255.255.0.0 at the interface s0/0 of R4 to summary.

  R4> enable

  R4# conf t

  R4(config)# interface s0/0

  R4(config-if)# ip summary-address eigrp 123 10.2.0.0 255.255.0.0

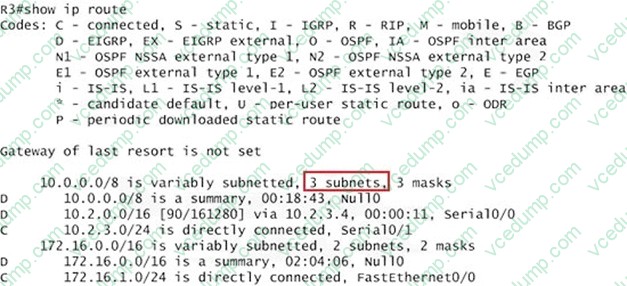

  Now we jump back to R3 and use the show ip route command to verify the effect, the output is shown below:



  Note: Please notice that the IP addresses and the subnet masks in your real exam might be different so you might use different ones to solve this question.

  Just for your information, notice that if you use another network than 10.0.0.0/8 to summary, for example, if you use the command ip summary-address eigrp 123 10.2.0.0 255.255.0.0 you will leave a /16 network in the output of the show ip

  route command.

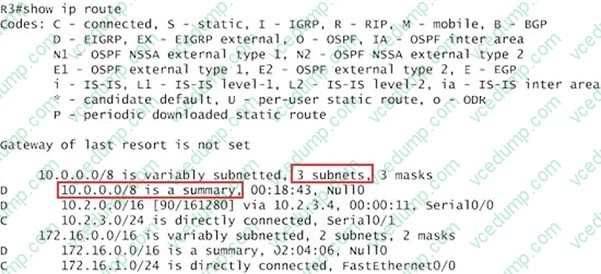

  But in your real exam, if you don't see the line “10.0.0.0/8 is a summary, Null0” then you can summarize using the network 10.2.0.0/16. This summarization is better because all the pings can work well. Finally don't forget to use the copy run start command on routers R3 and R4 to save the configurations. R3(config-if)# end R3# copy run start R4(config-if)# end R4# copy run start

  If the “copy run start” command doesn't work then use “write memory.”

• Question 410:

  Which command is needed to get the ip address assigned from the PPPoE server?

  A. Interface dialer B. PPPE enable
  C. ip address negotiated
  D. IP address auto negotiated
  C. ip address negotiated
