Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 371:

  What command would you use to set EIGRP routes to be prioritized?

  A. distance 100
  B. distance 89
  C. distance eigrp 100
  D. distance eigrp 89
  D. distance eigrp 89

• Question 372:

  DRAG DROP

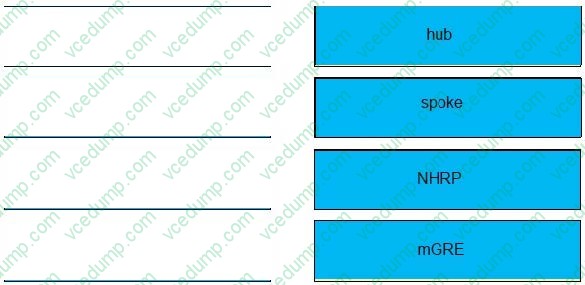

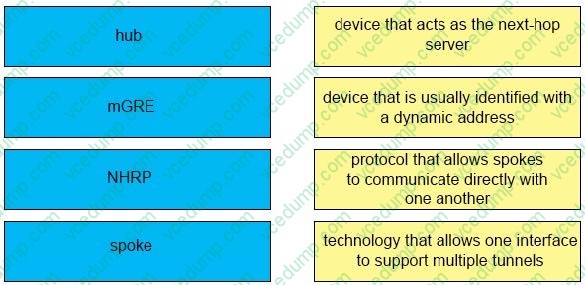

  Drag and drop the DMVPN components from the left onto the correct descriptions on the right.

  Select and Place:





• Question 373:

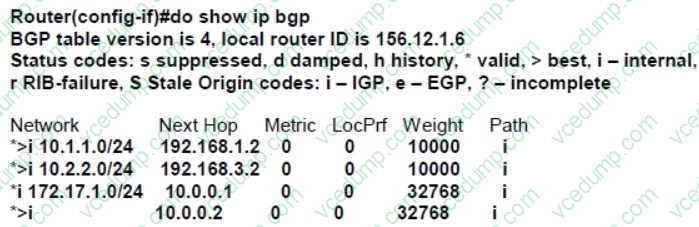

  Which next hop is going to be used for 172.17.1.0/24 ?



  A. 10.0.0.1
  B. 192.168.1.2
  C. 10.0.0.2
  D. 192.168.3.2
  C. 10.0.0.2

• Question 374:

  Which switching method is used when entries are present in the output of the command show ip cache?

  A. fast switching
  B. process switching
  C. Cisco Express Forwarding switching
  D. cut-through packet switching
  A. fast switching

• Question 375:

  A diagram with 3 routers: HQ2 ?HQ1 ?BR1.

  +

  HQ2 (with IP IPV6 and Loopback 1.1.1.1)

  +

  HQ1 (with IP IPv6 and Loopback 2.2.2.2)

  +

  BR1 (with IP IPv6 and Loopback 3.3.3.3)

  running with EIGRP 100 on both routers and what command you will implement so that you will see the loopback IP of BR1 to be advertised at HQ2

  A. HQ2(config)# ipv6 router eigrp 100 HQ2(config-rtr)# no eigrp stub
  B. BR1(config)#ipv6 router eigrp 100 BR1(config-rtr)# no eigrp stub receive-only
  C. HQ2(config)# ipv6 router eigrp 100 HQ2(config-rtr)# no eigrp stub only
  D. BR1(config)# ipv6 router eigrp 100 BR1(config-rtr)# no eigrp stub only
  B. BR1(config)#ipv6 router eigrp 100 BR1(config-rtr)# no eigrp stub receive-only

• Question 376:

  DRAG DROP

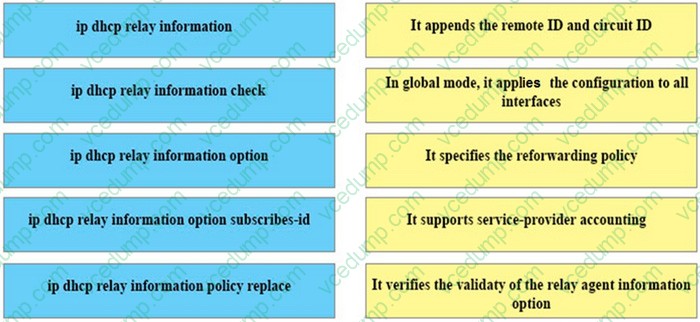

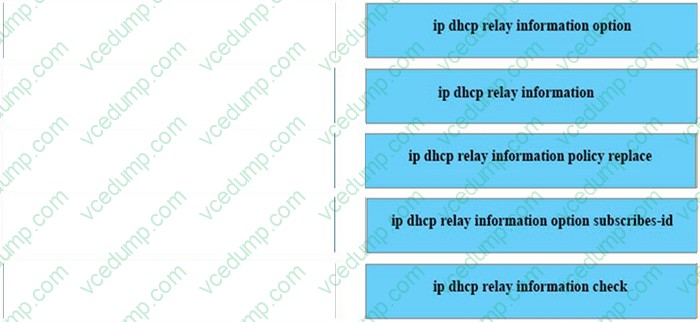

  Drag and drop the Cisco IOS DHCP relay agent configuration commands from the left onto the correct effects on the right.

  Select and Place:





• Question 377:

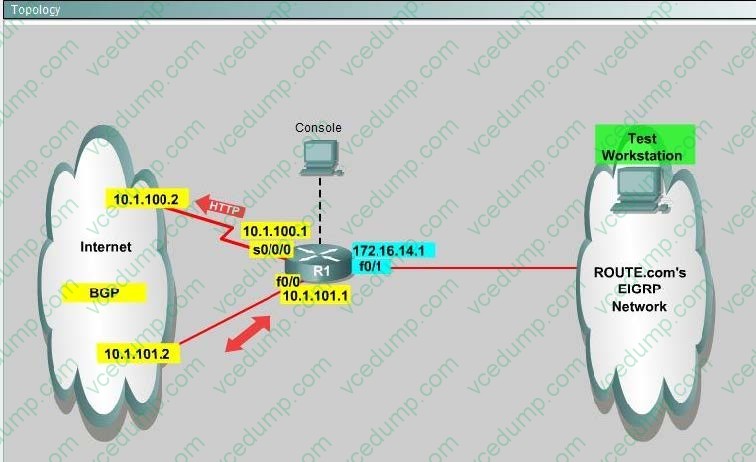

  You are a network engineer with ROUTE.com, a small IT company.

  ROUTE.com has two connections to the Internet; one via a frame relay link and one via an EoMPLS link. IT policy requires that all outbound HTTP traffic use the frame relay link when it is available. All other traffic may use either link.

  No static or default routing is allowed. Choose and configure the appropriate path selection feature to accomplish this task. You may use the Test Workstation to generate HTTP traffic to validate your solution.



  A. Check the answer below
  A. Check the answer below

  ---

  First you need to configure access list to HTTP traffic and then configure that access list. After that configure the route map and then apply it on the interface to the server in EIGRP network.

  R1>enable R1#configure terminalR1(config)#access-list 101 permit tcp any any eq wwwR1(config)#route-map pbr permit 10R1(config-route-map)#match ip address 101R1(config-route-map)#set ip next-hop 10.1.100.2R1(config-route-map)#exitR1(config)#route-map pbr permit 20R1(config-route-map)#exitR1(config)#int fa0/1R1(config-if)#ip policy route-map pbrR1(config-if)#endR1#copy run start

• Question 378:

  What is the administrative distance for EBGP?

  A. 200
  B. 30
  C. 70
  D. 20
  D. 20

• Question 379:

  Which protocols support DMVPN?(Choose three.)

  A. EIGRP
  B. RIP2
  C. OSPF
  D. BGP
  E. ISIS
  A. EIGRP
  C. OSPF
  D. BGP

• Question 380:

  Your company uses Voice over IP (VoIP). The system sends UDP datagrams containing the voice data between communicating hosts. When areas of the network become busy, some of the datagrams arrive at their destination out of order. What happens when this occurs?

  A. UDP will send an ICMP Information request message to the source host.
  B. UDP will pass the information in the datagrams up to the next OSI layer in the order in which they arrive.
  C. UDP will drop the datagrams that arrive out of order.
  D. UDP will use the sequence numbers in the datagram headers to reassemble the data into the ...
  B. UDP will pass the information in the datagrams up to the next OSI layer in the order in which they arrive.
