Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 271:

  What is EIGRP Summary Route Administrative Distance?

  A. 90
  B. 170
  C. 5
  D. 110
  C. 5

• Question 272:

  Which difference in the packet fragmentation feature between IPv4 and IPv6 devices is true?

  A. Unlike IPv4 routers. IPv6 routers cannot fragment packets by default
  B. Only IPv6 packets can be fragmented at the destination.
  C. Only IPv4 headers support the more fragments bit.
  D. Only IPv6 headers support the DF bit
  A. Unlike IPv4 routers. IPv6 routers cannot fragment packets by default

• Question 273:

  When implementing OSPFv3, which statement describes the configuration of OSPF areas?

  A. In interface configuration mode, the OSPFv3 area ID combination assigns interfaces to OSPFv3 areas.
  B. In router configuration mode, the network wildcard area ID combination assigns networks to OSPFv3 areas.
  C. In interface configuration mode, the IPv6 OSPF process area ID combination assigns interfaces to OSPFv3 areas.
  D. In router configuration mode, the IPv6 OSPF interface area ID combination assigns interfaces to OSPFv3 areas.
  C. In interface configuration mode, the IPv6 OSPF process area ID combination assigns interfaces to OSPFv3 areas.

• Question 274:

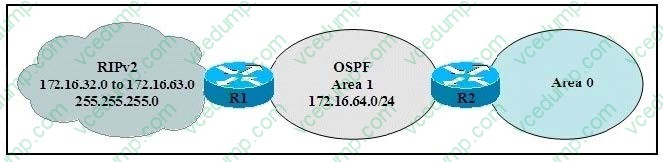

  A network administrator recently redistributed RIP routes into an OSPF domain.

  However, the administrator wants to configure the network so that instead of 32 external type-5 LSAs flooding into the OSPF network, there is only one.



  What must the administrator do to accomplish this?

  A. Configure summarization on R1 with area 1 range 172.16.32.0 255.255.224.0
  B. Configure summarization on R1 with summary-address 172.16.32.0 255.255.224.0
  C. Configure area 1 as a stub area with area 1 stub
  D. Configure area 1 as a NSSA area with area 1 stub nssa
  B. Configure summarization on R1 with summary-address 172.16.32.0 255.255.224.0

• Question 275:

  What is the default authentication in RIPv2 when authentication is enabled

  A. SHA1 authentication
  B. Enable password authentication
  C. Plaintext authentication
  D. MD5 authentication
  C. Plaintext authentication

• Question 276:

  Refer to the exhibit.



  You notice that traffic from R1 to the 192.168.10.0/24 network prefers the path throught R3 instead of the least-cost path throught R2. What is the most likely reason for this router selection?

  A. OSPF prefers external routers over interarea router.
  B. OSPF prefers interarea routers over intra-area routers.
  C. OSPF prefers external routers over intra-area routers
  D. OSPF prefers intra-area routers over interarea routers
  D. OSPF prefers intra-area routers over interarea routers

• Question 277:

  The Cisco SA 500 Series Security Appliances are built specifically for businesses with less than 100 employees. What are three important benefits of this device? (Choose three.)

  A. business-grade firewall
  B. premium support via SMART net
  C. site-to-site VPN for remote offices
  D. Cisco IOS software-based
  E. email security
  F. XML support
  A. business-grade firewall
  C. site-to-site VPN for remote offices
  E. email security

• Question 278:

  Which statement about spilt-horizon rule for distance vector routing protocols are true?

  A. A router advertises a route to an unreachable network with an infinite metric.
  B. A router does not advertise routes to any neighboring router.
  C. A router advertises routes back out the interface on which it learned them with an mfirrte metric.
  D. A router does not advertise routes back out the interface on which it learned them.
  A. A router advertises a route to an unreachable network with an infinite metric.

• Question 279:

  FILL BLANK

  What is the function of the command redistribute ospf 1 match internal?

  Correct Answer. Redistribute ospf 1 match internal means that just inter and intra will be redistributed
  Redistribute ospf 1 match internal means that just inter and intra will be redistributed

  ---

  Router(config-router)#redistribute ospf 1 match internal external 1 external 2

  Redistributes routes learned from OSPF process ID 1. The keywords match internal external 1 and external 2 instruct EIGRP to only redistribute internal, external type 1 and type 2 OSPF routes.

  NOTE: The default behavior when redistributing OSPF routes is to redistribute all routes—internal, external 1, and external 2. The keywords match internal external 1 and external 2 are required only if router behavior is to be modified.

• Question 280:



  Which LSA type does R3 propagate into Area 1 for the 192.168.10.0/24 network?

  A. type 3 LSA
  B. type 5 LSA
  C. type 7 LSA
  D. type 10 LSA
  C. type 7 LSA
