Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 251:

  Refer to the exhibit R1 is configured with VRF-Lite and can ping R2. R2 is fully configured, but it has no active EIGRP neighbors in vrf Yellow. If the configuration of R2 is complete, then which issue prevents the EIGRP 100 neighbor relationship in vrf Yellow from forming?



  A. The no auto-summary command is preventing the EIGRP neighbor relationship from forming
  B. There is a Layer 1 issue that prevents the EIGRP neighbor relationship from forming
  C. The interface IP addresses are not in the same subnet
  D. EIGRP 100 network 192 168 1 0/24 is configured in the global routing table on R1
  D. EIGRP 100 network 192 168 1 0/24 is configured in the global routing table on R1

• Question 252:

  What does the following access list, which is applied on the external interface FastEthernet 1/0 of the perimeter router accomplish. # access-list 101 deny ip 10.0.0.0 0.255.255.255.255 any log # access-list 101 deny ip 192.168.0.0 0.0.255.255 any log # access-list 101 deny ip 172.16.0.0 0.15.255.255 any log # access-list 101 permit ip any any # interface fastEthernet 1/10 # ip access-group 101 in

  A. It filter incoming traffic from private address in order to prevent spoofing and logs any intrusion attempts
  B. It prevents private internal address to be accessed directly from outside
  C. It filters incoming traffic from private address ranges 10.0.0.0-10.0.0.255, 172.16.0.0-172.31.255.255, 192.168.0.0-192.168.255.255 and logs any intrusion attempts
  D. It prevents the internal network from being used in spoofed denial of service attacks and logs any exit to the internet
  A. It filter incoming traffic from private address in order to prevent spoofing and logs any intrusion attempts

• Question 253:

  Which IOS commands can you use to limit the CPU impact of log generation and transmission on an IOS router?

  A. You can use the ip access-list logging interval command in conjunction with the logging rate-limit command
  B. You can use the ip access-list logging limit command in conjunction with the logging rate-interval command
  C. You can use the ip access-list syslog-logging interval command in conjunction with the logging rate- limit command D. You can use the ip access-list logged interval command in conjunction with the logging rate-limit command
  A. You can use the ip access-list logging interval command in conjunction with the logging rate-limit command

• Question 254:

  Which two statements about GRE tunnel interfaces are true? (Choose two)

  A. To establish a tunnel the source interface must be m the up/up state
  B. To establish a tunnel the source interface must be a Joopback.
  C. A tunnel destination must be a physical interface that is the up state.
  D. A tunnel destination must be routable but can be unreachable
  E. A tunnel can be established when the source interface is in the up/down state.
  C. A tunnel destination must be a physical interface that is the up state.
  D. A tunnel destination must be routable but can be unreachable

• Question 255:

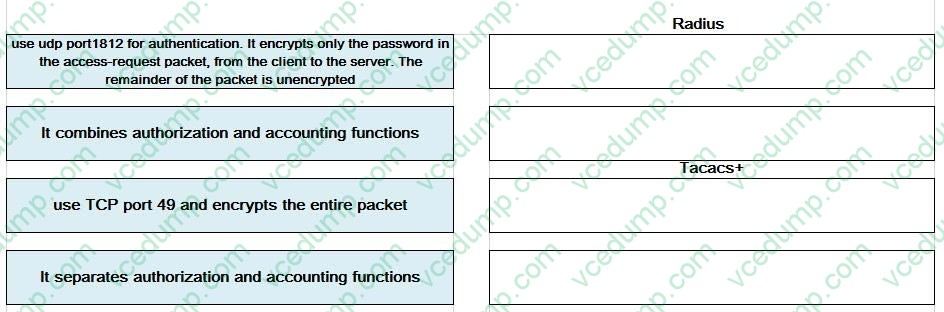

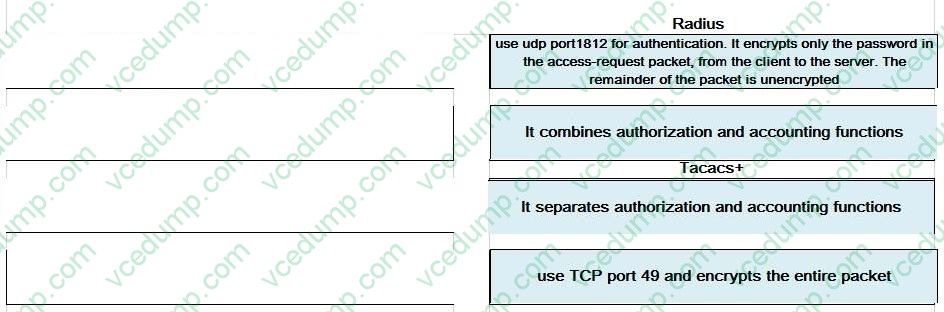

  Drag and Drop

  Drag the items on the left to the proper locations on the right.

  Select and Place:





• Question 256:

  Which three restrictions apply to OSPF stub areas? (Choose three.)

  A. No virtual links are allowed.
  B. The area cannot be a backbone area.
  C. Redistribution is not allowed unless the packet is changed to a type 7 packet
  D. The area has no more than 10 routers.
  E. No autonomous system border routers are allowed.
  F. Interarea routes are suppressed.
  A. No virtual links are allowed.
  B. The area cannot be a backbone area.
  E. No autonomous system border routers are allowed.

• Question 257:

  Which two statements about the enable secret and enable password commands are true? (Choose two.)

  A. If both commands are missing from the global configuration, vty lines use the console password.
  B. The enable secret and enable password command overrides enable password.
  C. The enable secret command overrides enable password.
  D. The enable secret command is backwards-compatible with more versions of IOS.
  E. The enable password command has a stronger encryption algorithm than enable secret.
  B. The enable secret and enable password command overrides enable password.
  C. The enable secret command overrides enable password.

• Question 258:

  Which two statements about EVN are true?choose two

  A. It supports IPv6 traffic.
  B. It can support up to 16 VNs.
  C. It uses redistribution to share routes between VNs.
  D. It supports SSM only.
  E. A configuration can be based on an existing VRF configuration
  A. It supports IPv6 traffic.
  E. A configuration can be based on an existing VRF configuration

• Question 259:

  Which address is an IPv6 multicast address?

  A. 2002:0:0:0:0:0:0:2
  B. 0002:0:0:0:0:0:0:2
  C. FF02:0:0:0:0:0:0:2
  D. FE02:0:0:0:0:0:0:2
  C. FF02:0:0:0:0:0:0:2

• Question 260:

  Which value determines the amount of traffic that a network path can hold in transit?

  A. route cache setting
  B. maximum windows size
  C. bandwidth delay product
  D. MSS
  C. bandwidth delay product
