Cisco 300-080 Online Practice Questions and Exam Preparation

Cisco 300-080 Online Questions & Answers

• Question 141:

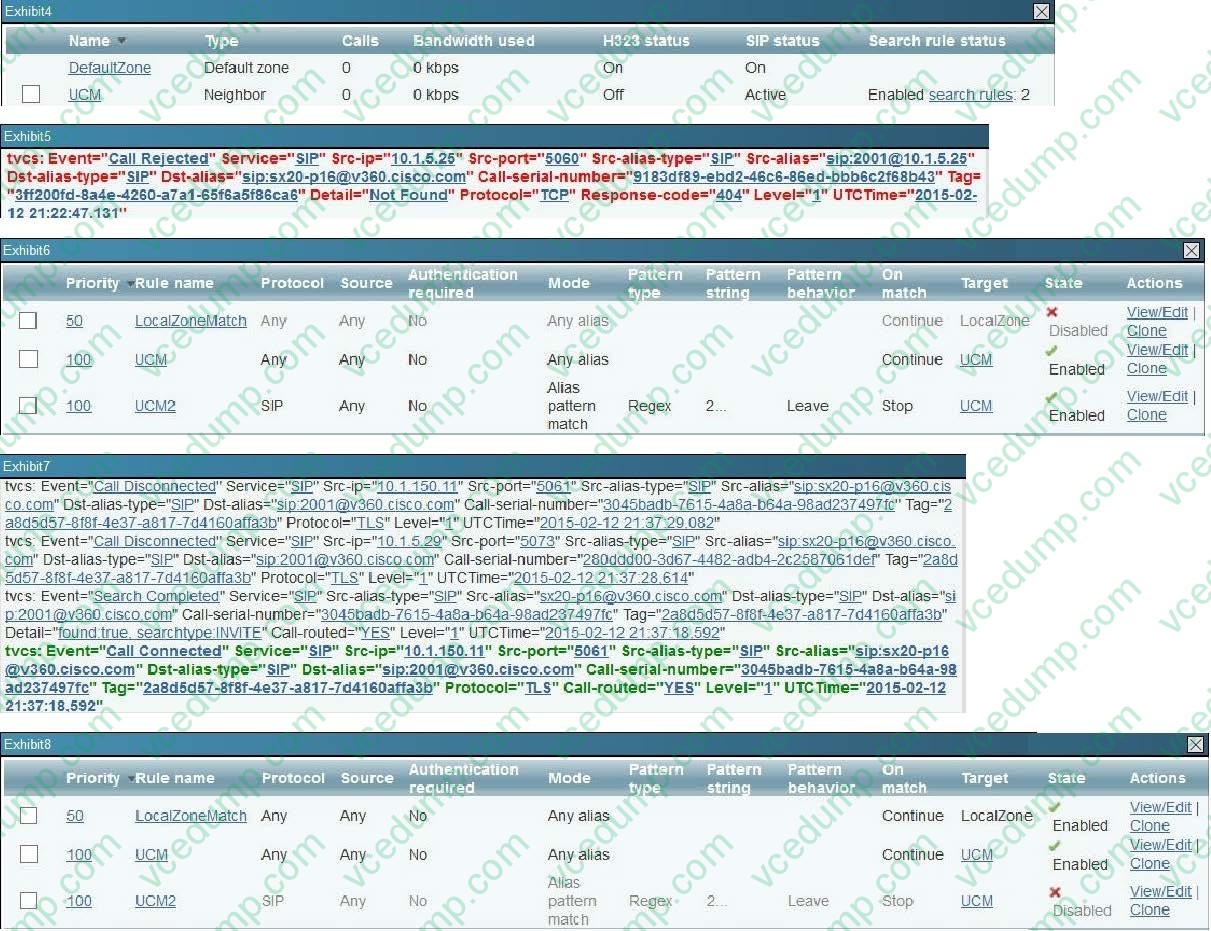

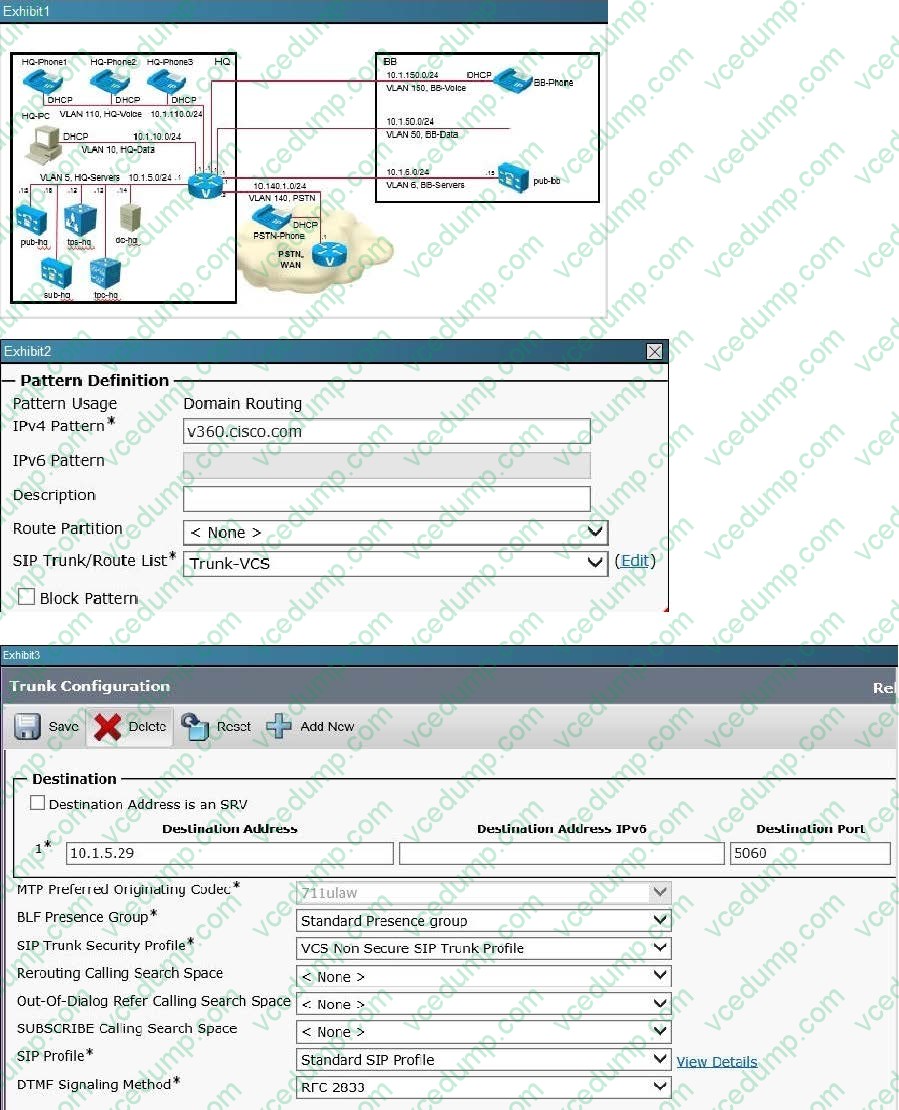

  Refer to topology and Exhibits below: A call from a SX20 in the BackBone (not shown) with a URI extension is dialing a HQ Ph 1 that is registered to the HQ CUCM. Determine if the call fails and if so, what are the two causes? (Choose two).





  A. The call succeeds.
  B. The call fails.
  C. There are no issues, so the call succeeds.
  D. The SIP port is incorrect on the Cisco Unified Communications Manager CUCM SIP trunk.
  E. The Local Zone Match Rule state is disabled.
  F. Rule name UCM2 is set to stop on Match
  A. The call succeeds.
  C. There are no issues, so the call succeeds.

• Question 142:

  Users on your network report fast busy signals when they attempt to place calls. While troubleshooting, you verify that codecs are configured correctly and determine that the network carries up to 200 concurrent calls different times of the day. Which two actions correct the problem? (Choose Two)

  A. Add more Cisco Unified Communications Manager to cluster
  B. Add more DSPs to the NM-HD
  C. Increase the number of sessions to the maximum allowed by system resources
  D. Implement an SRST-CME gateway to improve resource allocation
  E. Add a cisco catalyst switch to the environment to increase port density.
  F. Bind the network PRIs to add additional bandwidth.
  B. Add more DSPs to the NM-HD
  D. Implement an SRST-CME gateway to improve resource allocation

• Question 143:

  Cisco TelePresence System EX90 #1 is trying to call EX90 #2. Both endpoints are registered to Cisco Unified Communications Manager. The call connects, but the quality is not good. The video image is breaking up on EX90 #2. The media path from A to B supports only 2 Mb. Which three reasons are possible causes? (Choose three.)

  A. The camera on system B has a loose cable.
  B. The line is congested, and QoS is not configured correctly between the sites.
  C. Bandwidth limitation between IP zones is set too low for video.
  D. Bandwidth limitation between regions is set too low for video.
  E. The autonegotiation protocol H.286 is turned off on one of the EX90s.
  F. The system is set to use a higher bandwidth that the media path allows.
  B. The line is congested, and QoS is not configured correctly between the sites.
  D. Bandwidth limitation between regions is set too low for video.
  E. The autonegotiation protocol H.286 is turned off on one of the EX90s.

• Question 144:

  URI dialing is enabled between two clusters with the default options. The engineer that set up the URI dialing verified that all was working properly. However, a user from one of the clusters cannot dial using URI to a user in the same cluster. What do you do to resolve this issue?

  A. Verify the password that is used by the authentication under Intercluster Lookup Service configuration.
  B. Find out if the URI address of the called user has a capital letter in the URI string.
  C. Verify that Intercluster Lookup Service is set up correctly.
  D. Verify USN Data Synchronization Status.
  B. Find out if the URI address of the called user has a capital letter in the URI string.

• Question 145:

  Which two statements about software MTP devices are true?

  A. The RTMT can monitor the number of registered and in use MTPs
  B. A singe MTP can register with multiple Cisco unified Communications Managers.
  C. Each server can support up to four instances of the Cisco IP Voice Media Streaming Application.
  D. The Cisco IP Voice Media Streaming Application can reduce the performance of the Cisco Unified Communications Manager it is installed on the same server.
  E. When you configure and restart the MTP, the changes are applied immediately to active calls.
  F. When you configure and reset the MTP, the changes are applied immediately to active calls.
  A. The RTMT can monitor the number of registered and in use MTPs
  E. When you configure and restart the MTP, the changes are applied immediately to active calls.

• Question 146:

  You are trying to register an H.323-based Cisco TelePresence system to Cisco Unified Communications Manager and a Cisco DX70 system to the Cisco VCS Control. Why do neither of the units want to register?

  A. The H.323-based system needs an E164 number to register to Cisco Unified Communications Manager, and the Cisco DX70 needs to have the MAC address configured first on the Cisco VCS Control.
  B. The H.323-based system needs to register to the Cisco VCS Control with an E.164 number, and the Cisco DX70 needs the TFTP address to register on the Cisco Unified Communications Manager.
  C. Both systems need to register to the Cisco VCS Control, but the H.323-based system needs to have the gatekeeper setting set to "Direct."
  D. Both systems need to register to the Cisco Unified Communications Manager, as the Cisco VCS Control is used only for firewall traversal.
  E. You need Cisco TelePresence Management Suite to register Cisco TelePresence systems.
  F. You need Cisco TelePresence Server to register Cisco TelePresence systems.
  B. The H.323-based system needs to register to the Cisco VCS Control with an E.164 number, and the Cisco DX70 needs the TFTP address to register on the Cisco Unified Communications Manager.

• Question 147:

  Which Cisco IOS command is used to display information for active connections that are controlled by the Media Gateway Control Protocol?

  A. show mgcp connection
  B. show mgcp statistics
  C. show mgcp endpoint
  D. show mgcp nas
  A. show mgcp connection

• Question 148:

  You have developed a dial plan for a Cisco Unifed CallManager 5.0 solution. All the route patterns, partitions, calling search spaces, and translation rules have been configured. Before starting up the system you wish to test the dial plan for errors. Which Cisco Unifed CallManager tool will simplify this testing?

  A. Dial Plan Installer
  B. RTMT Traces and Alarms
  C. Route Plan Report
  D. Dialed Number Analyzer
  D. Dialed Number Analyzer

• Question 149:

  A remote office uses a VPN with the HQ office to register its phones for centralized management. The office has a local SIP gateway with PRI for calling and to support SRST. On the Cisco Unified Communications Manager, a device pool is

  created for this site with media resources that are local to Cisco Unified Communications Manager. A SIP trunk that requires a MTP connects to the gateway. Users report voice quality issues when making and receiving calls.

  How do you resolve this issue?

  A. Restart the phones at the remote office.
  B. Restart the voice gateway and switch.
  C. Enable QoS on the remote office.
  D. Assign an MTP that is local to the device pool that is used by the phones.
  C. Enable QoS on the remote office.

• Question 150:

  An end user at a remote site is trying to initiate an Ad Hoc conference call to an end user at the main site. The conference bridge is configured to support one codec. The remote end user receives an error message on the phone "Cannot complete conference call". What is the cause of the issue?

  A. A media termination point is missing
  B. A software conference bridge is not assigned
  C. The remote phone does not have the conference feature assigned
  D. The transcoder resource is missing
  D. The transcoder resource is missing
