Cisco 300-080 Online Practice Questions and Exam Preparation

Cisco 300-080 Online Questions & Answers

• Question 371:

  In Cisco Unified Communications Manager, what is the default maximum number of learned patterns for the call control discovery feature parameter?

  A. 5000
  B. 10000
  C. 20000
  D. 500
  E. 50000
  C. 20000

• Question 372:

  A user is trying to call a mobile phone using the number 547895341, where 5 is the pre-fix to call off-net numbers. Calls to mobile phones have worked in Past, but now the call does not work. Which three areas should you check to resolve the issue? (Choose Three)

  A. Verify that Cisco Unified Border Element is running.
  B. Verify the search pattern.
  C. Verify the route pattern, route list and route group.
  D. Check that Cisco VCS control and Cisco VCS Express are getting through firewall.
  E. Verify that the PSTN line is connected to the Cisco Unified Communications Manager.
  F. Verify that connection to and from the Cisco Unified Border Element is good.
  A. Verify that Cisco Unified Border Element is running.
  C. Verify the route pattern, route list and route group.
  E. Verify that the PSTN line is connected to the Cisco Unified Communications Manager.

• Question 373:

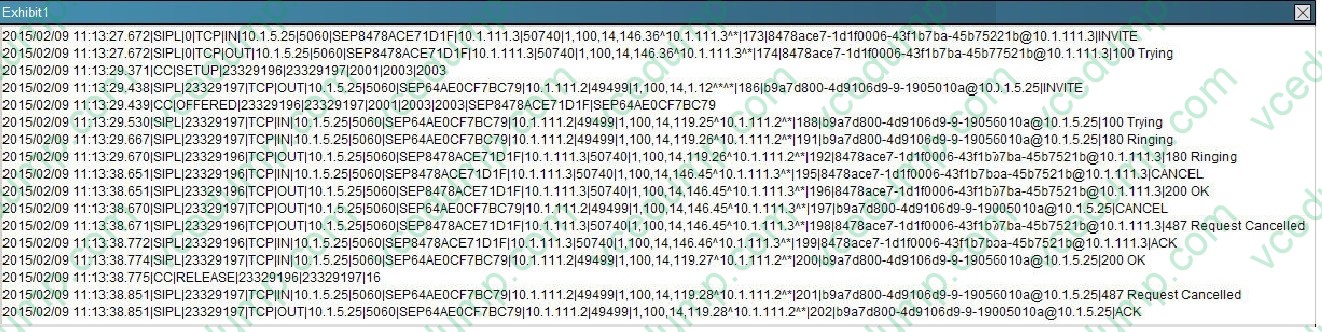

  Refer to Exhibit. What type of trace file is this considered to be?



  A. sdl
  B. dbl
  C. dbnotify
  D. calllogs
  E. sdi
  E. sdi

• Question 374:

  Which four performance counters are available when monitoring a Cisco MTP device using the Cisco Unified Communications Manager RTMT? (Choose four.)

  A. Resource Total
  B. Resource Available
  C. Out of Resources
  D. Resource Idle
  E. Resource Active
  F. MTP Streams Active
  G. MTP Connection Lost
  H. MTP Instances Active
  A. Resource Total
  B. Resource Available
  C. Out of Resources
  E. Resource Active

• Question 375:

  If you are required to configure a router to use MGCP on a digital port, which measure will you take?

  A. Add the application mgcpapp subcommand to the dial peer
  B. Add the service mgcp subcommand to the dial peer
  C. Add the parameter application mgcpapp to the dsO-group controller subcommand.
  D. Add the service mgcp parameter to the dsO-group controller subcommand
  D. Add the service mgcp parameter to the dsO-group controller subcommand

• Question 376:

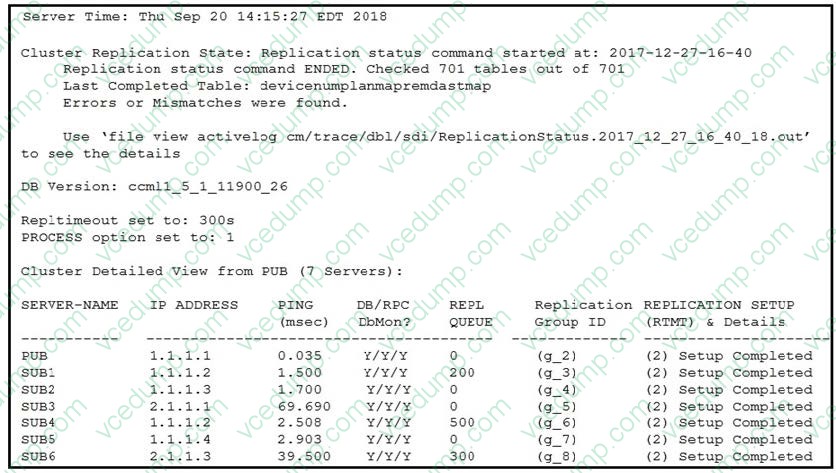

  Refer to the exhibit. Users report that the Message Waiting Indicator is not working. You want to see if the MWI issue is caused by database replication issues in Cisco Unified Communications Manager. You run the "utils dbreplication runtimestate" command in Cisco Unified CM Publisher to produce this output for troubleshooting. Which cause of the issue is most likely?

  A. The total end-to-end rount trip time in SUB3 is exceeding the maximum value of 40 ms.
  B. There are no issues with the database replication in Cisco Unified CM because the status is 2 in all servers.
  C. Some table might not be in synch.
  D. The devicenumplanmapremdestamp table is causing the issue with the MWI.
  C. Some table might not be in synch.

• Question 377:

  Users of your local Cisco Unified Communications Manager cluster report that they receive error “Login is unavailable (23)” when they try to log in to Extension Mobility. Which reason for this error is true?

  A. User provided the wrong UserID or PIN
  B. User has no Extension Mobility profiles assigned.
  C. The given user ID is not found n any of the remote clusters.
  D. Phone is not subscribed to Extension Mobility phone service.
  C. The given user ID is not found n any of the remote clusters.

• Question 378:

  An engineer is troubleshooting an intersite call between two endpoints where calls are intermediately failing with the error message: "488 Not Acceptable Media". Which option causes this error message to trigger?

  A. The device pool contains more call processing agents in the CMG group than the endpoint can support.
  B. MRGL contains more media groups than the endpoint can support.
  C. A lower bandwidth is set in the location than the endpoint can support.
  D. The hunt group contains more devices than the endpoint can support.
  C. A lower bandwidth is set in the location than the endpoint can support.

• Question 379:

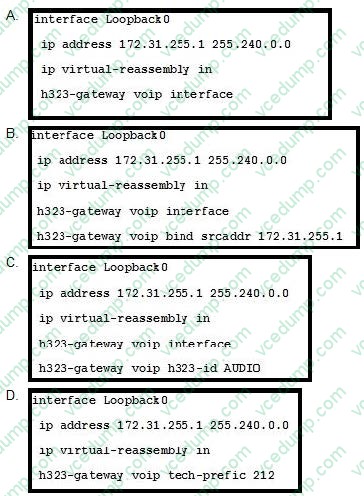

  Which set is likely to resolve an issue with one-way audio on an H.323 gateway?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 380:

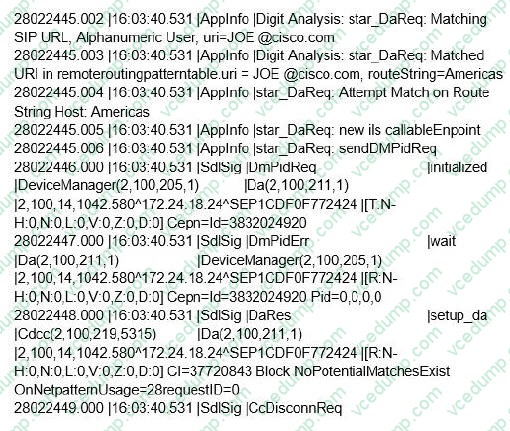

  Refer the exhibit. A network administrator in Cisco recently configured ILS in the network. The administrator attempted a call to Joe's SIP URI ([email protected]), but the call failed. The administrator collected Cisco CallManager traces using Cisco Unified Communications Manager RTMT.



  What should the administrator do to solve this issue?

  A. Check the "MTP Required" check box on the ILS trunk.
  B. Use the utils dbreplication reset all command to synchronize databases between ILS clusters.
  C. Joe's phone is currently using the SIP protocol. Change the protocol to SCCP.
  D. Create a route pattern for “americas” to route out the SIP trunk that is configured for the remote ILS cluster.
  D. Create a route pattern for “americas” to route out the SIP trunk that is configured for the remote ILS cluster.
