Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 971:

  How does frame switching function on a switch?

  A. forwards frames to a neighbor port using CDP
  B. modifies frames that contain a known source VLAN
  C. inspects and drops frames from unknown destinations
  D. forwards known destinations to the destination port
  D. forwards known destinations to the destination port

• Question 972:

  What is a feature of TFTP?

  A. offers anonymous user login ability
  B. uses two separate connections for control and data traffic
  C. relies on the well-known TCP port 20 to transmit data
  D. provides secure data transfer
  A. offers anonymous user login ability

• Question 973:

  DRAG DROP

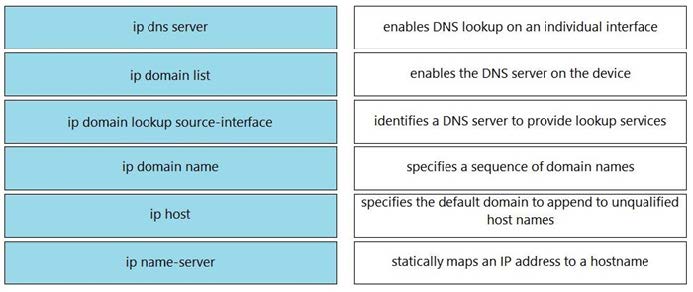

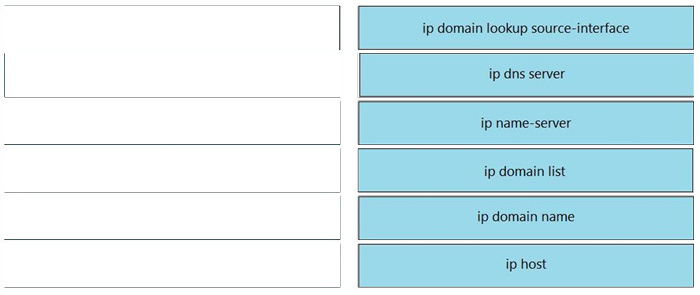

  Drag and drop the DNS lookup commands from the left onto the functions on the right.

  Select and Place:





• Question 974:

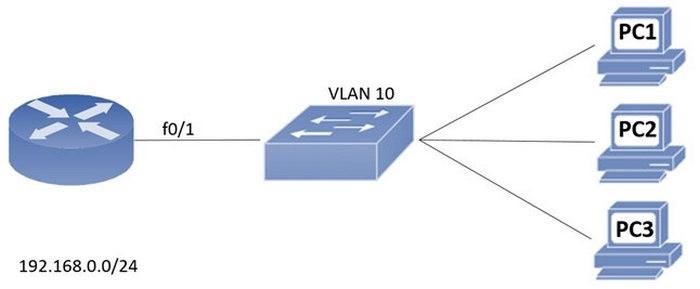

  Refer to the exhibit.



  An engineer assigns IP addressing to the current VLAN with three PCs. The configuration must also account for the expansion of 30 additional VLANS using the same Class C subnet for subnetting and host count. Which command set fulfills the request while reserving address space for the expected growth?

  A. Switch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255.255.255.252
  B. Switch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255.255.255.248
  C. Switch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255.255.255.0
  D. Switch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255.255.255.128
  B. Switch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255.255.255.248

  ---

  The scenario mentions that a Class C subnet needs to be used, which means we have a default subnet mask of 255.255.255.0. With the requirement to implement 30 additional VLANs, we need a subnet mask that provides enough IP addresses for all these VLANs within the same Class C network. By allocating a /29 subnet to each VLAN, it provides 6 host addresses (2^3 − 2, where 2 is subtracted for the network address and broadcast address) and provides enough IP addresses for all 30 additional VLANs.

• Question 975:

  Which mode must be set for APs to communicate to a Wireless LAN Controller using the Control and Provisioning of Wireless Access Points (CAPWAP) protocol?

  A. bridge
  B. route
  C. autonomous
  D. lightweight
  D. lightweight

• Question 976:

  Which type of ipv6 address is publicly routable in the same way as ipv4 public addresses?

  A. multicast
  B. unique local
  C. link-local
  D. global unicast
  D. global unicast

  ---

  The type of IPv6 address that is publicly routable in the same way as IPv4 public addresses is a global unicast address. Global unicast addresses are unique, globally reachable addresses that are assigned to devices that need to communicate with other devices over the Internet. They are similar to IPv4 public addresses in that they can be used to reach devices on other networks, but they are structured differently and use a different address space.

  Global unicast addresses are identified by the prefix "2000::/3" and are assigned to devices by their network administrator or by an Internet service provider (ISP). They are used for communication between devices on different networks, such as between a device on a LAN and a device on the Internet.

  It's important to note that global unicast addresses are not the same as link-local addresses, which are used for communication within a single network segment or link and are not intended to be routable over the Internet. Link-local addresses are identified by the prefix "FE80::/10" and are automatically generated by the device when it is connected to a network.

• Question 977:

  Which statement describes virtual machines?

  A. They facilitate local management of infrastructure devices
  B. They use a supervisor to provide management for services
  C. They include a guest OS and the service
  D. They enable the network to become agile and hardware-centric
  C. They include a guest OS and the service

  ---

  A virtual machine (VM) is an emulation of a physical computer. It runs a guest operating system (OS) that shares the physical hardware resources (such as CPU, memory, and storage) of a host machine. VMs provide the capability to run different OS environments on a single physical machine. VMs allow for the running of services or applications on a guest OS, which operates independently of the host OS.

• Question 978:

  Which interface or port on the WLC is the default for in-band device administration and communications between the controller and access points?

  A. console port
  B. management interface
  C. virtual interface
  D. service port
  B. management interface

  ---

  The management interface is the default interface for in-band management of the controller and connectivity to enterprise services such as AAA servers. It is also used for communications between the controller and access points, for all CAPWAP or intercontroller mobility messaging and tunneling traffic.

• Question 979:

  Which mechanism allows WPA3 to provide a higher degree of security than its predecessors?

  A. automatic device pairing
  B. SAE password-based key exchange
  C. certificate-based authentication
  D. special-character support in preshared keys
  B. SAE password-based key exchange

• Question 980:

  Which AP feature provides a captive portal for users to authenticate, register, and accept terms before accessing the internet?

  A. One-Click
  B. Hotspot
  C. Enhanced Bluetooth
  D. Whole Home
  B. Hotspot

  ---

  The Hotspot feature provides a captive portal that prompts users to authenticate, register, or accept terms and conditions before accessing the internet. This is commonly seen in public Wi-Fi networks, such as those in cafes, hotels, and airports, where users must interact with a portal page. Captive portals are often used for guest access, allowing network administrators to control and monitor internet access while providing a seamless onboarding experience for users.
