Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 991:

  DRAG DROP

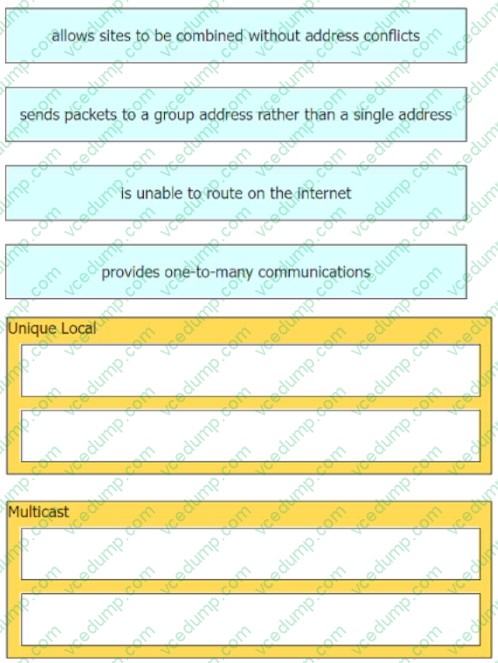

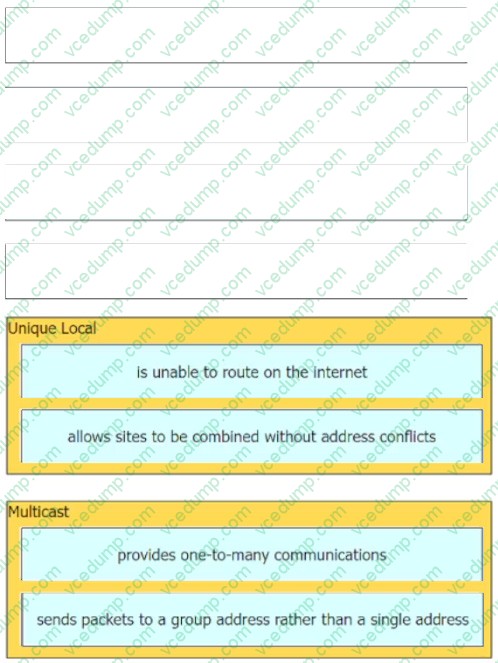

  Drag and drop the characteristic from the left onto the IPv6 address type on the right.

  Select and Place:





• Question 992:

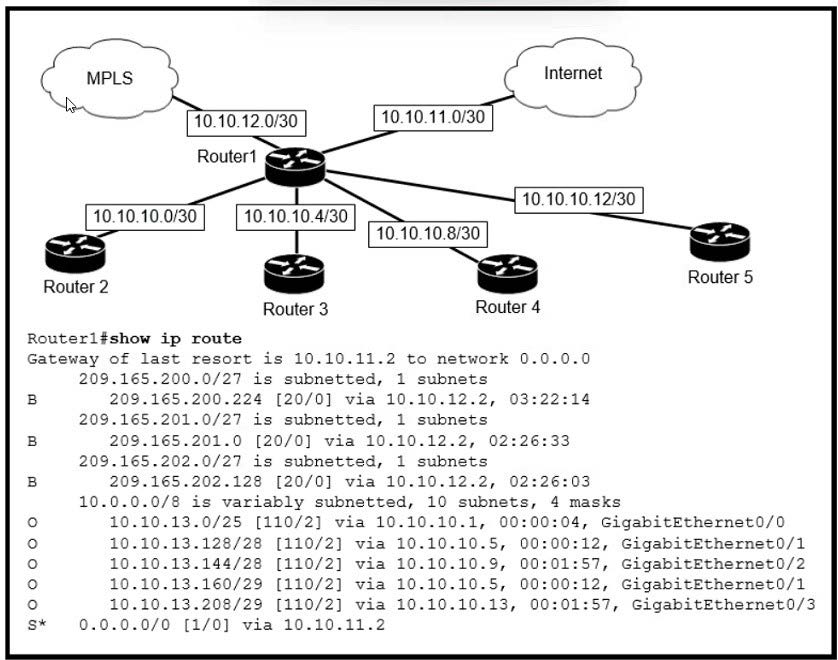

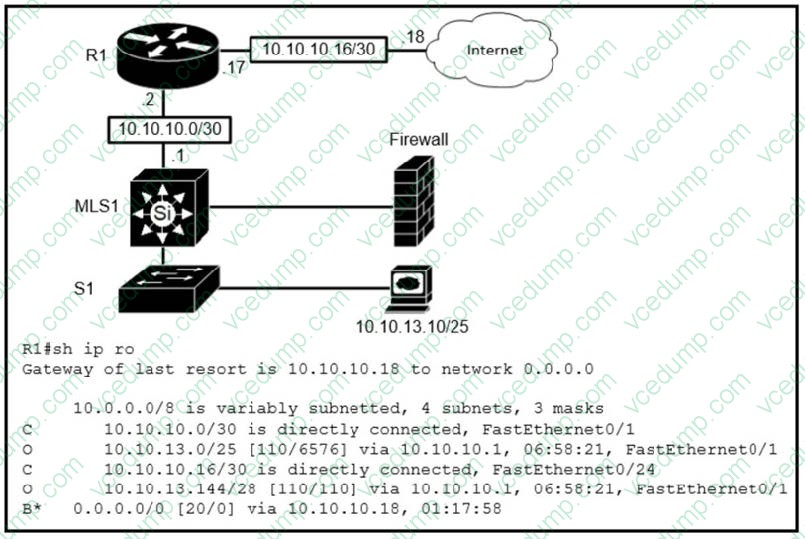

  Refer to the exhibit.



  Which route type is configured to reach the Internet?

  A. network route
  B. floating static route
  C. host route
  D. default route
  D. default route

  ---

  It can reach the internet with the directly connected route but only if it's specified to go directly to 10.10.10.18. The internet itself is filled with unknown addresses, so any other unknown address will need to use the default route.

• Question 993:

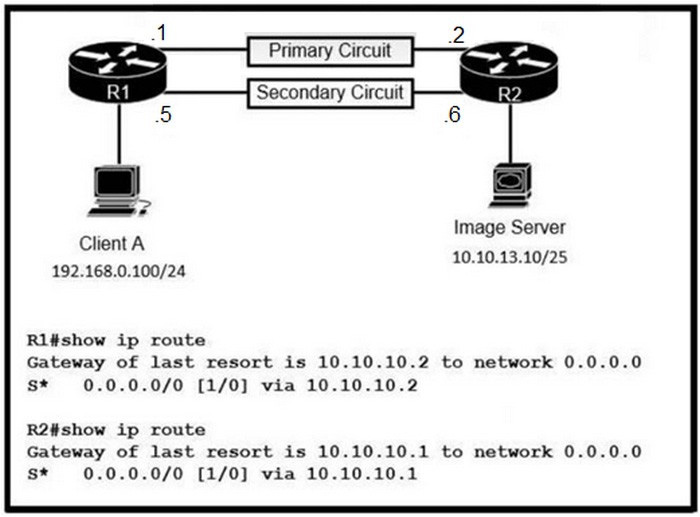

  Refer to the exhibit



  Routers R1 and R2 have been configured with their respective LAN interfaces. The two circuits are operational and reachable across the WAN.

  Which command set establishes failover redundancy if the primary circuit goes down?

  A. R1(config)#ip route 0.0.0.0 0.0.0.0 10.10.10.6 R2(config)#ip route 0.0.0.0 0.0.0.0 10.10.10.5
  B. R1(config)#ip route 10.10.13.10 255.255.255.255 10.10.10.2 R2(config)#ip route 192.168.0.100 255.255.255.255 10.10.10.1
  C. R1(config)#ip route 10.10.13.10 255.255.255.255 10.10.10.6 R2(config)#ip route 192.168.0.100 255.255.255.255 10.10.10.5
  D. R1(config)#ip route 0.0.0.0 0.0.0.0 10.10.10.6 2 R2(config)#ip route 0.0.0.0 0.0.0.0 10.10.10.5 2
  D. R1(config)#ip route 0.0.0.0 0.0.0.0 10.10.10.6 2 R2(config)#ip route 0.0.0.0 0.0.0.0 10.10.10.5 2

  ---




• Question 994:

  What are two reasons for an engineer to configure a floating static route? (Choose two.)

  A. to enable fallback static routing when the dynamic routing protocol fails
  B. to route traffic differently based on the source IP of the packet
  C. to automatically route traffic on a secondary path when the primary path goes down
  D. to support load balancing via static routing
  E. to control the return path of traffic that is sent from the router
  A. to enable fallback static routing when the dynamic routing protocol fails
  C. to automatically route traffic on a secondary path when the primary path goes down

• Question 995:

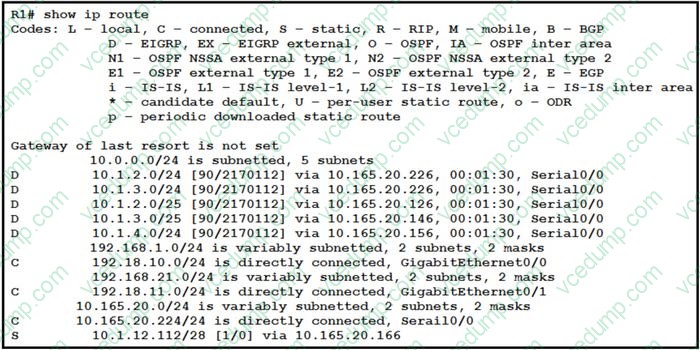

  Refer to the exhibit.



  What is the next hop for traffic entering R1 with a destination of 10.1.2 126?

  A. 10.165 20.126
  B. 10.165.20.146
  C. 10.165.20.166
  D. 10.165 20.226
  A. 10.165 20.126

  ---

• Question 996:

  What is a function of a firewall on an enterprise network?

  A. It allows and denies ingress and egress traffic.
  B. It serves as a default gateway to hosts on the internet.
  C. It processes traffic based on stateless inspection.
  D. It acts as the intermediary device between the enterprise and its ISP.
  A. It allows and denies ingress and egress traffic.

• Question 997:

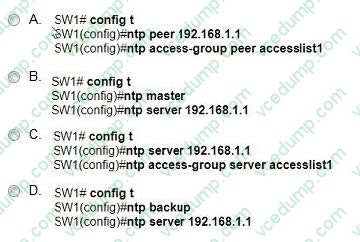

  An engineer is configuring switch SW1 to act an NTP server when all upstream NTP server connectivity fails. Which configuration must be used?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 998:

  What is the temporary state that switch ports always enter immediately after the boot process when Rapid PVST+ is used?

  A. forwarding
  B. listening
  C. learning
  D. discarding
  D. discarding

  ---

  When Rapid PVST+ is used, switch ports always enter the blocking state immediately after the boot process 1. The blocking state is the first of the five possible port states in the Rapid PVST+ protocol. In this state, the port does not forward frames but listens to BPDUs to determine the location of the root bridge and the best path to reach it 12. After a port enters the blocking state, it transitions to the listening state and then to the learning state before finally entering the forwarding state. When Rapid PVST+ (Per-VLAN Spanning Tree Plus) is used, switch ports go through a specific state immediately after the boot process. This state is known as the "discarding" state.

• Question 999:

  CCNA Lab simulation

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8. When Next is clicked, the lab closes and cannot be reopened.



  Tasks

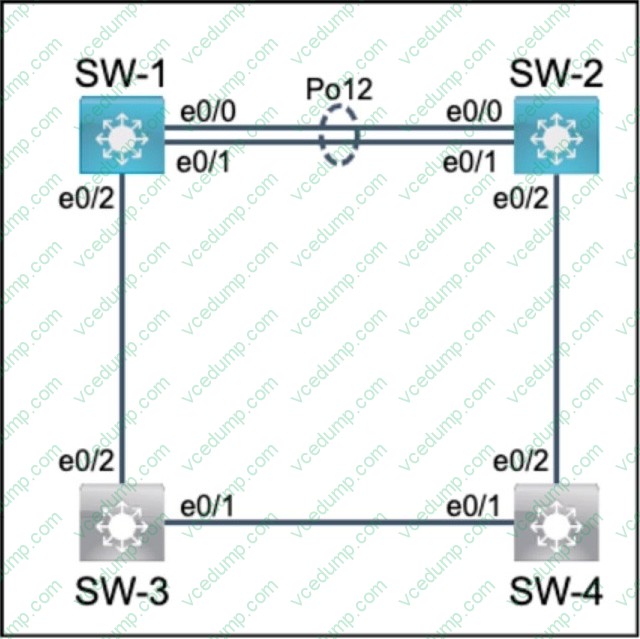

  SW-3 and SW-4 are preconfigured with all necessary commands. All physical cabling is in place and verified. All connectivity must be operational.

  1.Configure both SW-1 and SW-2 switch ports e0/0 and e0/1 for 802.1q trunking with only VLANS 1, 12, and 22 permitted.

  2.Configure SW-1 port e0/2 for 802.1q trunking and include only VLANS 12 and 22.

  3.Configure both SW-1 and SW-2 switch ports e0/0 and e0/1 for link aggregation using the industry standard protocol. All ports must be configured so that they immediately negotiate the link.

  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  Step 1:

  SW-1:

  interface e0/0

  switchport mode trunk

  switchport trunk encapsulation dotlq

  switchport trunk allowed vlan 1.12.22

  interface e0/1

  switchport mode trunk

  switchport trunk encapsulation dot1q

  switchport trunk allowed vlan 1,12,22

  SW-2:

  interface e0/0

  switchport mode trunk

  switchport trunk encapsulation dotlq

  switchport trunk allowed vlan 1.12.22

  interface e0/1

  switchport mode trunk

  switchport trunk encapsulation dot1q

  switchport trunk allowed vlan 1,12,22

  Step 2:

  SW-1:

  interface e0/2

  switchport mode trunk

  switchport trunk encapsulation dotlq

  switchport trunk allowed vlan 12.22

  Step 3:

  SW-1:

  interface range e0/0 - e0/1

  channel-group 1 mode active

  SW-2:

  interface range e0/0 - e0/1

  channel-group 1 mode active

• Question 1000:

  In QoS, which prioritization method is appropriate for interactive voice and video?

  A. expedited forwarding
  B. traffic policing
  C. round-robin scheduling
  D. low-latency queuing
  D. low-latency queuing

  ---

  Low Latency Queuing (LLQ) is the preferred queuing policy for VoIP audio. Given the stringent delay/jitter sensitive requirements of voice and video and the need to synchronize audio and video for CUVA, priority (LLQ) queuing is the recommended for all video traffic as well. Note that, for video, priority bandwidth is generally fudged up by 20% to account for the overhead.
