• Question 961:

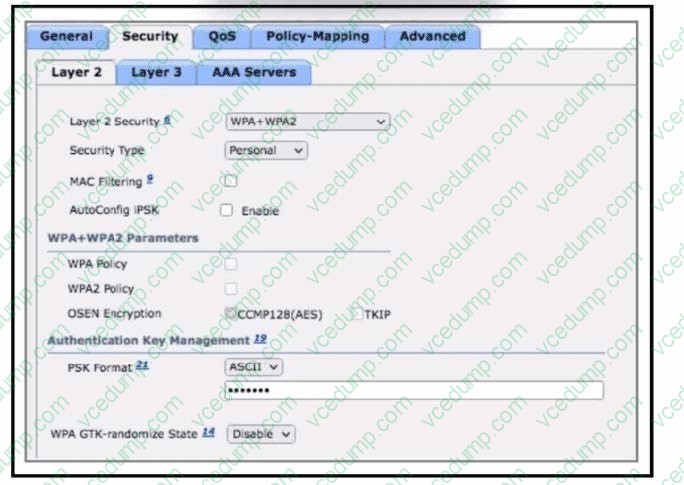

  Refer to the exhibit.



  Company A wants to use a RADIUS server to service all user and device authentication attempts with a more secure and granular authentication approach. Not all client devices support dot1x authentication.

  Which two configuration changes must be made to accomplish the task? (Choose two.)

  A. Enable AutoConfig IPSK under the Layer 2 tab.
  B. Select Authentication server under the AAA servers tab.
  C. Configure Enterprise Security type under the Layer 2 tab.
  D. Set Authentication under the Layer 3 tab.
  E. Enable WPA2 Policy under the Layer 2 tab.
  B. Select Authentication server under the AAA servers tab.
  C. Configure Enterprise Security type under the Layer 2 tab.

• Question 962:

  What is a benefit of using a Cisco Wireless LAN Controller?

  A. It eliminates the need to configure each access point individually.
  B. Central AP management requires more complex configurations.
  C. Unique SSIDs cannot use the same authentication method.
  D. It supports autonomous and lightweight APs.
  A. It eliminates the need to configure each access point individually.

  ---

  A wireless LAN (or WLAN) controller is used in combination with the Lightweight Access Point Protocol (LWAPP) to "manage light-weight access points in large quantities" by the network administrator or network operations center.

• Question 963:

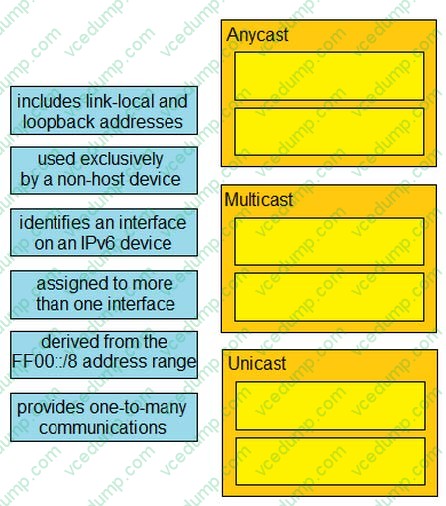

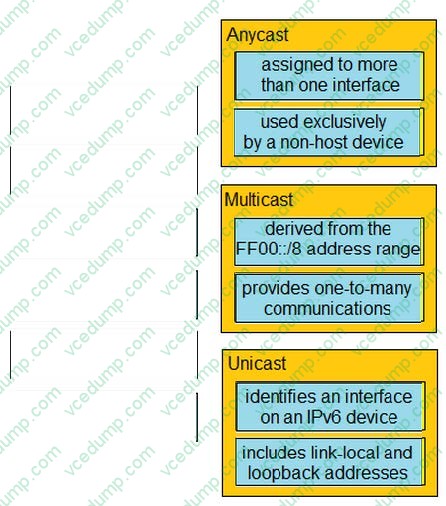

  DRAG DROP

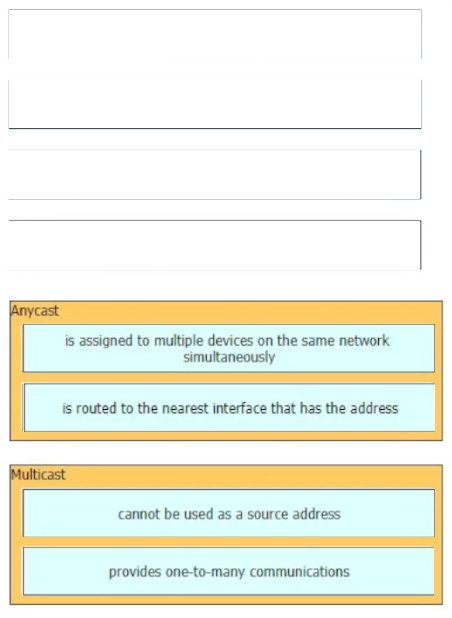

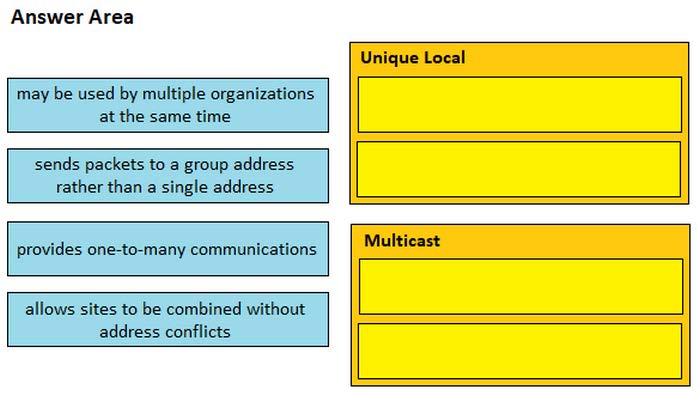

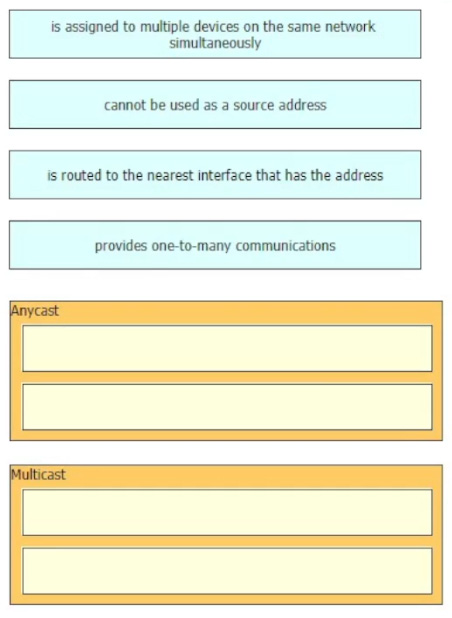

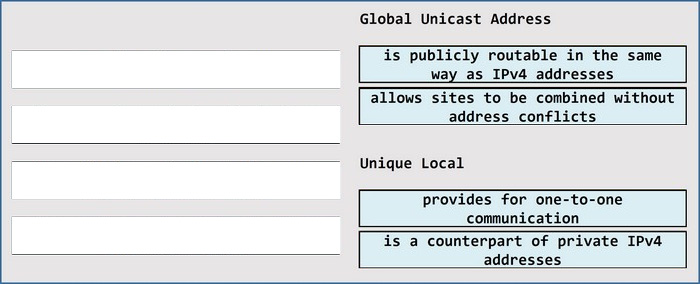

  Drag and drop the IPv6 address details from the left onto the corresponding types on the right.

  Select and Place:





• Question 964:

  What is the difference between the TCP and UDP protocols?

  A. TCP ensures ordered, reliable data delivery, and UDP offers low latency and high throughput.
  B. TCP is used for transmitting data over the internet, and UDP is used for transmitting data over a local network.
  C. TCP manages multicast and broadcast data transfers, and UDP only handles unicast communications.
  D. TCP is used to ensure data integrity in a file transfer, and UDP is used to broadcast a message to multiple recipients.
  A. TCP ensures ordered, reliable data delivery, and UDP offers low latency and high throughput.

  ---

  TCP provides ordered, reliable data delivery by using error checking, acknowledgment, and retransmission of lost packets. In contrast, UDP does not guarantee delivery or order, but it has lower latency and higher throughput because it avoids the overhead of connection setup and error correction mechanisms.

• Question 965:

  How does Chef configuration management enforce a required device configuration?

  A. The Chef Infra Server uses its configured cookbook to push the required configuration to the remote device requesting updates.
  B. The installed agent on the device connects to the Chef Infra Server and pulls its required configuration from the cookbook.
  C. The Chef Infra Server uses its configured cookbook to alert each remote device when it is time for the device to pull a new configuration.
  D. The installed agent on the device queries the Chef Infra Server and the server responds by pushing the configuration from the cookbook.
  B. The installed agent on the device connects to the Chef Infra Server and pulls its required configuration from the cookbook.

  ---

  Chef configuration management enforces a required device configuration by using an installed agent on the device that connects to the Chef Infra Server and pulls the required configuration from the cookbook.

  In Chef, a cookbook is a collection of recipes, attributes, templates, and other configuration files that define a desired configuration for a specific device or group of devices. The Chef Infra Server stores the cookbook, and the installed agent on each device periodically checks in with the server to see if there are any updates to the cookbook.

  If an update is available, the agent pulls the updated cookbook from the server and applies the new configuration to the device. This process is known as "pull-based" configuration management, where the devices actively request updates from the server.

• Question 966:

  What are two facts that differentiate optical-fiber cabling from copper cabling? (Choose two.)

  A. It is less expensive when purchasing patch cables.
  B. It carries electrical current further distances for PoE devices.
  C. It provides greater throughput options.
  D. It has a greater sensitivity to changes in temperature and moisture.
  E. It carries signals for longer distances.
  C. It provides greater throughput options.
  E. It carries signals for longer distances.

• Question 967:

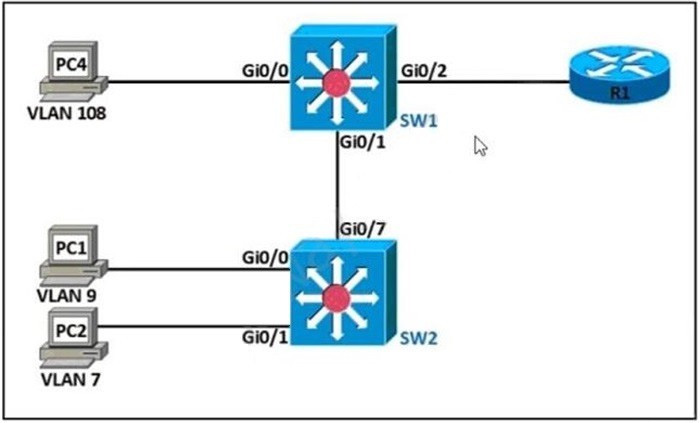

  Refer to the exhibit.



  The SW1 and SW2 Gi0/0 ports have been preconfigured. An engineer is given these requirements:

  1. Allow all PCs to communicate with each other at Layer 3.

  2. Configure untagged traffic to use VLAN 5.

  3. Disable VLAN 1 from being used.

  Which configuration set meets these requirements?

  A. SW1# interface Gi0/1 switchport mode trunk switchport trunk allowed vlan 5,7,9,108 switchport trunk native vlan 5 interface Gi0/2 switchport mode trunk switchport trunk allowed vlan 5,7,9,108 SW2# interface Gi0/1 switchport mode access switchport access vlan 7 interface Gi0/7 switchport mode trunk switchport trunk allowed vlan 7,9,108
  B. SW1# interface Gi0/1 switchport mode trunk switchport trunk allowed vlan 5,7,9,108 switchport trunk native vlan 5 interface Gi0/2 switchport mode access switchport trunk allowed vlan 7,9,108 SW2# interface Gi0/1 switchport mode access no switchport access vlan 1 switchport access vlan 7 interface Gi0/7 switchport mode trunk switchport trunk allowed vlan 7,9,108 switchport trunk native vlan 5
  C. SW1# interface Gi0/1 switchport mode trunk switchport trunk allowed vlan 5,7,9,108 switchport trunk native vlan 5 interface Gi0/2 switchport mode trunk switchport trunk allowed vlan 5,7,9,108 SW2# interface Gi0/1 switchport mode access switchport access vlan 7 interface Gi0/7 switchport mode trunk switchport trunk allowed vlan 5,7,9,108 switchport trunk native vlan 5
  D. SW1# interface Gi0/1 switchport mode trunk switchport trunk allowed vlan 5,7,9,108 interface Gi0/2 switchport mode trunk switchport trunk allowed vlan 7,9,108 SW2# interface Gi0/1 switchport mode trunk switchport trunk allowed vlan 7 interface Gi0/7 switchport mode trunk switchport trunk allowed vlan 5,7,9,108
  C. SW1# interface Gi0/1 switchport mode trunk switchport trunk allowed vlan 5,7,9,108 switchport trunk native vlan 5 interface Gi0/2 switchport mode trunk switchport trunk allowed vlan 5,7,9,108 SW2# interface Gi0/1 switchport mode access switchport access vlan 7 interface Gi0/7 switchport mode trunk switchport trunk allowed vlan 5,7,9,108 switchport trunk native vlan 5

  ---




• Question 968:

  Several new coverage cells are required to improve the Wi-Fi network of an organization. Which two standard designs are recommended? (Choose two.)

  A. 5GHz provides increased network capacity with up to 23 nonoverlapping channels.
  B. 5GHz channel selection requires an autonomous access point.
  C. Cells that overlap one another are configured to use nonoverlapping channels.
  D. Adjacent cells with overlapping channels use a repeater access point.
  E. For maximum throughput, the WLC is configured to dynamically set adjacent access points to the same channel.
  A. 5GHz provides increased network capacity with up to 23 nonoverlapping channels.
  C. Cells that overlap one another are configured to use nonoverlapping channels.

  ---

  A. The 5GHz frequency band provides increased network capacity because it has more nonoverlapping channels available than the 2.4GHz frequency band. This allows for more devices to connect to the network and increases the overall capacity of the network.

  C. When designing a wireless network, it is important to ensure that cells (coverage areas) do not overlap one another. If cells overlap, it can cause interference and negatively impact the performance of the network. To prevent this, cells that overlap should be configured to use nonoverlapping channels. This allows the devices in those cells to communicate without interfering with each other. B, D, E options are not the standard design for coverage cells, the selection of channel depends on the environment, and it's not a requirement to have autonomous access point, repeater access point or dynamic channel selection.

• Question 969:

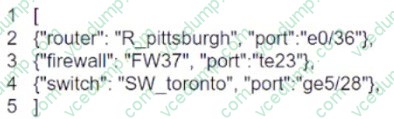

  What is represented by the word "firewall" within this JSON schema?



  A. value
  B. key
  C. object
  D. array
  B. key

• Question 970:

  Which authentication method requires the user to provide a physical attribute to authenticate successfully?

  A. biometric
  B. password
  C. multifactor
  D. certificate
  A. biometric
