• Question 951:

  A network administrator is troubleshooting the OSPF configuration of routers R1 and R2. The routers cannot establish an adjacency relationship on their common Ethernet link.

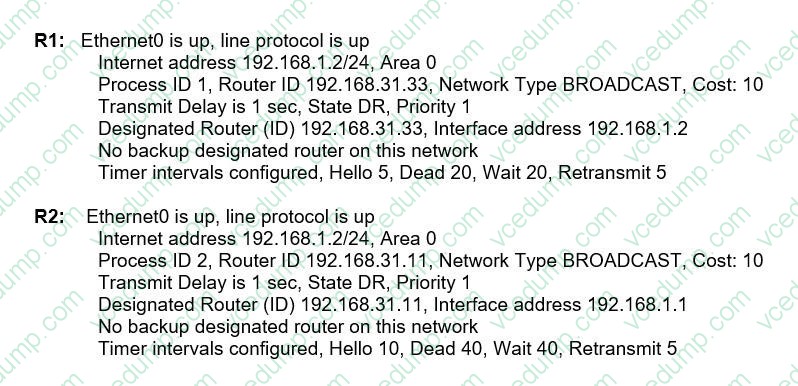

  The graphic shows the output of the show ip ospf interface e0 command for routers R1 and R2. Based on the information in the graphic, what is the cause of this problem?

  A. The OSPF area is not configured properly.
  B. The priority on R1 should be set higher.
  C. The cost on R1 should be set higher.
  D. The hello and dead timers are not configured properly.
  E. A backup designated router needs to be added to the network.
  F. The OSPF process ID numbers must match.
  D. The hello and dead timers are not configured properly.

  ---

  In OSPF, the hello and dead intervals must match and here we can see the hello interval is set to 5 on R1 and 10 on R2. The dead interval is also set to 20 on R1 but it is 40 on R2.

• Question 952:

  Which selections must be used on the WLC when implementing a RADIUS server for wireless authentication?

  A. Client Exclusion and SSH
  B. Network Access Control State and SSH
  C. AAA Override and the IP address of the server
  D. 802.1x and the MAC address of the server
  C. AAA Override and the IP address of the server

  ---

  AAA Override: This feature on a WLC allows the WLC to override the user roles based on the RADIUS attributes received from the RADIUS server. This is important for dynamic role assignment and other policy-related decisions. The IP address of the server: This is crucial for the WLC to know where the RADIUS server is located so that it can send authentication requests to it.

• Question 953:

  Which IPv6 address type provides communication between subnets and is unable to route on the Internet?

  A. global unicast
  B. unique local
  C. link-local
  D. multicast
  B. unique local

• Question 954:

  DRAG DROP

  Refer to the exhibit.

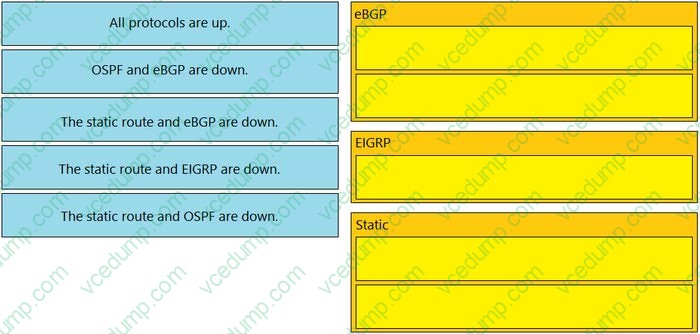

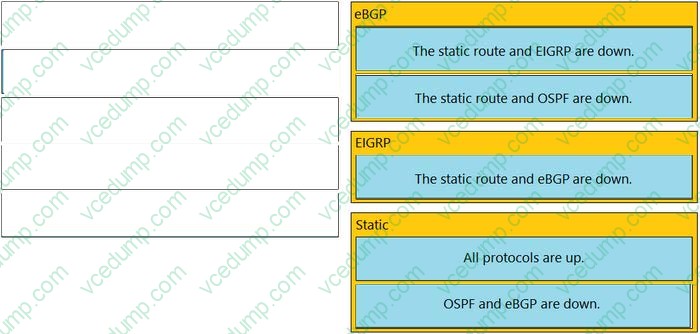

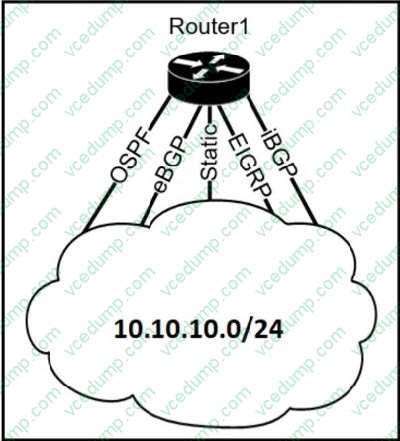

  The Router1 routing table has multiple methods to reach 10.10.10.0/24 as shown. The default Administrative Distance is used. Drag and drop the network conditions from the left onto the routing methods that Router1 uses on the right.

  Select and Place:





• Question 955:

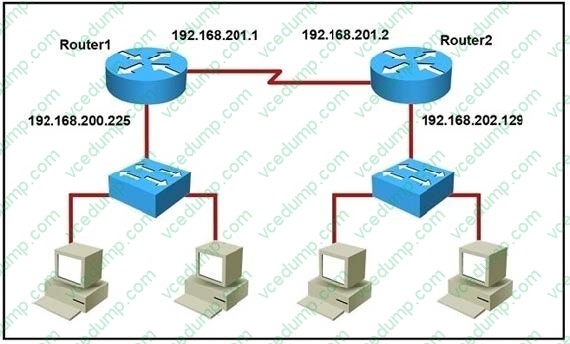

  Refer to the exhibit. Which command would you use to configure a static route on Router1 to network 192.168.202.0/24 with a nondefault administrative distance?



  A. router1(config)#ip route 192.168.202.0 255.255.255.0 192.168.201.2 1
  B. router1(config)#ip route 192.168.202.0 255.255.255.0 192.168.201.2 5
  C. router1(config)#ip route 1 192.168.201.1 255.255.255.0 192.168.201.2
  D. router1(config)#ip route 5 192.168.202.0 255.255.255.0 192.168.201.2
  B. router1(config)#ip route 192.168.202.0 255.255.255.0 192.168.201.2 5

  ---

  The default AD of static route is 1 so we need to configure another number for the static route.

• Question 956:

  SIMULATION

  Lab Environment

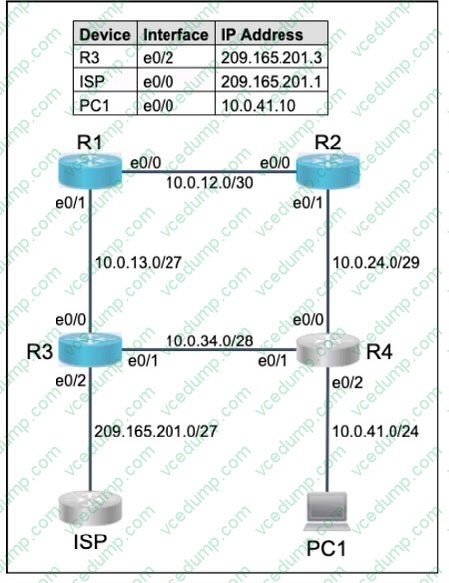

  All physical cabling is in place. Router R4 and PC1 are fully configured and inaccessible. R4's WAN interfaces use .4 in the last octet for each subnet. Configurations should ensure end-to-end connectivity.

  Lab Tasks

  1. Configure static routing to ensure R1 prefers the path through R2 to reach only PCI on R4's LAN

  2. Configure static routing that ensures traffic sourced from RI will take an alternate path through R3 to PCI in the event of an outage along the primary path

  3. Configure default routes on R1 and R3 to the Internet using the least number of hops

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8. When Next is clicked, the lab closes and cannot be reopened.



  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  To configure static routing on R1 to ensure that it prefers the path through R2 to reach only PC1 on R4's LAN, you need to create a static route for the host 10.0.0.100/8 with a next-hop address of 20.0.0.2, which is the IP address of R2's interface connected to R1. You also need to assign a lower administrative distance (AD) to this route than the default AD of 1 for static routes, so that it has a higher preference over other possible routes. For example, you can use an AD of 10 for this route.

  To create this static route, enter the following commands on R1's console:

  R1# configure terminal

  R1(config)# ip route 10.0.0.100 255.0.0.0 20.0.0.2 10

  R1(config)# end

  To configure static routing on R1 that ensures that traffic sourced from R1 will take an alternate path through R3 to PC1 in the event of an outage along the primary path, you need to create another static route for the host 10.0.0.100/8 with a next-hop address of 40.0.0.2, which is the IP address of R3's interface connected to R1. You also need to assign a higher AD to this route than the AD of the primary route, so that it has a lower preference and acts as a backup route. For example, you can use an AD of 20 for this route. This type of static route is also known as a floating static route.

  To create this static route, enter the following commands on R1's console:

  R1# configure terminal

  R1(config)# ip route 10.0.0.100 255.0.0.0 40.0.0.2 20

  R1(config)# end

  To configure default routes on R1 and R3 to the Internet using the least number of hops, you need to create a static route for the network 0.0.0.0/0 with a next-hop address of the ISP's interface connected to each router respectively. A default route is a special type of static route that matches any destination address and is used when no other specific route is available.

  The ISP's interface connected to R1 has an IP address of 10.0.0.4, and the ISP's interface connected to R3 has an IP address of 50.0.0.4.

  To create these default routes, enter the following commands on each router's console:

  On R1:

  R1# configure terminal

  R1(config)# ip route 0.0.0.0 0.0.0.0 10.0.0.4

  R1(config)# end

  On R3:

  R3# configure terminal

  R3(config)# ip route 0.0.0.0 0.0.0.0 50.0.0.4

  R3(config)# end

• Question 957:

  You have two paths for the 10.10.10.0 network - one that has a feasible distance of 3072 and the other of 6144. What do you need to do to load balance your EIGRP routes?

  A. Change the maximum paths to 2
  B. Change the configuration so they both have the same feasible distance
  C. Change the variance for the path that has a feasible distance of 3072 to 2
  D. Change the IP addresses so both paths have the same source IP address
  B. Change the configuration so they both have the same feasible distance
  C. Change the variance for the path that has a feasible distance of 3072 to 2

  ---

  Every routing protocol supports equal cost path load balancing. In addition, Interior Gateway Routing Protocol (IGRP) and EIGRP also support unequal cost path load balancing. Use the variance n command in order to instruct the router to include routes with a metric of less than n times the minimum metric route for that destination. The variable n can take a value between 1 and 128. The default is 1, which means equal cost load balancing. Traffic is also distributed among the links with unequal costs, proportionately, with respect to the metric.

  https://www.cisco.com/c/en/us/support/docs/ip/enhanced-interior-gateway-routing-protocol-eigrp/13677-19.html#topic1

• Question 958:

  Refer to the exhibit.

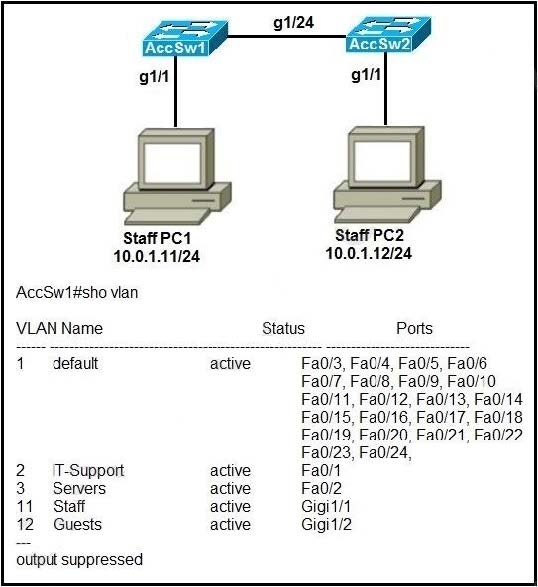

  Switch AccSw1 has just been added to the network along with PC2. All VLANs have been implemented on AccSw2.

  How must the ports on AccSw2 be configured to establish Layer 2 connectivity between PC1 and PC2?

  A. interface GigabitEthernet1/2 switchport mode access switchport access vlan 2 ! interface GigabitEthernet1/24 switchport mode trunk
  B. interface GigabitEthernet1/1 switchport mode access switchport access vlan 11 ! interface GigabitEthernet1/24 switchport mode trunk
  C. interface GigabitEthernet1/24 switchport mode trunk switchport trunk allowed vlan 11,12 ! interface GigabitEthernet1/1 switchport access vlan 11
  D. interface GigabitEthernet1/2 switchport mode access switchport access vlan 12 ! interface GigabitEthernet1/24 switchport mode trunk switchport trunk allowed vlan 11,12
  B. interface GigabitEthernet1/1 switchport mode access switchport access vlan 11 ! interface GigabitEthernet1/24 switchport mode trunk

  ---

  As you may have learned already, when you apply the switchport mode trunk command on an interface, it allows all VLANs by default. So by using this command in option B, all VLANs 1–4094 are allowed over the trunk.

  For security reasons, during network design we tend to remove all VLANs and allow only the VLANs we require.

  If we apply the command in option C, switchport trunk allowed vlan 11,12, it deletes all VLANs and allows only VLANs 11 and 12. This means that all other devices or departments that depend on this trunk will be cut off. One of the biggest mistakes sometimes made by beginners is deleting an entire VLAN by overwriting it. Always remember to use the add keyword when adding new VLANs to a trunk that is already configured for other VLANs.

• Question 959:

  What are two characteristics of a public cloud Implementation? (Choose two.)

  A. It is owned and maintained by one party, but it is shared among multiple organizations.
  B. It enables an organization to fully customize how It deploys network resources.
  C. It provides services that are accessed over the Internet.
  D. It Is a data center on the public Internet that maintains cloud services for only one company.
  E. It supports network resources from a centralized third-party provider and privately-owned virtual resources
  A. It is owned and maintained by one party, but it is shared among multiple organizations.
  C. It provides services that are accessed over the Internet.

  ---

• Question 960:

  In which circumstance would a network architect decide to implement a global unicast subnet instead of a unique local unicast subnet?

  A. when the subnet must be available only within an organization
  B. when the subnet does not need to be routable
  C. when the addresses on the subnet must be equivalent to private IPv4 addresses
  D. when the subnet must be routable over the internet
  D. when the subnet must be routable over the internet
