Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 921:

  Which benefit does Cisco ONA Center provide over traditional campus management?

  A. Cisco DNA Center leverages SNMPv3 tor encrypted management, and traditional campus management uses SNMPv2.
  B. Cisco DNA Center automates HTTPS for secure web access, and traditional campus management uses HTTP.
  C. Cisco DNA Center leverages APIs, and traditional campus management requires manual data gathering.
  D. Cisco DNA Center automates SSH access for encrypted entry, and SSH Is absent from traditional campus management.
  C. Cisco DNA Center leverages APIs, and traditional campus management requires manual data gathering.

  ---

  Cisco DNA Center provides the benefit of leveraging APIs (Application Programming Interfaces) over traditional campus management which requires manual data gathering.

• Question 922:

  Which type of wired port is required when an AP offers one unique SSID, passes client data and management traffic, and is in autonomous mode?

  A. trunk
  B. default
  C. access
  D. LAG
  C. access

  ---

  In this scenario, the AP is offering only one unique SSID, meaning there is no need for a trunk port which carries multiple VLANs. The AP is also passing both client data and management traffic, so an access port that carries both types of traffic would be appropriate. Autonomous mode simply means that the AP is functioning independently and not connected to a centralized controller, so there is no need for any specific type of port like LAG (Link Aggregation Group) or default. Therefore, the access port would be used in this situation.

• Question 923:

  Why are API keys used to enforce rate limiting?

  A. to encrypt data to prevent excessive usage
  B. to track the geographical location of each request
  C. to uniquely identify clients to monitor their usage patterns
  D. to contain embedded permissions that automatically expire
  C. to uniquely identify clients to monitor their usage patterns

  ---

  API keys are unique identifiers assigned to clients or applications making requests to an API. These keys allow the server to track and monitor each client's usage patterns. By doing so, the server can enforce rate limiting, which restricts the number of requests a client can make in a certain period of time. This helps prevent abuse, ensure fair resource allocation, and maintain the performance of the API.

• Question 924:

  A DHCP pool has been created with the name NOCC. The pool is using 192.168.20.0/24 and must use the next to last usable IP address as the default gateway for the DHCP clients. What is the next step in the process?

  A. next-server 192.168.20.254
  B. network 192.168.20.254 255.255.255.0 secondary
  C. default-router 192.168.20.253
  D. ip default-gateway 0.0.0.0 0.0.0.0 192.168.20.253
  C. default-router 192.168.20.253

• Question 925:

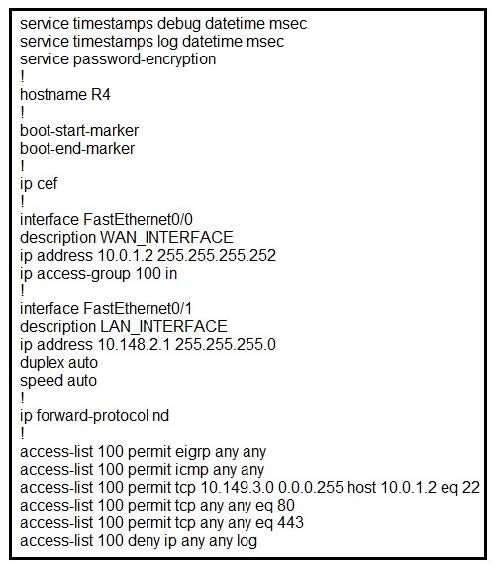

  Refer to the exhibit. Which configuration enables DHCP addressing for hosts connected to interface FastEthernet0/1 on router R4?



  A. interface FastEthernet0/0 ip helper-address 10.0.1.1 ! access-list 100 permit udp host 10.0.1.1 eq bootps host 10.148.2.1
  B. interface FastEthernet0/1 ip helper-address 10.0.1.1 ! access-list 100 permit tcp host 10.0.1.1 eq 67 host 10.148.2.1
  C. interface FastEthernet0/0 ip helper-address 10.0.1.1 ! access-list 100 permit host 10.0.1.1 host 10.148.2.1 eq bootps
  D. interface FastEthernet0/1 ip helper-address 10.0.1.1 ! access-list 100 permit udp host 10.0.1.1 eq bootps host 10.148.2.1
  D. interface FastEthernet0/1 ip helper-address 10.0.1.1 ! access-list 100 permit udp host 10.0.1.1 eq bootps host 10.148.2.1

  ---

  Port 67 and bootps are similar in that they do not provide a significant differentiating factor; notice the transport protocols. Bootps and DHCP both use UDP port 67.

• Question 926:

  DRAG DROP

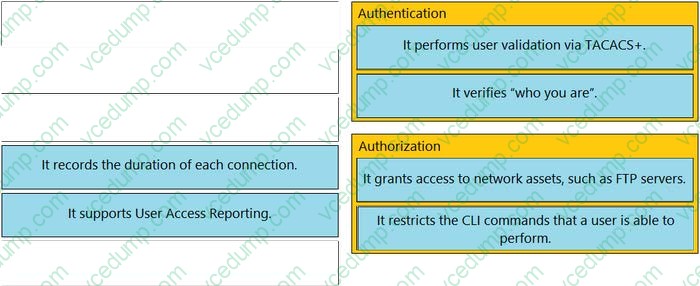

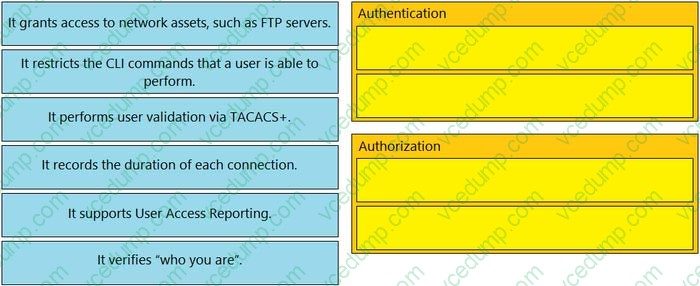

  Drag and drop the statement about AAA services from the left to the corresponding AAA services on the right.

  Select and Place:





• Question 927:

  What is represented by the word "ge3/36" within this JSON schema?



  A. value
  B. array
  C. object
  D. key
  A. value

• Question 928:

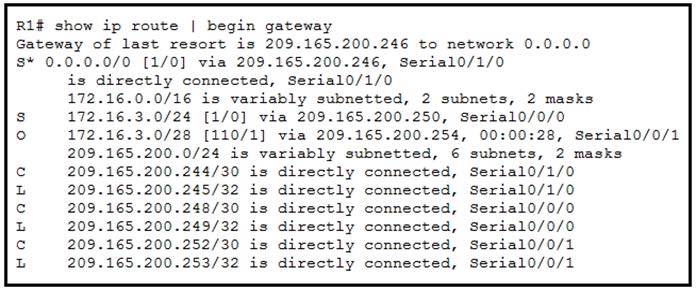

  Refer to the exhibit. Which command configures a floating static route to provide a backup to the primary link?



  A. ip route 0.0.0.0 0.0.0.0 209.165.202.131
  B. ip route 209.165.201.0 255.255.255.224 209.165.202.130
  C. ip route 0.0.0.0 0.0.0.0 209.165.200.224
  D. ip route 209.165.200.224 255.255.255.224 209.165.202.129 254
  D. ip route 209.165.200.224 255.255.255.224 209.165.202.129 254

• Question 929:

  An engineer is asked to protect unused ports that are configured in the default VLAN on a switch. Which two steps will fulfill the request? (Choose two.)

  A. Configure the ports as trunk ports.
  B. Enable the Cisco Discovery Protocol.
  C. Configure the port type as access and place in VLAN 99.
  D. Administratively shut down the ports.
  E. Configure the ports in an EtherChannel.
  C. Configure the port type as access and place in VLAN 99.
  D. Administratively shut down the ports.

  ---

  C. Configuring the port type as access and placing the unused ports in a specific VLAN (such as VLAN 99) ensures that any connected devices will not have access to the default VLAN, thereby protecting it.

  D. Administratively shutting down the unused ports completely disables them, preventing any traffic from passing through and enhancing security. The other options are not directly related to protecting unused ports in the default VLAN:

  A. Configuring the ports as trunk ports is used for carrying multiple VLANs across a single link.

  B. Enabling the Cisco Discovery Protocol (CDP) is a network protocol used by Cisco devices for discovering and sharing information about neighboring devices. E. Configuring the ports in an EtherChannel is a technique for bundling multiple physical links into a logical link for increased bandwidth and redundancy.

• Question 930:

  Which command is used to verify the DHCP relay agent address that has been set up on your Cisco IOS router?

  A. show ip interface brief
  B. show ip dhcp bindings
  C. show ip route
  D. show ip interface
  E. show interface
  F. show ip dhcp pool
  D. show ip interface

  ---

  With that command you can see if the helper address (dhcp relay) is configured.

  Router1#sh ip interface g0/0 GigabitEthernet0/0 is up, line protocol is up (connected) Internet address is 10.0.0.1/30 Broadcast address is 255.255.255.255 Address determined by setup command MTU is 1500 bytes Helper address is 192.168.4.2
