Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 911:

  Which device performs stateful inspection of traffic?

  A. firewall
  B. switch
  C. access point
  D. wireless controller
  A. firewall

  ---

  Stateful inspection, also known as dynamic packet filtering, is a firewall technology that monitors the state of active connections and uses this information to determine which network packets to allow through the firewall.

• Question 912:

  When the active router in an HSRP group fails, what router assumes the role and forwards packets?

  A. forwarding
  B. backup
  C. standby
  D. listening
  C. standby

  ---

  When the active router fails, the other HSRP routers stop seeing hello messages from the active router. The standby router then assumes the role of the active router. There is one standby router in an HSRP group. HSRP uses Active/stanby VRRP uses Master/Backup

• Question 913:

  CCNA Lab simulation

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window

  4. All necessary preconfigurations have been applied

  5. Do not change the enable password or hostname for any device

  6. Save your configurations to NVRAM before moving to the next item

  7. Click Next at the bottom of the screen to submit this lab and move to the next question

  8. When Next is clicked the lab closes and cannot be reopened

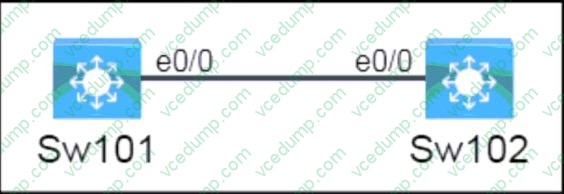

  Topology



  Tasks

  All physical cabling is in place. A company plans to deploy 16 new sites. The sites will utilize both IPv4 and IPv6 networks.

  1.Subnet 172.16.0.0/16 to meet the subnet requirements and maximize the number of hosts Using the second subnet Assign the first usable IP address to e0/0 on Sw101 Assign the last usable IP address to e0/0 on Sw102

  2.Subnet 2001:DB8::/50 to meet the subnet requirements and maximize the number of hosts Using the second subnet Assign an IPv6 GUA using a unique 64-Bit interface identifier on e0/0 on Sw101 Assign an IPv6 GUA using a unique 64-Bit interface identifier on e0/0 on Sw102

  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  To assign the first usable IP address to e0/0 on Sw101, you need to enter the following commands on the device console:

  Sw101#configure terminal

  Sw101(config)#interface e0/0

  Sw101(config-if)#ip address 172.16.16.1 255.255.240.0

  Sw101(config-if)#no shutdown

  Sw101(config-if)#end

  To assign the first usable IP address to e0/0 on Sw102, you need to enter the following commands on the device console:

  Sw102#configure terminal

  Sw102(config)#interface e0/0

  Sw102(config-if)#ip address 172.16.31.254 255.255.240.0

  Sw102(config-if)#no shutdown

  Sw102(config-if)#end

  +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

  Subnet 2001:DB8::/50 to meet the subnet requirements and maximize the number of hosts

  Sw101#configure terminal

  Sw101(config)#interface e0/0

  Sw101(config-if)#ipv6 address 2001:db8:0:400::/54 eui-64

  Sw101(config-if)#no shutdown

  Sw101(config-if)#end

  Sw102#configure terminal

  Sw102(config)#interface e0/0

  Sw102(config-if)#ipv6 address 2001:db8:0:400::/54 eui-64

  Sw102(config-if)#no shutdown

  Sw102(config-if)#end

• Question 914:

  How does a Cisco Unified Wireless network respond to Wi-Fi channel overlap?

  A. It alternates automatically between 2.4 GHz and 5 GHz on adjacent access points
  B. It allows the administrator to assign channels on a per-device or per-interface basis.
  C. It segregates devices from different manufacturers onto different channels.
  D. It analyzes client load and background noise and dynamically assigns a channel.
  D. It analyzes client load and background noise and dynamically assigns a channel.

  ---

  The Cisco Unified Wireless Network is designed to dynamically manage and optimize wireless coverage and performance by constantly monitoring and adjusting to changing conditions. In the case of Wi-Fi channel overlap, the network will analyze client load and background noise and dynamically assign channels to minimize interference and optimize throughput. This ensures that the network can provide reliable and high-performance Wi-Fi connectivity to all clients, even in challenging environments with high levels of interference.

• Question 915:

  R1 has learned route 192.168.12.0/24 via IS-IS, OSPF, RIP, and Internal EIGRP. Under normal operating conditions, which routing protocol is installed in the routing table?

  A. IS-IS
  B. Internal EIGRP
  C. RIP
  D. OSPF
  B. Internal EIGRP

  ---

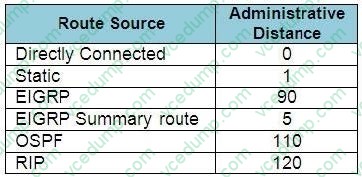

  With the same route (prefix), the router will choose the routing protocol with lowest Administrative Distance (AD) to install into the routing table. The AD of Internal EIGRP (90) is lowest so it would be chosen. The table below lists the ADs of popular routing protocols.



  Note: The AD of IS-IS is 115. The "EIGRP" in the table above is "Internal EIGRP". The AD of "External EIGRP" is 170. An EIGRP external route is a route that was redistributed into EIGRP.

• Question 916:

  DRAG DROP

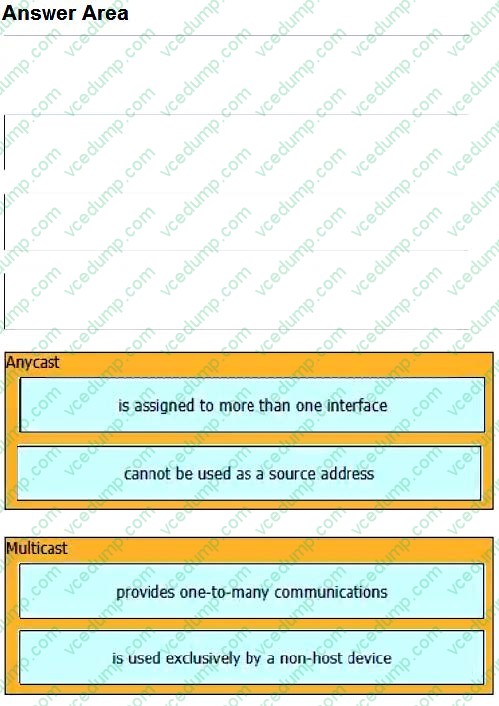

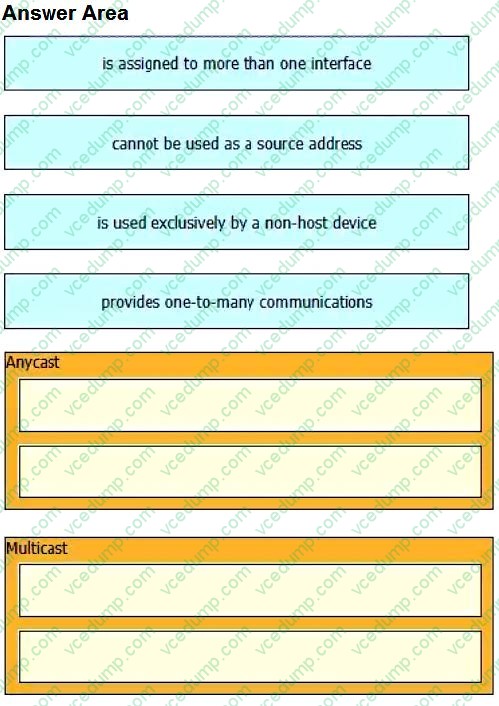

  Drag and drop the characteristic from the left onto the IPv6 address type on the right.

  Select and Place:





• Question 917:

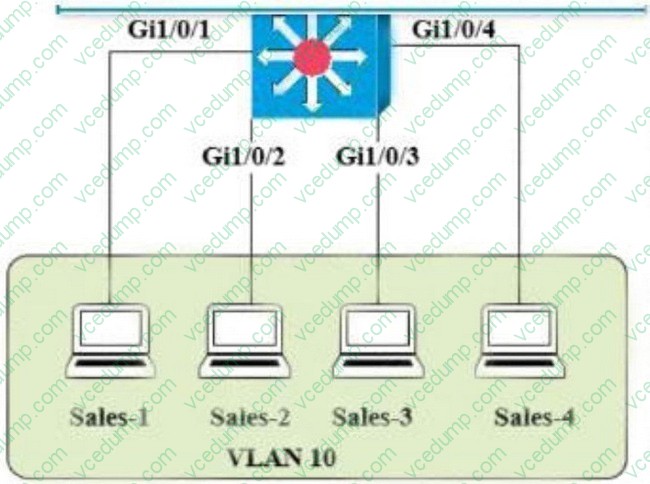

  Refer to the exhibit.

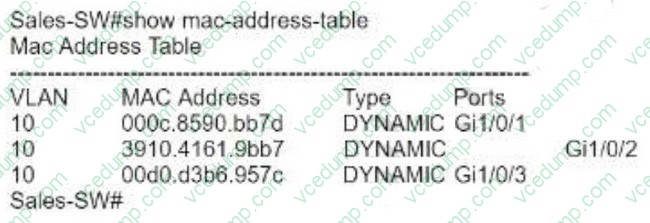

  The entire contents of the MAC address table are shown. Sales-4 sends a data frame to Sales-1.



  What does the switch do as it receives the frame from Sales-4?

  A. Perform a lookup in the MAC address table and discard the frame due to a missing entry.
  B. Insert the source MAC address and port into the forwarding table and forward the frame to Sales-1.
  C. Map the Layer 2 MAC address to the Layer 3 IP address and forward the frame.
  D. Flood the frame out of all ports except on the port where Sales-1 is connected.
  B. Insert the source MAC address and port into the forwarding table and forward the frame to Sales-1.

• Question 918:

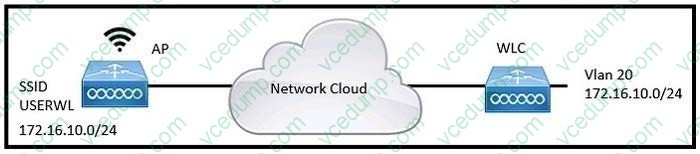

  Refer to the exhibit.



  A network engineer is configuring a WLAN to connect with the 172.16.10.0/24 network on VLAN 20. The engineer wants to limit the number of devices that connect to the WLAN on the USERWL SSID to 125. Which configuration must the engineer perform on the WLC?

  A. In the Controller IPv6 configuration, set the Throttle value to 125.
  B. In the WLAN configuration, set the Maximum Allowed Clients value to 125.
  C. In the Management Software activation configuration, set the Clients value to 125.
  D. In the Advanced configuration, set the DTIM value to 125.
  B. In the WLAN configuration, set the Maximum Allowed Clients value to 125.

  ---

  https://www.cisco.com/c/en/us/support/docs/wireless/4400-series-wireless-lan-controllers/113303-restrict-wlan-clients-00.html

• Question 919:

  How does automation leverage data models to reduce the operational complexity of a managed network?

  A. Reduces the response time for specific requests to devices with many interfaces
  B. Categorizes traffic and provides insights
  C. Allows the controller to be vendor-agnostic
  D. Streamlines monitoring using SNMP and other polling tools
  C. Allows the controller to be vendor-agnostic

• Question 920:

  Which mode must be used to configure EtherChannel between two switches without using a negotiation protocol?

  A. active
  B. on
  C. auto
  D. desirable
  B. on

  ---

  The Static Persistence (or "on" mode) bundles the links unconditionally and no negotiation protocol is used. In this mode, neither PAgP nor LACP packets are sent or received.
