Cisco CCNA 200-301 Questions & Answers

• Question 881:

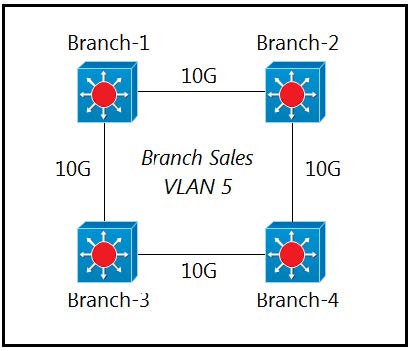

  Refer to the exhibit. Only four switches are participating in the VLAN spanning-tree process.



  Branch-1 priority 614440 Branch-2: priority 39082416 Branch-3: priority 0 Branch-4: root primary

  Which switch becomes the permanent root bridge for VLAN 5?

  A. Branch-1

  B. Branch-2

  C. Branch-3

  D. Branch-4

  Correct Answer: C

  Dynamic ARP inspection is an ingress security feature; it does not perform any egress checking.

• Question 882:

  Refer to the exhibit.

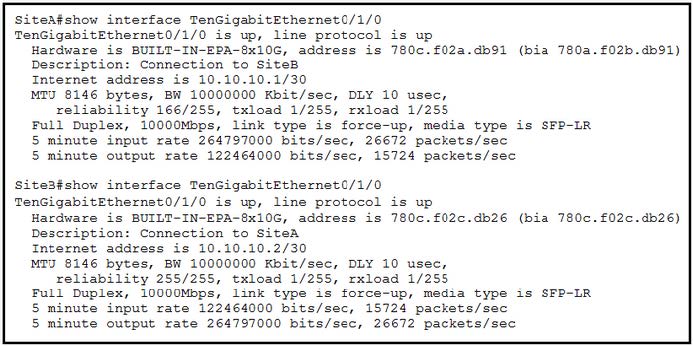

  Shortly after SiteA was connected to SiteB over a new single-mode fiber path users at SiteA report intermittent connectivity issues with applications hosted at SiteB What is the cause of the intermittent connectivity issue?

  A. Interface errors are incrementing

  B. An incorrect SFP media type was used at SiteA

  C. High usage is causing high latency

  D. The sites were connected with the wrong cable type

  Correct Answer: A

  reliability 255/255: When the input and output errors increase, they affect the reliability counter. This indicates how likely it is that a packet can be delivered or received succesfully. Reliability is calculated like this: reliability = number of packets / number of total frames. The value of 255 is the highest value meaning that the interface is very reliable at the moment. The calculation above is done every 5 minutes.

• Question 883:

  Refer to the exhibit.

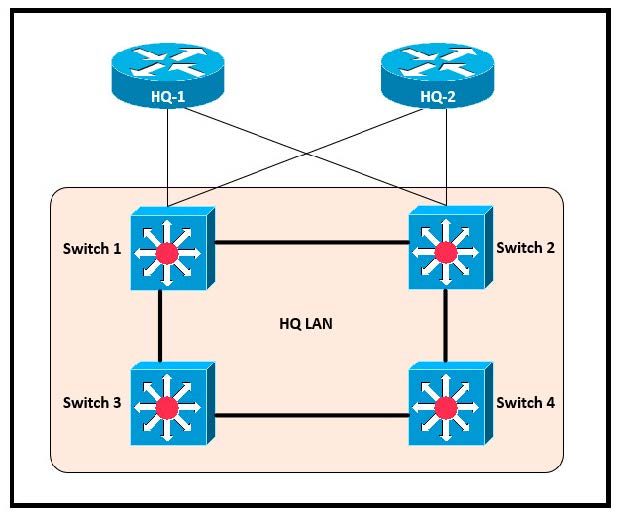

  After the election process,what is the root bridge in the HQ LAN?

  Switch 1: 0C:E0:38:57:24:59 Switch 2: 0C:0E:15:22:1A:61 Switch 3: 0C:0E:15:1D:3C:9A Switch 4: 0C:E0:19:A1:4D:16

  A. Switch 1

  B. Switch 2

  C. Switch 3

  D. Switch 4

  Correct Answer: C

• Question 884:

  Refer to the exhibit.

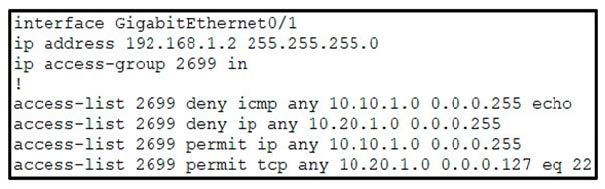

  A network administrator must permit SSH access to remotely manage routers in a network. The operations team resides on the 10.20.1.0/25 network. Which command will accomplish this task?

  A. access-list 2699 permit udp 10.20.1.0 0.0.0.255

  B. no access-list 2699 deny tcp any 10.20.1.0 0.0.0.127 eq 22

  C. access-list 2699 permit tcp any 10.20.1.0 0.0.0.255 eq 22

  D. no access-list 2699 deny ip any 10.20.1.0 0.0.0.255

  Correct Answer: D

  Already a statement is there in last to allow SSH Traffic for network 10.20.1.0 0.0.0.127, but Second

  statement says deny ip any 10.20.1.0 0.0.0.255, so how it will work once it is denied. So the right answer is remove the --- no access-list 2699 deny ip any 10.20.1.0 0.0.0.255.

• Question 885:

  Which IPv6 address type provides communication between subnets and is unable to route on the Internet?

  A. global unicast

  B. unique local

  C. link-local

  D. multicast

  Correct Answer: B

• Question 886:

  Which WLC port connects to a switch to pass normal access-point traffic?

  A. redundancy

  B. console

  C. distribution system

  D. service

  Correct Answer: C

• Question 887:

  Refer to the exhibit.

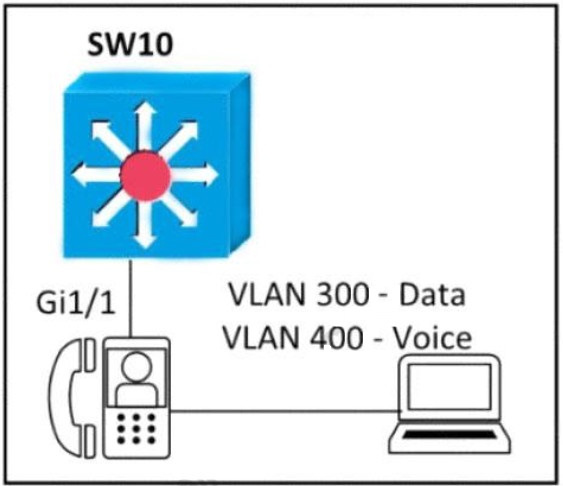

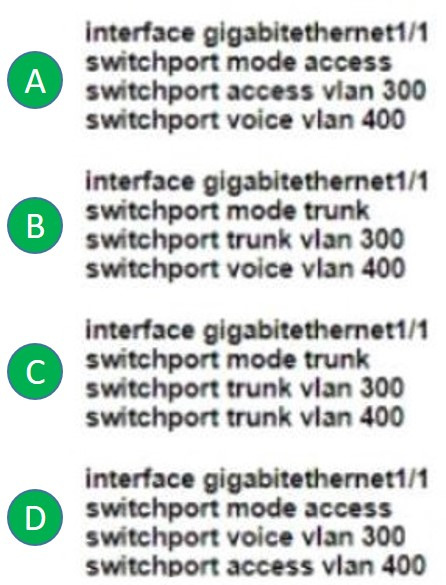

  An engineer must configure GigabitEthernet1/1 to accommodate voice and data traffic Which configuration accomplishes this task?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

• Question 888:

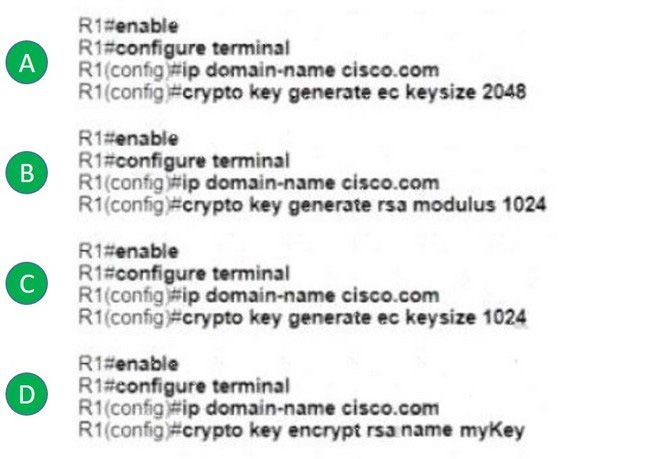

  A network administrator must to configure SSH for remote access to router R1 The requirement is to use a public and private key pair to encrypt management traffic to and from the connecting client. Which configuration, when applied, meets the requirements?



  Example 8-8 Configuring the Voice and Data VLAN on Ports Connected to Phones https://study-ccna.com/configuring-voice-vlans/

  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: B

• Question 889:

  What are two improvements provided by automation for network management in an SDN environment? (Choose two)

  A. Data collection and analysis tools establish a baseline for the network

  B. Artificial intelligence identifies and prevents potential design failures.

  C. Machine learning minimizes the overall error rate when automating troubleshooting processes

  D. New devices are onboarded with minimal effort

  E. Proprietary Cisco APIs leverage multiple network management tools.

  Correct Answer: BE

• Question 890:

  Refer to the exhibit.

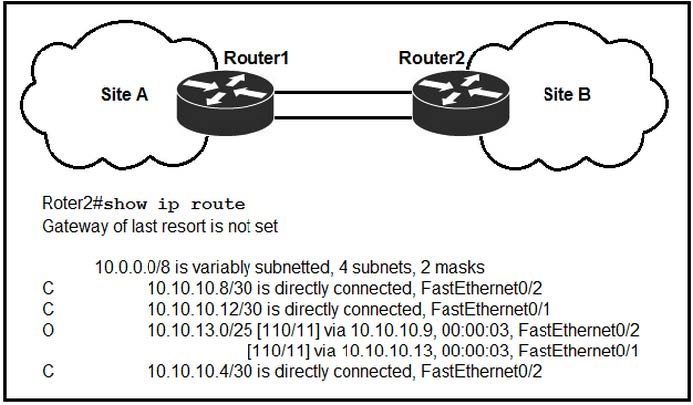

  If OSPF Is running on this network, how does Router2 handle traffic from Site B to 10.10.13.128/25 at Site A?

  A. It load-balances traffic out of Fa0/1 and Fa0/2.

  B. It is unreachable and discards the traffic.

  C. It sends packets out of interface FaO/2.

  D. It sends packets out of interface Fa0/1.

  Correct Answer: B
