Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 851:

  DRAG DROP

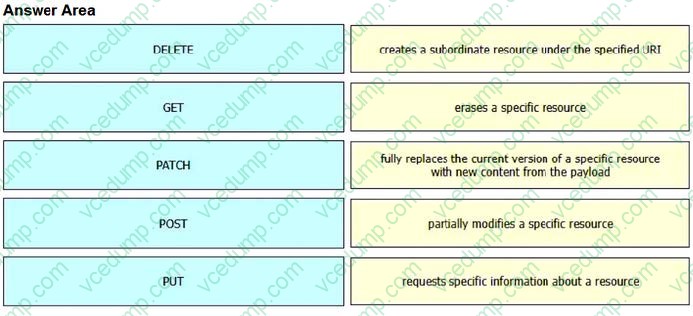

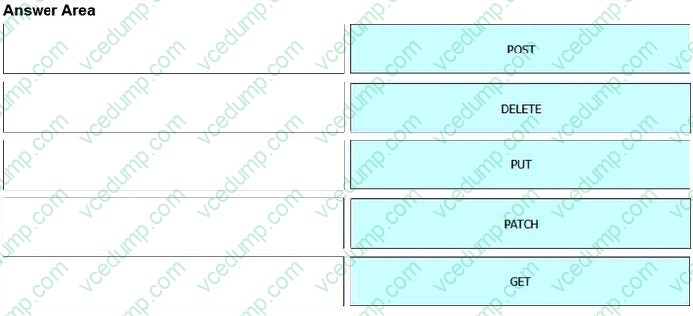

  Drag and drop the HTTP verbs from the left onto the API operations on the right.

  Select and Place:





• Question 852:

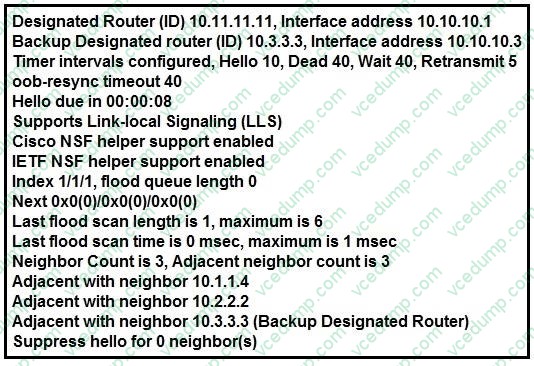

  Refer to the exhibit.



  The show ip ospf interface command has been executed on R1. How is OSPF configured?

  A. A point-to-point network type is configured.
  B. The interface is not participating in OSPF.
  C. The default Hello and Dead timers are in use.
  D. There are six OSPF neighbors on this interface.
  C. The default Hello and Dead timers are in use.

  ---

  From the output we can see there are Designated Router and Backup Designated Router for this OSPF domain so this is a broadcast network (point-to-point and point-to-multipoint networks do not elect DR and BDR).

  By default, the timers on a broadcast network (Ethernet, point-to-point and point-to-multipoint) are 10 seconds hello and 40 seconds dead. The timers on a non-broadcast network are 30 seconds hello 120 seconds dead.

  From the line "Neighbor Count is 3", we learn there are four OSPF routers in this OSPF domain.

  https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/13689-17.html

• Question 853:

  Which command must you enter to configure a DHCP relay?

  A. ip helper-address
  B. ip address dhcp
  C. ip dhcp relay
  D. ip dhcp poo
  A. ip helper-address

• Question 854:

  An engineer is installing a new wireless printer with a static IP address on the Wi-Fi network. Which feature must be enabled and configured to prevent connection issues with the printer?

  A. client exclusion
  B. DHCP address assignment
  C. passive client
  D. static IP tunneling
  C. passive client

  ---

• Question 855:

  Which two characteristics describe the access layer in a three-tier network architecture? (Choose two.)

  A. serves as the network aggregation point
  B. physical connection point for a LAN printer
  C. designed to meet continuous redundant uptime requirements
  D. layer at which a wireless access point connects to the wired network
  E. provides a boundary between Layer 2 and Layer 3 communications
  B. physical connection point for a LAN printer
  D. layer at which a wireless access point connects to the wired network

  ---

  This question is asking for the characteristics for the access layer not the distribution.

• Question 856:

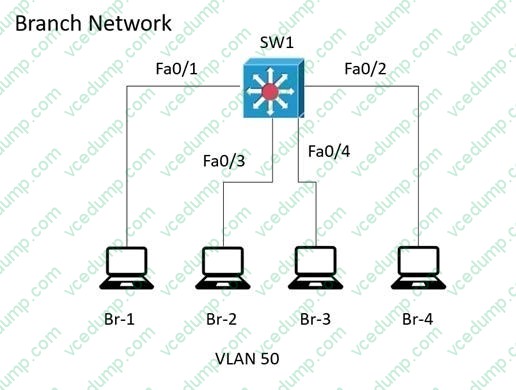

  Refer to the exhibit.

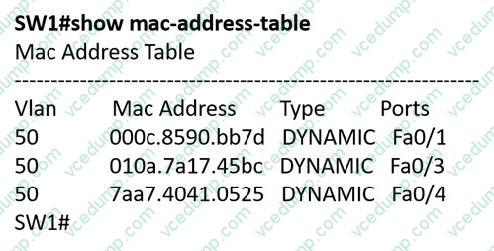

  The entire MAC address table for SW1 is shown here:



  What does SW1 do when Br-4 sends a frame to Br-2?

  A. It inserts the source MAC address and port into the forwarding table and forwards the frame to Br-2.
  B. It maps the Layer 2 MAC address for FaO/3 to the Layer 3 IP address and forwards the frame.
  C. It performs a lookup in the MAC address table for Br-4 and discards the frame due to a missing entry.
  D. It floods the frame out of all ports except on the port where Br-2 is connected.
  A. It inserts the source MAC address and port into the forwarding table and forwards the frame to Br-2.

• Question 857:

  What differentiates the Cisco OfficeExtend AP mode from the Cisco FlexConnect AP mode?

  A. FlexConnect allows a personal SSID to be configured on the AP, and personal SSIDs are not supported with OfficeExtend.
  B. OfficeExtend does not support DTLS tunneling of traffic to the WLC, and FlexConnect tunnels traffic to the WLC with DTLS.
  C. OfficeExtend tunnels all traffic through the WLC, and FlexConnect terminates client traffic at the AP switch port.
  D. FlexConnect must be deployed behind a router that NATs the client traffic, and OfficeExtend uses public IP sources.
  C. OfficeExtend tunnels all traffic through the WLC, and FlexConnect terminates client traffic at the AP switch port.

  ---

  The OfficeExtend AP feature is supported on all internal antenna AP models.

  https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-1/configuration-guide/b_cg81/configuring_officeextend_access_points.html

• Question 858:

  The service password-encryption command is entered on a router. What is the effect of this configuration?

  A. restricts unauthorized users from viewing clear-text passwords in the running configuration
  B. prevents network administrators from configuring clear-text passwords
  C. protects the VLAN database from unauthorized PC connections on the switch
  D. encrypts the password exchange when a VPN tunnel is established
  A. restricts unauthorized users from viewing clear-text passwords in the running configuration

• Question 859:

  Which factor must be considered during the implementation of an IPsec VPN?

  A. In IPsec tunnel mode, the entire original IP datagram is encrypted.
  B. IPsec transport mode increases GRE tunnel security over tunnel mode.
  C. In IPsec tunnel mode, only the IP payload is encrypted.
  D. IPsec transport mode leaves the Layer 4 header unencrypted for inspection.
  A. In IPsec tunnel mode, the entire original IP datagram is encrypted.

• Question 860:

  DRAG DROP

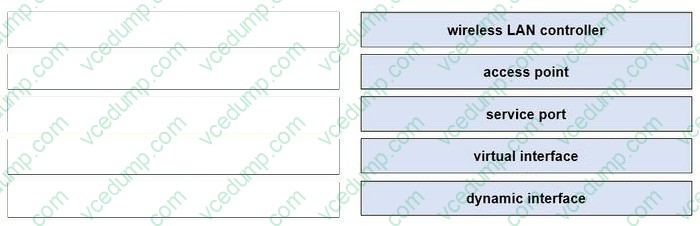

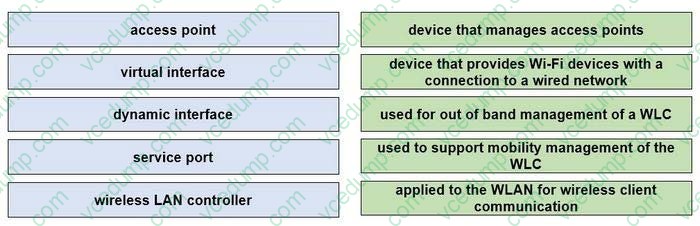

  Drag and drop the WLAN components from the left onto the correct descriptions on the right.

  Select and Place:
