• Question 841:

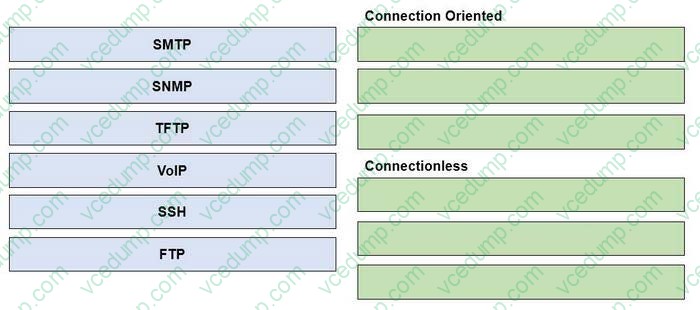

  DRAG DROP

  Drag and drop the network protocols from the left onto the correct transport services on the right.

  Select and Place:





• Question 842:

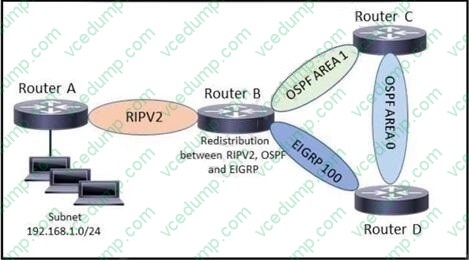

  Refer to the exhibit.



  When an administrator executes the show ip route command on router D to view its routing table, which value is displayed for the administrative distance for the route to network 192.168 1.0?

  A. 110
  B. 120
  C. 170
  D. 90
  A. 110

  ---

  If you test in Packet Tracer, you will see that every route redistributed from another protocol (interface X) on the router to (interface Y) OSPF, appears ON THE NEXT router as "O E2", but the administrative distance remains the same "AD 110".

  Unlike EIGRP - when a router receives a redistributed route from another protocol (in this case RIPv2), it will appear as an EIGRP route with the initials "D EX", but its administrative distance will no longer be 90, in this case it will appear as "AD 170".

  In the question we have both, AD 110 (O E2) or AD 170 (D EX) for the same destination network 192.168 1.0. AD 110 will be the winner and will appear in the routing table of router D... AD 170 will be a backup and will only be displayed if the first one fails.

• Question 843:

  Why does a switch flood a frame to all ports?

  A. The frame has zero destination MAC addresses.
  B. The source MAC address of the frame is unknown
  C. The source and destination MAC addresses of the frame are the same
  D. The destination MAC address of the frame is unknown.
  D. The destination MAC address of the frame is unknown.

• Question 844:

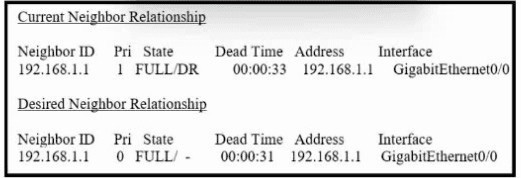

  Refer to the exhibit.



  How must OSPF be configured on the GigabitEthernet0/0 interface of the neighbor device to achieve the desired neighbor relationship?

  A. Router(config)#interface GigabitEthernet0/0 Router(config-if)#ip ospf network point-to-point
  B. Router(config)#interface GigabitEthernet0/0 Router(config-if)#ip ospf cost 5
  C. Router(config)#interface GigabitEthernet0/0 Router(config-if)#ip ospf 1 area 2
  D. Router(config)#interface GigabitEthernet0/0 Router(config-if)#ip ospf priority 1
  A. Router(config)#interface GigabitEthernet0/0 Router(config-if)#ip ospf network point-to-point

  ---




• Question 845:

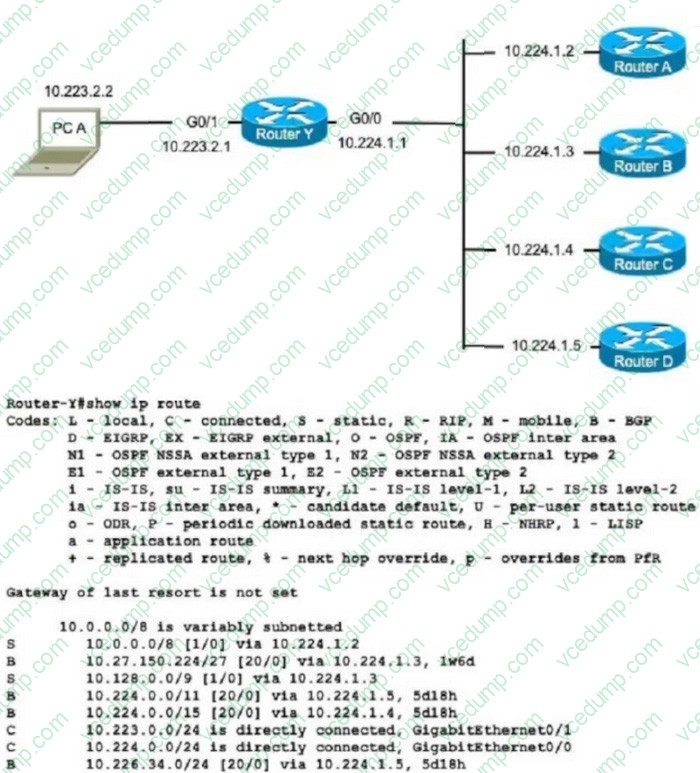

  Refer to the exhibit.



  PC A is communicating with another device at IP address 10.225.34.225. Through which router does router Y route the traffic?

  A. Rrouter A
  B. Rrouter B C. Rrouter C
  D. Rrouter D
  C

  ---

  10.128.0.0/9

  Obviously is included, but not the longest match.

  10.224.0.0/15

  Starts: 10.224.0.0

  Ends: 10.225.255.255

  10.255.34.255 IS included

  10.224.0.0/11 Starts: 10.224.0.0 Ends: 10.255.255.255

  10.255.34.255 IS NOT included

• Question 846:

  What is the same for both copper and fiber interfaces when using SFP modules?

  A. They support an inline optical attenuator to enhance signal strength
  B. They provide minimal interruption to services by being hot-swappable
  C. They offer reliable bandwidth up to 100 Mbps in half duplex mode
  D. They accommodate single-mode and multi-mode in a single module
  B. They provide minimal interruption to services by being hot-swappable

• Question 847:

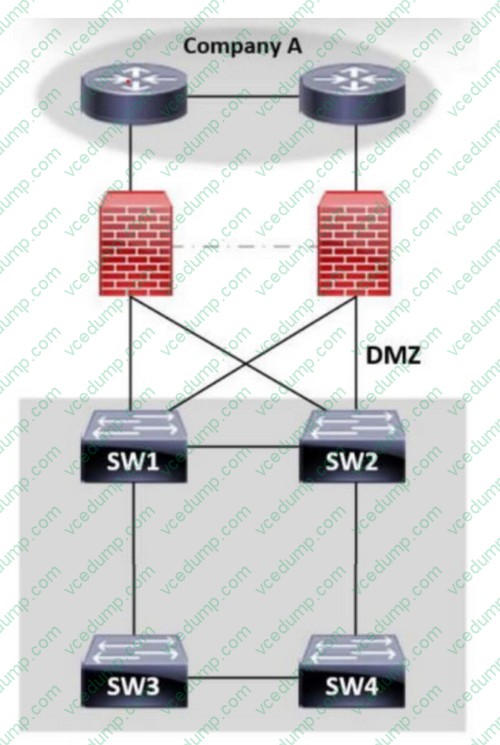

  Refer to the exhibit Which switch becomes the root of a spanning tree for VLAN 10 if the primary switch fails and all links are of equal speed?



  A. SW1 = 24596 0018.184e.3c00
  B. SW2 = 28962 004a.14e5.4077
  C. SW3 = 32788 0022.55cf.dd00
  D. SW4 = 64000 0041.454d.407f
  C. SW3 = 32788 0022.55cf.dd00

  ---

  The question says if a primary fails. According to the table primary is SW1 which has the lowest priority, followed by SW3 which has the second lowest priority making it secondary.

• Question 848:

  An engineer needs to configure LLDP to send the port description time length value (TLV). What command sequence must be implemented?

  A. switch#lldp port-description
  B. switch(config)#lldp port-description
  C. switch(config-line}#lldp port-description
  D. switch(config-if)#lldp port-description
  B. switch(config)#lldp port-description

• Question 849:

  Which command verifies whether any IPv6 ACLs are configured on a router?

  A. show ipv6 interface
  B. show access-list
  C. show ipv6 access-list
  D. show ipv6 route
  C. show ipv6 access-list

• Question 850:

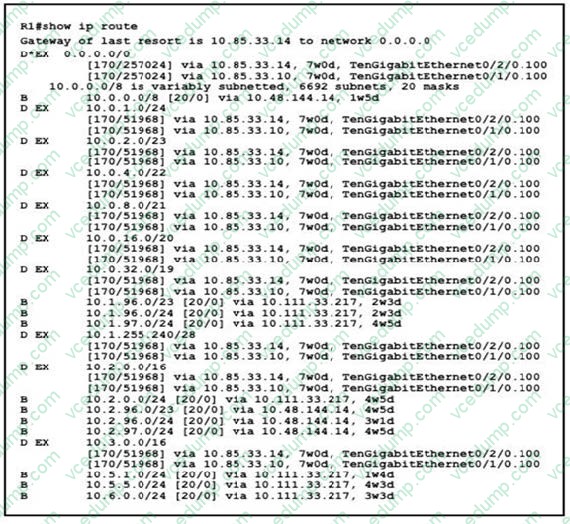

  Refer to the exhibit. Which two statements about the network environment of router R1 must be true? (Choose two.)



  A. There are 20 different network masks within the 10.0.0.0/8 network.
  B. A static default route to 10.85.33.14 was defined
  C. Ten routes are equally load-balanced between Te0/1/0.100 and Te0/2/0.100
  D. The 10.0.0.0/8 network was learned via external EIGRP
  E. The EIGRP administrative distance was manually changed from 90 to 170
  A. There are 20 different network masks within the 10.0.0.0/8 network.
  C. Ten routes are equally load-balanced between Te0/1/0.100 and Te0/2/0.100
