Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 741:

  When should an engineer implement a collapsed-core architecture?

  A. for small networks with minimal need for growth
  B. the access and distribution layers must be on the same device
  C. for large networks that are connected to multiple remote sites
  D. only when using VSS technology
  A. for small networks with minimal need for growth

  ---

  A collapsed core architecture is typically implemented in small networks, wheres as a three tier architecture is deployed into larger networks where scalabily will be a factor

• Question 742:

  CCNA Lab simulation

  This is a lab item in which tasks will be performed on virtual devices

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8. When Next is clicked the lab closes and cannot be reopened.

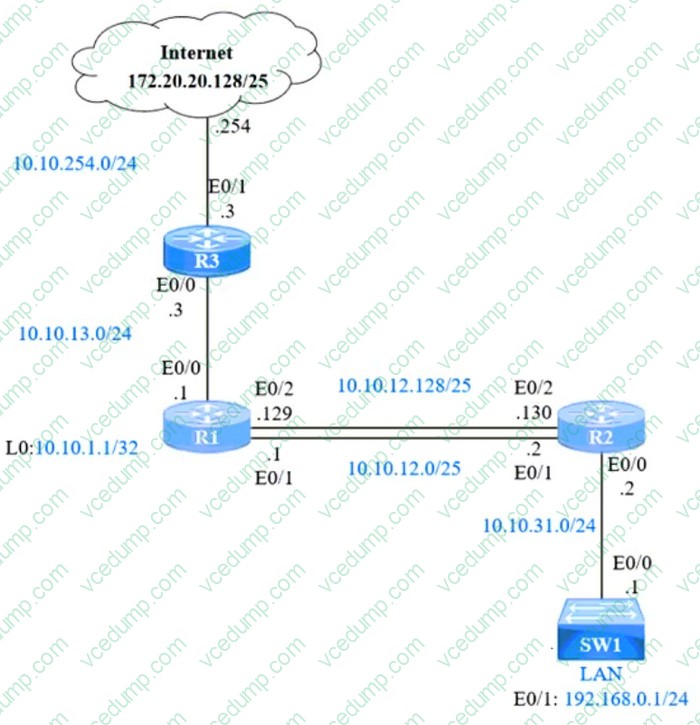

  IP connectivity and OSPF are preconfigured on all devices where necessary. Do not make any changes to the IP addressing or OSPF. The company policy uses connected interfaces and next hops when configuring static routes except for load balancing or redundancy without floating static. Connectivity must be established between subnet 172.20.20.128/25 on the Internet and the LAN at 192.168.0.0/24 connected to SW1:

  1.Configure reachability to the switch SW1 LAN subnet in router R2.

  2.Configure default reachability to the Internet subnet in router R1.

  3.Configure a single static route in router R2 to reach to the Internet subnet considering both redundant links between routers R1 and R2. A default route is NOT allowed in router R2.

  4.Configure a static route in router R1 toward the switch SW1 LAN subnet where the primary link must be through Ethernet0/1. and the backup link must be through Ethernet0/2 using a floating route. Use the minimal administrative distance value when required.

  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  On R2:

  Enable

  Conf t

  Ip route 192.168.1.0 255.255.255.0 10.10.31.1

  Ip route 172.20.20.128 255.255.255.128 e0/2

  Ip route 172.20.20.128 255.255.255.128 e0/1

  Do wr

  Or

  Copy run start

  On R1:

  Enable

  Conf t

  Ip route 0.0.0.0 0.0.0.0 10.10.13.3

  Ip route 192.168.0.0 255.255.255.0 e0/1

  Ip route 192.168.0.0 255.255.255.0 10.10.12.2 3

  Save all configurations after every router from anyone of these command

  Do wr

  Or

  Copy run start

• Question 743:

  In a CDP environment, what happens when the CDP interface on an adjacent device is configured without an IP address?

  A. CDP becomes inoperable on that neighbor
  B. CDP uses the IP address of another interface for that neighbor
  C. CDP operates normally, but it cannot provide IP address information for that neighbor
  D. CDP operates normally, but it cannot provide any information for that neighbor
  C. CDP operates normally, but it cannot provide IP address information for that neighbor

  ---

  Although CDP is a Layer 2 protocol but we can check the neighbor IP address with the "show cdp neighbor detail" command. If the neighbor does not has an IP address then CDP still operates without any problem. But the IP address of that neighbor is not provided.

• Question 744:

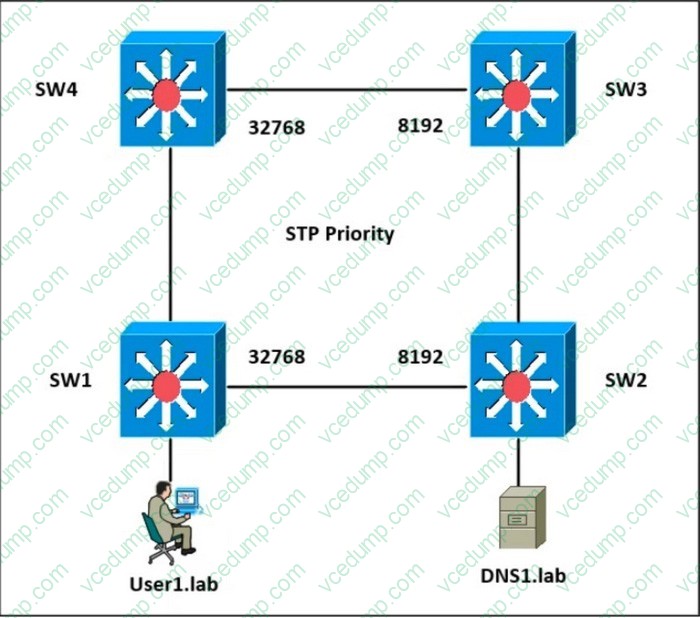

  Refer to the exhibit.



  Which switch in this configuration will be elected as the root bridge?

  SW1 0:0A:05:22:05:97 SW2 0:4A:82:07:57:58 SW3 0C:0A:A8:1A:3C:9D SW4 0:0A:18:A1:B3:19

  A. SW1
  B. SW2
  C. SW3
  D. SW4
  D. SW4

• Question 745:

  What is a role of access points in an enterprise network?

  A. connect wireless devices to a wired network
  B. support secure user logins to devices or the network
  C. integrate with SNMP in preventing DDoS attacks
  D. serve as a first line of defense in an enterprise network
  A. connect wireless devices to a wired network

• Question 746:

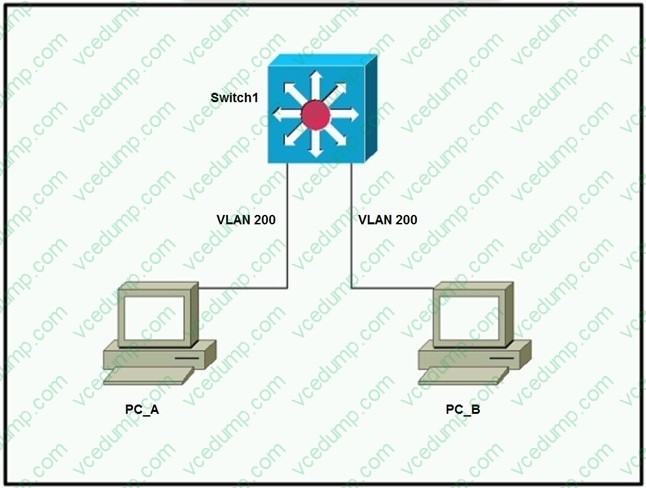

  Refer to the exhibit.



  Which outcome is expected when PC_A sends data to PC_B?

  A. The switch rewrites the source and destination MAC addresses with its own
  B. The source and destination MAC addresses remain the same
  C. The source MAC address is changed
  D. The destination MAC address is replaced with ffff.ffff.ffff
  B. The source and destination MAC addresses remain the same

  ---

  You have a TCP/IP network. This means that PC A and PC B have an IP address each. PC A knows PC B's address and creates an IP packet for PC B. Then, the packet (Layer 3) becomes an Ethernet frame (Layer 2): PC A gets PC B's MAC address and uses it as the destination L2 address.

  When the frame arrives at SW1, the switch looks at the destination MAC address and controls (in its MAC table) to which port that address is associated. Then, the switch sends the frame to PC B through that port (forwarding phase).

  The switch leaves unchanged BOTH the source and the destination MAC addresses inside the frame.

• Question 747:

  Which two principles must be considered when using per-hop behavior in QoS? (Choose two.)

  A. Policing is not supported on subinterfaces.
  B. Shaping and rate limiting have the same effect.
  C. Shaping drops excessive traffic without adding traffic delay.
  D. Shaping levels out traffic bursts by delaying excess traffic.
  E. Policing is performed in the inbound and outbound directions.
  D. Shaping levels out traffic bursts by delaying excess traffic.
  E. Policing is performed in the inbound and outbound directions.

• Question 748:

  DRAG DROP

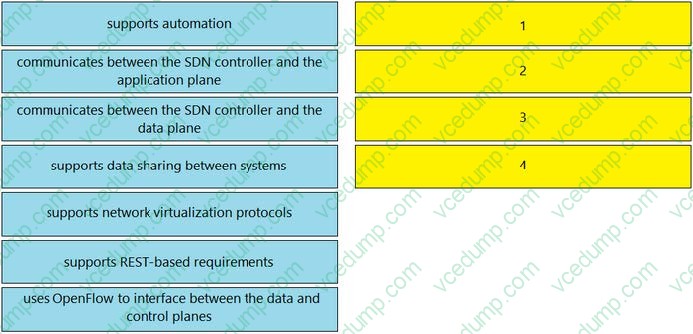

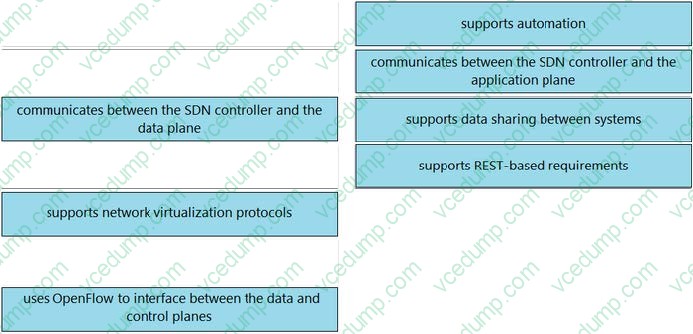

  Drag and drop the characteristics of northbound APIs from the left onto any position on the right. Not all characteristics are used.

  Select and Place:





• Question 749:

  Refer to the exhibit.



  An IP subnet must be configured on each router that provides enough addresses for the number of assigned hosts and anticipates no more than 10% growth for now hosts. Which configuration script must be used?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 750:

  After you deploy a new WLAN controller on your network, which two additional tasks should you consider? (Choose two.)

  A. deploy load balancers
  B. configure additional vlans
  C. configure multiple VRRP groups
  D. deploy POE switches
  E. configure additional security policies
  B. configure additional vlans
  E. configure additional security policies

  ---

  After deploying a new WLAN (Wireless Local Area Network) controller on the network , there are various tasks that need to be performed to ensure the network runs smoothly. Some of the tasks that should be considered include configuring additional VLANs to manage network traffic effectively and securely, and configuring additional security policies to protect the network from potential threats.

  Option A, deploying load balancers, might not be necessary after deploying a new WLAN controller, depending on the size and complexity of the network.

  Option C, configuring multiple VRRP (Virtual Router Redundancy Protocol) groups, is not directly related to WLAN deployment and might not be necessary in all cases.

  Option D, deploying POE (Power over Ethernet) switches, might not be needed if the existing switches meet the power requirements of the WLAN controller and access points
