Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 351:

  An engineer must configure R1 for a new user account. The account must meet these requirements:

  1.

  It must be configured in the local database.

  2.

  The username is engineer.

  3.

  It must use the strongest password configurable.

  Which command must the engineer configure on the router?

  A. R1(config)# username engineer2 algorithm-type scrypt secret test2021
  B. R1(config)# username engineer2 secret 5 .password S1$b1Ju$kZbBS1Pyh4QzwXyZ
  C. R1(config)# username engineer2 privilege 1 password 7 test2021
  D. R1(config)# username englneer2 secret 4 S1Sb1Ju$kZbBS1Pyh4QzwXyZ
  A. R1(config)# username engineer2 algorithm-type scrypt secret test2021

  ---

  The **`username`** command is used to configure a local user account on the router.

  The **`secret`** keyword indicates that the password will be hashed and stored securely.

  The **`algorithm-type scrypt`** specifies the use of the Scrypt algorithm, which is the strongest password hashing algorithm available for local user accounts on Cisco devices.

  Option A is the correct choice because it uses the `algorithm-type scrypt` parameter, ensuring the password is configured with the most secure hashing algorithm. The password `test2021` is used, and the `secret` keyword ensures it is hashed securely.

• Question 352:

  What is the purpose of the service-set identifier?

  A. It identifies the wireless network to which an application must connect.
  B. It identifies the wired network to which a network device is connected.
  C. It identifies the wired network to which a user device is connected.
  D. It identifies a wireless network for a mobile device to connect.
  D. It identifies a wireless network for a mobile device to connect.

  ---

  The admins need to sort this out, would be useless without the knowlegable folk in the discussion section.

• Question 353:

  Which element of a virtualization solution manages virtualized services and enables connections between virtualized services and external interfaces?

  A. software
  B. network functionality
  C. virtual machine
  D. hardware
  A. software

  ---

  "Virtualization software - A hypervisor provides management for virtualized services. It enables connections between virtual services and external interfaces."

  https://www.cisco.com/c/en/us/solutions/enterprise-networks/what-is-virtualization.html#~how-it-works

• Question 354:

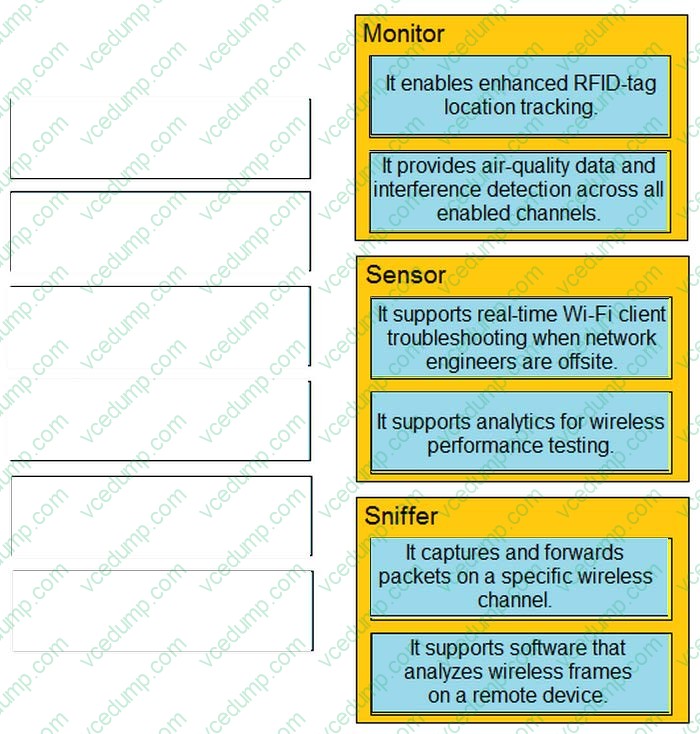

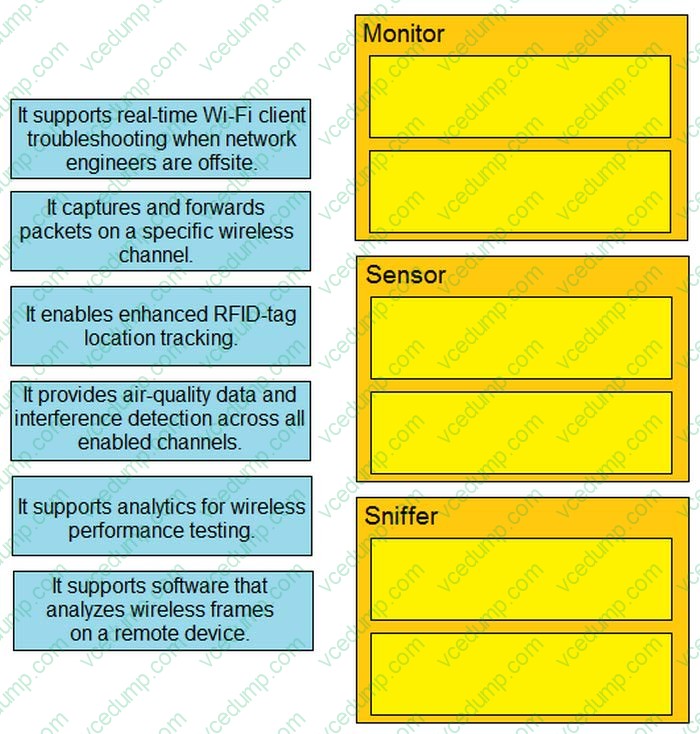

  DRAG DROP

  Drag and drop the statements about access-point modes from the left onto the corresponding modes on the right.

  Select and Place:





• Question 355:

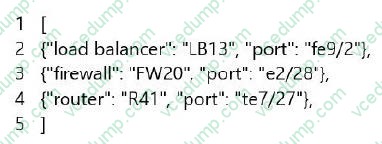

  What is represented by the word "LB13" within this JSON schema?



  A. array
  B. value
  C. object
  D. key
  B. value

  ---

  A JSON object contains zero, one, or more key-value pairs, also called properties. The object is surrounded by curly braces {}. Every key-value pair is separated by a comma. The order of the key-value pair is irrelevant. A key-value pair consists of a key and a value, separated by a colon (:). The key is a string, which identifies the key-value pair.

• Question 356:

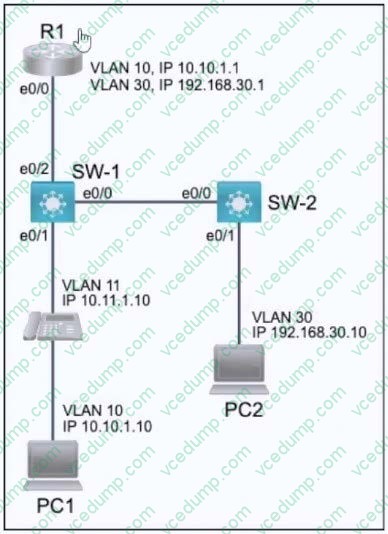

  CCNA Lab simulation

  SIMULATION



  R1 has been pre-configured with all the necessary commands. All physical cabling is in place and verified. Connectivity to the end devices must be configured.

  1.Configure SW-1 switch port 0/1 to carry traffic for the Cisco IP phone and PC

  2.Configure SW-2 E0/1 to carry traffic for PC2

  3.Configure VLAN 10 with the name “Engineering” on SW-1

  4.Configure the link between SW-1 and SW-2 to use the vendor neutral neighbor discovery protocol

  5.Configure the link on SW-1 to R1 so that it does not allow the Cisco neighbor discovery protocol to pass

  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  SW-1:

  SW-1>en

  SW-1# Config t

  SW-1(config)# vlan 10

  SW-1(config-vlan)# name Engineering

  SW-1(config-vlan)#int f0/10

  SW-1(config-if)#lldp transmit

  SW-1(config-if)#lldp receive

  SW-1(config-if)#int f0/1

  SW-1(config-if)#switchport mode access

  SW-1(config-if)#switchport access vlan 10

  SW-1(config-if)#switchport voice vlan 11

  SW-1(config-if)#int f0/2

  SW-1(config-if)#no cdp enable

  SW-1(config-if)#end

  SW-1#wr

  SW-2:

  SW-2>en

  SW-2# Config t

  SW-2(config)#int f0/10

  SW-2(config-if)#lldp transmit

  SW-2(config-if)#lldp receive

  SW-2(config-if)#int f0/1

  SW-2(config-if)#switchport mode access

  SW-2(config-if)#switchport access vlan 30

  SW-2(config-if)#end

  SW-2#wr

• Question 357:

  When OSPF learns multiple paths to a network, how does it select a route?

  A. For each existing interface, it adds the metric from the source router to the destination to calculate the route with the lowest bandwidth.
  B. It counts the number of hops between the source router and the destination to determine the route with the lowest metric.
  C. It divides a reference bandwidth of 100 Mbps by the actual bandwidth of the exiting interface to calculate the route with the lowest cost.
  D. It multiples the active K values by 256 to calculate the route with the lowest metric.
  C. It divides a reference bandwidth of 100 Mbps by the actual bandwidth of the exiting interface to calculate the route with the lowest cost.

• Question 358:

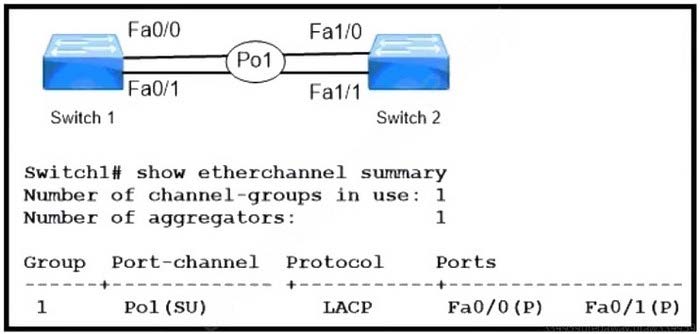

  Refer to the exhibit.



  A Cisco engineer is asked to update the configuration on Switch1 so that the EtherChannel stays up when one of the links fails. Which configuration meets this requirement?

  A. Switch1(config)#interface Fa0/0 Switch1(config-if)#lacp port-priority 100 Switch1(config)#interface Fa0/1 Switch1(config-if)#lacp port-priority 200
  B. Switch1(config)#interface port-channel 1 Switch1(config-if)#port-channel min-links 1
  C. Switch1(config)#interface Fa0/0 Switch1(config-if)#lacp port-priority 200 Switch1(config)#interface Fa0/1 Switch1(config-if)#lacp port-priority 100
  D. Switch1(config)#interface port-channel 1 Switch1(config-if)#lacp max-bundle 1
  B. Switch1(config)#interface port-channel 1 Switch1(config-if)#port-channel min-links 1

  ---




• Question 359:

  An application in the network is being scaled up from 300 servers to 600. Each server requires 3 network connections to support production, backup, and management traffic. Each connection resides on a different subnet. The router configuration for the production network must be configured first using a subnet in the 10.0.0.0/8 network. Which command must be configured on the interface of the router to accommodate the requirements and limit wasted IP address space?

  A. ip address 10.10.10.1 255.255.254.0
  B. ip address 10.10.10.1 255.255.252.0
  C. ip address 10.10.10.1 255.255.240.0
  D. ip address 10.10.10.1 255.255.255.240
  B. ip address 10.10.10.1 255.255.252.0

  ---

  /23 can holds 500 hosts aprox, /22 reachs 1000 hosts.

• Question 360:

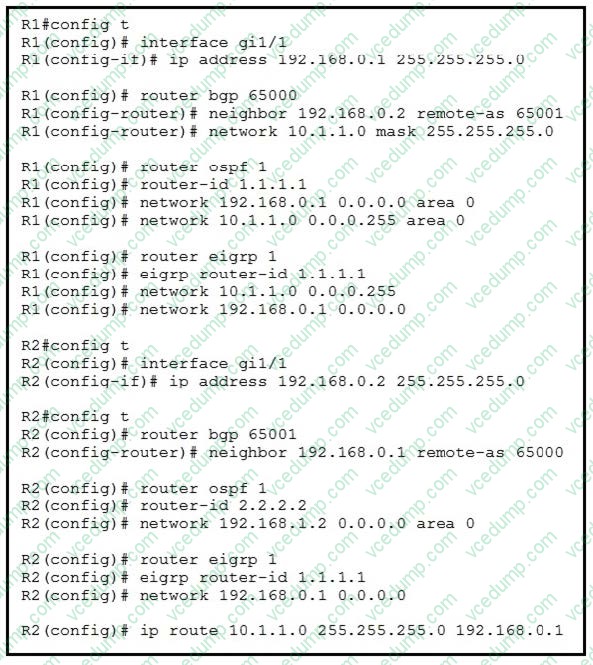

  Refer to the exhibit.



  Router R2 is configured with multiple routes to reach network 10.1.1.0/24 from router R1. Which path is chosen by router R2 to reach the destination network 10.1.1.0/24?

  A. eBGP
  B. static
  C. OSPF
  D. EIGRP
  B. static

  ---

  Admin Distance: Connected - 0 Static - 1 eBGP - 5 iEIGRP - 90 OSPF - 110 IS-IS - 115 RIP - 120
