Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 371:

  An engineer must configure a/30 subnet between two routers. Which usable IP address and subnet mask combination meets this criteria?

  A. interface e0/0 description to HQ-A371:19452 ip address 209.165.201.2 255.255.255.252
  B. interface e0/0 description to HQ-A371:19452 ip address 10.2.1.3 255.255.255.252
  C. interface e0/0 description to HQ-A371:19452 ip address 172.16.1.4 255.255.255.248
  D. interface e0/0 description to HQ-A371:19452 ip address 192.168.1.1 255.255.255.248
  A. interface e0/0 description to HQ-A371:19452 ip address 209.165.201.2 255.255.255.252

• Question 372:

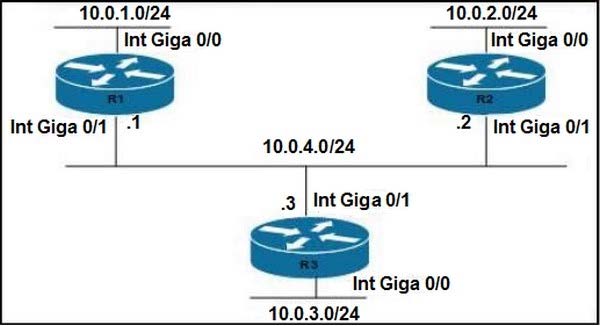

  Refer to the exhibit. Routers R1 and R3 have the default configuration. The router R2 priority is set to 99. Which commands on R3 configure it as the DR in the 10.0.4.0/24 network?



  A. R3(config)#interface Gig0/0 R3(config-if)#ip ospf priority 100
  B. R3(config)#interface Gig0/0 R3(config-if)#ip ospf priority 1
  C. R3(config)#interface Gig0/1 R3(config-if)#ip ospf priority 0
  D. R3(config)#interface Gig0/1 R3(config-if)#ip ospf priority 100
  D. R3(config)#interface Gig0/1 R3(config-if)#ip ospf priority 100

  ---




• Question 373:

  DRAG DROP

  Drag and drop the threat-mitigation techniques from the left onto the types of threat or attack they mitigate on the right.

  Select and Place:





• Question 374:

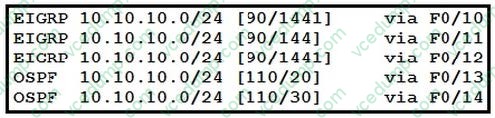

  Refer to the exhibit. Packets received by the router from BGP enter via a serial interface at 209.165.201.10. Each route is present within the routing table. Which interface is used to forward traffic with a destination IP of 10.10.10.24?



  A. F0/10
  B. F0/11
  C. F0/12
  D. F0/13
  B. F0/11

• Question 375:

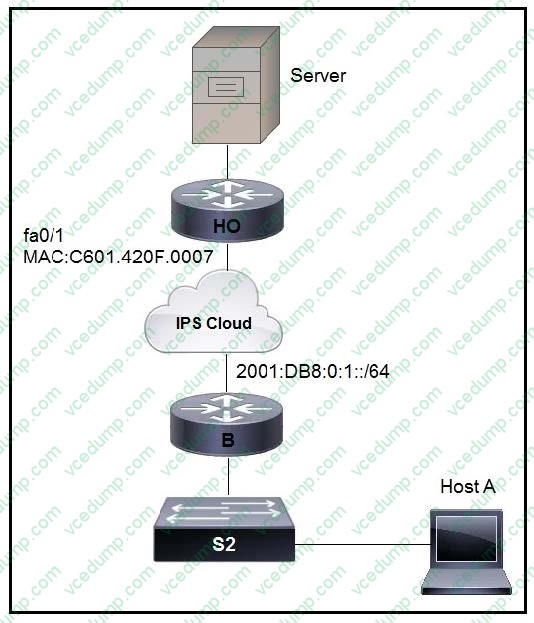

  Refer to the exhibit.



  An engineer is configuring the HO router. Which IPv6 address configuration must be applied to the router fa0'1 interface for the router to assign a unique 64-brt IPv6 address to Itself?

  A. ipv6 address 2001:DB8:0:1:C601:42FF:FE0F:7/64
  B. ipv6 address 2001:DB8:0:1:C601:42FE:800F:7/64
  C. ipv6 address 2001 :DB8:0:1:FFFF:C601:420F:7/64
  D. ipv6 address 2001 :DB8:0:1:FE80:C601:420F:7/64
  A. ipv6 address 2001:DB8:0:1:C601:42FF:FE0F:7/64

• Question 376:

  Why is UDP more suitable than TCP for applications that require low latency such as VoIP?

  A. UDP reliably guarantees delivery of all packets: TCP drops packets under heavy load
  B. UDP uses sequencing data for packets to arrive in order TCP offers the capability to receive packets in random order
  C. TCP uses congestion control for efficient packet delivery: UDP uses flow control mechanisms for the delivery of packets
  D. TCP sends an acknowledgement for every packet received: UDP operates without acknowledgments
  D. TCP sends an acknowledgement for every packet received: UDP operates without acknowledgments

  ---

  1. The PDU of "Transport" Layer is called as a "Segment".

  2. The PDU of "Network" Layer is called as a "Packet".

  3. The PDU of the "Data-Link" Layer is called "Frames".

  More information on source: https://www.geeksforgeeks.org/difference-between-segments-packets-and-frames/

• Question 377:

  What is a function of TFTP in network operations?

  A. transfers a backup configuration file from a server to a switch using a username and password
  B. transfers files between file systems on a router
  C. transfers a configuration files from a server to a router on a congested link
  D. transfers IOS images from a server to a router for firmware upgrades
  D. transfers IOS images from a server to a router for firmware upgrades

  ---

  Trivial File Transfer Protocol (TFTP) is a network protocol used to transfer files between hosts in a TCP/IP network. It is a simpler version of FTP and it doesn’t have all of its functions; for example, you can not list, delete, or rename files or directories on a remote server. In fact, TFTP can only be used to send and receive files between the two computers. TFTP doesn’t support user authentication and all data is sent in clear text.

  The only real advantage that TFTP has over FTP is that it uses less resources. It is not widely used today, but Cisco does still use it on its devices, for example to backup a router's IOS image.

  A user wants to transfer files from Host A to the router R1. R1 is a Cisco device and it has a TFTP server installed. The user will start an TFTP client program and initiate the data transfer.

• Question 378:

  What are the two functions of SSIDs? (Choose two.)

  A. uses the maximum of 32 alphanumeric characters
  B. controls the speed of the Wi-Fi network
  C. used exclusively with controller-based Wi-Fi networks
  D. supports a single access point
  E. broadcasts by default
  A. uses the maximum of 32 alphanumeric characters
  E. broadcasts by default

  ---

  An SSID can be supported by MULTIPLE access points

• Question 379:

  Refer to the exhibit. Which next-hop IP address does Routed use for packets destined to host 10 10.13.158?



  A. 10.10.10.5
  B. 10.10.11.2
  C. 10.10.12.2
  D. 10.10.10.9
  D. 10.10.10.9

  ---

  10.10.13.144/28 via 10.10.10.9 inc = 16

  10.10.13.144(NetAdd) - 10.10.13.159(BroadAdd)

  10.10.13.168

  10.10.13.145-10.10.13.158 USABLE HOSTS packet 10.10.130.158 is in range

  10.10.13.160/29 via 10.10.10.5 inc = 8

  10.10.13.160(NetAdd) - 10.10.13.167(BroadAdd)

  10.10.13.168

  10.10.13.161-10.10.13.166 USABLE HOSTS packet 10.10.130.158 is not in range

• Question 380:

  Which two goals reasons to implement private IPv4 addressing on your network? (Choose two.)

  A. Comply with PCI regulations
  B. Conserve IPv4 address
  C. Reduce the size of the forwarding table on network routers
  D. Reduce the risk of a network security breach
  E. Comply with local law
  B. Conserve IPv4 address
  D. Reduce the risk of a network security breach
