Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 341:

  How does MAC learning function?

  A. restricts ports to a maximum of 10 dynamically-learned addresses
  B. increases security on the management VLAN
  C. drops received MAC addresses not listed in the address table
  D. associates the MAC address with the port on which it is received
  D. associates the MAC address with the port on which it is received

• Question 342:

  Which command configures the Cisco WLC to prevent a serial session with the WLC CLI from being automatical togged out?

  A. config sessions maxsessions 0
  B. config sessions timeout 0
  C. config serial timeout 0
  D. config serial timeout 9600
  C. config serial timeout 0

• Question 343:

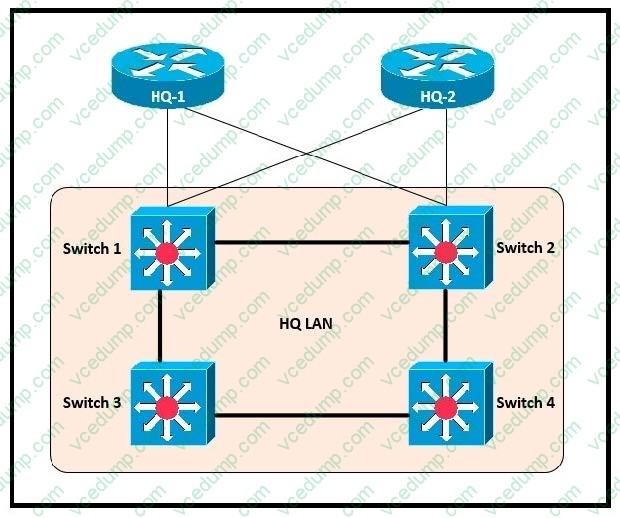

  Refer to the exhibit.



  After the election process, what is the root bridge in the HQ LAN?

  1.

  Switch 1: 0C:E0:38:81:32:58

  2.

  Switch 2: 0C:0E:15:22:1A:61

  3.

  Switch 3: 0C:0E:15:1D:3C:9A

  4.

  Switch 4: 0C:E0:19:A1:4D:16

  A. Switch 1
  B. Switch 2
  C. Switch 3
  D. Switch 4
  C. Switch 3

  ---

  The root bridge is determined by the lowest bridge ID, which consists of the priority value and the MAC address. Because the priority values of all of the switches are not avalable, the MAC address is used to determine the root bridge. Because S3 has the lowest MAC address, S3 becomes the root bridge.

• Question 344:

  DRAG DROP

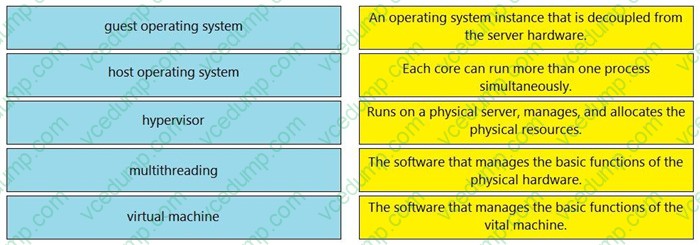

  Drag and drop the virtualization concepts from the left onto the matching statements on the right.

  Select and Place:





• Question 345:

  What is the benefit of configuring PortFast on an interface?

  A. After the cable is connected, the interface uses the fastest speed setting available for that cable type
  B. After the cable is connected, the interface is available faster to send and receive user data
  C. The frames entering the interface are marked with higher priority and then processed faster by a switch.
  D. Real-time voice and video frames entering the interface are processed faster
  B. After the cable is connected, the interface is available faster to send and receive user data

  ---

  Portfast causes a switch or trunk port to enter the spanning tree forwarding state immediately, bypassing the listening and learning states.

• Question 346:

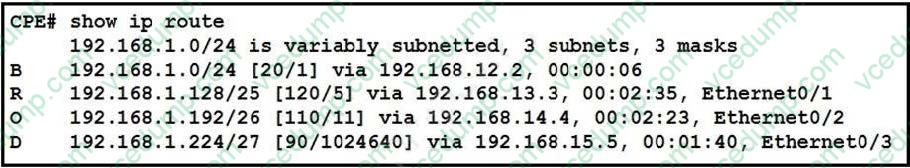

  Refer to the exhibit.

  All traffic enters the CPE router from interface Serial0/3 with an IP address of 192.168.50.1. Web traffic from the WAN is destined for a LAN network where servers are load-balanced. An IP packet with a destination address of the HTTP virtual IP of 192.168.1.250 must be forwarded. Which routing table entry does the router use?



  A. 192.168.1.0/24 via 192.168.12.2
  B. 192.168.1.128/25 via 192.168.13.3
  C. 192.168.1.192/26 via 192.168.14.4
  D. 192.168.1.224/27 via 192.168.15.5
  D. 192.168.1.224/27 via 192.168.15.5

  ---

  Longest Prefix route inclusive of the IP Address. /27 = 32, which is inclusive in this case.

• Question 347:

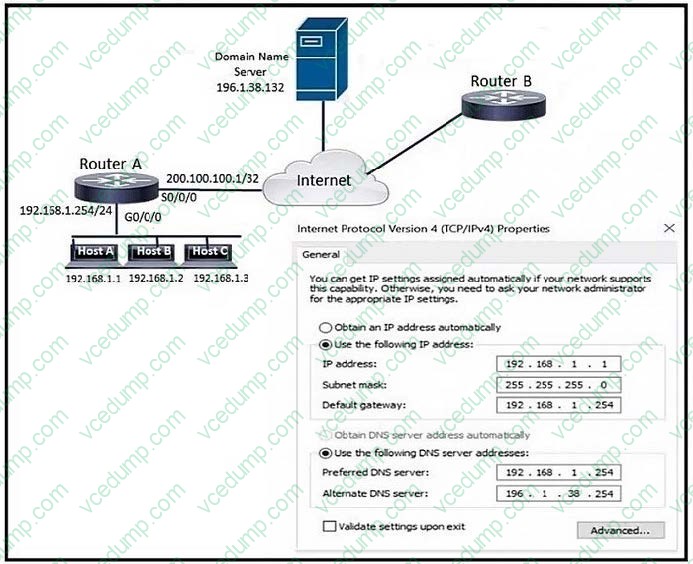

  Refer to the exhibit.



  What is preventing host A from reaching the internet?

  A. LAN and WAN network segments are different.
  B. The domain name server is unreachable.
  C. The default gateway should be the first usable IP address.
  D. IP address assignment is incorrect.
  C. The default gateway should be the first usable IP address.

• Question 348:

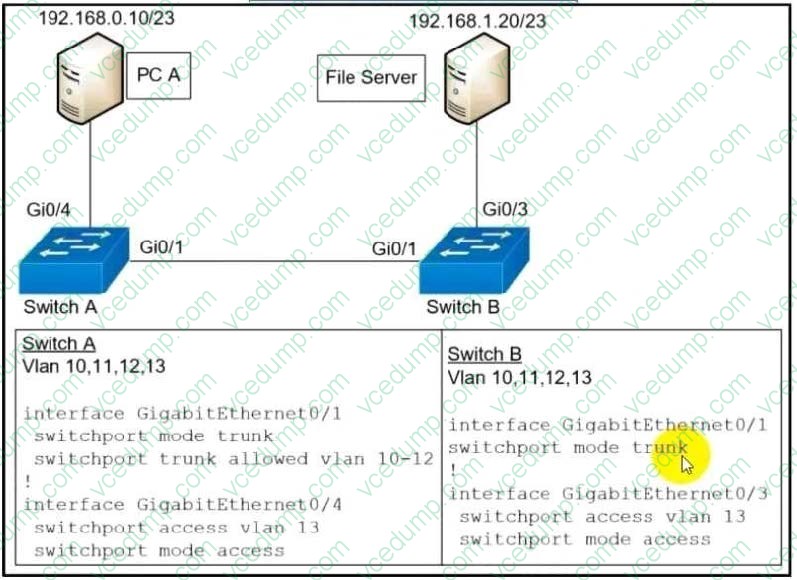

  Refer to the exhibit.



  A network engineer must configured communication between PC A and the File Server. To prevent interruption for any other communications, which command must be configured?

  A. Switch trunk allowed vlan 12
  B. Switchport trunk allowed vlan none
  C. Switchport trunk allowed vlan add 13
  D. Switchport trunk allowed vlan remove 10-11
  C. Switchport trunk allowed vlan add 13

• Question 349:

  What are two port types used by a Cisco WLC for out-of-band management? (Choose two.)

  A. service
  B. console
  C. management
  D. distribution system
  E. redundant
  A. service
  B. console

• Question 350:

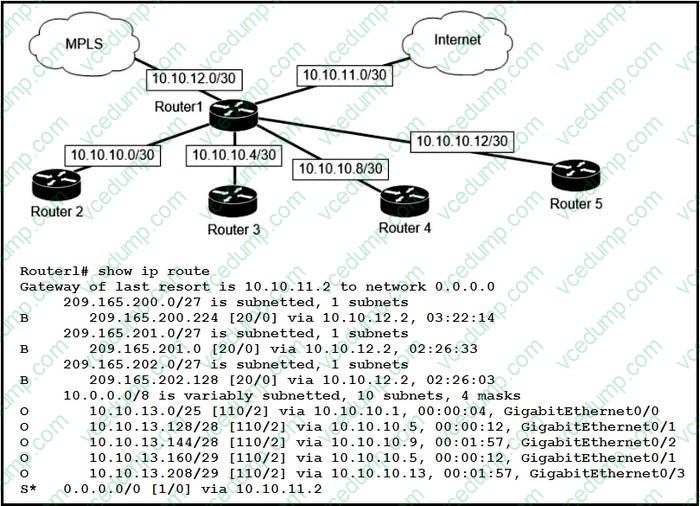

  Refer to the exhibit.



  Which next-hop IP address does Router1 use for packets destined to host 10.10.13.158?

  A. 10.10.10.9
  B. 10.10.10.5
  C. 10.10.11.2
  D. 10.10.12.2
  A. 10.10.10.9

  ---

  144/28 145-158 (Broadcast 159)

  The options below do not cover 10.10.13.158.

  128/28 129-142 (Broadcast 143)

  160/29 161-166 (Broadcast 167)

  208/29 209-214 (Broadcast 215)
