Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 321:

  Which two minimum parameters must be configured on an active interface to enable OSPFV2 to operate? (Choose two.)

  A. OSPF process ID
  B. OSPF MD5 authentication key
  C. OSPF stub flag
  D. IPv6 address
  E. OSPF area
  A. OSPF process ID
  E. OSPF area

  ---

  Key word is "enable", this is not pertaining to adjacency with neighbors.

• Question 322:

  What is a difference between an IPv6 multicast address and an IPv6 anycast address?

  A. An IPv6 multicast address uses the prefix 2002::/15 and forwards to one destination, and an IPv6 anycast address uses the prefix ff00:/8 and forwards to any destination in a group.
  B. A packet sent to an IPv6 multicast address is delivered to one or more destinations at once, but a packet sent to an IPv6 anycast address is routed to the closest interface with that address.
  C. IPV6 multicast addresses are used to transition from IPv4 to IPv6, and IPv6 anycast addresses are used for address aggregation in an IPv6-only environment.
  D. An IPV6 multicast address is assigned to numerous interfaces within a subnet, but an IPv6 anycast address is used for a predefined group of nodes in an all-IPv6 routers group.
  B. A packet sent to an IPv6 multicast address is delivered to one or more destinations at once, but a packet sent to an IPv6 anycast address is routed to the closest interface with that address.

• Question 323:

  What is a characteristics of a collapsed-core network topology?

  A. It allows the core and distribution layers to run as a single combined layer.
  B. It enables the core and access layers to connect to one logical distribution device over an EtherChannel.
  C. It enables all workstations in a SOHO environment to connect on a single switch with internet access.
  D. It allows wireless devices to connect directly to the core layer, which enables faster data transmission.
  A. It allows the core and distribution layers to run as a single combined layer.

• Question 324:

  What is a characteristic of spine-and-leaf architecture?

  A. Each link between leaf switches allows for higher bandwidth.
  B. It provides greater predictability on STP blocked ports.
  C. It provides variable latency.
  D. Each device is separated by the same number of hops.
  D. Each device is separated by the same number of hops.

  ---

  Find the subnet mask *To have 20 User in a subnet We have to use /27 prefix

  So Host count for /27 prefix is (2^5-2)=30

  Subnet Mask for /27 prefix is (sum of Network bits (128+64+32)=224 , so 255.255.255.224

  Find the network ID

  As per the /27 prefix each subnet has 30 host and 32 including network ID and Broadcast ID, first network ID is 10.10.255.0 and the second will be 10.10.255.32

• Question 325:

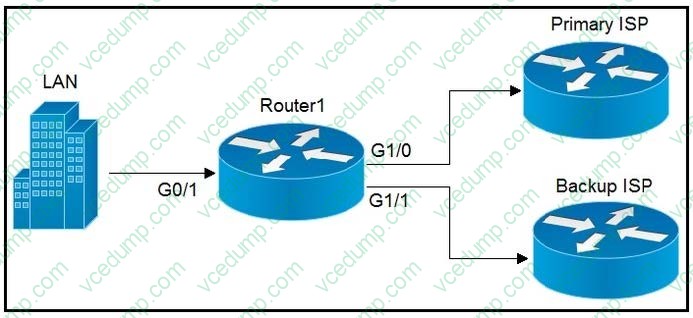

  Refer to the exhibit. A company is configuring a failover plan and must implement the default routes in such a way that a floating static route will assume traffic forwarding when the primary link goes down. Which primary route configuration must be used?



  A. ip route 0.0.0.0 0.0.0.0 192.168.0.2 GigabitEthernetl/0
  B. ip route 0.0.0.0 0.0.0.0 192.168.0.2 tracked
  C. ip route 0.0.0.0 0.0.0.0 192.168.0.2 floating
  D. ip route 0.0.0.0 0.0.0.0 192.168.0.2
  D. ip route 0.0.0.0 0.0.0.0 192.168.0.2

  ---

  Unlike IPv6, in IPv4 static routing configuration, for the next hop you either enter an IP Address of the neighboring interface or your local interface, BUT NEVER BOTH. Example:

  R1(config)# ip route 192.168.20.0 255.255.255.0 10.12.0.2 Or R1(config)# ip route 192.168.20.0 255.255.255.0 g0/0

• Question 326:

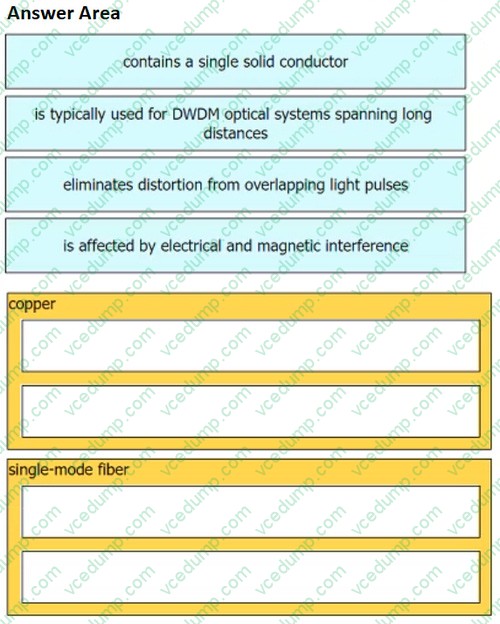

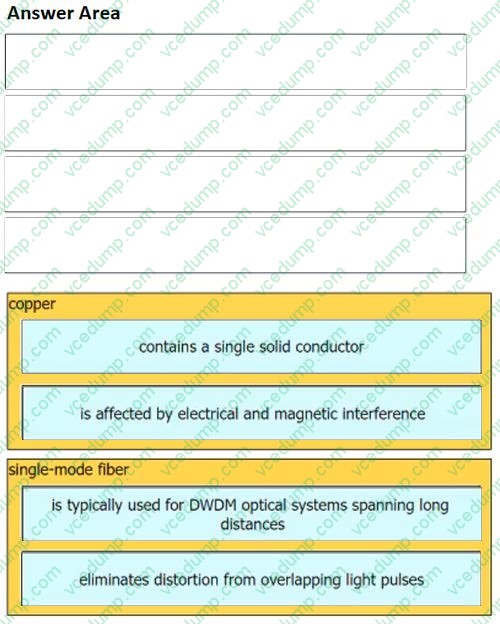

  DRAG DROP

  Drag and drop the characteristic from the left onto the cable type on the right.

  Select and Place:





• Question 327:

  Which protocol does Ansible use to push modules to nodes in a network?

  A. Telnet
  B. Kerberos
  C. SNMP
  D. SSH
  D. SSH

• Question 328:

  Which type of port is used to connect lo the wired network when an autonomous AP maps two VLANs to its WLANs?

  A. LAG
  B. EtherChannel
  C. trunk
  D. access
  C. trunk

• Question 329:

  An organization developed new security policies and decided to print the policies and distribute them to all personnel so that employees review and apply the policies.

  Which element of a security program is the organization implementing?

  A. Asset identification
  B. User training
  C. Physical access control
  D. Vulnerability control
  B. User training

• Question 330:

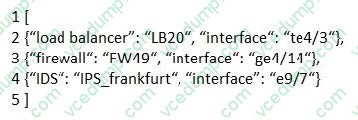

  What is represented by the word "LB20" within this JSON schema?



  A. value
  B. array
  C. object
  D. key
  A. value
