Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 311:

  What role does a hypervisor provide for each virtual machine in server virtualization?

  A. infrastructure-as-a-service.
  B. Software-as-a-service
  C. control and distribution of physical resources
  D. services as a hardware controller.
  C. control and distribution of physical resources

  ---

  The hypervisor creates and manages virtual machines on a host computer and allocates physical system resources to them.

• Question 312:

  What is the primary purpose of a First Hop Redundancy Protocol?

  A. It allows directly connected neighbors to share configuration information.
  B. It allows a router to use bridge priorities to create multiple loop-free paths to a single destination.
  C. It reduces routing failures by allowing Layer 3 load balancing between OSPF neighbors that have the same link metric.
  D. It reduces routing failures by allowing more than one router to represent itself, as the default gateway of a network.
  D. It reduces routing failures by allowing more than one router to represent itself, as the default gateway of a network.

• Question 313:

  CCNA Lab simulation

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary pre-configurations have been applied.

  5. Do not remove any existing configurations from the devices, only those necessary to make the appropriate changes required to fulfill the listed tasks.

  6. Do not change the enable password or hostname for any device.

  7. Save your configurations to NVRAM before moving to the next item.

  8. Click Next at the bottom of the screen to submit this lab and move to the next question.

  9. When Next is clicked, the lab closes and cannot be reopened.

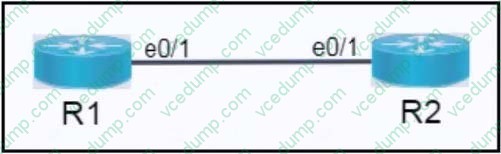

  Topology



  Configure IPv4 and IPv6 between the two routers.



  Tasks

  Task 1:

  1. Configure R1 with the first usable host IP address in the IPv4 network.

  2. Configure R2 with the last usable host IP address in the IPv4 network.

  3. Verify connectivity using ping.

  Task 2:

  1. Do not assign the subnet router anycast address to either router.

  2. Configure R1 with the first usable host IP address in the IPv6 network.

  3. Configure R2 with the last usable host IP address in the IPv6 network.

  4. Verify connectivity using ping.

  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  Task 1: Configure IPv4 between R1 and R2

  From the table, the IPv4 subnet is 192.168.168.192/28. This gives us 16 total IP addresses, with 14 usable host IPs in the range 192.168.168.193 to 192.168.168.206. The first usable address is 192.168.168.193, and the last usable address is 192.168.168.206.

  R1 Configuration (First Usable IPv4 Address):

  R1(config)# interface Ethernet0/1

  R1(config-if)# ip address 192.168.168.193 255.255.255.240

  R1(config-if)# no shutdown

  R2 Configuration (Last Usable IPv4 Address):

  R2(config)# interface Ethernet0/1

  R2(config-if)# ip address 192.168.168.206 255.255.255.240

  R2(config-if)# no shutdown

  Verify IPv4 Connectivity:

  From R1, ping R2's IP address to ensure connectivity:

  R1# ping 192.168.168.206

  Task 2: Configure IPv6 between R1 and R2

  From the table, the IPv6 subnet is 2001:db8:12::/125. This provides 8 addresses, with the range 2001:db8:12::1 to 2001:db8:12::6 as usable addresses. The first usable address is 2001:db8:12::1, and the last usable address is 2001:db8:12::6.

  R1 Configuration (First Usable IPv6 Address):

  R1(config)# interface Ethernet0/1

  R1(config-if)# ipv6 address 2001:db8:12::1/125

  R1(config-if)# no shutdown

  R2 Configuration (Last Usable IPv6 Address):

  R2(config)# interface Ethernet0/1

  R2(config-if)# ipv6 address 2001:db8:12::6/125

  R2(config-if)# no shutdown

  Verify IPv6 Connectivity:

  From R1, ping R2's IPv6 address to ensure connectivity:

  R1# ping ipv6 2001:db8:12::6

  IPv4 Addressing: The subnet 192.168.168.192/28 provides 16 IP addresses, with the first usable being 192.168.168.193 (assigned to R1) and the last usable being 192.168.168.206 (assigned to R2).

  IPv6 Addressing: The subnet 2001:db8:12::/125 provides 8 addresses, and the first usable is 2001:db8:12::1 (assigned to R1) and the last usable is 2001:db8:12::6 (assigned to R2).

  Both IPv4 and IPv6 configurations are done without using the subnet router anycast address.

• Question 314:

  What is a characteristic of private IPv4 addressing?

  A. traverses the internet when an outbound ACL is applied
  B. alleviates the shortage of IPv4 addresses
  C. is used when the ISP requires the new subnet to be advertised to the internet for web services
  D. enables secure connectivity over the internet
  B. alleviates the shortage of IPv4 addresses

• Question 315:

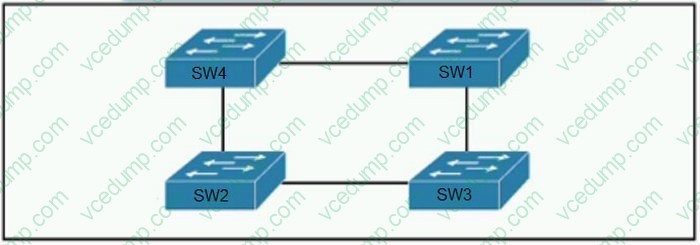

  Refer to the exhibit. Which switch in this configuration will be elected as the root bridge?



  SW1: 0C:E0:38:00:94:04 SW2: 0C:0E:15:22:05:97 SW3: 0C:0E:15:1A:3C:9D SW4: 0C:E0:18:A1:B3:19

  A. SW1
  B. SW2
  C. SW3
  D. SW4
  C. SW3

  ---

  The root bridge is determined by the lowest bridge ID, which consists of the priority value and the MAC address. Because the priority values of all of the switches are identical, the MAC address is used to determine the root bridge.

• Question 316:

  DRAG DROP

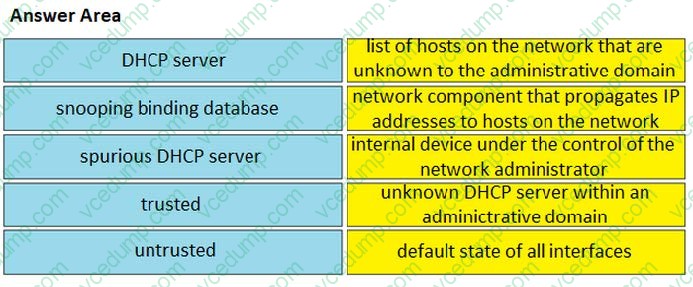

  Drag and drop the DHCP snooping terms from the left onto the descriptions on the right.

  Select and Place:





• Question 317:

  By default, how does EIGRP determine the metric of a route for the routing table?

  A. It uses the bandwidth and delay values of the path to calculate the route metric.
  B. It uses a default metric of 10 for all routes that are learned by the router.
  C. It counts the number of hops between the receiving and destination routers and uses that value as the metric.
  D. It uses a reference bandwidth and the actual bandwidth of the connected link to calculate the route metric.
  A. It uses the bandwidth and delay values of the path to calculate the route metric.

• Question 318:

  A DHCP pool has been created with the name CONTROL. The pool uses the next to last usable IP address as the default gateway for the DHCP clients. The server is located at 172.16.32.15. What is the next step in the process for clients on the 192.168.52.0/24 subnet to reach the DHCP server?

  A. ip helper-address 172.16.32.15
  B. ip default-gateway 192.168.52.253
  C. ip forward-protocol udp 137
  D. ip detault-network 192.168.52.253
  A. ip helper-address 172.16.32.15

  ---

  The question states that the pool has been created and that it uses the next to last usable IP address as the default gateway for the DHCP clients. So that already implies that B is not the answer. But just to confirm once and for all, 192.168.52.253 is NOT the last usable address, that would be 192.168.52.254. The answer is A because we need to configure a helper address since the DHCP server is on a different subnet.

• Question 319:

  Which interface IP address serves as the tunnel source for CAPWAP packets from the WLC to an AP?

  A. service
  B. trunk
  C. AP-manager
  D. virtual AP connection
  C. AP-manager

  ---

  The AP-manager IP address is used as the tunnel source for CAPWAP packets from the controller to the access point and as the destination for CAPWAP packets from the access point to the controller.

• Question 320:

  You have configured a router with an OSPF router ID, but its IP address still reflects the physical interface. Which action can you take to correct the problem in the least disruptive way?

  A. Reload the OSPF process
  B. Specify a loopback address
  C. Reboot the router
  D. Save the router configuration
  A. Reload the OSPF process

  ---

  Once an OSPF Router ID selection is done, it remains there even if you remove it or configure another OSPF Router ID. So the least disruptive way is to correct it using the command "clear ip ospf process".
