Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 301:

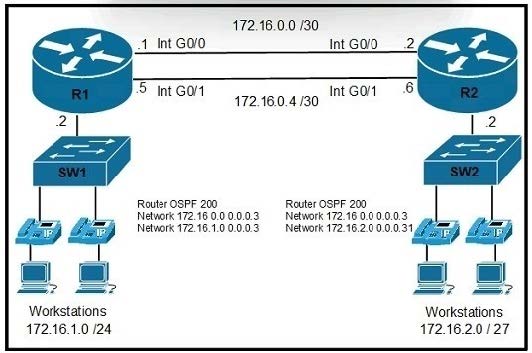

  Refer to the exhibit.



  The primary route across Gi0/0 is configured on both routers. A secondary route must be configured to establish connectivity between the workstation networks.

  Which command set must be configured to complete this task?

  A. R1 ip route 172.16.2.0 255.255.255.248 172.16.0.5 110 R2 ip route 172.16.1.0 255.255.255.0 172.16.0.6 110
  B. R1 ip route 172.16.2.0 255.255.255.240 172.16.0.2 113 R2 ip route 172.16.1.0 255.255.255.0 172.16.0.1 114
  C. R1 ip route 172.16.2.0 255.255.255.224 172.16.0.6 111 R2 ip route 172.16.1.0 255.255.255.0 172.16.0.5 112
  D. R1 ip route 172.16.2.0 255.255.255.240 172.16.0.5 89 R2 ip route 172.16.1.0 255.255.255.0 172.16.0.6 89
  C. R1 ip route 172.16.2.0 255.255.255.224 172.16.0.6 111 R2 ip route 172.16.1.0 255.255.255.0 172.16.0.5 112

  ---




• Question 302:

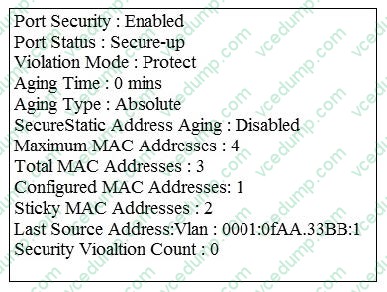

  Refer to the exhibit. Which two events occur on the interface, if packets from an unknown Source address arrive after the interface learns the maximum number of secure MAC address? (Choose two.)



  A. The security violation counter dose not increment
  B. The port LED turns off
  C. The interface is error-disabled
  D. A syslog message is generated
  E. The interface drops traffic from unknown MAC address
  A. The security violation counter dose not increment
  E. The interface drops traffic from unknown MAC address

  ---

  Protect - When a violation occurs in this mode, the switchport will permit traffic from known MAC addresses to continue sending traffic while dropping traffic from unknown MAC addresses. When using this mode, no notification message is sent when this violation occurs.

• Question 303:

  How does AI contribute to network traffic analysis?

  A. It analyzes patterns for anomaly detection.
  B. It enhances data packet delivery speeds.
  C. It simplifies traffic route mapping.
  D. It eliminates network threats.
  A. It analyzes patterns for anomaly detection.

  ---

  AI and machine learning are used in network traffic analysis to learn normal patterns of behavior over time. Once these patterns are established, AI can identify anomalies or deviations from normal traffic that may indicate security threats, network congestion, or other performance issues. This helps network administrators detect and respond to potential issues proactively, enhancing security and network efficiency.

• Question 304:

  What is a difference between local AP mode and FlexConnect AP mode?

  A. Local AP mode creates two CAPWAP tunnels per AP to the WLC
  B. Local AP mode causes the AP to behave as if it were an autonomous AP
  C. FlexConnect AP mode fails to function if the AP loses connectivity with the WLC
  D. FlexConnect AP mode bridges the traffic from the AP to the WLC when local switching is configured
  A. Local AP mode creates two CAPWAP tunnels per AP to the WLC

  ---

  "In local mode, an AP creates two CAPWAP tunnels to the WLC. One is for management, the other is data traffic. This behavior is known as "centrally switched" because the data traffic is switched(bridged) from the ap to the controller where it is then routed by some routing device."

  https://community.cisco.com/t5/wireless-and-mobility/what-s-the-difference-between-local-mode-and-flex-connect-mode/td-p/2532657

• Question 305:

  What is the binary pattern of unique ipv6 unique local address?

  A. 00000000
  B. 11111100
  C. 11111111
  D. 11111101
  D. 11111101

  ---

  This is the current Unique Local Address being used. Check Official Certification Guide Volume 1, page 551(Unique Local Addresses).

• Question 306:

  Where does a switch maintain DHCP snooping information?

  A. in the MAC address table
  B. in the CAM table
  C. in the binding database
  D. in the frame forwarding database
  C. in the binding database

  ---

  The DHCP snooping binding database is also referred to as the DHCP snooping binding table.The DHCP snooping feature dynamically builds and maintains the database using information extracted from intercepted DHCP messages. The database contains an entry for each untrusted host with a leased IP address if the host is associated with a VLAN that has DHCP snooping enabled. The database does not contain entries for hosts connected through trusted interface

• Question 307:

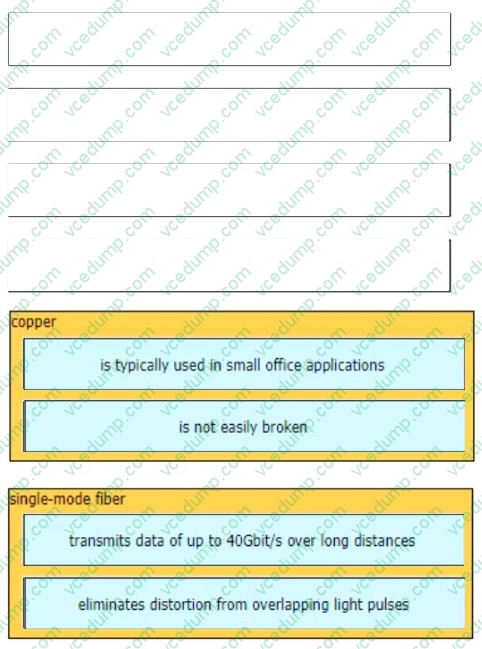

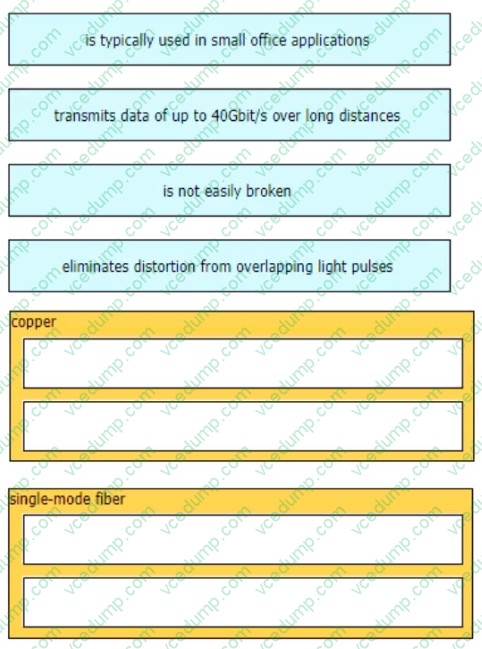

  DRAG DROP

  Drag and drop the characteristic from the left onto the cable type on the right.

  Select and Place:





• Question 308:

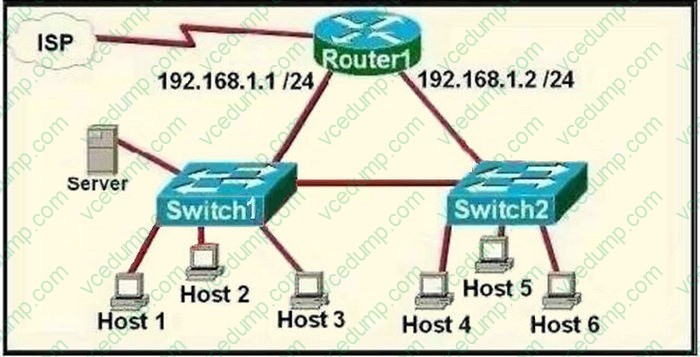

  Refer to the exhibit. A network technician is asked to design a small network with redundancy. The exhibit represents this design, with all hosts configured in the same VLAN. What conclusions can be made about this design?



  A. This design will function as intended.
  B. Spanning-tree will need to be used.
  C. The router will not accept the addressing scheme.
  D. The connection between switches should be a trunk.
  E. The router interfaces must be encapsulated with the 802.1Q protocol.
  C. The router will not accept the addressing scheme.

  ---

  Each interface on a router must be in a different network. If two interfaces are in the same network, the router will not accept it and show error when the administrator assigns it.

• Question 309:

  What is the benefit of using private IPv4 addressing?

  A. to enable secure connectivity over the Internet
  B. to shield internal network devices from external access
  C. to provide reliable connectivity between like devices
  D. to be routable over an external network
  B. to shield internal network devices from external access

• Question 310:

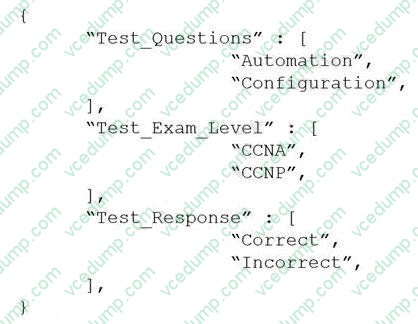

  Refer to the exhibit.



  How many objects keys, and JSON list values are present?

  A. Three objects, two keys, and three JSON list values
  B. Three objects, three keys, and two JSON list values
  C. One object, three keys, and three JSON list values
  D. One object, three keys, and two JSON list values
  C. One object, three keys, and three JSON list values

  ---

  List values are arrays separated by [ ]
