Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1691:

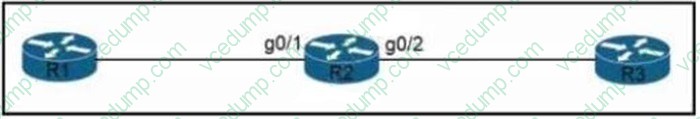

  Refer to the exhibit.



  Routers R1, R2, and R3 use a protocol to identify the neighbors' IP addresses, hardware platforms, and software versions. A network engineer must configure R2 to avoid sharing any neighbor information with R3, and maintain its relationship with R1. What action meets this requirement?

  A. Configure the no lldp receive command on g0/1.
  B. Configure the no cdp run command globally.
  C. Configure the no cdp enable command on g0/2.
  D. Configure the no lldp run command globally.
  C. Configure the no cdp enable command on g0/2.

  ---

  Configuring no lldp run, assuming the routers are using LLDP, will mean that R1 and R2 don't maintain a relationship, so that answer is incorrect.

• Question 1692:

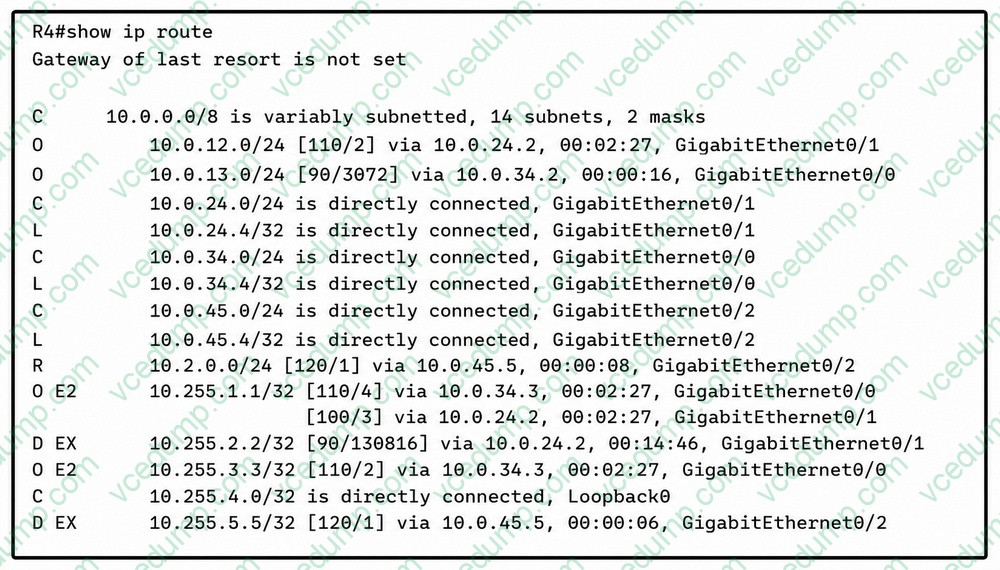

  Refer to the exhibit.



  Of the routes learned with dynamic routing protocols, which has the least preferred metric?

  A. Local
  B. EIGRP
  C. OSPF
  D. RIP
  D. RIP

• Question 1693:

  Which interface enables communication between a program on the controller and a program on the networking devices?

  A. northbound interface
  B. software virtual interface
  C. southbound interface
  D. tunnel Interface
  B. software virtual interface

• Question 1694:

  Refer to the exhibit.



  The administrator must configure a floating sialic default route that points to 2001:db8:1234:2::1 and replaces the current default route only if it fails. Which command must the engineer configure on the CPE?

  A. ipv6 route ::/0 2001:db8:1234:2::1 3
  B. ipv6 route ::/128 2001 :db8:1234:2::1 3
  C. ipv6 route ::/0 2001:db8:1234:2::1 1
  D. ipv6 route ::/0 2001:db8:1234:2::1 2
  A. ipv6 route ::/0 2001:db8:1234:2::1 3

  ---

• Question 1695:

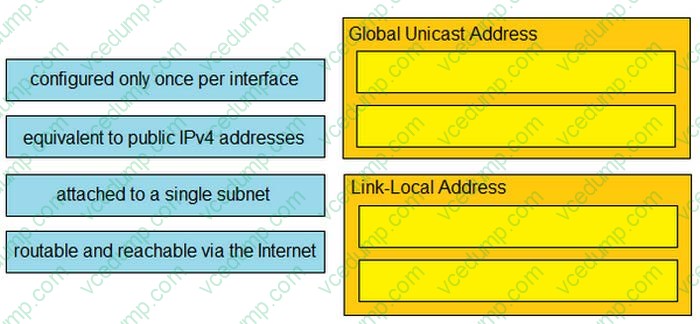

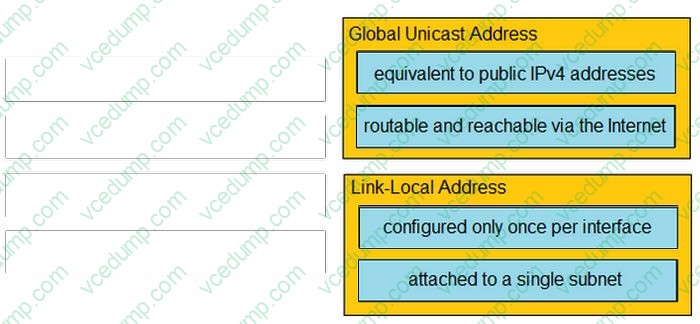

  DRAG DROP

  Drag and drop the IPv6 address type characteristics from the left to the right.

  Select and Place:





• Question 1696:

  When is the PUT method used within HTTP?

  A. to update a DNS server
  B. when a nonidempotent operation is needed
  C. to display a web site
  D. when a read-only operation is required
  A. to update a DNS server

  ---

  "Standard REST methods are supported on the API, which includes POST, GET, PUT, and DELETE operations through HTTP. The PUT methods are idempotent, meaning that there is no additional effect if they are called more than once with the same input parameters. The GET method is nullipotent, meaning that it can be called zero or more times without making any changes (or that it is a read-only operation)."

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/aci_multi-site/sw/1x/rest_api_config/b_Cisco_ACI_Multi-Site_REST_Configuration_Guide/b_Cisco_ACI_Multi-Site_REST_Config_Guide_chapter_01.pdf

• Question 1697:

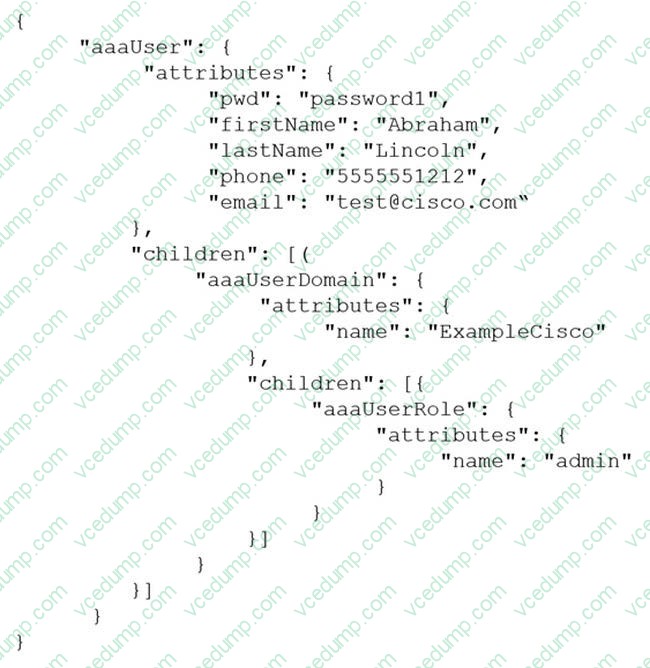

  Refer to the exhibit.



  How many objects are present in the given JSON-encoded data?

  A. one
  B. four
  C. seven
  D. nine
  D. nine

  ---

  Simply count all the opening or closing curly brackets that represent the start or closing of an object value. NOTE: there's an error on that exhibit, the opening bracket in the array is supposed to be an opening bracket.

• Question 1698:

  What is a reason why an administrator would choose to implement an automated network management approach?

  A. Enable "box by box" configuration and deployment.
  B. Decipher simple password policies.
  C. Reduce inconsistencies in the network configuration.
  D. Increase recurrent management costs.
  C. Reduce inconsistencies in the network configuration.

• Question 1699:

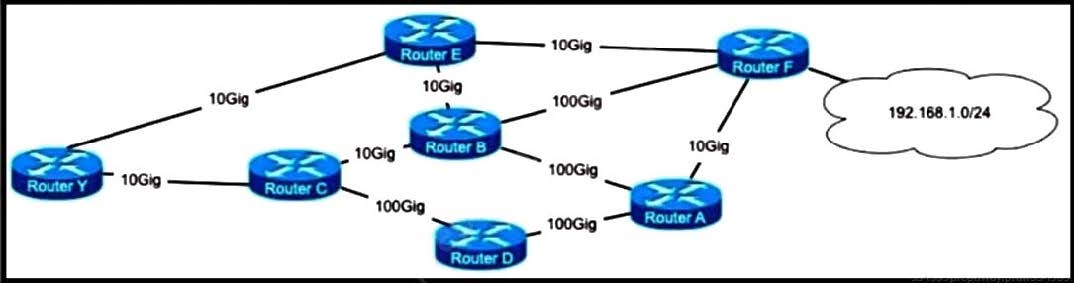

  Refer to the exhibit.



  With a reference bandwidth of 100 Gb on all routers, which path does router Y use to get to network 192.168.1.0/247

  A. router C > D > A > F
  B. router E > F
  C. router E > B > F
  D. router C > D > A > B > F
  C. router E > B > F

  ---




  OSPF calculates the cost of a route based on the formula:



  Now, let's evaluate the possible paths from Router Y to 192.168.1.0/24:

  1. Path A (Router C > Router D > Router A > Router F):

  Router Y to Router C: 10 Gb (Cost = 10)

  Router C to Router D: 100 Gb (Cost = 1)

  Router D to Router A: 100 Gb (Cost = 1)

  Router A to Router F: 10 Gb (Cost = 10)

  Total cost:

  10+1+1+10=22

  2. Path B (Router E > Router F):

  Router Y to Router E: 10 Gb (Cost = 10)

  Router E to Router F: 10 Gb (Cost = 10)

  Total cost: 10+10=20

  3. Path C (Router E > Router B > Router F):

  Router Y to Router E: 10 Gb (Cost = 10)

  Router E to Router B: 100 Gb (Cost = 1)

  Router B to Router F: 100 Gb (Cost = 1)

  Total cost: 10+1+1=12

  4. Path D (Router C > Router D > Router A > Router B > Router F):

  Router Y to Router C: 10 Gb (Cost = 10)

  Router C to Router D: 100 Gb (Cost = 1)

  Router D to Router A: 100 Gb (Cost = 1)

  Router A to Router B: 100 Gb (Cost = 1)

  Router B to Router F: 100 Gb (Cost = 1)

  Total cost: 10+1+1+1+1=14

  The path with the lowest cost is Path C (Router E > Router B > Router F) with a total cost of 12.

• Question 1700:

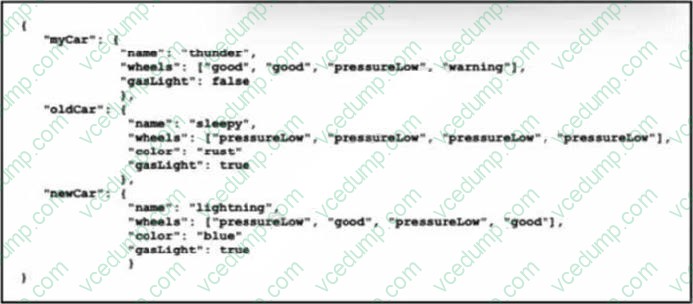

  Refer to the exhibit.



  In which structure does the word "warning" directly reside?

  A. array
  B. object
  C. Boolean
  D. string
  A. array
