Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1671:

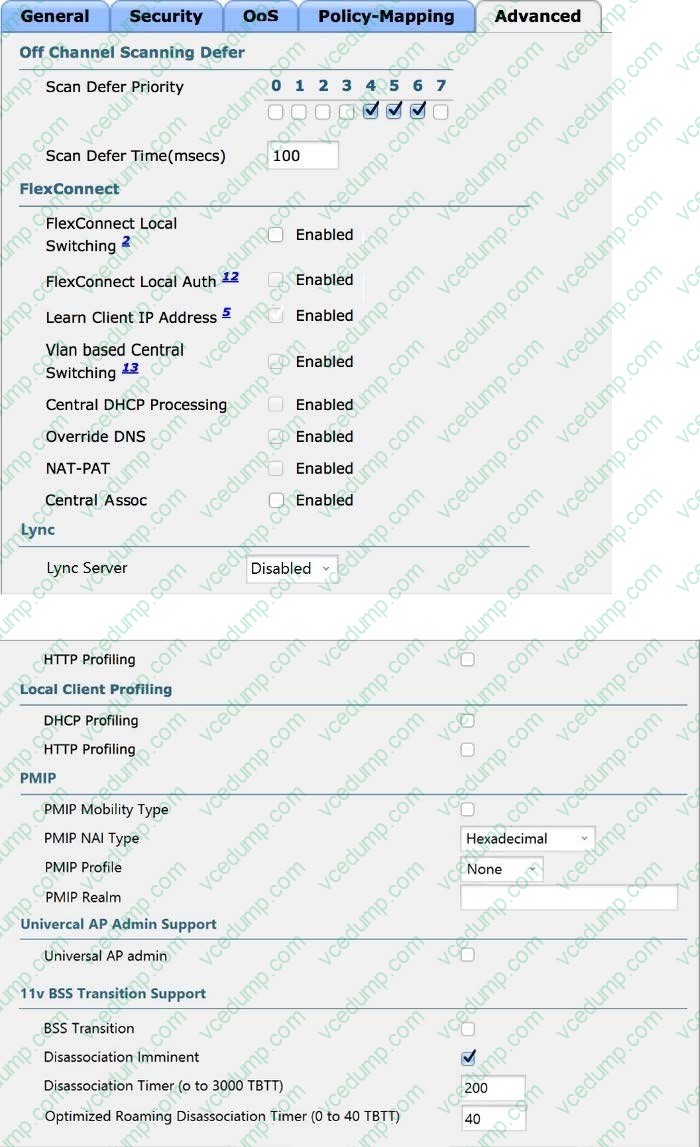

  Refer to the exhibit.



  An architect is managing a wireless network with APs from several branch offices connecting to the WLC in the data center. There is a new requirement for a single WLAN to process the client data traffic without sending it to the WLC. Which action must be taken to complete the request?

  A. Enable local HTTP profiling.
  B. Enable FlexConnect Local Switching.
  C. Enable local DHCP Profiling.
  D. Enable Disassociation Imminent.
  B. Enable FlexConnect Local Switching.

  ---

  The action that must be taken to complete the request of processing client data traffic without sending it to the WLC is to enable FlexConnect Local Switching.

  FlexConnect Local Switching (also known as "local switching" or "central switching") is a feature of Cisco wireless networks that allows for client traffic to be switched locally at the access point (AP) rather than being sent to the wireless LAN controller (WLC) for processing. This can improve network performance and reduce the load on the WLC.

• Question 1672:

  What benefit does controller-based networking provide versus traditional networking?

  A. allows configuration and monitoring of the network from one centralized port
  B. provides an added layer of security to protect from DDoS attacks
  C. combines control and data plane functionality on a single device to minimize latency
  D. moves from a two-tier to a three-tier network architecture to provide maximum redundancy
  A. allows configuration and monitoring of the network from one centralized port

• Question 1673:

  Which default condition must be considered when an encrypted mobility tunnel is used between two Cisco WLCs?

  A. The tunnel uses the IPses protocol for encapsulation.
  B. Control and data traffic encryption are enabled.
  C. The tunnel uses the EoIP protocol to transmit data traffic.
  D. TCP port 443 and UDP 21 are used.
  B. Control and data traffic encryption are enabled.

  ---

  https://www.cisco.com/c/en/us/support/docs/wireless/4400-series-wireless-lan-controllers/107188-mobility-groups-faq.pdf

• Question 1674:

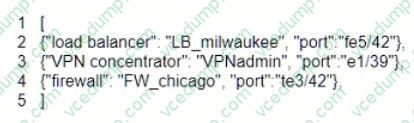

  What is represented by the word "fe5/42" within this JSON schema?



  A. array
  B. object
  C. value
  D. key
  C. value

  ---

  in this array this is specifically asking about a key : value pair. In this instance it would also be considered a string

• Question 1675:

  What is the destination MAC address of a broadcast frame?

  A. 00:00:0c:07:ac:01
  B. ff:ff:ff:ff:ff:ff
  C. 43:2e:08:00:00:0c
  D. 00:00:0c:43:2e:08
  E. 00:00:0c:ff:ff:ff
  B. ff:ff:ff:ff:ff:ff

  ---

  Ref: Broadcast Frame - an overview | ScienceDirect Topics Cisco IOS Switch Basics Switch Concepts

  Broadcasts... Layer 2 broadcast frames have a destination Media Access Control (MAC) address of FF:FF:FF:FF:FF:FF and Layer 3 broadcast addresses have a destination Internet Protocol (IP) address that is set for the broadcast of that particular network (the address varies, so don't always assume that an IP address ending with 255 is the broadcast address).

• Question 1676:

  DRAG DROP

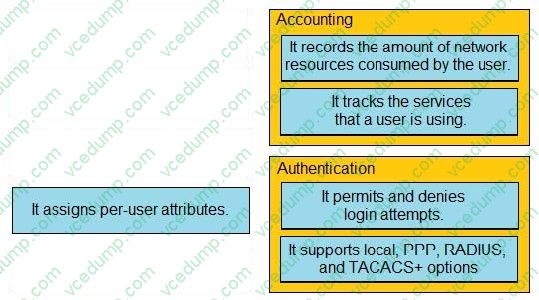

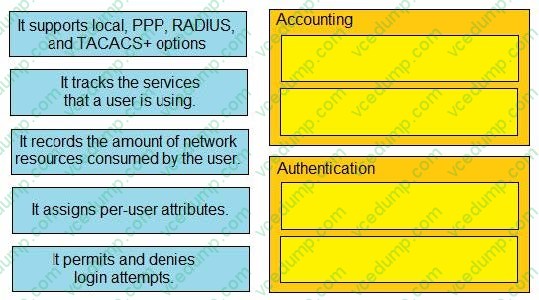

  Drag and drop the statements about AAA from the left onto the corresponding AAA services on the right. Not all options are used.

  Select and Place:





• Question 1677:

  Which interface is used to send traffic to the destination network?

  10.249.210.56/25 [90/6144] via G0/15

  10.249.210.56/25 [90/45053] via G0/13

  10.249.210.56/25 [110/3693] via G0/16

  10.249.210.56/25 [110/360] via G0/12

  A. G0/16
  B. G0/15
  C. G0/13
  D. G0/12
  B. G0/15

• Question 1678:

  What is a requirement when configuring or removing LAG on a WLC?

  A. The Incoming and outgoing ports for traffic flow must be specified If LAG Is enabled.
  B. The controller must be rebooted after enabling or reconfiguring LAG.
  C. The management interface must be reassigned if LAG disabled.
  D. Multiple untagged interfaces on the same port must be supported.
  B. The controller must be rebooted after enabling or reconfiguring LAG.

  ---

  When you enable LAG or make any changes to the LAG configuration, you must immediately reboot the controller.

• Question 1679:

  Which command is used to display the collection of OSPF link states?

  A. show ip ospf link-state
  B. show ip ospf lsa database
  C. show ip ospf neighbors
  D. show ip ospf database
  D. show ip ospf database

  ---

  The "show ip ospf database" command displays the link states. Here is an example:

  Here is the lsa database on R2.

  R2#show ip ospf database

  OSPF Router with ID (2.2.2.2) (Process ID 1)

  Router Link States (Area 0)

  Link ID ADV Router Age Seq# Checksum Link count2.2.2.2 2.2.2.2 793 0x80000003 0x004F85 210.4.4.4 10.4.4.4 776 0x80000004 0x005643 1111.111.111.111 111.111.111.111 755 0x80000005 0x0059CA 2133.133.133.133 133.133.133.133 775 0x80000005 0x00B5B1 2 Net Link States (Area 0)

  Link ID ADV Router Age Seq# Checksum10.1.1.1 111.111.111.111 794 0x80000001 0x001E8B10.2.2.3 133.133.133.133 812 0x80000001 0x004BA910.4.4.1 111.111.111.111 755 0x80000001 0x007F1610.4.4.3 133.133.133.133 775 0x80000001 0x00C31F

• Question 1680:

  The SW1 interface g0/1 is in the down/down state. Which two configurations are valid reasons for the interface conditions? (Choose two)

  A. There is a duplex mismatch
  B. There is a speed mismatch
  C. There is a protocol mismatch
  D. The interface is shut down
  E. The interface is error-disabled
  B. There is a speed mismatch
  E. The interface is error-disabled

  ---

  The interface is shut down - ADMIN DOWN / DOWN

  The interface is error-disabled - DOWN / DOWN

  There is a speed mismatch - DOWN / DOWN
