Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1681:

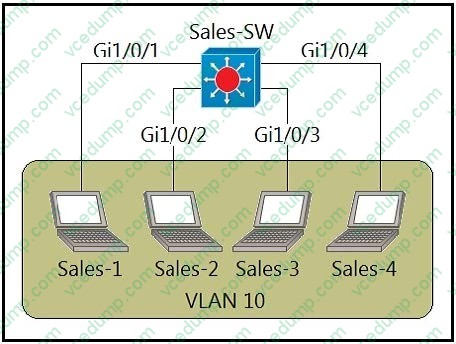

  Refer to the exhibit.

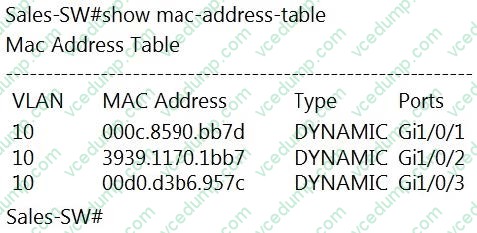

  The entire contents or the MAC address table are shown. Sales-4 sends a data frame to Sales-1.



  What does the switch do as it receives the frame from Sales-4?

  A. Map the Layer 2 MAC address to the Layer 3 IP address and forward the frame.
  B. Insert the source MAC address and port into the forwarding table and forward the frame to Sales-1.
  C. Perform a lookup in the MAC address table and discard the frame due to a missing entry.
  D. Flood the frame out of all ports except on the port where Sales-1 is connected.
  B. Insert the source MAC address and port into the forwarding table and forward the frame to Sales-1.

• Question 1682:

  Which two commands can you use to configure an actively negotiate EtherChannel? (Choose two.)

  A. channel-group 10 mode on
  B. channel-group 10 mode auto
  C. channel-group 10 mode passive
  D. channel-group 10 mode desirable
  E. channel-group 10 mode active
  D. channel-group 10 mode desirable
  E. channel-group 10 mode active

  ---

  Desirable mode: Desirable mode in Port Aggregation Protocol (PAgP) initiates the negotiation and tries to form EtherChannel with other end. Active Mode: Active Mode in Link Aggregation Control Protocol (LACP) initiates the negotiation and tries to form EtherChannel with other end.

• Question 1683:

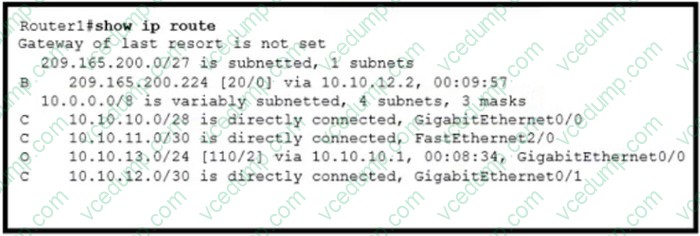

  Refer to me exhibit. Which action is taken by the router when a packet is sourced from 10.10.10.2 and destined for 10.10.10.16?



  A. It uses a route that is similar to the destination address
  B. It discards the packets.
  C. It floods packets to all learned next hops.
  D. It Queues the packets waiting for the route to be learned.
  B. It discards the packets.

  ---

  Referring to routing table, 10.10.10.0/28 supports network from 10.10.10.0-10.10.10.15.

  Gateway of last resort is not set

  So traffic destined to 10.10.10.16 will be discarded.

• Question 1684:

  DRAG DROP

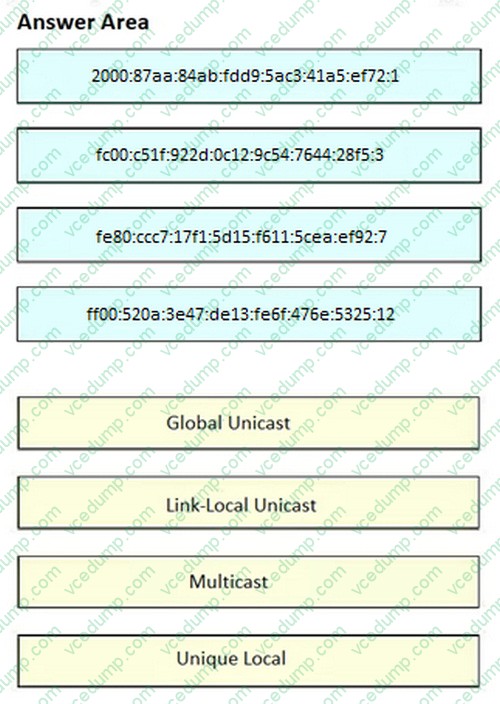

  Drag and drop the IPv6 address from the left onto the type on the right.

  Select and Place:





• Question 1685:

  CCNA Lab simulation

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary pre-configurations have been applied.

  5. Do not remove any existing configurations from the devices, only those necessary to make the appropriate changes required to fulfill the listed tasks.

  6. Do not change the enable password or hostname for any device.

  7. Save your configurations to NVRAM before moving to the next item.

  8. Click Next at the bottom of the screen to submit this lab and move to the next question.

  9. When Next is clicked, the lab closes and cannot be reopened.

  Topology



  Tasks

  Task 1

  1. Configure a host route on R5 for the destination of 10.200.220.6.

  2. Configure a static default route on R1 preferring the path through R3 towards R6.

  3. From R5, use traceroute and ping to verify the path towards and reachability of R6.

  Task 2

  1. Configure a floating static default route on R1, preferring the path through R2 towards R6 if the link to R3 should fail.

  2. Configure the administrative distance for 225.

  3. Configure a static route on R2 to forward the return traffic towards 10.100.110.0/25.

  4. After shutting interface e0/1 on R1, use traceroute and ping from R5 to verify path towards and reachability of R6.

  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  Task 1:

  R5(c0nfig)# ip route 10.200.220.6 255.255.255.255 10.100.110.1

  R1(config)# ip route 0.0.0.0 0.0.0.0 10.133.13.2

  R5#traceroute10.200.220.6

  R5# ping 10.200.220.6

  Task 2:

  R1(config)# ip route 0.0.0.0 0.0.0.0 10.122.12.2 225

  R2(config)# ip route 10.100.110.0 255.255.255.128 10.122.12.1

  Rl(config)# interface e0/1

  R1(config-if)# shutdown

  R5# traceroute 10.200.220.6

  R5# ping 10.200.220.6

• Question 1686:

  A wireless access point is needed and must meet these requirements:

  1. "zero-touch" deployed and managed by a WLC

  2. process only real-time MAC functionality

  3. used in a split-MAC architecture Which access point type must be used?

  A. mesh
  B. autonomous
  C. lightweight
  D. cloud-based
  C. lightweight

  ---




• Question 1687:

  Why does an administrator choose to implement a remote access IPsec VPN?

  A. to establish an encrypted tunnel between a remote user and a private network over the internet
  B. to allow access to an enterprise network using any internet-enabled location via a web browser using SSL
  C. to provide a secure link between an HTTPS server, authentication subsystem, and an end-user
  D. to use cryptography for authentication between a device and user over a negotiated VPN gateway
  A. to establish an encrypted tunnel between a remote user and a private network over the internet

• Question 1688:

  Which per-hop traffic-control feature does an ISP implement to mitigate the potential negative effects of a customer exceeding its committed bandwidth?

  A. policing
  B. queuing
  C. marking
  D. shaping
  A. policing

  ---

  Your ISP sold you a fibre connection with a traffic contract and a guaranteed bandwidth of 10 Mbit, the fibre interface however is capable of sending 100 Mbit per second. Most ISPs will configure policing to drop all traffic above 10 Mbit so that you can't get more bandwidth than what you are paying for. It's also possible that they shape it down to 10 Mbit but shaping means they have to buffer data while policing means they can just throw it away. The 10 Mbit that we pay for is called the CIR (Commited Information Rate).

  Policing would be the most logical answer, as ISP's usually don't take care of your traffic as you would within your own network. If you really need to get that traffic through, fix it on your own equipment (instead of depending on the provider) so that it all fits properly within the bandwidth you pay for.

• Question 1689:

  A network engineer must configure an interface with IP address 10.10.10.145 and a subnet mask equivalent to 11111111.11111111.11111111.11111000. Which subnet mask must the engineer use?

  A. /29
  B. /30
  C. /27
  D. /28
  A. /29

• Question 1690:

  An engineer must configure traffic for a VLAN that is untagged by the switch as it crosses a trunk link. Which command should be used?

  A. switchport trunk allowed vlan 10
  B. switchport trunk native vlan 10
  C. switchport mode trunk
  D. switchport trunk encapsulation dot1q
  B. switchport trunk native vlan 10

  ---

  The switchport trunk native vlan command specifies the native (untagged) VLAN for a Layer 2 interface operating in trunk mode on a Cisco IOS device. This command only takes effect for interfaces that are operating in trunk mode.
