Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1531:

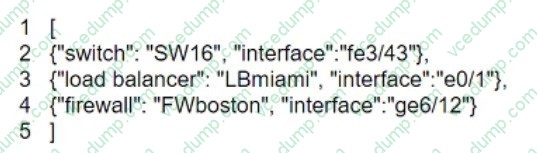

  What is represented in line 2 within this JSON schema?



  A. object
  B. value
  C. key
  D. array
  A. object

  ---

  objects are show in {} curly brackets

• Question 1532:

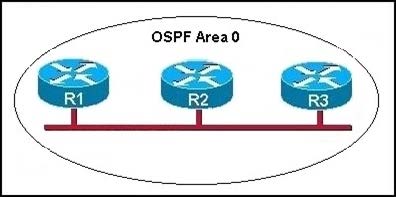

  Refer to the graphic.

  R1 is unable to establish an OSPF neighbor relationship with R3.

  What are possible reasons for this problem? (Choose two.)



  A. All of the routers need to be configured for backbone Area 1.
  B. R1 and R2 are the DR and BDR, so OSPF will not establish neighbor adjacency with R3.
  C. A static route has been configured from R1 to R3 and prevents the neighbor adjacency from being established.
  D. The hello and dead interval timers are not set to the same values on R1 and R3.
  E. EIGRP is also configured on these routers with a lower administrative distance.
  F. R1 and R3 are configured in different areas.
  D. The hello and dead interval timers are not set to the same values on R1 and R3.
  F. R1 and R3 are configured in different areas.

  ---

  This question is to examine the conditions for OSPF to create neighborhood. So as to make the two routers become neighbors, each router must be matched with the following items:

  1. The area ID and its types

  2. Hello and failure time interval timer

  3. OSPF Password (Optional)

• Question 1533:

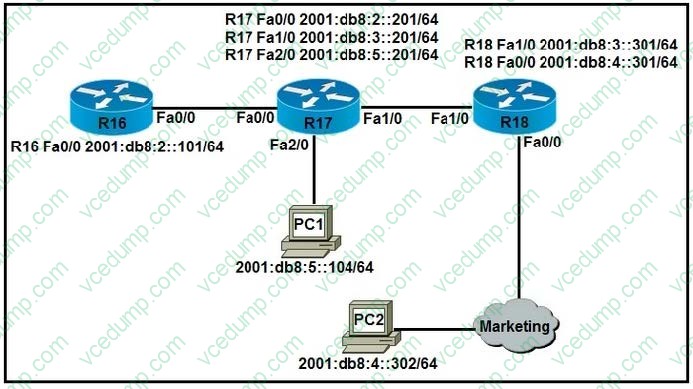

  Refer to the exhibit.

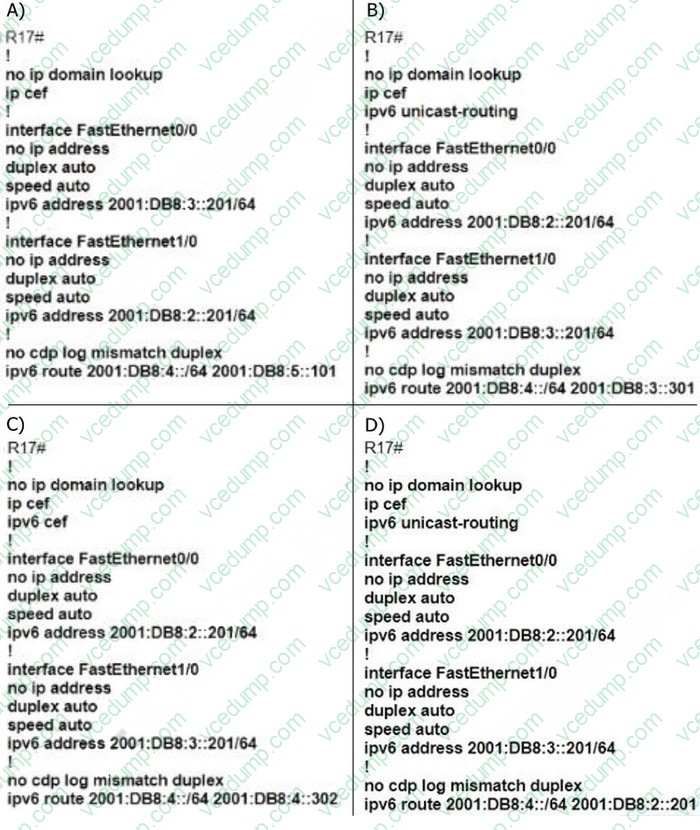

  Which IPv6 configuration is required for R17 to successfully ping the WAN interface on R18?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

  ---

  ipv6 unicast-routing statement included (IPv6 is enabled on the router). Compared to the exhibit, Fa0/0 and Fa0/1 have correct configurations. The route to subnet 2001:db8:4::/64 points to R18's Fa1/0 (correct next-hop).

• Question 1534:

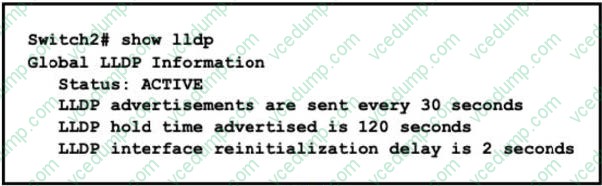

  Refer to the exhibit.

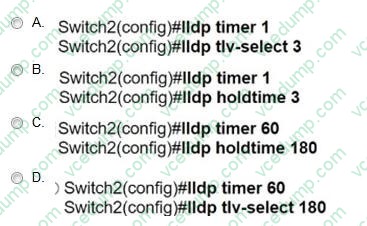

  A network engineer must update the configuring on switch2 so that it sends LLDP packets.



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 1535:

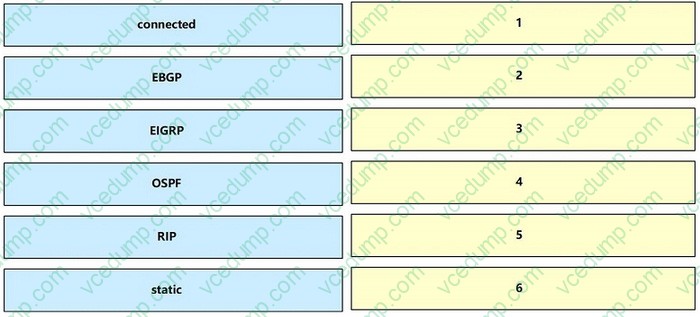

  DRAG DROP

  Drag each route source from the left to the numbers on the right. Beginning with the lowest and ending with the highest administrative distance.

  Select and Place:





• Question 1536:

  What is a benefit of a point-to-point leased line?

  A. low cost
  B. full-mesh capability
  C. simplicity of configuration
  D. flexibility of design
  C. simplicity of configuration

  ---

  Point-to-point leased line simplifies the configuration as the circuit is available on a permanent basis and does not require a connection to be set up before traffic is passed. It does not require to define a permanent virtual circuit (PVC) in the configuration either

• Question 1537:

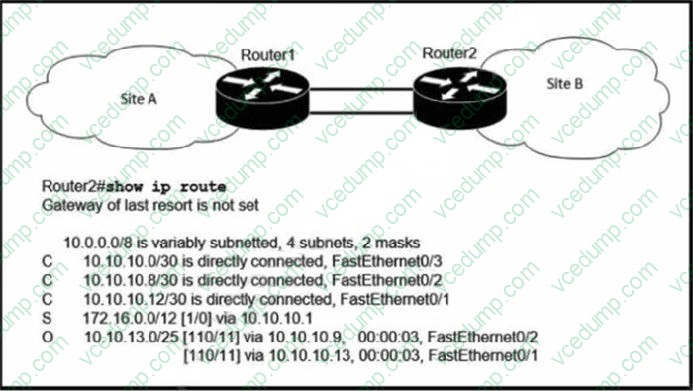

  Refer to the exhibit.



  User traffic originating within site B is failing to reach an application hosted on IP address 192.168.0.10, which is located within site A. What is determined by the routing table?

  A. The traffic is blocked by an implicit deny in an ACL on router2.
  B. The lack of a default route prevents delivery of the traffic.
  C. The traffic to 192.168.0.10 requires a static route to be configured in router1.
  D. The default gateway for site B is configured incorrectly.
  B. The lack of a default route prevents delivery of the traffic.

  ---

  There is no route in the routing table that matches the destination and there is no default route in the routing table for packets whose destination don't match any of the routes, so the answer is B. You can't determine anything about how a default gateway has been configured by looking at a routing table, default route/gateway of last resort is a different concept than default gateway.

• Question 1538:

  Refer to the exhibit. After running the code in the exhibit, which step reduces the amount of data that the NETCONF server returns to the NETCONF client, to only the interface's configuration?



  A. Use the Ixml library to parse the data returned by the NETCONF server for the interface's configuration.
  B. Create an XML filter as a string and pass it to get_config() method as an argument.
  C. Create a JSON filter as a string and pass it to the get_config() method as an argument.
  D. Use the JSON library to parse the data returned by the NETCONF server for the interface's configuration.
  D. Use the JSON library to parse the data returned by the NETCONF server for the interface's configuration.

• Question 1539:

  A switch is forwarding a frame out of all interfaces except the interface that received the frame. What is the technical term for this process?

  A. ARP
  B. CDP
  C. flooding
  D. multicast
  C. flooding

• Question 1540:

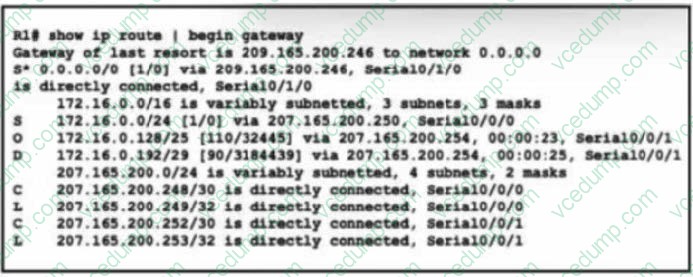

  Refer to the exhibit.



  With which metric does router R1 learn the route to host 172.16.0.202?

  A. 90
  B. 110
  C. 32445
  D. 3184439
  C. 32445
