Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1541:

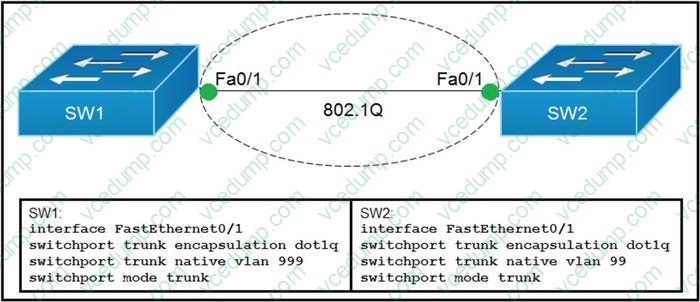

  Refer to Exhibit.



  Which action do the switches take on the trunk link?

  A. The trunk does not form, and the ports go into an err-disabled status.
  B. The trunk forms, but the mismatched native VLANs are merged into a single broadcast domain.
  C. The trunk forms, but VLAN 99 and VLAN 999 are in a shutdown state.
  D. The trunk does not form, but VLAN 99 and VLAN 999 are allowed to traverse the link.
  B. The trunk forms, but the mismatched native VLANs are merged into a single broadcast domain.

  ---

  The trunk still forms with mismatched native VLANs and the traffic can actually flow between mismatched switches. But it is absolutely necessary that the native VLANs on both ends of a trunk link match; otherwise a native VLAN mismatch occurs, causing the two VLANs to effectively merge. For example with the above configuration, SW1 would send untagged frames for VLAN 999. SW2 receives them but would think they are for VLAN 99 so we can say these two VLANs are merged.

• Question 1542:

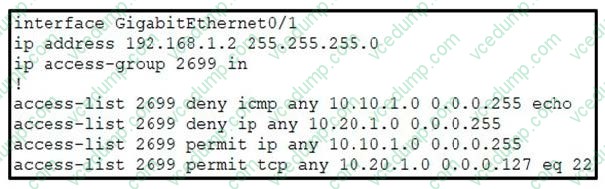

  Refer to the exhibit.



  A network administrator must permit SSH access to remotely manage routers in a network. The operations team resides on the 10.20.1.0/25 network. Which command will accomplish this task?

  A. access-list 2699 permit udp 10.20.1.0 0.0.0.255
  B. no access-list 2699 deny tcp any 10.20.1.0 0.0.0.127 eq 22
  C. access-list 2699 permit tcp any 10.20.1.0 0.0.0.255 eq 22
  D. no access-list 2699 deny ip any 10.20.1.0 0.0.0.255
  D. no access-list 2699 deny ip any 10.20.1.0 0.0.0.255

  ---

  Already a statement is there in last to allow SSH Traffic for network 10.20.1.0 0.0.0.127, but Second

  statement says deny ip any 10.20.1.0 0.0.0.255, so how it will work once it is denied. So the right answer is remove the --- no access-list 2699 deny ip any 10.20.1.0 0.0.0.255.

• Question 1543:

  Which command displays the MAC address table on a Cisco switch?

  A. show arp
  B. show interfaces trunk
  C. show mac address-table
  D. show vlan brief
  C. show mac address-table

  ---

  The show mac address-table command displays the switch's MAC address table, including learned MAC addresses, associated VLANs, and the ports on which the addresses were learned. This command is essential for troubleshooting Layer 2 forwarding behavior.

• Question 1544:

  How does frame switching function on a switch?

  A. floods unknown destinations to all ports except the receiving port
  B. modifies frames that contain a known source VLAN
  C. rewrites the source and destination MAC address
  D. buffers and forwards frames with less than 5 CRCs
  A. floods unknown destinations to all ports except the receiving port

• Question 1545:

  DRAG DROP

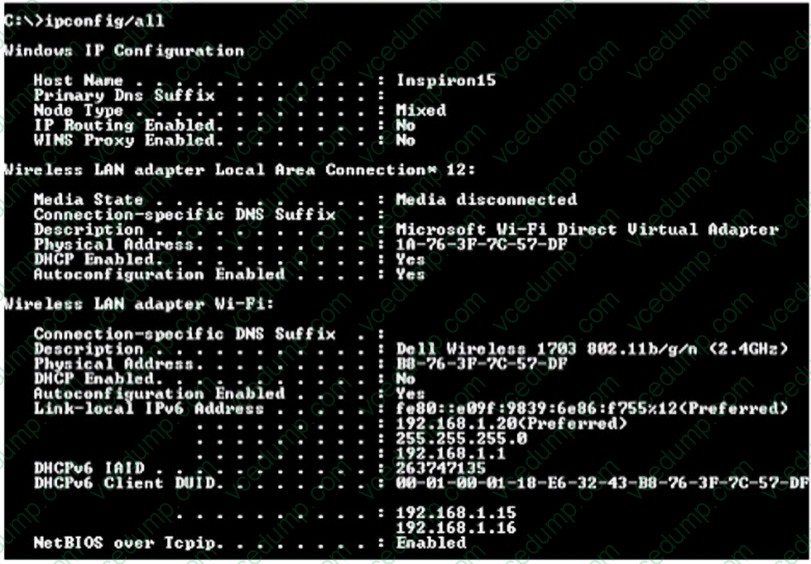

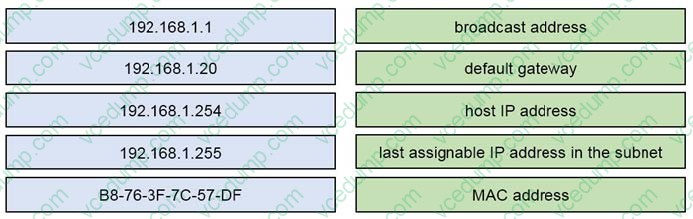

  Refer to the exhibit. An engineer is tasked with verifying network configuration parameters on a client workstation to report back to the team lead. Drag and drop the node identifiers from the left onto the network parameters on the right.

  Select and Place:





• Question 1546:

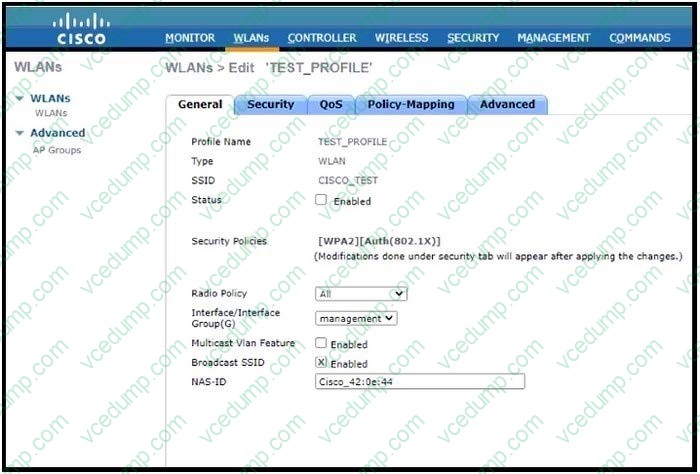

  Refer to the exhibit.



  A Cisco WLC administrator is creating a new wireless network with enhanced SSID security. The new network must operate at 2.4 Ghz with 54 Mbps of throughput. Which set of tasks must the administrator perform to complete the configuration?

  A. Uncheck the Broadcast SSID check box and set the Radio Policy to 802.11a/g only.
  B. Check the Broadcast SSID check box and set the Radio Policy to 802.11g only.
  C. Uncheck the Broadcast SSID check box and set the Radio Policy to 802.11g only.
  D. Check the Broadcast SSID check box and set the Radio Policy to 802.11a only.
  C. Uncheck the Broadcast SSID check box and set the Radio Policy to 802.11g only.

• Question 1547:

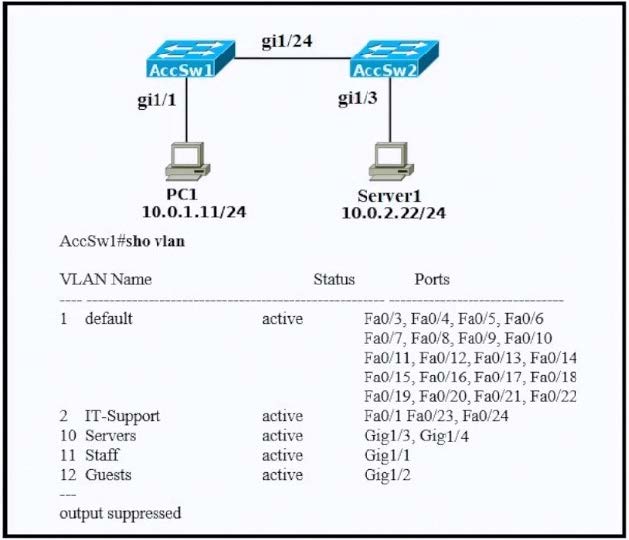

  Refer to the exhibit.



  The engineer configured the VLANs on the new AccSw2 switch. A router-on-a-stick is connected to both switches. How must the ports be configured on AccSw2 to establish full connectivity between the two switches and for Server1?

  A. interface GigabitEthernet1/1 switchport access vlan 11 ! interface GigabitEthernet1/24 switchport mode trunk switchport trunk allowed vlan 10,11
  B. interface GigabitEthernet1/3 switchport mode access switchport access vlan 10 ! interface GigabitEthernet1/24 switchport mode trunk switchport trunk allowed vlan 2,10
  C. interface GigabitEthernet1/3 switchport mode access switchport access vlan 10 ! interface GigabitEthernet1/24 switchport mode trunk
  D. interface GigabitEthernet1/1 switchport mode access switchport access vlan 11 ! interface GigabitEthernet1/24 switchport mode trunk
  C. interface GigabitEthernet1/3 switchport mode access switchport access vlan 10 ! interface GigabitEthernet1/24 switchport mode trunk

  ---

  This question only ask for the config of ports in AccSw2 to establish full conn between 2 switches and server1

  Answer A is wrong, because int Gig1/1 is in AccSw1. "switchport mode access" is also missing in the int Gig1/1 config.

  Answer B is wrong Also, keep an eye that Gig1/1 is in vlan 11 (staff) so switchport trunk allowed vlan "11",10 not vlan 2

  Answer C correct and make sense since only 2 switches and Server1 need to establish full connectivity. But for best practices, we shall include "switchport trunk allowed vlan 11,10" Answer D. is wrong also because AccSw2 is need to config. But for Accsw1 perspective the config is correct.

• Question 1548:

  What is the central role of a hypervisor in a virtualized environment?

  A. Support many applications to run on a shared guest operating system.
  B. Present virtualized hardware to a guest operating system.
  C. Allow a single guest operating system to run on the physical server.
  D. Create a single library environment for many operating systems.
  B. Present virtualized hardware to a guest operating system.

  ---

  A hypervisor is software that creates and manages virtual machines (VMs) by virtualizing the physical hardware of a host system. It presents a layer of virtualized hardware to each guest operating system, allowing multiple OS instances to run concurrently on a single physical machine. The hypervisor manages CPU, memory, storage, and networking resources among the VMs, ensuring they operate independently from each other.

• Question 1549:

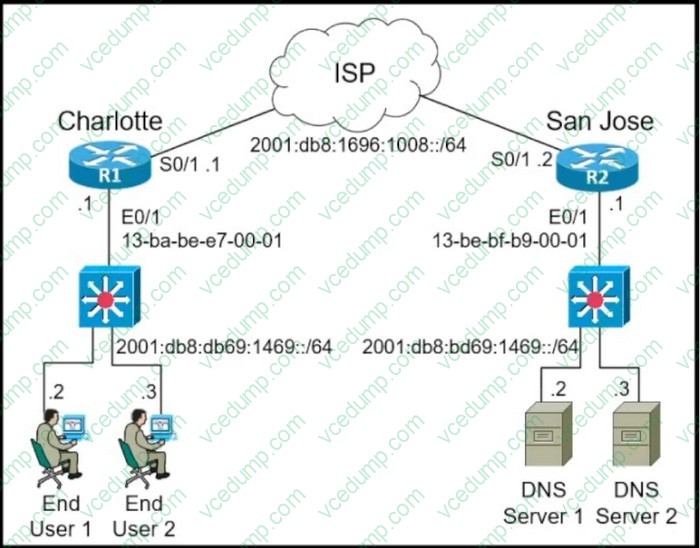

  Refer to the exhibit



  The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?

  A. 2001:db8:bd69:1469:12D8:BAFE:FF01:1
  B. 2001:db8:bd69:1469:1130:ABFF:FECC:1
  C. 2001:db8:bd69:1469:4628:255F:FE32:1
  D. 2001:db8:bd69:1469:11BE:BFFF:FEB9:1
  D. 2001:db8:bd69:1469:11BE:BFFF:FEB9:1

• Question 1550:

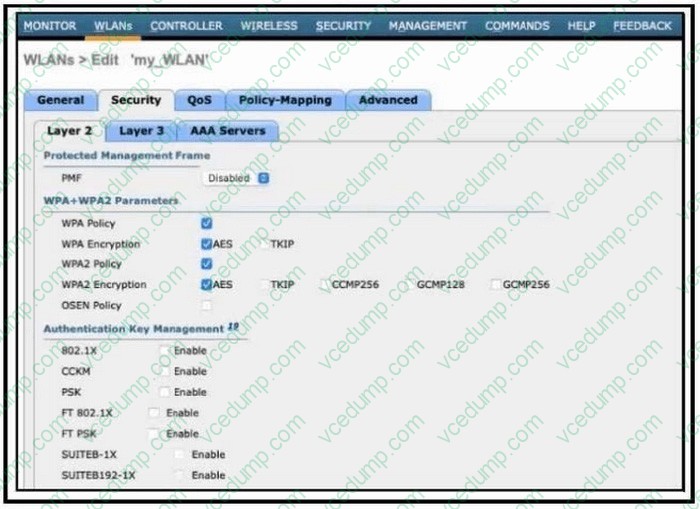

  Refer to the exhibit.



  Which configuration is needed to configure a WLAN with WPA2 only and with a password that is 63 characters long?

  A. Disable WPA Policy and WPA Encryption and then enable PSK using ASCII.
  B. Enable PSK and FT PSK and then disable WPA Policy.
  C. Disable WPA Encryption and then enable FT PSK.
  D. Enable PSK using Hex format and then disable WPA Policy.
  A. Disable WPA Policy and WPA Encryption and then enable PSK using ASCII.
