Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1321:

  Which command do you enter so that a switch configured with Rapid PVST + listens and learns for a specific time period?

  A. switch(config)#spanning-tree vlan 1 max-age 6
  B. switch(config)#spanning-tree vlan 1 hello-time 10
  C. switch(config)#spanning-tree vlan 1 priority 4096
  D. switch(config)#spanning-tree vlan 1 forward-time 20
  D. switch(config)#spanning-tree vlan 1 forward-time 20

  ---

  Forward time : Determines how long each of the listening and learning states last before the port begins forwarding.

  Switch(config)# [ no ] spanning-tree vlan vlan_ID forward-time forward_timeConfigures the forward time of a VLAN. The forward_time value can be from 4 to 30 seconds.

  https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/12-2/15-02SG/configuration/guide/config/spantree.html#56177

• Question 1322:

  What are two features of PortFast? (Choose two.)

  A. Convergence is fast after a link failure.
  B. STP loops are mitigated for uplinks to other switches.
  C. Ports transition directly from the blocking state to the forwarding state.
  D. Ports operate normally without receiving BPDUs.
  E. Ports that connect to the backbone automatically detect indirect link failures.
  C. Ports transition directly from the blocking state to the forwarding state.
  D. Ports operate normally without receiving BPDUs.

  ---

  When the switch powers up, or when a device is connected to a port, the port enters the spanning tree listening state. When the Forward Delay timer expires, the port enters the learning state. When the Forward Delay timer expires a second time, the port is transitioned to the forwarding or blocking state.

  When you enable PortFast on a switch or trunk port, the port is immediately transitioned to the spanning tree forwarding state.

  https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4000/8-2glx/configuration/guide/stp_enha.html#wp1046787

• Question 1323:

  Why would a network administrator choose to implement automation in a network environment?

  A. To simplify the process of maintaining a consistent configuration state across all devices
  B. To centralize device information storage
  C. To implement centralized user account management
  D. To deploy the management plane separately from the rest of the network
  A. To simplify the process of maintaining a consistent configuration state across all devices

  ---

  Network automation is the process of automating the configuring, managing, testing, deploying, and operating of physical and virtual devices within a network. With everyday network tasks and functions automated and repetitive processes controlled and managed automatically, network service availability improves.

• Question 1324:

  Which feature or protocol determines whether the QOS on the network is sufficient to support IP services?

  A. LLDP
  B. CDP
  C. IP SLA
  D. EEM
  C. IP SLA

  ---

  IP SLA allows an IT professional to collect information about network performance in real time. Therefore it helps determine whether the QoS on the network is sufficient for IP services or not.

  Cisco IOS Embedded Event Manager (EEM) is a powerful and flexible subsystem that provides real-time network event detection and onboard automation. It gives you the ability to adapt the behavior of your network devices to align with your business needs.

• Question 1325:

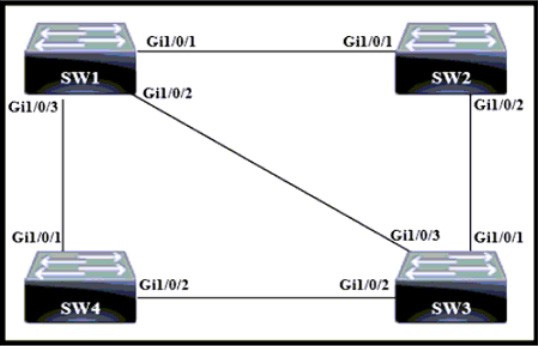

  Refer to the exhibit.



  Which switch becomes the root bridge?

  A. SW1 Bridge Priority - 61440 mac-address 00:10:a1:69:c9:28
  B. SW2 Bndge Priority - 61440 mac-address 00:10:a1:27:81:6c
  C. SW3 Bridge Priority - 53248 mac-address 00:10:a1:35:d9:86
  D. SW4 Bridge Priority - 3248 mac-address 00:10:a1:22:11:63
  D. SW4 Bridge Priority - 3248 mac-address 00:10:a1:22:11:63

  ---




• Question 1326:

  When a WLAN with WPA2 PSK is configured in the Wireless LAN Controller GUI which format is supported?

  A. Unicode
  B. base64
  C. decimal
  D. ASCII
  D. ASCII

• Question 1327:

  Which two features are provided by Ansible in network automation? (Choose two.)

  A. supplying network credentials
  B. role-based access control
  C. agentless deployment
  D. manual playbook runs
  E. launching job templates using version control
  A. supplying network credentials
  C. agentless deployment

• Question 1328:

  What are two advantages of implementing a controller-based architecture instead of traditional network architecture? (Choose two.)

  A. It allows for seamless connectivity to virtual machines.
  B. It increases security against denial-of-service attacks.
  C. It supports complex and high-scale IP addressing schemes.
  D. It enables configuration task automation.
  E. It provides increased scalability and management options.
  D. It enables configuration task automation.
  E. It provides increased scalability and management options.

• Question 1329:

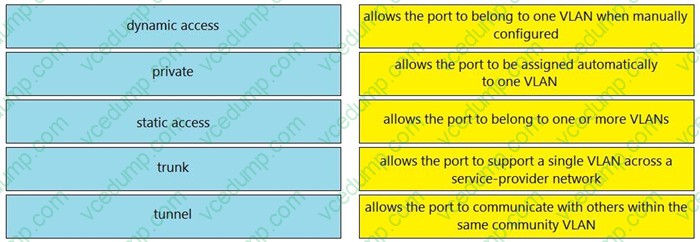

  DRAG DROP

  Drag and drop the VLAN port modes from the left onto the descriptions on the right.

  Select and Place:





• Question 1330:

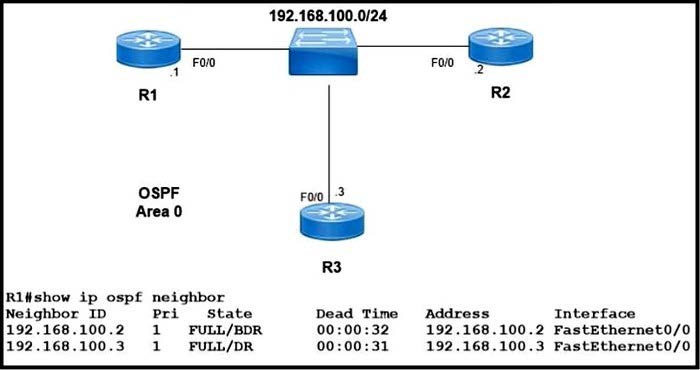

  Refer to the exhibit. Which two configurations must the engineer apply on this network so that R1 becomes the DR? (Choose two.)



  A. R1(config)#router ospf 1 R1(config-router)#router-id 192.168.100.1
  B. R1(config)#interface FastEthernet0/0 R1(config-if)#ip ospf priority 200
  C. R3(config)#interface FastEthernet0/0 R3(config-if)#ip ospf priority 0
  D. R1(config)#interface FastEthernet0/0 R1(config-if)#ip ospf priority 0
  E. R3(config)#interface FastEthernet0/0 R3(config-if)#ip ospf priority 200
  B. R1(config)#interface FastEthernet0/0 R1(config-if)#ip ospf priority 200
  C. R3(config)#interface FastEthernet0/0 R3(config-if)#ip ospf priority 0

  ---
