Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 111:

  What is a role of wireless controllers in an enterprise network?

  A. centralize the management of access points in an enterprise network
  B. support standalone or controller-based architectures
  C. serve as the first line of defense in an enterprise network
  D. provide secure user logins to devices on the network.
  A. centralize the management of access points in an enterprise network

• Question 112:

  What is a capability of FTP in network management operations?

  A. encrypts data before sending between data resources
  B. devices are directly connected and use UDP to pass file information
  C. uses separate control and data connections to move files between server and client
  D. offers proprietary support at the session layer when transferring data
  C. uses separate control and data connections to move files between server and client

  ---

  1.

  Control Connection: The control connection uses very simple rules for communication. Through control connection, we can transfer a line of command or line of response at a time. The control connection is made between the control processes. The control connection remains connected during the entire interactive FTP session.

  2.

  Data Connection: The Data Connection uses very complex rules as data types may vary. The data connection is made between data transfer processes. The data connection opens when a command comes for transferring the files and closes when the file is transferred.

  https://www.cisco.com/c/en/us/td/docs/ios/sw_upgrades/interlink/r2_0/user/ugftpc1.html

• Question 113:

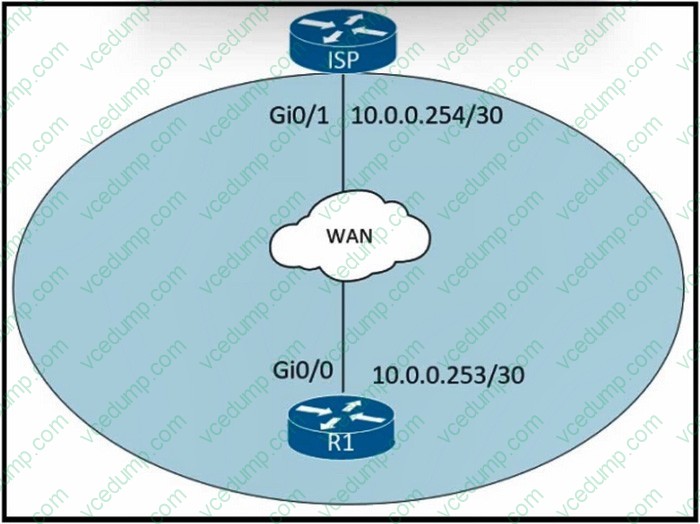

  Refer to the exhibit. An administrator must turn off the Cisco Discovery Protocol on the port configured with address last usable address in the 10.0.0.0/30 subnet. Which command set meets the requirement?



  A. interface gi0/1 no cdp enable
  B. interface gi0/1 clear cdp table
  C. interface gi0/0 no cdp advertise-v2
  D. interface gi0/0 no cdp run
  A. interface gi0/1 no cdp enable

  ---

  254 is last usable address and no cdp run is not a valid interface command so it can't be B anyway. [no] cdp run is a global command. The valid config-if command is no cdp enable

• Question 114:

  Which two statements describe characteristics of IPv6 unicast addressing? (Choose two.)

  A. Global addresses start with 2000::/3.
  B. Link-local addresses start with FE00:/12.
  C. Link-local addresses start with FF00::/10.
  D. There is only one loopback address and it is ::1.
  E. If a global address is assigned to an interface, then that is the only allowable address for the interface.
  A. Global addresses start with 2000::/3.
  D. There is only one loopback address and it is ::1.

  ---

  Below is the list of common kinds of IPv6 addresses:



• Question 115:

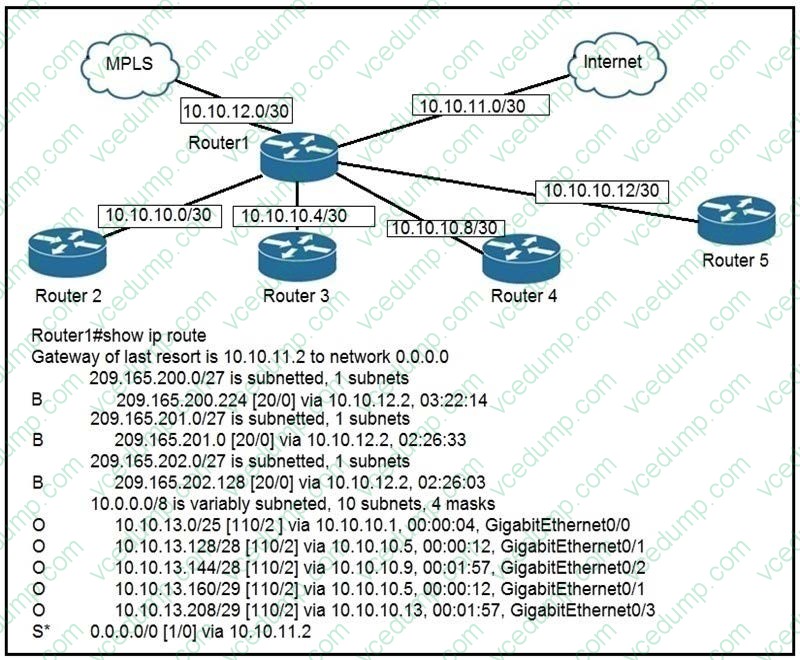

  Refer to the exhibit.



  To which device does Router1 send packets that are destined to host 10.10.13.165?

  A. Router2
  B. Router3
  C. Router4
  D. Router5
  B. Router3

  ---

  The subnet on the routing table that has 10.10.13.165 is the 10.10.13.160/29.

  The 10.10.13.160/29 subnet is routed via 10.10.10.5 which is one of the usable hosts on the subnet between R1 and R3.

• Question 116:

  What is a characteristic of an SSID in wireless networks?

  A. intercepts data threats before they attack a network
  B. encodes connections at the sending and receiving ends
  C. broadcasts a beacon signal to announce its presence by default
  D. identifies an access point on a WLAN
  C. broadcasts a beacon signal to announce its presence by default

  ---

• Question 117:

  An engineer is tasked with deploying an internal perimeter firewall that will support multiple DMZs. Each DMZ has a unique private IP subnet range. How is this requirement satisfied?

  A. Deploy the firewall in transparent mode with access control policies
  B. Deploy the firewall in routed mode with access control policies
  C. Deploy the firewall in routed mode with NAT configured
  D. Deploy the firewall in transparent mode with NAT configured ,
  C. Deploy the firewall in routed mode with NAT configured

  ---

  https://www.cisco.com/c/en/us/td/docs/security/asa/asa96/configuration/general/asa-96-general-config/intro-fw.html

• Question 118:

  What is a characteristic of private IPv4 addressing?

  A. is used without allocation from a regional internet authority
  B. is used when traffic on the subnet must traverse a site-to-site VPN to an outside organization
  C. reduces the forwarding table on network routers
  D. provides unlimited address ranges
  A. is used without allocation from a regional internet authority

• Question 119:

  DRAG DROP

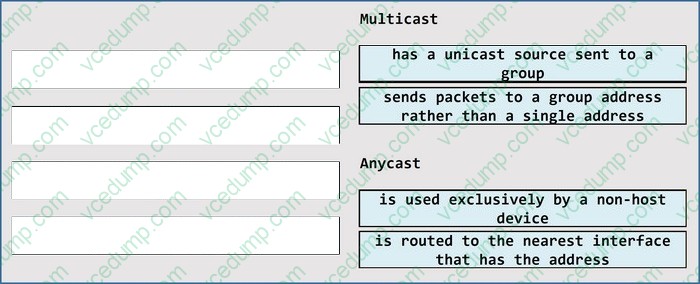

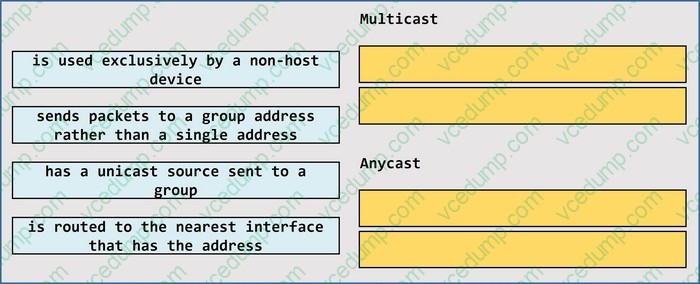

  Drag and drop the characteristic from the left onto the IPv6 address type on the right.

  Select and Place:





• Question 120:

  Which WAN technology uses labels to forward packets along predefined paths?

  A. Frame Relay
  B. MPLS
  C. HDLC
  D. PPP
  B. MPLS

  ---

  Multiprotocol Label Switching (MPLS) forwards packets based on labels rather than IP addresses. Labels allow traffic to follow predetermined paths through the service provider network, improving performance, scalability, and traffic engineering capabilities.
