Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1161:

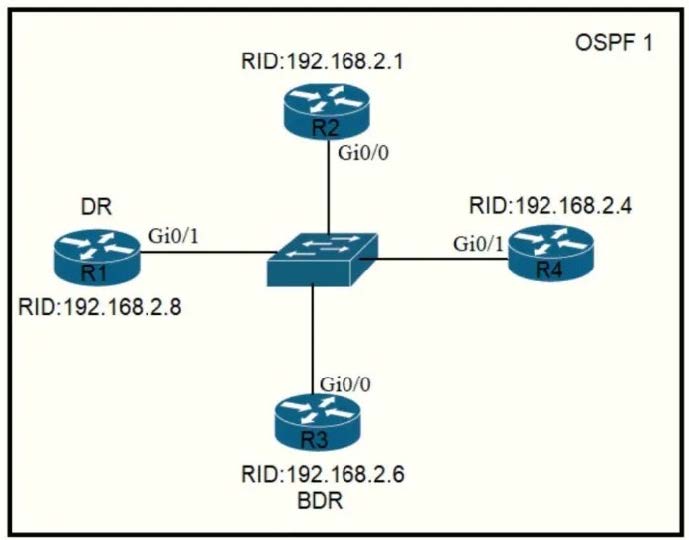

  Refer to the exhibit. All routers in the network are configured. R2 must be the DR. After the engineer connected the devices, R1 was elected as the DR. Which command sequence must be configured on R2 to be elected as the DR in the network?



  A. R2(config)#router ospf 1 R2(config-router)#router-id 10.100.100.100
  B. R2(config)#router ospf 1 R2(config-router)#router-id 192.168.2.7
  C. R2(config)#interface Gi0/0 R2(config-if)#ip ospf priority 100
  D. R2(config)#interface Gi0/0 R2(config-if)#ip ospf priority 1
  C. R2(config)#interface Gi0/0 R2(config-if)#ip ospf priority 100

  ---

  R1 was initially elected as the DR because they would have the same priority by default (1). The next step in the election process would be the highest IP address which R1 has over R2. Thus, setting the priority of R2 to 100 would elect it as DR. The highest priority wins for DR once it is within scope.

• Question 1162:

  Refer to the exhibit.



  The Wi-Fi SSID " Office_WLAN " has Layer 2 Security configured with MAC filtering enabled.

  What additional security is provided by this specific feature?

  A. There is an extra layer of security that ensures only authorized devices with known MAC addresses connect to the network
  B. There is strong mutual authentication used between NAC and the network devices using X.509 standard
  C. All data frames exchanged between the client and the access point are encrypted
  D. There is a Galcis cache algorithm configured that provides strong encryption and authentication
  B. There is strong mutual authentication used between NAC and the network devices using X.509 standard

• Question 1163:

  What uses HTTP messages to transfer data to applications residing on different hosts?

  A. OpenFlow
  B. OpenStack
  C. OpFlex
  D. REST
  D. REST

  ---

  REST (Representational State Transfer) describes a type of API that allows applications to sit on different hosts, using HTTP messages to transfer data over the API.

• Question 1164:

  What is one reason to implement LAG on a Cisco WLC?

  A. to increase security and encrypt management frames
  B. to provide link redundancy and load balancing
  C. to allow for stateful and link-state failover
  D. to enable connected switch ports to failover and use different VLANs
  B. to provide link redundancy and load balancing

• Question 1165:

  An administrator must use the password complexity not manufacturer-name command to prevent users from adding "cisco" as a password. Which command must be issued before this command?

  A. password complexity enable
  B. confreg 0x2142
  C. login authentication my-auth-list
  D. service password-encryption
  A. password complexity enable

  ---

  https://www.cisco.com/c/en/us/support/docs/smb/switches/cisco-small-business-300-series-managed-switches/smb5563-configure-password-settings-on-a-switch-through-the-command.html

• Question 1166:

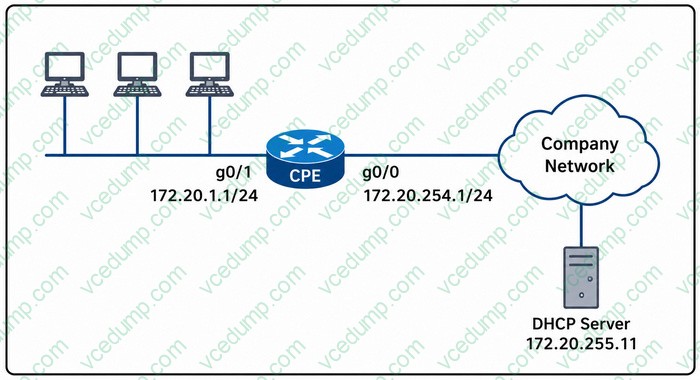

  Refer to the exhibit.



  A network engineer must configure the CPE router to allow computers in the 172.20.1.0 /24 network to obtain their IP configurations from the central DHCP server.

  Which configuration must the engineer apply to the CPE?

  A. interface GigabitEthernet0/1ip helper-address 172.20.254.1
  B. interface GigabitEthernet0/0ip helper-address 172.20.1.1
  C. interface GigabitEthernet0/0ip helper-address 172.20.255.1
  D. interface GigabitEthernet0/ip helper-address 172.20.255.11
  A. interface GigabitEthernet0/1ip helper-address 172.20.254.1

• Question 1167:

  A port security violation has occurred on a switch port due to the maximum MAC address count being exceeded. Which command must be configured to increment the security-violation count and forward an SNMP trap?

  A. switchport port-security violation access
  B. switchport port-security violation protect
  C. switchport port-security violation restrict
  D. switchport port-security violation shutdown
  C. switchport port-security violation restrict

  ---

  https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/12-2/25ew/configuration/guide/conf/port_sec.html

• Question 1168:

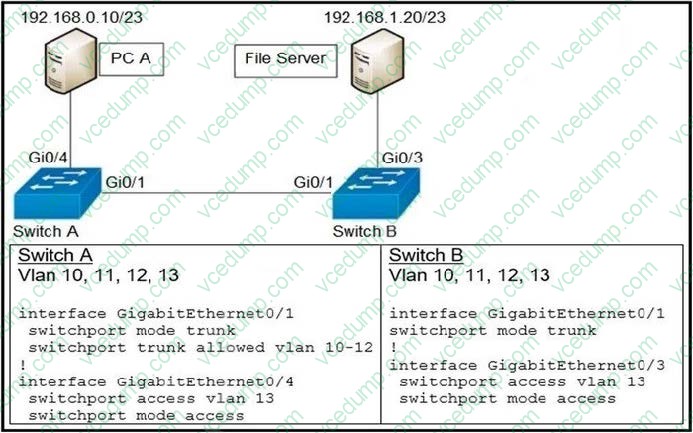

  Refer to the exhibit.



  A network engineer must configure communication between PC A and the File Server. To prevent interruption for any other communications, which command must be configured?

  A. switchport truck allowed vlan 12
  B. switchport truck allowed vlan none
  C. switchport truck allowed vlan add 13
  D. switchport truck allowed vlan remove 10-11
  C. switchport truck allowed vlan add 13

• Question 1169:

  Refer to the exhibit.



  The router has been configured with a supernet to accommodate the requirement for 380 users on a subnet. The requirement already considers 30% future growth. Which configuration verifies the IP subnet on router R4?

  A. Subnet: 10.7.54.0 Subnet mask: 255.255.254.0 Broadcast address: 10.7.54.255 Usable IP address range: 10.7.54.1–10.7.55.254
  B. Subnet: 10.7.54.0 Subnet mask: 255.255.254.0 Broadcast address: 10.7.55.255 Usable IP address range: 10.7.54.1–10.7.55.254
  C. Subnet: 10.7.54.0 Subnet mask: 255.255.128.0 Broadcast address: 10.7.55.255 Usable IP address range: 10.7.54.1–10.7.55.254
  D. Subnet: 10.7.54.0 Subnet mask: 255.255.255.0 Broadcast address: 10.7.54.255 Usable IP address range: 10.7.54.1–10.7.55.254
  B. Subnet: 10.7.54.0 Subnet mask: 255.255.254.0 Broadcast address: 10.7.55.255 Usable IP address range: 10.7.54.1–10.7.55.254

  ---




• Question 1170:

  DRAG DROP

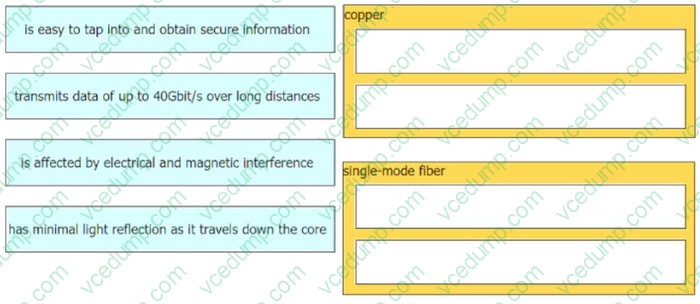

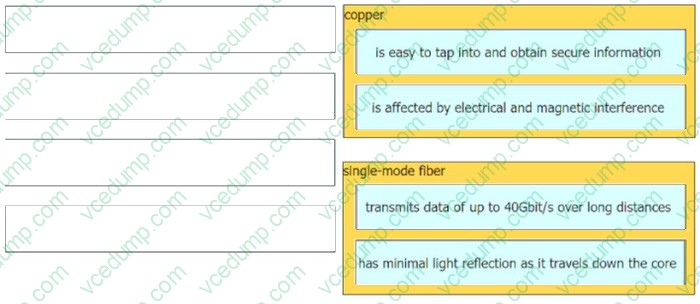

  Drag and drop the characteristic from the left onto the cable type on the right.

  Select and Place:
