• Question 1181:

  After a recent security breach and a RADIUS failure, an engineer must secure the console port of each enterprise router with a local username and password. Which configuration must the engineer apply to accomplish this task?

  A. aaa new-model line con 0 password plaintextpassword privilege level 15
  B. username localuser secret plaintextpassword line con 0 login authentication default privilege level 15
  C. username localuser secret plaintextpassword line con 0 no login local privilege level 15
  D. aaa new-model aaa authorization exec default local aaa authentication login default radius username localuser privilege 15 secret plaintextpassword
  B. username localuser secret plaintextpassword line con 0 login authentication default privilege level 15

  ---




• Question 1182:

  What is the role of disaggregation in controller-based networking?

  A. It divides the control-plane and data-plane functions.
  B. It summarizes the routes between the core and distribution layers of the network topology.
  C. It enables a network topology to quickly adjust from a ring network to a star network
  D. It streamlines traffic handling by assigning individual devices to perform either Layer 2 or Layer 3 functions.
  A. It divides the control-plane and data-plane functions.

  ---

  This answer is mentioned in multiple search results , including [1], [2], [3], and [4]. Answer B is also mentioned in some search results as a description of controller-based networking, but it is not the specific role of disaggregation within that architecture. Answers C and D are not mentioned in any relevant search results for this question.

• Question 1183:

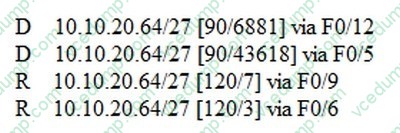

  Which interface is used to send traffic to the destination network?



  A. F0/5
  B. F0/6
  C. F0/12
  D. F0/9
  C. F0/12

• Question 1184:

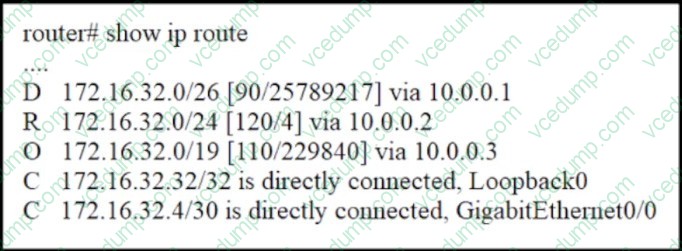

  Refer to the exhibit. A packet sourced from 172.16.32.254 is destined for 172.16.32.8. What is the subnet mask of the preferred destination route?



  A. 255.255.224.0
  B. 255.255.255.0
  C. 255.255.255.192
  D. 255.255.255.252
  C. 255.255.255.192

• Question 1185:

  What is a characteristic of a Layer 2 switch?

  A. responsible for sending data in a particular sequence
  B. uses routers to create collision domains
  C. avoids MAC address storage for faster transmission
  D. uses the data link layer for communications
  D. uses the data link layer for communications

• Question 1186:

  Which set of methods is supported with the REST API?

  A. GET, PUT, ERASE, CHANGE
  B. GET, POST, MOD, ERASE
  C. GET, PUT, POST, DELETE
  D. GET, POST, ERASE, CHANGE
  C. GET, PUT, POST, DELETE

  ---

  Using HTTP Methods for RESTful Services The HTTP verbs comprise a major portion of our "uniform interface" constraint and provide us the action counterpart to the noun-based resource. The primary or most-commonly-used HTTP verbs (or methods, as they are properly called) are POST, GET, PUT, PATCH, and DELETE. These correspond to create, read, update, and delete (or CRUD) operations, respectively. There are a number of other verbs, too, but are utilized less frequently. Of those less-frequent methods, OPTIONS and HEAD are used more often than others.

• Question 1187:

  Refer to the exhibit.



  Which switch becomes the root bridge?

  A. SW3 Bridge Priority - 28672 mac-address 00:10:a1:51:57:51
  B. SW2 Bridge Priority - 28672 mac-address 00:10:a1:82:03:94
  C. SW1 Bridge Priority - 12288 mac-address 00:10:a1:95:2b:77
  D. SW4 Bridge Priority - 12288 mac-address 00:10:a1:03:42:e8
  D. SW4 Bridge Priority - 12288 mac-address 00:10:a1:03:42:e8

• Question 1188:

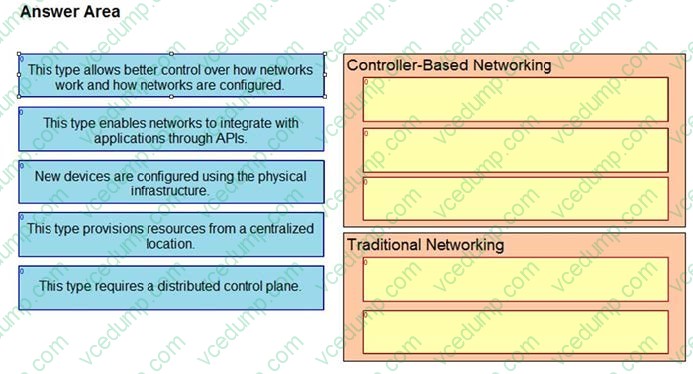

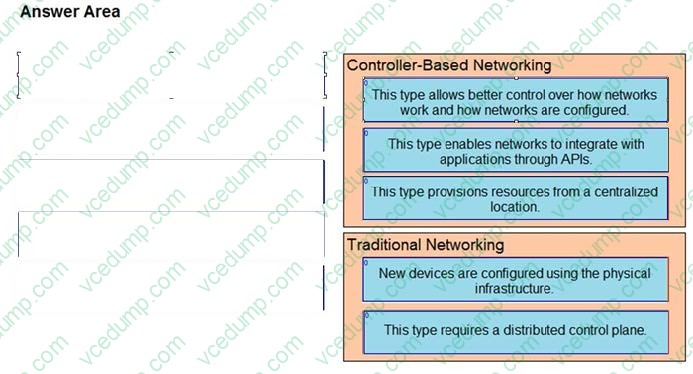

  DRAG DROP

  Drag and drop the statements about networking from the left onto the corresponding networking types on the right.

  Select and Place:





• Question 1189:

  Refer to the exhibit. Which two configurations must the engineer apply on this network so that R1 becomes the DR? (Choose two.)



  A. R3(config)#interface FastEthernet0/0 R3(config-if)#ip ospf priority 0
  B. R1(config)#router ospf 1 R1(config-router)#router-id 192.168.100.1
  C. R1(config)#interface FastEthernet0/0 R1(config-if)#ip ospf priority 200
  D. R1(config)#interface FastEthernet0/0 R1(config-if)#ip ospf priority 0
  E. R3(config)#interface FastEthernet0/0 R3(config-if)#ip ospf priority 200
  A. R3(config)#interface FastEthernet0/0 R3(config-if)#ip ospf priority 0
  C. R1(config)#interface FastEthernet0/0 R1(config-if)#ip ospf priority 200

  ---

  R1 must have the highest priority, and thus R3 a low or the lowest priority.

• Question 1190:

  Which type of IPv4 address must be assigned to a server to protect it from external access and allow only internal users access while restricting internet access?

  A. private
  B. public
  C. global unicast
  D. multicast
  A. private

  ---
