Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1091:

  A network architect planning a new Wi-Fi network must decide between autonomous, cloud-based, and split MAC architectures. Which two facts should the architect consider? (Choose two.)

  A. Cloud-based architectures uniquely use the CAPWAP protocol to communicate between access points and clients.
  B. Autonomous architectures exclusively use tunneling protocols to manage access points remotely.
  C. All three architectures use access points to manage the wireless devices connected to the wired infrastructure.
  D. Lightweight access points are solely used by split MAC architectures.
  E. Each of the three architectures must use WLCs to manage their access points.
  C. All three architectures use access points to manage the wireless devices connected to the wired infrastructure.
  D. Lightweight access points are solely used by split MAC architectures.

  ---

  All three architectures use access points to manage the wireless devices connected to the wired infrastructure:

  Regardless of the architecture (autonomous, cloud-based, or split MAC), access points (APs) are responsible for connecting wireless devices to the network and managing the wireless-to-wired infrastructure integration.

  Lightweight access points are solely used by split MAC architectures:

  In split MAC architectures, lightweight access points rely on a central controller, such as a Wireless LAN Controller (WLC), to handle control functions while the APs manage real-time data forwarding. This architecture splits the MAC layer functions between the AP and the WLC.

• Question 1092:

  How do TCP and UDP fit into a query-response model?

  A. TCP establishes a connection prior to sending data, and UDP sends immediately.
  B. TCP uses error detection for packets, and UDP uses error recovery.
  C. TCP avoids using sequencing, and UDP avoids using acknowledgments.
  D. TCP encourages out-of-order packet delivery, and UDP prevents re-ordering.
  A. TCP establishes a connection prior to sending data, and UDP sends immediately.

• Question 1093:

  Which keyword in a NAT configuration enables the use of one outside IP address for multiple inside hosts?

  A. source
  B. static
  C. pool
  D. overload
  D. overload

  ---

  By adding the keyword "overload" at the end of a NAT statement, NAT becomes PAT (Port Address Translation). This is also a kind of dynamic NAT that maps multiple private IP addresses to a single public IP address (many-to-one) by using different ports. Static NAT and Dynamic NAT both require a one-to-one mapping from the inside local to the inside global address. By using PAT, you can have thousands of users connect to the Internet using only one real global IP address.

  PAT is the technology that helps us not run out of public IP address on the Internet. This is the most popular type of NAT.

  An example of using "overload" keyword is shown below:

  R1(config)# ip nat inside source list 1 interface ethernet1 overload

• Question 1094:

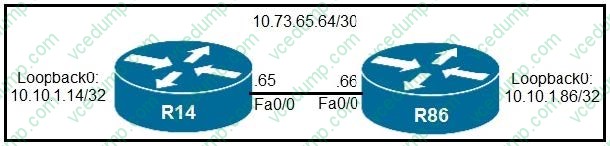

  Refer to the exhibit. A static route must be configured on R14 to forward traffic for the 172 21 34 0/25 network that resides on R86 Which command must be used to fulfill the request?



  A. ip route 172.21.34.0 255.255.255.192 10.73.65.65
  B. ip route 172.21.34.0 255.255.255.0 10.73.65.65
  C. ip route 172.21.34.0 255.255.128.0 10.73.65.64
  D. ip route 172.21.34.0 255.255.255.128 10.73.65.66
  D. ip route 172.21.34.0 255.255.255.128 10.73.65.66

  ---

  A /25 subnet destination means a mask of 255.255.255.128, so only choice B is correct. We also need to make sure we specify the next hop of the other router's connected interface, which is 10.73.65.66.

• Question 1095:

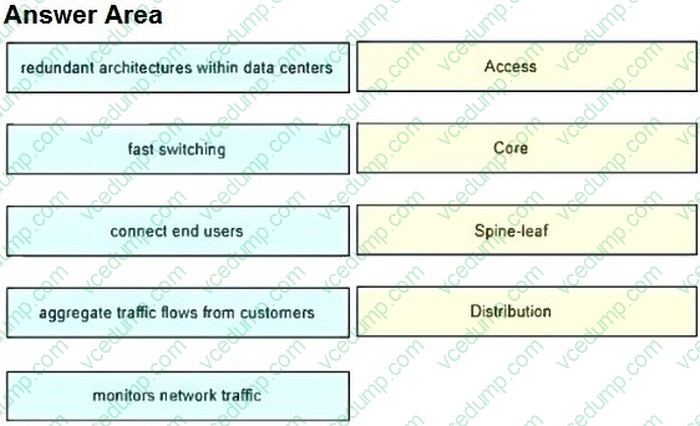

  DRAG DROP

  Drag and drop the common functions from the left onto the corresponding network topology architecture layer on the right. Not all common functions are used.

  Select and Place:





• Question 1096:

  How does network automation help reduce network downtime?

  A. Changes can be implemented in parallel across multiple devices at once, which increases the speed of the change rate.
  B. By using automation platforms with intent-based configuration, all changes are checked for possible outages before being implemented.
  C. Emails can be generated based on when a network admin performs a network change, which increases visibility.
  D. Configuration templates and testing can be built into implementation, which increases the success rate of a network change.
  D. Configuration templates and testing can be built into implementation, which increases the success rate of a network change.

• Question 1097:

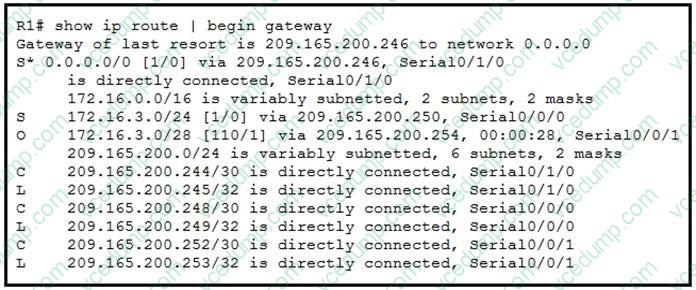

  Refer to the exhibit.



  A packet is being sent across router R1 to host 172.16.0.14. What is the destination route for the packet?

  A. 209.165.200.250 via Serial0/0/0
  B. 209.165.200.254 via Serial0/0/0
  C. 209.165.200.254 via Serial0/0/1
  D. 209.165.200.246 via Serial0/1/0
  D. 209.165.200.246 via Serial0/1/0

• Question 1098:

  Which function does the range of private IPv4 addresses perform?

  A. allows multiple companies to each use the same addresses without conflicts
  B. provides a direct connection for hosts from outside of the enterprise network
  C. ensures that NAT is not required to reach the Internet with private range addressing
  D. enables secure communications to the Internet for all external hosts
  A. allows multiple companies to each use the same addresses without conflicts

• Question 1099:

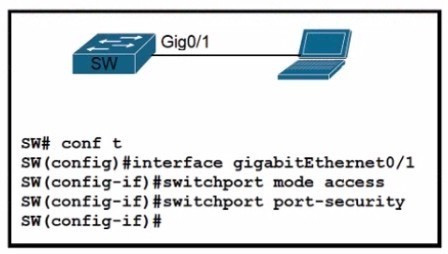

  Refer to Itie exhibit



  A network engineer started to configure port security on a new switch. These requirements must be met:

  1. MAC addresses must be learned dynamically

  2. Log messages must be generated without disabling the interface when unwanted traffic is seen

  Which two commands must be configured to complete this task"? (Choose two)

  A. SW(config-if)#switchport port-security violation restrict
  B. SW(config-if)#switchport port-security mac-address 0010.7B84.45E6
  C. SW(config-if)#switchport port-security maximum 2
  D. SW(config-if)#switchport port-security violation shutdown
  E. SW(config-if)#switchport port-security mac-address sticky
  A. SW(config-if)#switchport port-security violation restrict
  E. SW(config-if)#switchport port-security mac-address sticky

  ---




• Question 1100:

  Which service is missing when RADIUS is selected to provide management access to the WLC?

  A. authorization
  B. authentication
  C. accounting
  D. confidentiality
  C. accounting

  ---

  When RADIUS is used to provide management access to a Wireless LAN Controller (WLC), the service that is missing is accounting. RADIUS primarily handles authentication and authorization for network access. Authentication verifies the identity of the user or device, while authorization determines the level of access granted to the authenticated entity. However, accounting, which involves tracking and recording of network resource usage, is not typically provided by RADIUS in the context of management access to a WLC.
