Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1111:

  When deploying a Cisco ASA Firepower module, an organization wants to evaluate the contents of the traffic without affecting the network. It is currently configured to have more than one instance of the same device on the physical appliance. Which deployment mode meets the needs of the organization?

  A. inline tap monitor-only mode
  B. passive monitor-only mode
  C. passive tap monitor-only mode
  D. inline mode
  B. passive monitor-only mode

• Question 1112:

  Refer to the exhibit.



  Users need to connect to the wireless network with IEEE 802.11r-compatible devices. The connection must be maintained as users travel between floors or to other areas in the building. What must be the configuration of the connection?

  A. Disable AES encryption.
  B. Enable Fast Transition and select the FT 802.1x option.
  C. Enable Fast Transition and select the FT PSK option.
  D. Select the WPA Policy option with the CCKM option.
  C. Enable Fast Transition and select the FT PSK option.

• Question 1113:

  DRAG DROP

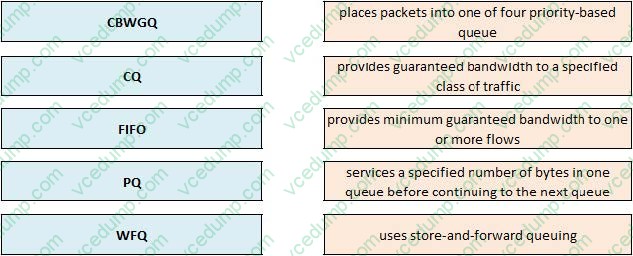

  Drag and drop the QoS congestion management terms from the left onto the description on the right.

  Select and Place:





• Question 1114:

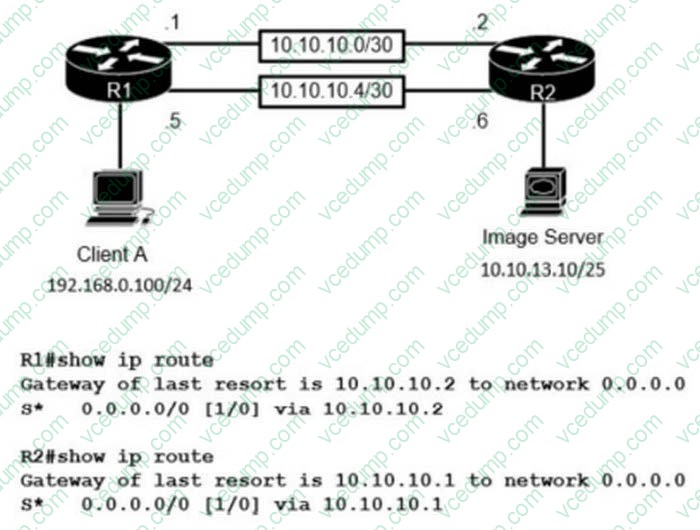

  Refer to the exhibit.



  The image server and client A are running an application that transfers an extremely high volume of data between the two. An engineer is configuring a dedicated circuit between R1 and R2. Which set of commands must the engineer apply to the routers so that only traffic between the image server and client A is forces to use the new circuit?

  A. R1(config)#ip route 10.10.13.10 255.255.255.255 10.10.10.6 R2(config)#ip route 192.168.0.100 255.255.255.255 10.10.10.5
  B. R1(config)#ip route 10.10.13.10 255.255.255.128 10.10.10.6 R2(config)#lp route 192.168.0.100 255.255.255.0 10.10.10.5
  C. R1(config)#ip route 10.10.13.10 255.255.255.252 10.10.10.6 R2(config)#tp route 192.168.0.100 255.255.255.252 10.10.10.5
  D. R1(config)#ip route 10.10.13.10 255.255.255.255 10.10.10.2 R2(config)#ip route 192.168.0.100 255.255.255.255 10.10.10.1
  A. R1(config)#ip route 10.10.13.10 255.255.255.255 10.10.10.6 R2(config)#ip route 192.168.0.100 255.255.255.255 10.10.10.5

• Question 1115:

  A network engineer must implement an IPv6 configuration on the vlan 2000 interface to create a routable locally-unique unicast address that is blocked from being advertised to the internet. Which configuration must the engineer apply?

  A. interface vlan 2000 ipv6 address ffc0:0000:aaaa::1234:2343/64
  B. interface vlan 2000 Ipv6 address fc00:0000:aaaa:a15d:1234:2343:8aca/64
  C. interface vlan 2000 ipv6 address fe80;0000:aaaa::1234:2343/64
  D. interface vlan 2000 ipv6 address fd00::1234:2343/64
  D. interface vlan 2000 ipv6 address fd00::1234:2343/64

  ---

  both FC00/FD00 are unique local addresses routable within organization....but in "B" answer there is only 7 octets....there must be 8 octets.....

• Question 1116:

  Refer to the exhibit.



  Which switch becomes the root bridge?

  A. SW 1 Bridge Priority - 20480 mac-address 00:10:a1:71 :e3:35
  B. SW 2 Bridge Priority - 20480 mac-address 00:10:a1:54:4e:50
  C. SW 3 Bridge Priority - 57344 mac-address 00:10:a1:93:09:2d
  D. SW 4 Bridge Priority - 57344 mac-address 00:10:a1:57:61:80
  B. SW 2 Bridge Priority - 20480 mac-address 00:10:a1:54:4e:50

• Question 1117:

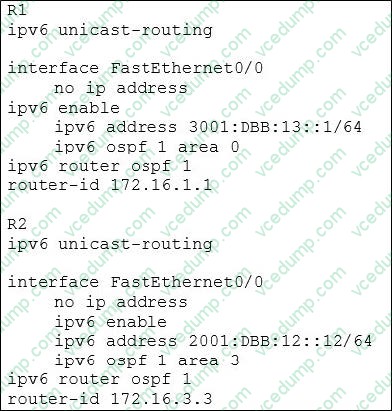

  Refer to the exhibit. After you apply the given configurations to R1 and R2 you notice that OSPFv3 fails to start.



  A. The area numbers on R1 and R2 are mismatched
  B. The IPv6 network addresses on R1 and R2 are mismatched
  C. The autonomous system numbers on R1 and R2 are mismatched
  D. The router ids on R1 and R2 are mismatched
  A. The area numbers on R1 and R2 are mismatched

• Question 1118:

  What does the implementation of a first-hop redundancy protocol protect against on a network?

  A. root-bridge loss
  B. spanning-tree loops
  C. default gateway failure
  D. BGP neighbor flapping
  C. default gateway failure

  ---

  The primary purpose of FHRP is to provide redundancy for the default gateway. If the primary router that serves as the default gateway fails, FHRP ensures that another router in the FHRP group automatically takes over its duties. This protection against default gateway failures ensures uninterrupted network connectivity for end devices.

• Question 1119:

  Which signal frequency appears 60 times per minute?

  A. 1 Hz signal
  B. 1 GHz signal
  C. 60 Hz signal
  D. 60 GHz signal
  C. 60 Hz signal

  ---

  A signal frequency that appears 60 times per minute is a 60 Hz signal. The unit "Hz" (hertz) represents the number of cycles or oscillations per second. In this case, a signal with a frequency of 60 Hz means it completes 60 cycles or oscillations in one second.

  Since there are 60 seconds in a minute, a 60 Hz signal will complete 60 cycles per second multiplied by 60 seconds, resulting in a total of 3,600 cycles or oscillations per minute. To summarize, a signal frequency that appears 60 times per minute is a 60 Hz signal.

• Question 1120:

  A network engineer must migrate a router loopback interface to the IPv6 address space. If the current IPv4 address of the interface is 10.54.73.1/32, and the engineer configures IPv6 address 0:0:0:0:0:ffff:a36:4901, which prefix length must be used?

  A. /64
  B. /96
  C. /124
  D. /128
  D. /128

  ---

  The equivalent subnet mask in IPv6 for an IPv4 /32 subnet mask is /128 and here're sample loopback interface config steps: configure terminal interface loopback 0 ipv6 address 2001:db8::1/128 no shutdown exit show interface loopback 0
