• Question 1081:

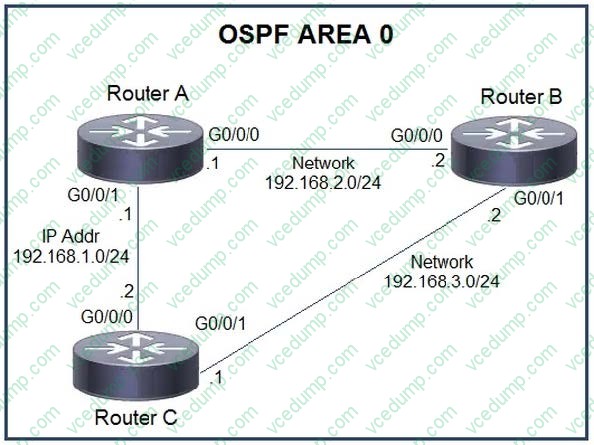

  Refer to the exhibit. Which action must be taken to ensure that router A is elected as the DR for OSPF area 0?



  A. Configure the OSPF priority on router A with the lowest value between the three routers.
  B. Configure router B and router C as OSPF neighbors of router A.
  C. Configure the router A interfaces with the highest OSPF priority value within the area.
  D. Configure router A with a fixed OSPF router ID
  C. Configure the router A interfaces with the highest OSPF priority value within the area.

• Question 1082:

  Refer to the exhibit.



  Which type of JSON data is shown?

  A. Boolean
  B. string
  C. object
  D. sequence
  C. object

• Question 1083:

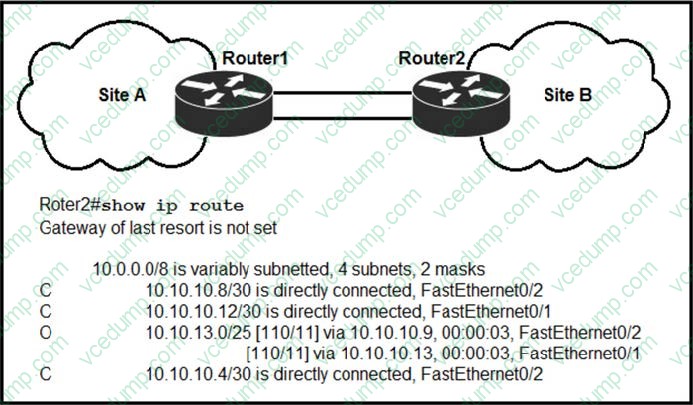

  Refer to the exhibit.



  If OSPF is running on this network, how does Router 2 handle traffic from Site B to 10.10.13.128/25 at Site A?

  A. It sends packets out of interface Fa0/1 only.
  B. It sends packets out of interface Fa0/2 only.
  C. It load-balances traffic out of Fa0/1 and Fa0/2.
  D. It cannot send packets to 10.10.13.128/25.
  D. It cannot send packets to 10.10.13.128/25.

  ---

  Router2 does not have an entry for the subnet 10.10.13.128/25. It only has an entry for 10.10.13.0/25, which ranges from 10.10.13.0 to 10.10.13.127

• Question 1084:

  DRAG DROP

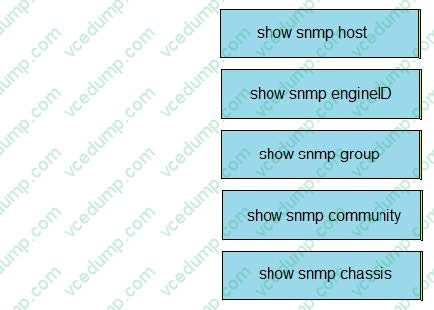

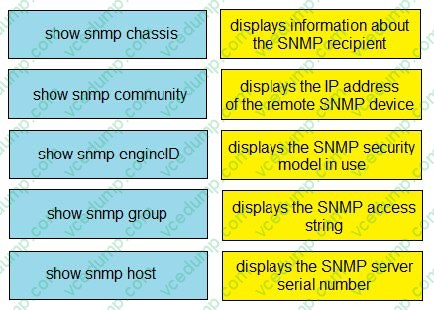

  Drag and drop the SNMP manager and agent identifier commands from the left onto the functions on the right

  Select and Place:





• Question 1085:

  CCNA Lab simulation

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary pre-configurations have been applied.

  5. Do not remove any existing configurations from the devices, only those necessary to make the appropriate changes required to fulfill the listed tasks.

  6. Do not change the enable password or hostname for any device.

  7. Save your configurations to NVRAM before moving to the next item.

  8. Click Next at the bottom of the screen to submit this lab and move to the next question.

  9. When Next is clicked, the lab closes and cannot be reopened.

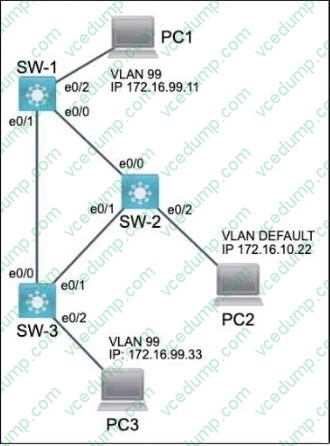

  Topology



  Tasks

  All physical cabling is in place and verified. Connectivity for PC1, PC2 and PC3 must be established to the switches. Each port connecting to the PCs must be configured as an end-user port and only allow the designated VLAN.

  1.Configure VLAN 99 on all three switches and label it exactly as FINANCIAL

  2.Configure the switch ports connecting to PC1, PC2 and PC3

  3.Cisco's neighbor discovery protocol has been disabled on SW-1 and must be re-enabled

  4.PC1 must not be able to discover SW-1

  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  Task 1:

  SW-1(config)# vlan 99

  SW-1(config-vlan)# name FINANCIAL

  SW-1(config-vlan)# exit

  SW-2(config)# vlan 99

  SW-2(config-vlan)# name FINANCIAL

  SW-2(config-vlan)# exit

  SW-3(config)# vlan 99

  SW-3(config-vlan)# name FINANCIAL

  SW-3(config-vlan)# exit

  Task 2:

  SW-1(config)# interface e0/2

  SW-1(config-if)# switchport mode access

  SW-1(config-if)# switchport access vlan 99

  SW-1(config-if)# exit

  SW-2(config)# interface e0/2

  SW-2(config-if)# switchport mode access

  SW-2(config-if)# switchport access vlan 99

  SW-2(config-if)# exit

  SW-3(config)# interface e0/2

  SW-3(config-if)# switchport mode access

  SW-3(config-if)# switchport access vlan 99

  SW-3(config-if)# exit

  Task 3:

  SW-1(config)# cdp run

  Task 4:

  SW-1(config)# interface e0/2

  SW-1(config-if)# no cdp enable

• Question 1086:

  Which group of channels in the 802.11b/gin/ac/ax 2.4 GHz frequency bands are nonoverlapping channels?

  A. channels 1, 5, and 10
  B. channels 1, 6, and 11
  C. channels 1, 5, and 11
  D. channels 1, 6, and 10
  B. channels 1, 6, and 11

• Question 1087:

  Refer to the exhibit. Which two commands must be configured on router R1 to enable the router to accept secure remote-access connections? (Choose two.)



  A. ip ssh pubkey-chain
  B. username cisco password 0 cisco
  C. crypto key generate rsa
  D. transport input telnet
  E. login console
  A. ip ssh pubkey-chain
  C. crypto key generate rsa

  ---

  Option A (ip ssh pubkey-chain) enables SSH connections using public key authentication, which is a more secure method compared to password-based authentication. Option C (crypto key generate rsa) generates an RSA key pair that is used for encryption and authentication purposes when establishing secure connections, such as SSH. The other options are not directly related to enabling secure remote-access connections:

  B. username cisco password 0 cisco - This command creates a local user account with the username "cisco" and a plaintext password. However, it does not enable secure remote-access connections.

  D. transport input telnet - This command allows telnet access to the router, but telnet is not a secure protocol.

  E. login console - This command enables console line authentication, but it is not specific to remote-access connections or providing security for them.

• Question 1088:

  Which two QoS tools provide congestion management? (Choose two.)

  A. CBWFQ
  B. FRTS
  C. CAR
  D. PBR
  E. PQ
  A. CBWFQ
  E. PQ

  ---

  Common Cisco IOS-based congestion management tools include CBWFQ and LLQ algorithms. LLQ brings strict priority queuing (PQ) to CBWFQ. CBWFQ extends the standard WFQ functionality to provide support for user-defined traffic classes. For CBWFQ, you define traffic classes based on match criteria including protocols, access control lists (ACLs), and input interfaces. Packets satisfying the match criteria for a class constitute the traffic for that class. Priority queueing (PQ). With PQ, packets belonging to one priority class of traffic are sent before all lower priority traffic to ensure timely delivery of those packets.

• Question 1089:

  An engineer needs to configure an access point to forward all client traffic through a wireless controller. Which mode must be enabled to accomplish this task?

  A. local
  B. monitor
  C. autonomous
  D. rogue detector
  A. local

• Question 1090:

  What are two functions of a Layer 2 switch? (Choose two)

  A. acts as a central point for association and authentication servers
  B. selects the best route between networks on a WAN
  C. moves packets within a VLAN
  D. moves packets between different VLANs
  E. makes forwarding decisions based on the MAC address of a packet
  C. moves packets within a VLAN
  E. makes forwarding decisions based on the MAC address of a packet

  ---

  Little confusion at first about E because of the use of the word "Packet" which is a layer 3 term rather than using "Frame" for a layer 2 concept. However, we need to remember that packet is a general term that is also used to replace other terms like a "frame" of other layers. CISCO questions like this tend to use it as well. Also, a L3 packet encapsulates a L2 frame which in turn embed a frame.
