Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 91:

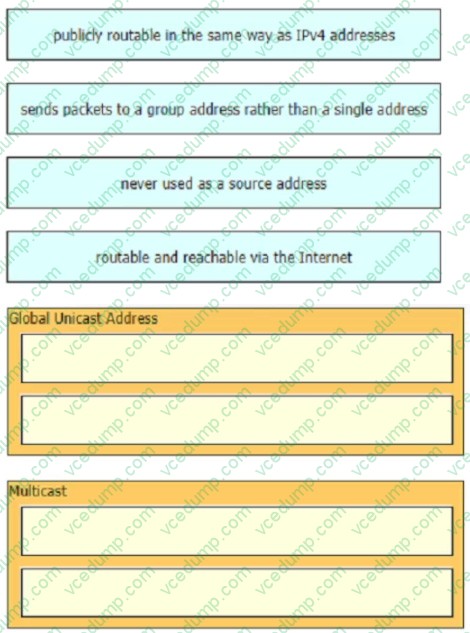

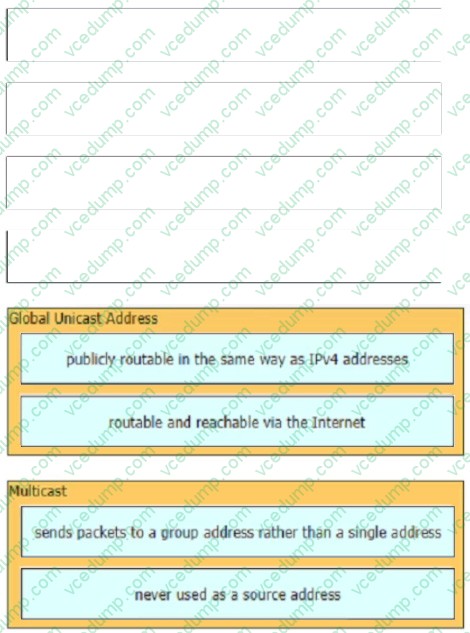

  DRAG DROP

  Drag and drop the characteristic from the left onto the IPv6 address type on the right.

  Select and Place:





• Question 92:

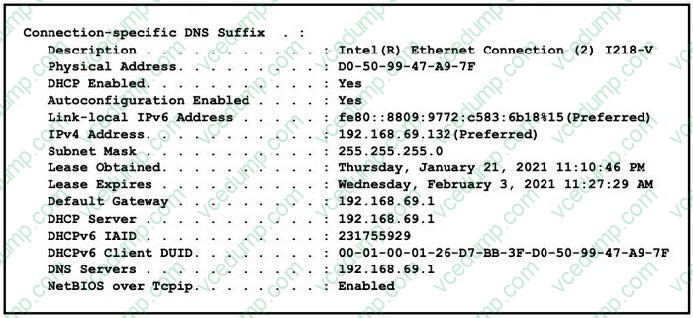

  Refer to the exhibit.



  What does the host do when using the IPv4 Preferred function?

  A. It forces the DNS server to provide the same IPv4 address at each renewal.
  B. It requests the same IPv4 address when it renews its lease with the DHCP server.
  C. It prefers a pool of addresses when renewing the IPv4 host IP address.
  D. It continues to use a statically assigned IPv4 address.
  B. It requests the same IPv4 address when it renews its lease with the DHCP server.

• Question 93:

  Which implementation provides the strongest encryption combination for the wireless environment?

  A. WPA2 + AES
  B. WPA + AES
  C. WEP
  D. WPA + TKIP
  A. WPA2 + AES

• Question 94:

  Which command enables IPv6 routing on a Cisco router?

  A. ipv6 enable
  B. ipv6 unicast-routing
  C. ipv6 route ::/0
  D. ip routing
  B. ipv6 unicast-routing

  ---

  The ipv6 unicast-routing command globally enables IPv6 routing on a Cisco router. Without this command, the router will not forward IPv6 packets between interfaces.

• Question 95:

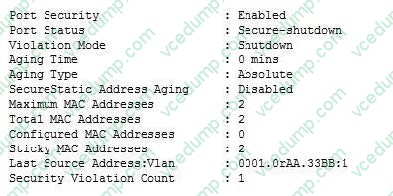

  Refer to the exhibit.



  Which two statements about the interface that generated the output are true? (Choose two.)

  A. Two secure MAC address are manually configured on the interface.
  B. A syslog message is generated when the maximum number of secure MAC addresses is on the interface.
  C. The interface is error -disabled.
  D. The interface dynamic ally learned two secure MAC addresses.
  E. An SNMP trap is generated when the maximum number of secure MAC addresses is reached on the interface.
  C. The interface is error -disabled.
  D. The interface dynamic ally learned two secure MAC addresses.

• Question 96:

  Which device separates networks by security domains?

  A. intrusion protection system
  B. firewall
  C. wireless controller
  D. access point
  B. firewall

• Question 97:

  How does MAC learning function?

  A. overwrites the known source MAC address in the address table
  B. enabled by default on all VLANs and interfaces
  C. protects against denial of service attacks
  D. forwards frames to a neighbor port using CDP
  B. enabled by default on all VLANs and interfaces

• Question 98:

  CCNA Lab simulation

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8. When Next is clicked, the lab closes and cannot be reopened.



  Tasks

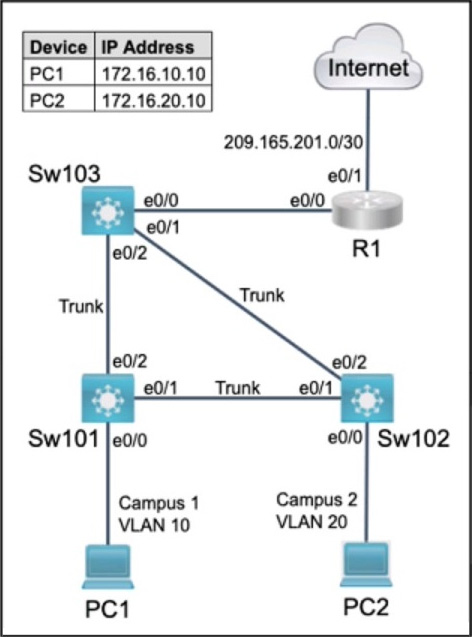

  Refer to the topology. All physical cabling is in place. Configure a local user account, a Named ACL (NACL) and security.

  1.Configure a local account on Sw101 with telnet access only on virtual ports 0-4. Use the following information: Username: netops Password: ipsec4all Algorithm: "Vigenere" Privilege level: Exec mode

  2.Configure and apply a single NACL on Sw103 using the following: name: ENT_ACL Restrict only PC1 on VLAN 10 from pinging PC2 Allow only PC1 on VLAN 10 to telnet to R1 (172.16.30.2) Prevent all other devices from telnetting from VLAN 10 Allow all other network traffic from VLAN 10

  3.Configure security on interface Ethernet 0/0 of Sw102: Set the maximum number of secure MAC addresses to two Ensure that the port discards the packet, counts the number of violations and sends a syslog message Allow secure mac addresses to be learned dynamically

  A. Check the explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the explanation below

  ---

  Explanation

  Task 1:

  SW101(config)# username netops password ipsec4all

  SW101(config)# service password-encryption

  SW101(config)# line vty 0 4

  SW101(config-line)# login local

  SW101(config-line)# transport input telnet

  SW101(config-line)# exit

  SW101(config)# end

  SW101# write memory

  Task 2:

  SW103(config)# ip access-list extended ENT_ACL

  SW103(config-ext-acl)# permit icmp host 172.16.10.10 host 172.16.20.10

  SW103(config-ext-acl)# deny icmp amy any

  SW103(config-ext-acl)# permit tcp host 172.16.10.10 host 172.16.30.2 eq telnet

  SW103(config-ext-acl)# deny tcp any any eq telnet

  SW103(config-ext-acl)# permit ip any any

  SW103(config-ext-acl)# exit

  SW103(config)# interface vlan 10

  SW103(config-if)# ip access-group ENT ACL in

  SW103(config-if)# exit

  SW103(config)# end

  SW103# write memory

  Task 3:

  SW102(config)# interface Ethernet0/0

  SW102(config-if)# switchport port-security

  SW1o2(config-if)# switchport port-security maximum 2

  SW1o2(config-if)# switchport port-security violation restrict

  SW102(config-if)# exit

  SW102(config)# end

  SW102# write memory

• Question 99:

  What is the difference regarding reliability and communication type between TCP and UDP?

  A. TCP is reliable and is a connectionless protocol; UDP is not reliable and is a connection-oriented protocol.
  B. TCP is not reliable and is a connectionless protocol; UDP is reliable and is a connection-oriented protocol.
  C. TCP is not reliable and is a connection-oriented protocol; UDP is reliable and is a connectionless protocol.
  D. TCP is reliable and is a connection-oriented protocol; UDP is not reliable and is a connectionless protocol.
  D. TCP is reliable and is a connection-oriented protocol; UDP is not reliable and is a connectionless protocol.

  ---

  Key points of difference between TCP and UDP

  TCP is the connection-oriented protocol while UDP is connectionless protocol.

  TCP is more reliable than UDP.

  Ref: Difference between TCP and UDP: Comparison in 2022 - IP With Ease

• Question 100:

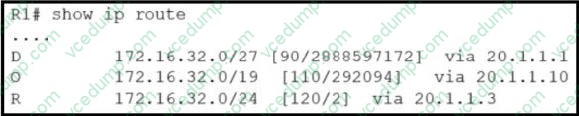

  Refer to the exhibit.



  An engineer executed the script and added commands that were not necessary for SSH and now must remove the commands. Which routing attribute determines the best path when multiple routes to the same destination exist?

  A. metric
  B. cost
  C. longest prefix
  D. administrative distance
  C. longest prefix

  ---
