Cisco 200-150 Online Practice Questions and Exam Preparation

Cisco 200-150 Online Questions & Answers

• Question 291:

  When the auto-MDIX feature is disabled, which two network configurations require a crossover cable? (Choose two )

  A. hub-to-router
  B. router-to-workstation
  C. switch-to-workstation
  D. switch-to-router
  E. hub-to-switch
  A. hub-to-router
  E. hub-to-switch

• Question 292:

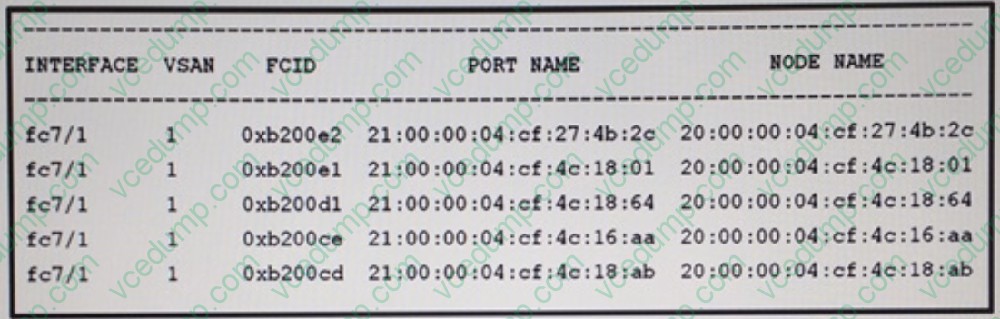

  Refer to the exhibit. What two conclusions can be mode based upon the output? (Choose two.)

  A. regular fromat WWNs are being used
  B. the command show flogl database was run
  C. the command show fcns database vsan 1 was run
  D. registered name formate WWNs are being used
  E. extended format WWNs are being used.
  B. the command show flogl database was run
  E. extended format WWNs are being used.

• Question 293:

  Which two descriptions of fibre Channel WWNs are true? (Choose two.)

  A. 48 bits long
  B. 64 or 128 bits long
  C. 96 bits long
  D. manually configured on each device by an administrator
  E. allocated to manufacturers by IEEE (hardcoded into each device when manufactured)
  B. 64 or 128 bits long
  E. allocated to manufacturers by IEEE (hardcoded into each device when manufactured)

• Question 294:

  Which two descriptions of a Fabricpath network are true? (Choose two.)

  A. A leaf node connects to servers.
  B. Leaf nodes can be Layer 3 devices.
  C. A spine node connects to other switch in the fabric.
  D. There is a spanning tree protocol running between leaf and spine switches
  E. A spine node connects to servers.
  B. Leaf nodes can be Layer 3 devices.
  D. There is a spanning tree protocol running between leaf and spine switches

• Question 295:

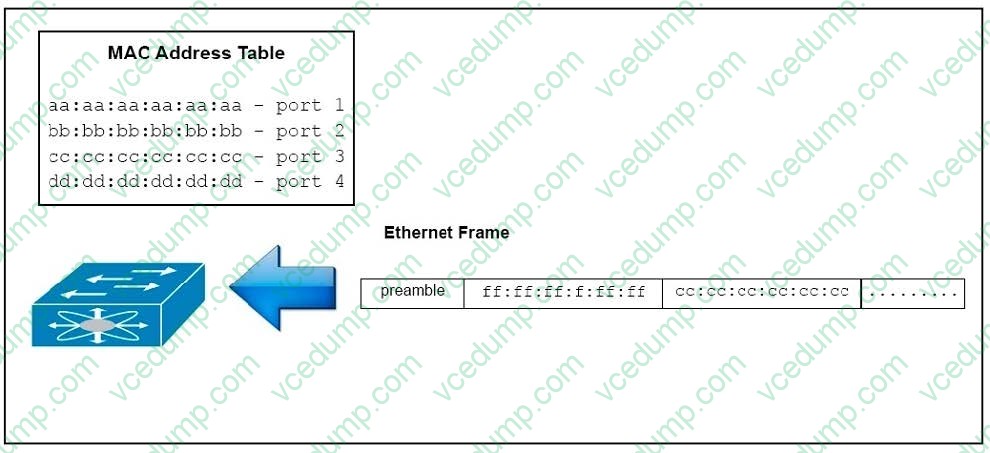

  Refer to the exhibit. How does the switch process the Ethernet frame?



  A. drop the frame
  B. Forwards the frame to port3
  C. filter the frame
  D. floods the frame
  B. Forwards the frame to port3

• Question 296:

  In IPv6, which protocol a host to determine the link-layer address of the node that it wants to communicate within the local network, and to find out the link-layer address of the router through which it can access a node in an external network?

  A. MAC Address Discovery Protocol
  B. Address Resolution Protocol V6
  C. Address Resolution Protocol
  D. Neighbor Discovery Protocol
  D. Neighbor Discovery Protocol

• Question 297:

  Which address type is used in IPv4 but is not used in IPv6?

  A. multicast
  B. broadcast
  C. anycast
  D. unicast
  B. broadcast

• Question 298:

  The MAC address table on a Cisco Nexus Server switch is full .What Layer 2 network behavior will occur while the network MAC address table remains full?

  A. All frames will be flooded.
  B. Frames with an unknown destination address will be flooded.
  C. The switch reset the Mac address table. removin all MAC addresses.
  D. The stitch will remove all dynamically MAC address from the table
  B. Frames with an unknown destination address will be flooded.

• Question 299:

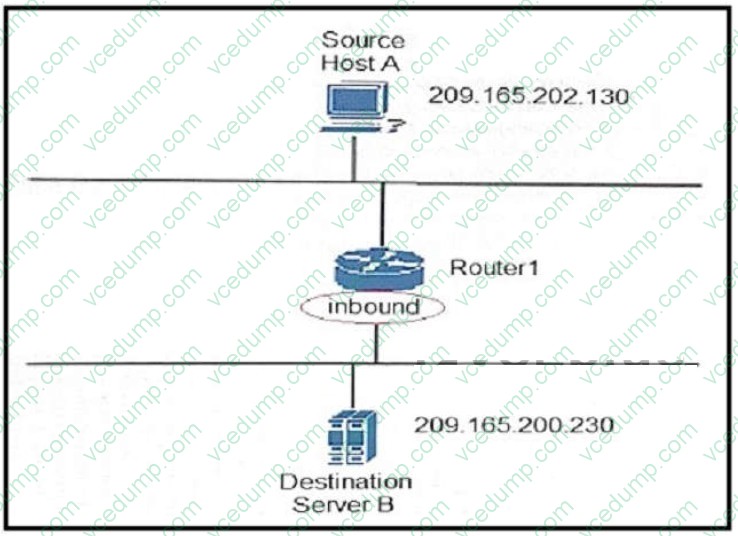

  Refer to the exhibit.



  You are configuring an extended access list to permit a reply from Destination Server B to Source Host A for HTTP traffic.

  Which extended access list should you implement on the inbound interface of Router1?

  A. router(config)# permit tcp host 209.165.200.230 host 209.165.202.130 eq www
  B. router(config)# permit tcp host 209.165.200.230 eq www host 209.165.202.130
  C. router(config)# permit tcp host 209.165.202.130 host 209.165.200.230 eq www
  D. router(config)# permit tcp host 209.165.202.130 eq www host 209.165.200.230
  A. router(config)# permit tcp host 209.165.200.230 host 209.165.202.130 eq www

• Question 300:

  A switch receives a frame. The destination MAC address is located on the same port where the switch received the frame.

  Which action does the switch perform on the frame?

  A. flood
  B. filter
  C. forward
  D. buffer
  B. filter
