Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 1041:

  You notice that packets that are sent from a local host to a well-known service on TCP port 80 of a remote host are sometimes lost.You suspect an ACL issue.Which two APIC- EM path Trace ACL-analysis options should you use to troubleshoot the problem? (choose two)

  A. debug
  B. protocol
  C. QOS
  D. performance Monitor
  E. destination port
  C. QOS
  D. performance Monitor

• Question 1042:

  Which two steps must you perform to enbale router-on-stick on a switch?(Choose two)

  A. connect the router to a trunk port
  B. config the subint number exactly the same as the matching VLAN
  C. config full duplex
  D. cofigure an ip route to the vlan destn net
  E. assign the access port to the vlan
  A. connect the router to a trunk port
  E. assign the access port to the vlan

• Question 1043:

  Which feature can cause a port to shut down immediately after a switch reboot?

  A. port security
  B. DTP
  C. COPP
  D. PortFast
  A. port security

• Question 1044:

  Scenario:

  Refer to the topology. Your company has decided to connect the main office with three other remote branch offices using point-to-point serial links.

  You are required to troubleshoot and resolve OSPF neighbor adjacency issues between the main office and the routers located in the remote branch offices.



  An OSPF neighbor adjacency is not formed between R3 in the main office and R4 in the Branch1 office. What is causing the problem?

  A. There is an area ID mismatch.
  B. There is a Layer 2 issue; an encapsulation mismatch on serial links.
  C. There is an OSPF hello and dead interval mismatch.
  D. The R3 router ID is configured on R4.
  A. There is an area ID mismatch.

  ---

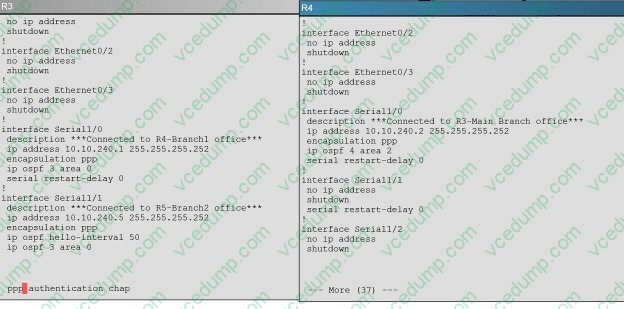

  A show running-config command on R3 and R4 shows that R4 is incorrectly configured for area 2:



• Question 1045:

  Which two statements about single- and dual-homed links are true? (Choose two.)

  A. Dual-homed connections to a service provider most frequently use static routing.
  B. Dual-homed connections to multiple service providers can use OSPF or EIGRP for load balancing.
  C. Single-homed connections to a service provider require OSPF or EIGRP.
  D. Single-homed connections to a service provider can use either static routing or BGP.
  E. Dual-homed connections to multiple service providers typically use BGP.
  D. Single-homed connections to a service provider can use either static routing or BGP.
  E. Dual-homed connections to multiple service providers typically use BGP.

• Question 1046:

  Which two protocols are used by bridges and/or switches to prevent loops in a layer 2 network? (Choose two.)

  A. 802.1d
  B. VTP
  C. 802.1q
  D. STP
  E. SAP
  A. 802.1d
  D. STP

  ---

  This question is to examine the STP protocol.

  STP (802.1d) is used to prevent Layer 2 loops.

  802.1q is a Frame Relay protocol which belongs to VLAN.

  SAP is a concept of the OSI model.

• Question 1047:

  which command should you enter to configure a single port to prevent alternate ports from becoming designated ports?

  A. spanning-tree etherchannel misconfig
  B. spanning-tree guard root
  C. spanning-tree loopguard default
  D. spanning-tree guard loop
  D. spanning-tree guard loop

• Question 1048:

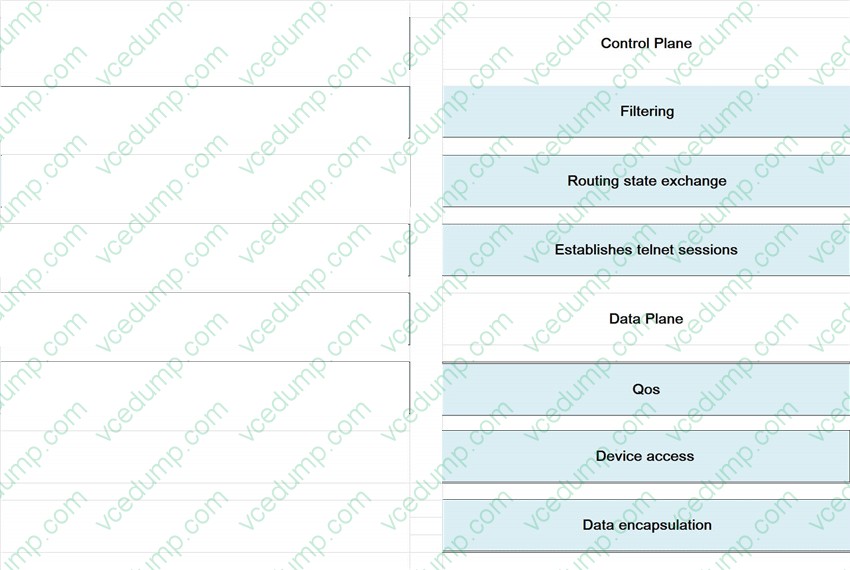

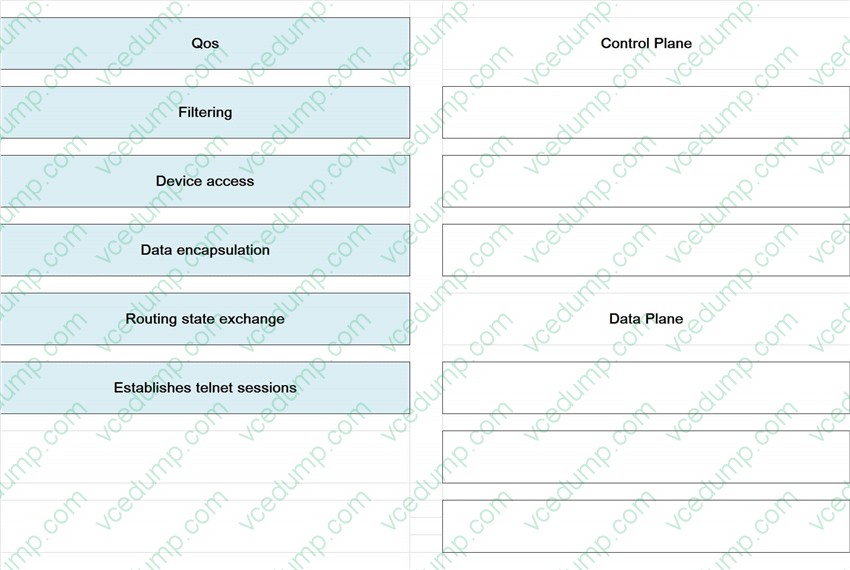

  Drag and Drop

  Select and Place:





• Question 1049:

  Which configuration register setting do you use to bypass the password that is stored in the startup configuration?

  A. 0x2142
  B. 0xFFFF
  C. 0x2102
  D. 1x2102
  A. 0x2142

• Question 1050:

  What are two benefits of private IPv4 IP addresses? (Choose two.)

  A. They are routed the same as public IP addresses.
  B. They are less costly than public IP addresses.
  C. They can be assigned to devices without Internet connections.
  D. They eliminate the necessity for NAT policies.
  E. They eliminate duplicate IP conflicts.
  B. They are less costly than public IP addresses.
  C. They can be assigned to devices without Internet connections.
