Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 1031:

  Which two statements about UTP cables are true? (Choose two)

  A. Category 6 Ethernet cables are appropriate for installations of up to 200m
  B. Category 6a Ethernet cable can transmit up to 10 Gbps
  C. All Ethernet cable types from Category 1 through Category 6 are suitable for transmitting data m the appropriate environments
  D. Category 5 Ethernet cables support speeds up to 1000 Mbps beyond 100m.
  E. Category 5e Ethernet cables support speeds up to 1000 Mbps
  B. Category 6a Ethernet cable can transmit up to 10 Gbps
  E. Category 5e Ethernet cables support speeds up to 1000 Mbps

• Question 1032:

  A router has two Fast Ethernet interfaces and needs to connect to four VLANs in the local network. How can you accomplish this task, using the fewest physical interfaces and without decreasing network performance?

  A. Use a hub to connect the four VLANS with a Fast Ethernet interface on the router.
  B. Add a second router to handle the VLAN traffic.
  C. Add two more Fast Ethernet interfaces.
  D. Implement a router-on-a-stick configuration.
  D. Implement a router-on-a-stick configuration.

  ---

  A router on a stick allows you to use sub-interfaces to create multiple logical networks on a single physical interface.

• Question 1033:

  Refer to the exhibit.which two statements about router R1 are true?(choose two)



  A. the router has two EIGRP neighbors and one OSPF neighbor
  B. at least two IGP routing protocols are running on the router
  C. at least three IGP routing protocols are running on the router
  D. the router is learning external OSPF and EIGRP routes
  E. the router has an OSPF Area 0 adjacency with the device at 10.82.4.42
  C. at least three IGP routing protocols are running on the router
  D. the router is learning external OSPF and EIGRP routes

• Question 1034:

  Which technology can provide security when connection multiple sites across the internet?

  A. EBGP
  B. DMVPN
  C. Site-to-site vpn
  D. MPLS
  B. DMVPN

• Question 1035:

  which two statements about data vlans on access ports are true ?

  A. they can be configured as trunk ports
  B. 802.1Q encapsulation must be configured on the interface
  C. Exactly one vlan can be configured on the interface
  D. Two or more vlans can be configured on the interface
  E. They can be configured as host ports
  C. Exactly one vlan can be configured on the interface
  E. They can be configured as host ports

• Question 1036:

  What are the possible trunking modes for a switch port? (Choose three.)

  A. transparent
  B. auto
  C. on
  D. desirable
  E. client
  F. forwarding
  B. auto
  C. on
  D. desirable

  ---

  These are the different types of trunk modes: ON: This mode puts the port into permanent trunk mode and negotiates to convert the link into a trunk link. The port becomes a trunk port even if the adjacent port does not agree to the change. OFF: This mode puts the port into permanent non-trunk mode and negotiates to convert the link into a non-trunk link. The port becomes a non-trunk port even if the adjacent port does not agree to the change. Desirable: This mode causes the port to actively attempt to convert the link into a trunk link. The port becomes a trunk port if the adjacent port is set to on, desirable, or auto mode. Auto: This mode enables the port to convert the link into a trunk link. The port becomes a trunk port if the adjacent port is set to on or desirable mode. This is the default mode for Fast and Gigabit Ethernet ports. Nonegotiate: This mode puts the port into permanent trunk mode, but does not allow the port to generate Dynamic Trunking Protocol (DTP) frames. The adjacent port must be configured manually as a trunk port to establish a trunk link.

• Question 1037:

  What feature uses a random time to re-sent a frame?

  A. CSMA/CA
  B. CSMA/CD
  B. CSMA/CD

• Question 1038:

  Which two goals reasons to implement private IPv4 addressing on your network?(choose two)

  A. Comply with PCI regulations
  B. Conserve IPv4 address
  C. Reduce the size of the forwarding table on network routers
  D. Reduce the risk of a network security breach
  E. Comply with local law
  B. Conserve IPv4 address
  D. Reduce the risk of a network security breach

• Question 1039:

  Drag and Drop

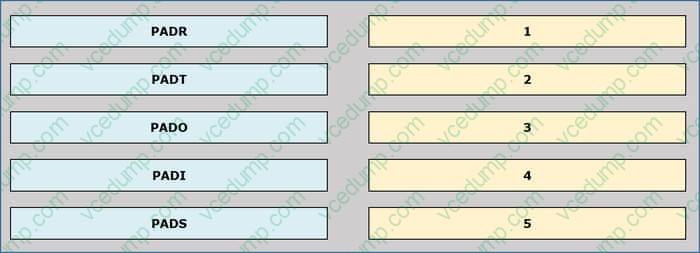

  Drag and drop the PPPoE packet type on the left to the corresponding desciption on the right.

  Select and Place:





• Question 1040:

  Which two options are valid WAN connectivity methods? (Choose two.)

  A. PPP
  B. WAP
  C. DSL
  D. L2TPv3
  E. Ethernet
  A. PPP
  C. DSL

  ---

  The Point-to-Point Protocol (PPP) provides a standard method for transporting multi- protocol datagrams over point-to-point links. PPP was originally emerged as an encapsulation protocol for transporting IP traffic between two peers. It is a

  data link layer protocol used for WAN connections.

  DSL is also considered a WAN connection, as it can be used to connect networks, typically when used with VPN technology.
