• Question 1021:

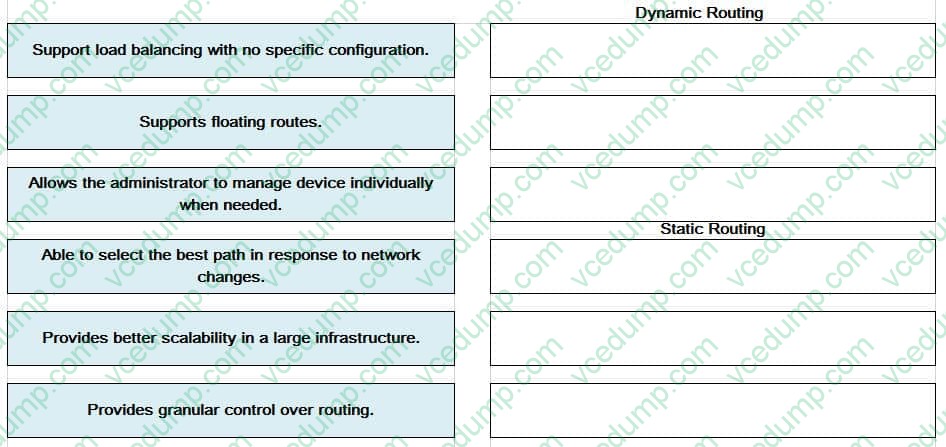

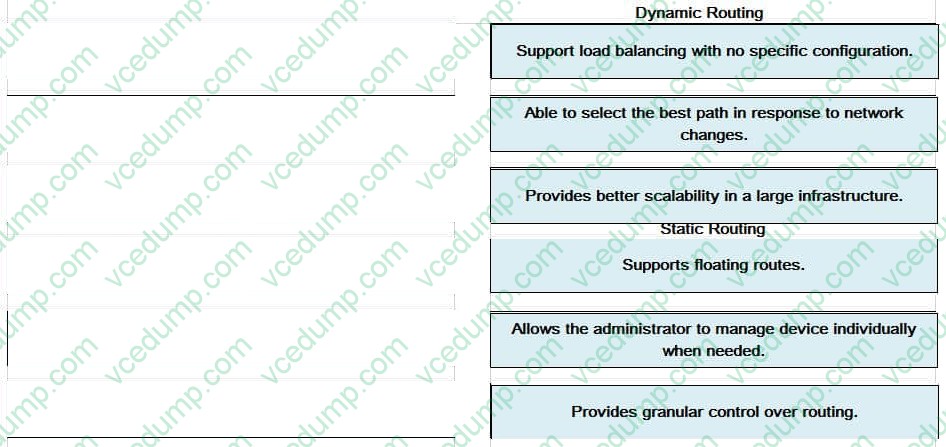

  Drag and drop each advantage of static or dynamic routing from the left onto the correct routing type on the right.

  Select and Place:





  ---

  Dynamic Routing:

  Support load balancing with no specific configuration.

  Able to select the best path in response to network changes

  Provides better scalability in a large infrastructure.

  Static Routing:

  Supports floating routes Allows the administrator to manage device individually when needed Provides granular control over routing.

• Question 1022:

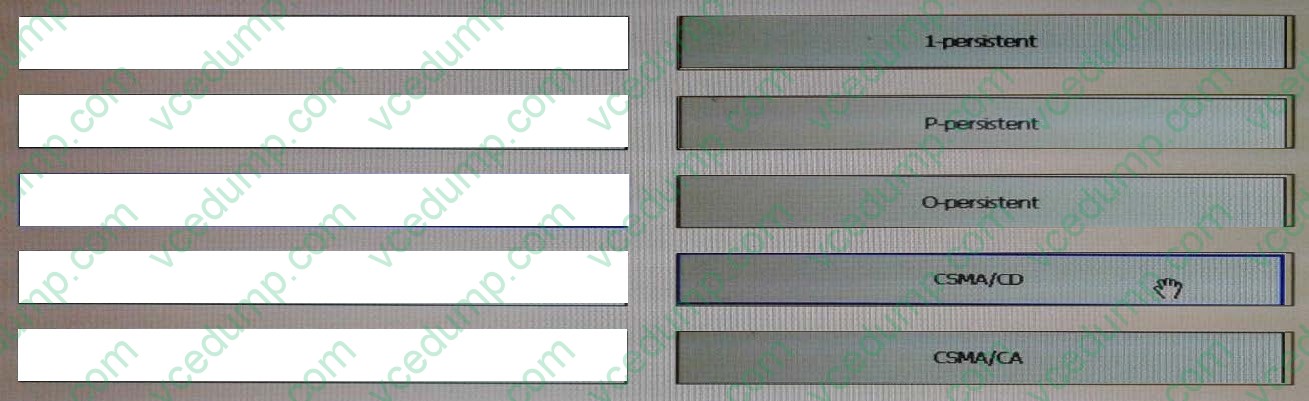

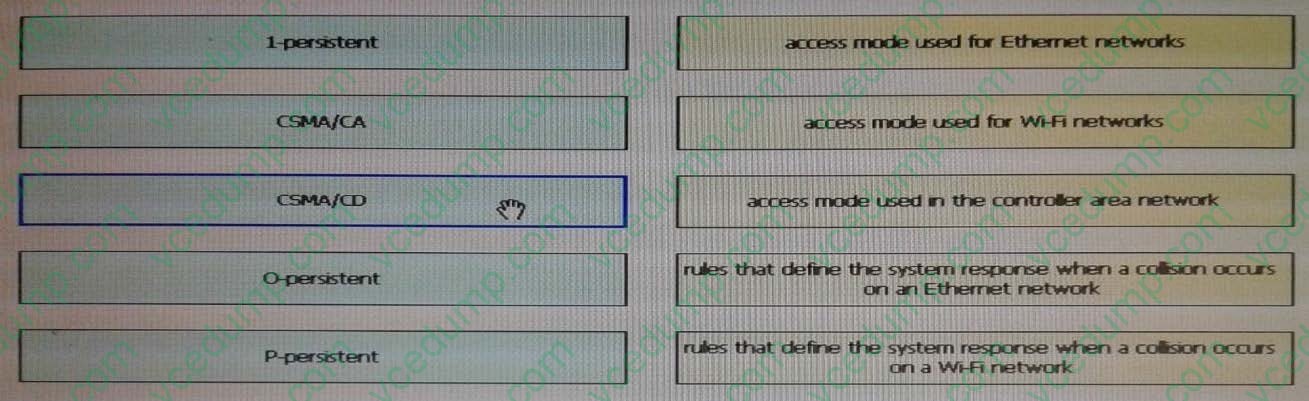

  Drag and Drop the CSMA Components from the left onto the correct description on the right.

  Select and Place:





• Question 1023:

  which command must you enter to guarantee that an HSRP router with higher priority becomes the HSRP primary router after it is reloaded?

  A. standby 10 priority
  B. standby version 2
  C. standby 10 preempt
  D. standby 10 version 1
  C. standby 10 preempt

• Question 1024:

  Which two are advantages of static routing when compared to dynamic routing? (Choose two.)

  A. Configuration complexity decreases as network size increases.
  B. Security increases because only the network administrator may change the routing table.
  C. Route summarization is computed automatically by the router.
  D. Routing tables adapt automatically to topology changes.
  E. An efficient algorithm is used to build routing tables, using automatic updates.
  F. Routing updates are automatically sent to neighbors.
  G. Routing traffic load is reduced when used in stub network links.
  B. Security increases because only the network administrator may change the routing table.
  G. Routing traffic load is reduced when used in stub network links.

  ---

  Since static routing is a manual process, it can be argued that it is more secure (and more prone to human errors) since the network administrator will need to make changes to the routing table directly. Also, in stub networks where there is only a single uplink connection, the load is reduced as stub routers just need a single static default route, instead of many routes that all have the same next hop IP address.

• Question 1025:

  Which Two options are features of the extended ping command ?

  A. it can send packets from a specified interface or ip address
  B. it can resolve the destination host name
  C. it can ping multiple hosts at the same time
  D. it can count the number of hops to the remote host
  E. it can send a specified number of packets
  A. it can send packets from a specified interface or ip address
  E. it can send a specified number of packets

• Question 1026:

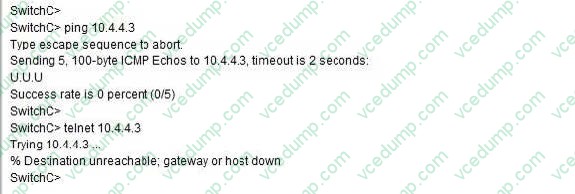

  An administrator is trying to ping and telnet from SwitchC to RouterC with the results shown below.

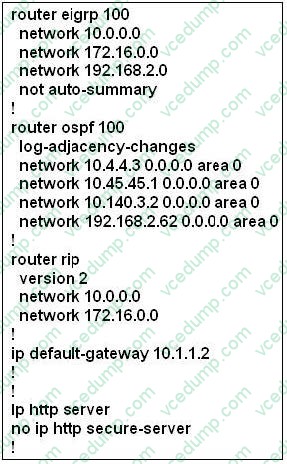

  Click the console connected to RouterC and issue the appropriate commands to answer the questions.





  Which will fix the issue and allow ONLY ping to work while keeping telnet disabled?

  A. Correctly assign an IP address to interface fa0/1.
  B. Change the ip access-group command on fa0/0 from "in" to "out".
  C. Remove access-group 106 in from interface fa0/0 and add access-group 115 in.
  D. Remove access-group 102 out from interface s0/0/0 and add access-group 114 in
  E. Remove access-group 106 in from interface fa0/0 and add access-group 104 in.
  E. Remove access-group 106 in from interface fa0/0 and add access-group 104 in.

  ---

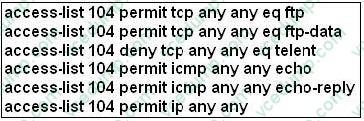

  Let's have a look at the access list 104:



  The question does not ask about ftp traffic so we don't care about the two first lines. The 3rd line denies all telnet traffic and the 4th line allows icmp traffic to be sent (ping). Remember that the access list 104 is applied on the inbound direction so the 5th line "access-list 104 deny icmp any any echo-reply" will not affect our icmp traffic because the "echo-reply" message will be sent over the outbound direction.

• Question 1027:

  Which three encapsulation layers in the OSI model are combined into the TCP/IP

  application layer? (Choose three)

  A. Session
  B. transport
  C. presentation
  D. application
  E. data-link
  F. network
  A. Session
  C. presentation
  D. application

• Question 1028:

  Which IEEE standard protocol is initiated as a result of successful DTP completion in a switch over Fast Ethernet?

  A. 802.3ad
  B. 802.1w
  C. 802.1D
  D. 802.1Q
  D. 802.1Q

  ---

  Dynamic Trunking Protocol (DTP) is a Cisco proprietary protocol for negotiating trunking on a link between two devices and for negotiating the type of trunking encapsulation (802.1Q) to be used.

• Question 1029:

  which port security mode can assist with troubleshooting by keeping count of

  violations?

  A. access.
  B. protect.
  C. restrict.
  D. shutdown.
  C. restrict.

• Question 1030:

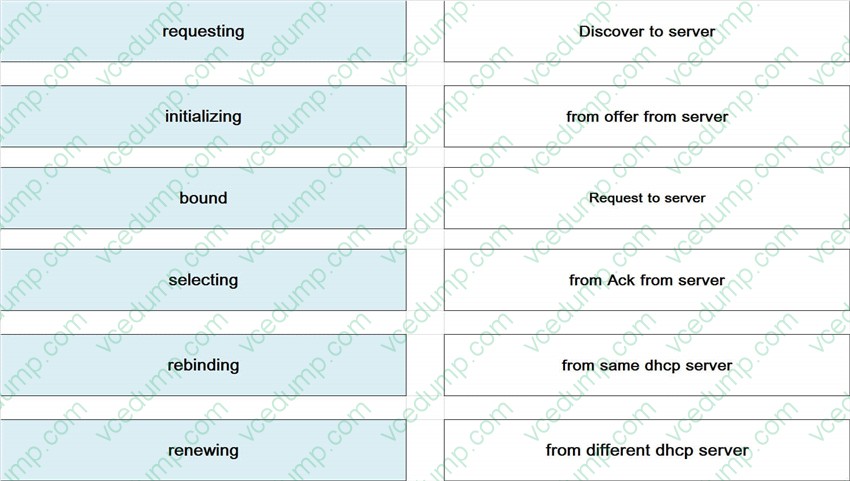

  Drag and Drop

  Select and Place:
